Circular DIN Backshells

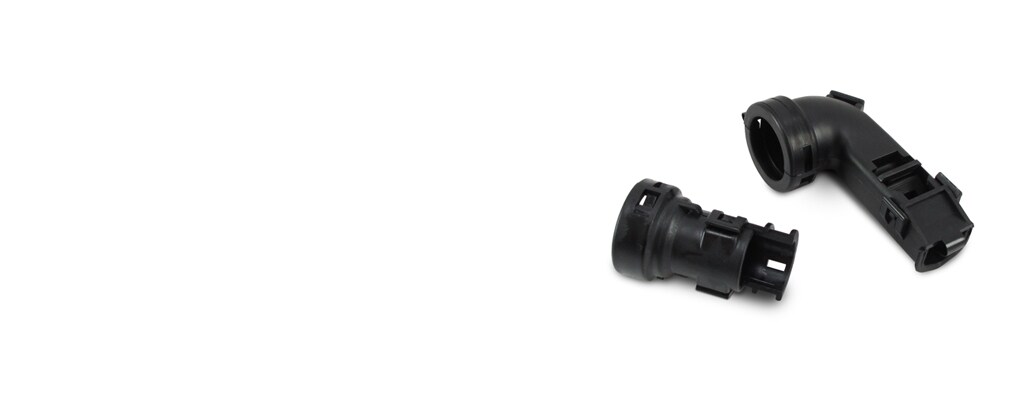

Circular DIN backshells provide additional wire protection and strain relief for circular DIN connector applications. Made from heavy-duty thermoplastic, these backshells are available in straight, 90°, and 45° options, enhancing both functionality and aesthetics.
Product Features
-
Packaging Method : Box, Carton, Package & Box, Box & Carton, Bag & Box
-
Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]
-
Primary Product Color : Black
-
Primary Product Material : PA6, PBT GF30, PBT
-
Compatible Cable Diameter Range (mm): 11.2, 14.4, 8.5, 26, 5, 5.5 – 8.1, 13.4, 9.6, 6 – 10, 22.5
-
Compatible Cable Diameter Range (in): .528, .197, .886, .236 – .394, .378, .441, .334, .567, 1.024, .21 – .33
Overview
Key Benefits:
Circular DIN Backshells
- Ingress Protection: Helps prevent dust, dirt, and moisture from entering the connector system, maintaining high IP ratings (IP67 or IP69K).
- Strain Relief: Reduces wire strain and helps prevent damage, enhancing the durability of the connection.
- Flexible Cable Routing: Offers 180°, 90°, and 45° cable exit options to accommodate various wiring configurations.
- Variety of Sizes: Compatible with a wide range of cable diameters to suit different applications.
- Easy Mounting: Features fixing rings for simple and secure panel mounting.
- Enhanced Aesthetics: Provides a more finished and streamlined look compared to exposed connectors and wiring.
- Durability: Made from rugged materials such as glass-filled PBT to withstand harsh environments, including vibration, temperature extremes, moisture, and abrasion.
- Standard Compliance: Many models conform to ISO 15170 / DIN 72585 standards for circular connectors, enabling compatibility and reliability.
- Packaging Options: Available in various packaging methods and quantities to meet different needs.
Circular DIN clamshell style backshells are made of rugged thermoplastic.
Key Features:
Circular DIN Backshells
| Feature | |
|---|---|
| Product Type |
Backshell |
| Sealable |
No |
| Number of Positions |
4, 7, 31 |
| Primary Product Color |
Black |
| Cable Exit Angle |
180°, 45°, 90° |
| Primary Product Material | PA GF, PA6, PBT |
| Strain Relief | With, Without |
| Compatible Cable Diameter Range | mm: 5, 5.5 – 8.1, 6 – 10, 8.5, 9.6, 11.2, 13.4, 14.4, 22.5, 26 |
| in: .197, .21 – .33, .236 – .394, .334, .378, .441, .528, .567, .886, 1.024 | |
| Operating Temperature Range | °C: -40 – 120 |
| °F: -40 – 248 | |
| UL Flammability Rating | UL 94HB |
| Serviceable | Yes |
Real-world Applications:
Circular DIN Backshells
- Factory Automation Systems: Protect and manage cables in automated manufacturing environments.
- Data Centers: Enables secure and organized cabling for high-performance data transmission.
- Aircraft and Spacecraft: Provide reliable cable connections in avionics and aerospace systems.
- Automotive Wiring Harnesses: Protect electrical connections in cars, trucks, and other vehicles.
- Construction Machinery: Safeguard wiring in heavy-duty equipment like excavators and bulldozers.
- Agricultural Equipment: Enhance durability and protection in tractors, harvesters, and other farming machinery.
- Military Vehicles: Use in armored vehicles and other military equipment for secure and robust connections.
- Marine Vessels: Protect electrical connections on boats and ships against moisture and corrosion.
- Medical Devices: Provides reliable connections in diagnostic equipment, imaging systems, and patient monitoring devices.
- Renewable Energy Systems: Use in solar panels and wind turbines to protect and organize cables.
- Telecom Infrastructure: Manage and protect cables in telecom towers and communication hubs.
- Robotics: Provide secure and flexible cable management in robotic systems and automation lines.
Other parts you may need
e
e
e
FAQ
Frequently Asked Questions
Q: What are circular and DIN connectors?
A: Our circular and DIN environmentally sealed connectors are designed for cable-to-cable, cable-to-board, and cable-to-device applications. The circular and DIN connectors are used in harsh environment applications where even a small degradation in connection may be critical.
Q: What is the operating temperature range for the circular and DIN connectors?
A: Operating at temperatures -40°C to +120°C for plastic parts, short term up to +140°C defined in the ISO 15170 / DIN 72585 standards
Q: What material are the circular and DIN connectors' shells made of?
A: Circular and DIN connectors shells are made of rugged glass-filled PBT and PA
Features
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Sealable No, Yes
-
Connector Backshell Product Type Backshell
Configuration Features
-
Number of Positions 31
Body Features
-
Primary Product Color Black
-
Primary Product Material PA6, PBT GF30, PBT
-
Cable Exit Angle 180°, 90°, 45°
Mechanical Attachment
-
Strain Relief Without, With
Housing Features
-
Body Orientation 180, 90
Dimensions
-
Compatible Cable Diameter Range (mm) 5, 5.5 – 8.1, 6 – 10, 8.5, 9.6, 11.2, 13.4, 14.4, 22.5, 26
-
Compatible Cable Diameter Range (in) .197, .21 – .33, .236 – .394, .334, .378, .441, .528, .567, .886, 1.024
Usage Conditions
-
Operating Temperature Range -40 – 120 °C [ -40 – 248 °F ]
Industry Standards
-
UL Flammability Rating UL 94HB
Packaging Features
-
Packaging Method Box, Carton, Package & Box, Box & Carton, Bag & Box
-
Packaging Quantity 150, 200, 400, 500, 600, 700, 800, 1000, 1400
Other
-
Serviceable Yes
Reference Number
-
TE Internal Number CAT-C4962-B128
Related Materials
