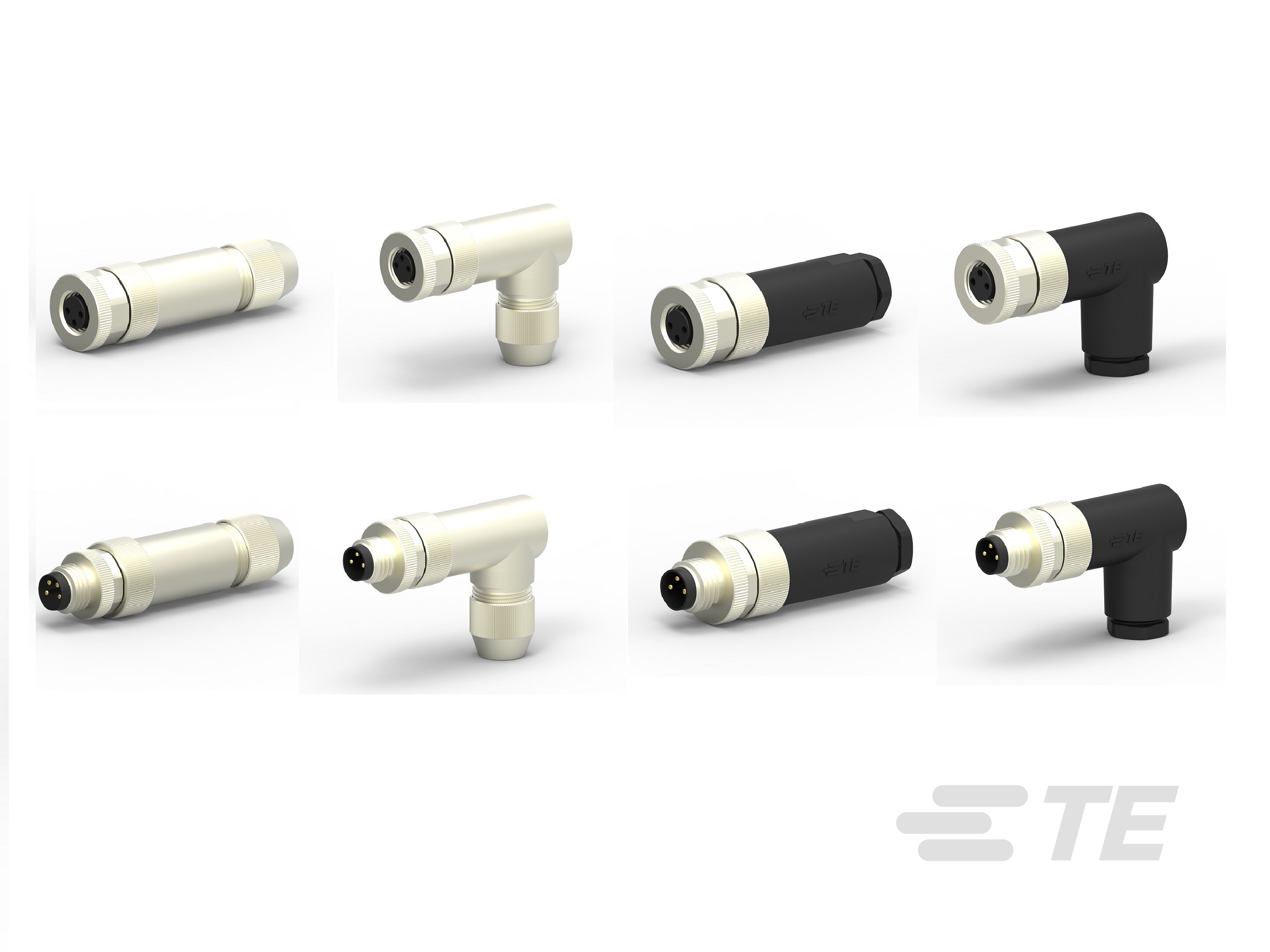

M8 Field Installable

Please review product documents or contact us for the latest agency approval information.

• Factory Installed Backshell  With

• Number of Positions  4, 3

• Number of Power Positions  0

• Number of Signal Positions  4, 3

• Contacts Preloaded  Yes

• Assembly Requirement  Factory Assembled

• Assembly Type  Electrical Connector

• Connector Product Type  Connector Assembly

• Circular Connector Shell Type  Metal-Shell, All Plastic

• Connector System  Cable-to-Cable

• Sealable  Yes

• Connector & Contact Terminates To  Wire & Cable

• Circular Connector Type  Receptacle, Plug

• Shell Type  Plastic, Metal

• Operating Voltage (VDC) 60, 30

• Operating Voltage (VAC) 60, 30

• O-Ring Material  Silicone

• Environmental Protection Type  Elastomer Sealed

• Primary Product Color  Black

• Peripheral Seal Material  Silicone

• Environmental Protection  IP67

• Shell Plating Material  Nickel, Unplated

• Shell Base Material  Copper Alloy, Plastic

• Circular Connector Insulation Material Type  Polyamide 66 GF25

• Hermetically Sealed  Yes

• Durability Rating (Cycles) 100

• Circuit Application  Signal

• Shielded  No, Yes

• IP Dust Sealing Level  6

• IP Water Sealing Level  IP67

• Operating Temperature Range  -40 – 85 °C [ -40 – 185 °F ]

• Mating Retention Type  Threaded Coupling

• Mating Alignment  With

• Connector Mounting Type  Cable Mount (Free-Hanging)

• Polarization Code  A

• Mating Alignment Type  Keyed

• Field Serviceable  Yes

• EU RoHS Compliance  Compliant with Exemptions

• EU ELV Compliance  Compliant, Compliant with Exemptions

• UL Flammability Rating  UL 94HB

• Contact Current Rating (Max) (A) 3

• Reverse Gender  Yes

• Circular Connector Contact Type  Pin, Socket

• Circular Connector Shell Size  12

• Wire Size (mm²) .25 – .14

• Wire Size (AWG) 24 – 26
