M12 Panel Mount Wire

M12 Connector

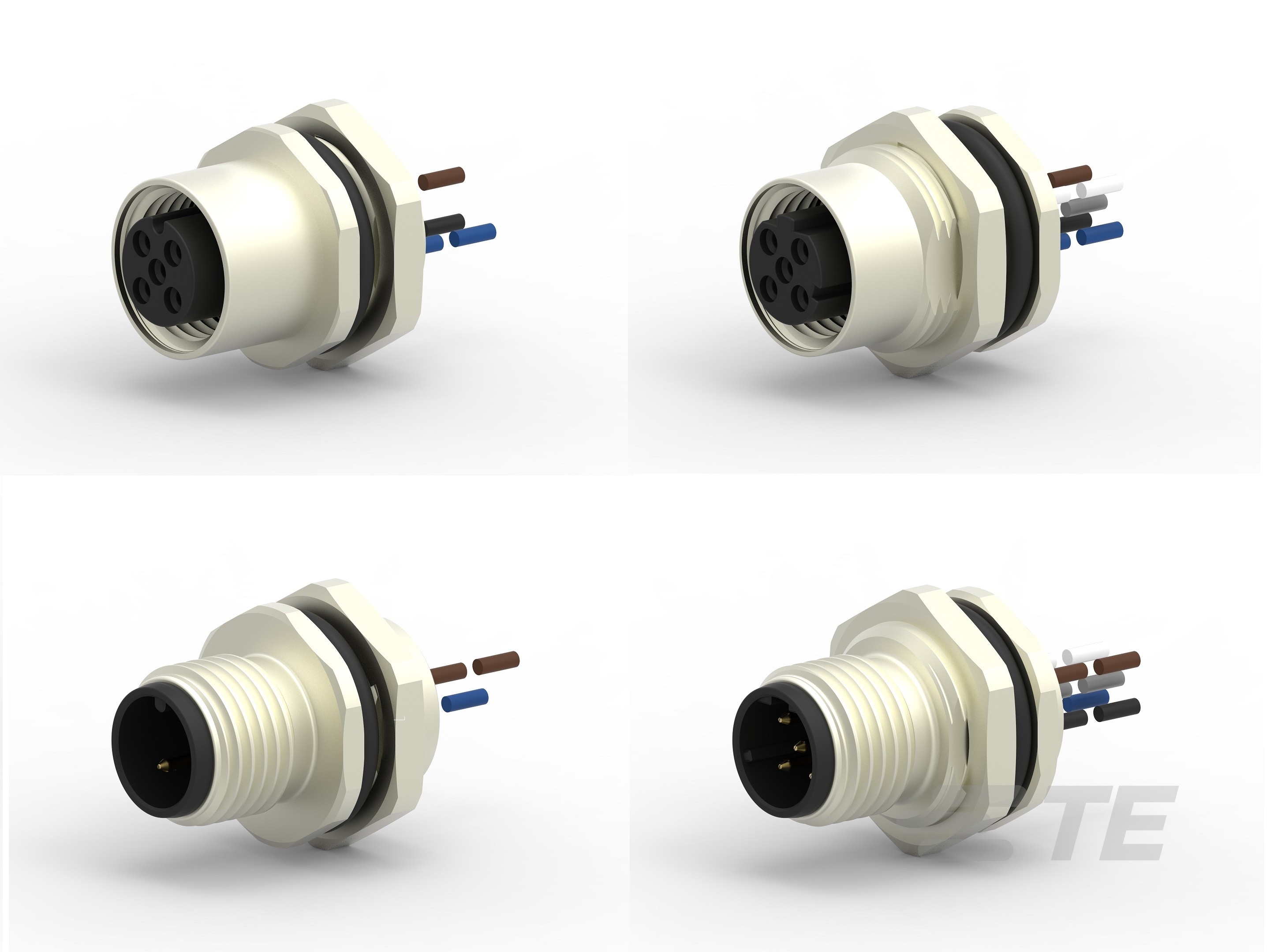

M12 Metric Circular panel mount connector with wires.

More Less

Digital Datasheet|

Product Features

Number of Positions : 2, 3, 4, 5, 8, 12
Connector System : Wire-to-Panel
Sealable : Yes
Connector & Contact Terminates To : Wire & Cable
Contact Current Rating (Max) (A): 1.5, 2, 4

Available from

Product	TE Part #	Documents	Number of Positions	Contact Current Rating (Max)	Polarization Code	Number of Signal Positions	Wire Size	Circular Connector Type	Circular Connector Contact Type	EU RoHS Compliance
M12,REAR MOUNT,FEMALE, A, 12P, 1.0M WIRE	T4171130012-003	Product Drawing 3D PDF	12	1.5 A	A	12	26 AWG	Receptacle	Socket	-
M12,REAR MOUNT,FEMALE,A,8P,1.0M WIRE	T4171120008-003	Product Drawing 3D PDF	8	2 A	A	8	24 AWG	Receptacle	Socket	-
M12,REAR MOUNT,FEMALE, A, 12P, 0.5M WIRE	T4171130012-002	Product Drawing 3D PDF	12	1.5 A	A	12	26 AWG	Receptacle	Socket	-
M12,FRONT MOUNT,MALE, A, 12P, 0.5M WIRE	T4171230012-002	Product Drawing 3D PDF	12	1.5 A	A	12	26 AWG	Plug	Pin	-
M12,FRONT MOUNT,MALE, A, 8P, 0.5M WIRE	T4171220008-002	Product Drawing 3D PDF	8	2 A	A	8	24 AWG	Plug	Pin	-
M12,REAR MOUNT,MALE, A, 12P, 0.5M WIRE	T4171030012-002	Product Drawing 3D PDF	12	1.5 A	A	12	26 AWG	Plug	Pin	-
M12,FRONT MOUNT,FEMALE,A,12P,0.5M WIRE	T4171330012-002	Product Drawing 3D PDF	12	1.5 A	A	12	26 AWG	Receptacle	Socket	-
M12,REAR MOUNT,MALE, A, 8P, 0.5M WIRE	T4171020008-002	Product Drawing 3D PDF	8	2 A	A	8	24 AWG	Plug	Pin	-
M12,REAR MOUNT,FEMALE,A,8P,0.2M WIRE Buy on te.com	T4171120008-001	Product Drawing 3D PDF	8	2 A	A	8	24 AWG	Receptacle	Socket	-
M12,FRONT MOUNT,FEMALE, A, 8P, 0.2M WIRE	T4171320008-001	Product Drawing 3D PDF	8	2 A	A	8	24 AWG	Receptacle	Socket	-
M12,REAR MOUNTING,FEMALE,A,5P,0.2M WIRE Buy on te.com	T4171110005-001	Product Drawing 3D PDF	5	4 A	A	5	22 AWG	Receptacle	Socket	-
M12,REAR MOUNTING,FEMALE,B,4P,0.2M WIRE	T4171110404-001	Product Drawing 3D PDF	4	4 A	B	4	22 AWG	Receptacle	Socket	-
M12,REAR MOUNTING,FEMALE,D,5P,0.2M WIRE	T4171110505-001	Product Drawing 3D PDF	5	4 A	D	5	22 AWG	Receptacle	Socket	-
M12,FRONT MOUNTING,FEMALE,D,3P,0.2M WIRE	T4171310503-001	Product Drawing 3D PDF	3	4 A	D	3	22 AWG	Receptacle	Socket	-
M12,REAR MOUNTING,MALE,B,2P,0.2M WIRE Buy on te.com	T4171010402-001	Product Drawing 3D PDF	2	4 A	B	2	22 AWG	Plug	Pin	-
M12,FRONT MOUNTING,MALE,D,3P,0.2M WIRE	T4171210503-001	Product Drawing 3D PDF	3	4 A	D	3	22 AWG	Plug	Pin	-
M12,FRONT MOUNTING,FEMALE,A,3P,0.2M WIRE	T4171310003-001	Product Drawing 3D PDF	3	4 A	A	3	22 AWG	Receptacle	Socket	-
M12,REAR MOUNTING,MALE,D,4P,0.2M WIRE Buy on te.com	T4171010504-001	Product Drawing 3D PDF	4	4 A	D	4	22 AWG	Plug	Pin	-
M12,REAR MOUNTING,FEMALE,B,2P,0.2M WIRE	T4171110402-001	Product Drawing 3D PDF	2	4 A	B	2	22 AWG	Receptacle	Socket	-
M12,FRONT MOUNTING,FEMALE,B,3P,0.2M WIRE	T4171310403-001	Product Drawing 3D PDF	3	4 A	B	3	22 AWG	Receptacle	Socket	-
M12,FRONT MOUNTING,FEMALE,D,2P,0.2M WIRE	T4171310502-001	Product Drawing 3D PDF	2	4 A	D	2	22 AWG	Receptacle	Socket	-
M12,FRONT MOUNTING,MALE,D,5P,0.2M WIRE Buy on te.com	T4171210505-001	Product Drawing 3D PDF	5	4 A	D	5	22 AWG	Plug	Pin	-
M12,REAR MOUNTING,MALE,D,3P,0.2M WIRE	T4171010503-001	Product Drawing 3D PDF	3	4 A	D	3	22 AWG	Plug	Pin	-
M12,REAR MOUNT,FEMALE, A, 8P, 0.5M WIRE	T4171120008-002	Product Drawing 3D PDF	8	2 A	A	8	24 AWG	Receptacle	Socket	-
M12,FRONT MOUNTING,FEMALE,D,5P,0.2M WIRE	T4171310505-001	Product Drawing 3D PDF	5	4 A	D	5	22 AWG	Receptacle	Socket	-
M12,REAR MOUNT,MALE, A, 12P, 0.2M WIRE Buy on te.com	T4171030012-001	Product Drawing 3D PDF	12	1.5 A	A	12	26 AWG	Plug	Pin	-
M12,FRONT MOUNTING,MALE,A,4P,0.2M WIRE Buy on te.com	T4171210004-001	Product Drawing 3D PDF	4	4 A	A	4	22 AWG	Plug	Pin	-
M12,FRONT MOUNTING,FEMALE,B,4P,0.2M WIRE	T4171310404-001	Product Drawing 3D PDF	4	4 A	B	4	22 AWG	Receptacle	Socket	-
M12,REAR MOUNTING,MALE,D,2P,0.2M WIRE	T4171010502-001	Product Drawing 3D PDF	2	4 A	D	2	22 AWG	Plug	Pin	-
M12,FRONT MOUNT,MALE, A,12P, 0.2M WIRE Buy on te.com	T4171230012-001	Product Drawing 3D PDF	12	1.5 A	A	12	26 AWG	Plug	Pin	-
M12,FRONT MOUNTING,FEMALE,A,2P,0.2M WIRE	T4171310002-001	Product Drawing 3D PDF	2	4 A	A	2	22 AWG	Receptacle	Socket	-
M12,REAR MOUNTING,FEMALE,A,2P,0.2M WIRE	T4171110002-001	Product Drawing 3D PDF	2	4 A	A	2	22 AWG	Receptacle	Socket	-
M12,REAR MOUNT,FEMALE, A, 12P, 0.2M WIRE Buy on te.com	T4171130012-001	Product Drawing 3D PDF	12	1.5 A	A	12	26 AWG	Receptacle	Socket	-
M12,FRONT MOUNTING,MALE,D,4P,0.2M WIRE	T4171210504-001	Product Drawing 3D PDF	4	4 A	D	4	22 AWG	Plug	Pin	-
M12,FRONT MOUNTING,FEMALE,A,5P,0.2M WIRE Buy on te.com	T4171310005-001	Product Drawing 3D PDF	5	4 A	A	5	22 AWG	Receptacle	Socket	-
M12,FRONT MOUNTING,MALE,A,2P,0.2M WIRE	T4171210002-001	3D PDF	2	4 A	A	2	22 AWG	Plug	Pin	-
M12,FRONT MOUNTING,FEMALE,D,4P,0.2M WIRE Buy on te.com	T4171310504-001	Product Drawing 3D PDF	4	4 A	D	4	22 AWG	Receptacle	Socket	-
M12,REAR MOUNTING,MALE,A,2P,0.2M WIRE Buy on te.com	T4171010002-001	Product Drawing 3D PDF	2	4 A	A	2	22 AWG	Plug	Pin	-
M12,REAR MOUNT,MALE, A, 8P, 0.2M WIRE Buy on te.com	T4171020008-001	Product Drawing 3D PDF	8	2 A	A	8	24 AWG	Plug	Pin	-
M12,FRONT MOUNT,FEMALE,A,12P,0.2M WIRE Buy on te.com	T4171330012-001	Product Drawing 3D PDF	12	1.5 A	A	12	26 AWG	Receptacle	Socket	-
M12,REAR MOUNTING,FEMALE,B,5P,0.2M WIRE	T4171110405-001	Product Drawing 3D PDF	5	4 A	B	5	22 AWG	Receptacle	Socket	-
M12,REAR MOUNTING,MALE,A,5P,0.2M WIRE Buy on te.com	T4171010005-001	Product Drawing 3D PDF	5	4 A	A	5	22 AWG	Plug	Pin	-
M12,REAR MOUNTING,MALE,B,4P,0.2M WIRE Buy on te.com	T4171010404-001	Product Drawing 3D PDF	4	4 A	B	4	22 AWG	Plug	Pin	-
M12,REAR MOUNTING,FEMALE,B,3P,0.2M WIRE	T4171110403-001	Product Drawing 3D PDF	3	4 A	B	3	22 AWG	Receptacle	Socket	-
M12,REAR MOUNTING,MALE,A,3P,0.2M WIRE	T4171010003-001	Product Drawing 3D PDF	3	4 A	A	3	22 AWG	Plug	Pin	-
M12,REAR MOUNTING,FEMALE,A,3P,0.2M WIRE	T4171110003-001	Product Drawing 3D PDF	3	4 A	A	3	22 AWG	Receptacle	Socket	-
M12,FRONT MOUNTING,MALE,A,5P,0.2M WIRE	T4171210005-001	3D PDF	5	4 A	A	5	22 AWG	Plug	Pin	-
M12,FRONT MOUNTING,MALE,B,5P,0.2M WIRE	T4171210405-001	Product Drawing 3D PDF	5	4 A	B	5	22 AWG	Plug	Pin	-
M12,FRONT MOUNTING,FEMALE,B,5P,0.2M WIRE	T4171310405-001	Product Drawing 3D PDF	5	4 A	B	5	22 AWG	Receptacle	Socket	-
M12,FRONT MOUNT,FEMALE, A, 8P, 0.5M WIRE	T4171320008-002	Product Drawing 3D PDF	8	2 A	A	8	24 AWG	Receptacle	Socket	-

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Assembly Type Electrical Connector
Prewired Yes
Circular Connector Shell Type Metal-Shell
Assembly Requirement Factory Assembled
Connector Product Type Connector Assembly
Connector System Wire-to-Panel
Sealable Yes
Connector & Contact Terminates To Wire & Cable
Circular Connector Type Plug, Receptacle
Shell Type Metal

Configuration Features

Keying & Polarized Position Locations A, B, D
Factory Installed Backshell No
Number of Positions 2, 3, 4, 5, 8, 12
Number of Power Positions 0
Number of Signal Positions 2, 3, 4, 5, 8, 12
Contacts Preloaded Yes

Electrical Characteristics

Operating Voltage (VDC) 30
Operating Voltage (VAC) 30, 60, 250

Body Features

Primary Product Color Black
O-Ring Material Silicone
Peripheral Seal Material Silicone
Environmental Protection IP67
Environmental Protection Type Elastomer Sealed, Sealed
Shell Plating Material Nickel
Shell Base Material Copper Alloy
Circular Connector Insulation Material Type Polyamide 66 GF25
Hermetically Sealed Yes

Contact Features

Contact Current Rating (Max) (A) 1.5, 2, 4
Reverse Gender Yes
Circular Connector Contact Type Pin, Socket

Mechanical Attachment

Mating Alignment With
Mating Retention Type Threaded Coupling
Panel Mount Feature Type Screw Nut
Connector Mounting Type Panel Mount
Polarization Code A, B, D
Mating Alignment Type Keyed

Housing Features

Circular Connector Shell Size 18

Dimensions

Panel Thickness (Recommended) (mm) 2.5, 4.5, 2.5 – 4.5
Panel Thickness (Recommended) (in) .098, .177, .098 – .117
Pigtail Length (mm) 200, 500
Pigtail Length (in) 7.87, 19.68
Wire Size (AWG) 22, 24, 26

Usage Conditions

IP Water Sealing Level IP67
Operating Temperature Range -40 – 85 °C [ -40 – 185 °F ]

Operation/Application

Circuit Application Signal
Shielded No

Industry Standards

UL Flammability Rating UL 94HB

Packaging Features

Packaging Quantity 1

Other

Field Serviceable No

Reference Number

TE Internal Number CAT-C73765-M1F

Related Materials

Datasheets & Catalog Pages

M8 / M12 Connector System Catalog pdf English
M8 / M12 Connector System Catalog pdf Japanese

M12 Panel Mount Wire

Product Features

Number of Positions : 2, 3, 4, 5, 8, 12

Connector System : Wire-to-Panel

Sealable : Yes

Connector & Contact Terminates To : Wire & Cable

Contact Current Rating (Max) (A): 1.5, 2, 4

Product Type Features

Assembly Type Electrical Connector

Prewired Yes

Circular Connector Shell Type Metal-Shell

Assembly Requirement Factory Assembled

Connector Product Type Connector Assembly

Connector System Wire-to-Panel

Sealable Yes

Connector & Contact Terminates To Wire & Cable

Circular Connector Type Plug, Receptacle

Shell Type Metal

Configuration Features

Keying & Polarized Position Locations A, B, D

Factory Installed Backshell No

Number of Positions 2, 3, 4, 5, 8, 12

Number of Power Positions 0

Number of Signal Positions 2, 3, 4, 5, 8, 12

Contacts Preloaded Yes

Electrical Characteristics

Operating Voltage (VDC) 30

Operating Voltage (VAC) 30, 60, 250

Body Features

Primary Product Color Black

O-Ring Material Silicone

Peripheral Seal Material Silicone

Environmental Protection IP67

Environmental Protection Type Elastomer Sealed, Sealed

Shell Plating Material Nickel

Shell Base Material Copper Alloy

Circular Connector Insulation Material Type Polyamide 66 GF25

Hermetically Sealed Yes

Contact Features

Contact Current Rating (Max) (A) 1.5, 2, 4

Reverse Gender Yes

Circular Connector Contact Type Pin, Socket

Mechanical Attachment

Mating Alignment With

Mating Retention Type Threaded Coupling

Panel Mount Feature Type Screw Nut

Connector Mounting Type Panel Mount

Polarization Code A, B, D

Mating Alignment Type Keyed

Housing Features

Circular Connector Shell Size 18

Dimensions

Panel Thickness (Recommended) (mm) 2.5, 4.5, 2.5 – 4.5

Panel Thickness (Recommended) (in) .098, .177, .098 – .117

Pigtail Length (mm) 200, 500

Pigtail Length (in) 7.87, 19.68

Wire Size (AWG) 22, 24, 26

Usage Conditions

IP Water Sealing Level IP67

Operating Temperature Range -40 – 85 °C [ -40 – 185 °F ]

Operation/Application

Circuit Application Signal

Shielded No

Industry Standards

UL Flammability Rating UL 94HB

Packaging Features

Packaging Quantity 1

Other

Field Serviceable No

Reference Number

TE Internal Number CAT-C73765-M1F
