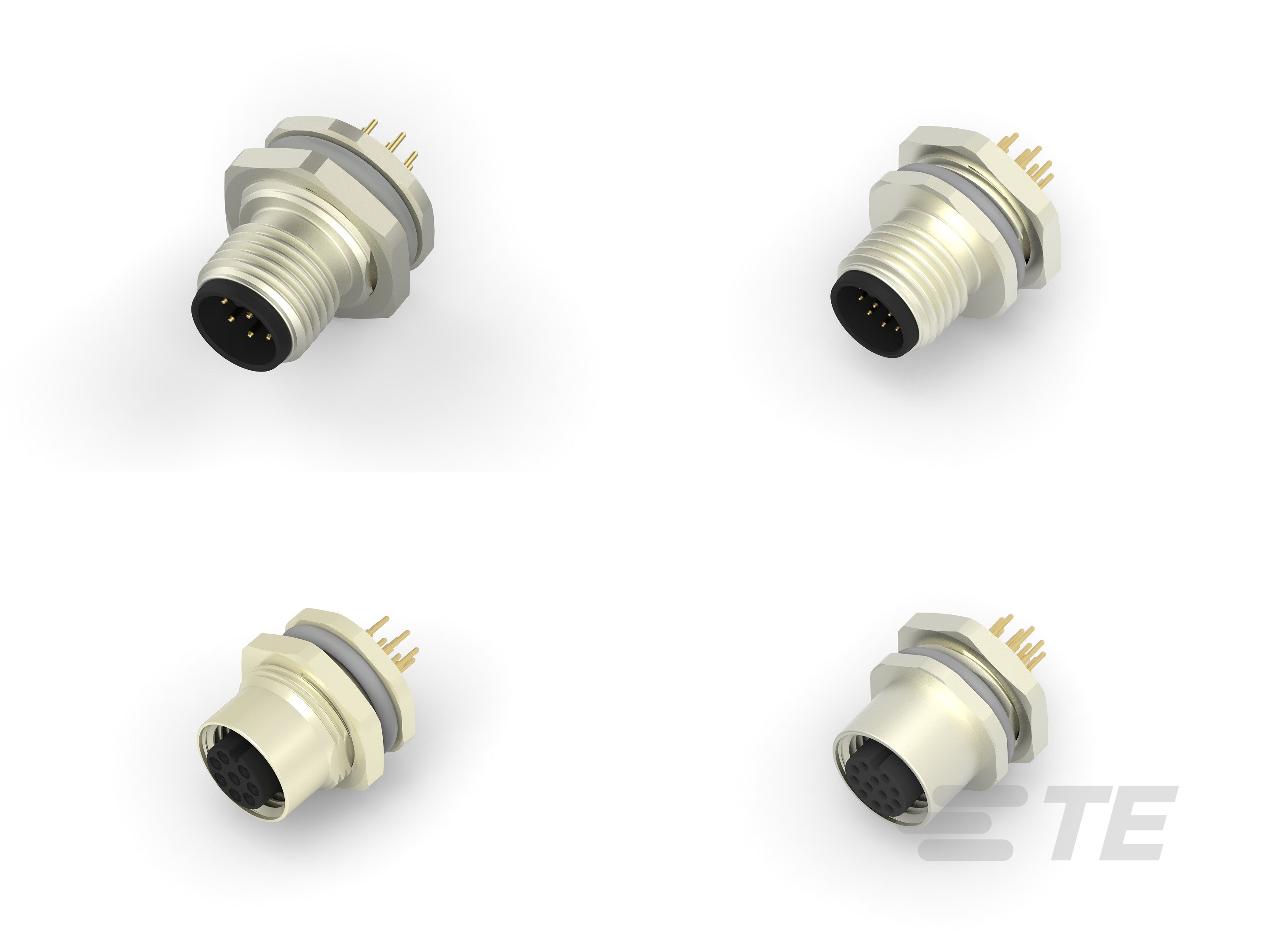

M12 Panel Mount PCB

M12 Panel Mount PCB-CAT-C73765-M1H
  • M12 Connector
M12 Metric Circular panel mount connector with through hole PCB contacts.
More Less

Product Features

  • Connector System : Wire-to-Panel, Wire-to-Board

  • Connector Mounting Type : Panel Mount

  • Number of Positions : 12, 3, 8, 5, 4, 2

  • Sealable : Yes

  • Connector & Contact Terminates To : Wire & Cable

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector System  Wire-to-Panel, Wire-to-Board

  • Sealable  Yes

  • Connector & Contact Terminates To  Wire & Cable

  • Circular Connector Type  Receptacle, Plug

  • Shell Type  Metal

  • Assembly Type  Electrical Connector

  • Connector Product Type  Connector Assembly

  • Assembly Requirement  Factory Assembled

  • Circular Connector Shell Type  Metal-Shell

  • Prewired  No

Mechanical Attachment

  • Connector Mounting Type  Panel Mount

  • Polarization Code  B, A, D

  • Mating Alignment Type  Keyed

  • Mating Retention  With

  • PCB Mount Alignment  Without

  • Panel Mount Feature Type  Screw Nut, Flange, Square Flange

  • Mating Retention Type  Threaded Coupling

  • PCB Mount Retention  Without, With

  • Mating Alignment  Without, With

Configuration Features

  • Number of Positions  12, 3, 8, 5, 4, 2

  • Number of Power Positions  3, 0, 4, 5

  • Number of Signal Positions  0, 5, 12, 2, 4, 3, 8

  • Contacts Preloaded  Yes

  • Keying & Polarized Position Locations  A, D, B

  • Factory Installed Backshell  Without, No

Contact Features

  • Contact Current Rating (Max) (A) 2, 4, 1.5, 16

  • Reverse Gender  Yes

  • Circular Connector Contact Type  Pin, Socket

  • Contact Quantity (Size 16)  3, 5, 4

Operation/Application

  • Circuit Application  Signal, Power

  • Shielded  Yes, No

  • Durability Rating (Cycles) 100

Body Features

  • Shell Plating Material  Nickel

  • Shell Base Material  Copper Alloy, Brass

  • Circular Connector Insulation Material Type  Polyamide GF, LCP (Liquid Crystal Polymer)

  • Hermetically Sealed  Yes

  • O-Ring Material  Silicone

  • Product Weight (g) 14.9, 15.3, 16, 14, 14.5, 13.5

  • Product Weight (oz) .9392, 1.0064, .8512, .8832, .9216

  • Environmental Protection Type  Elastomer Sealed, Sealed

  • Entry Style  Rear Insertion

  • Fluid Type  None

  • Positive Stop Ferrule  Without

  • Primary Product Color  Black

  • Peripheral Seal Material  Silicone

  • Environmental Protection  IP67

Housing Features

  • Circular Connector Shell Size  18, 12

Usage Conditions

  • Operating Temperature Range  -40 – 85 °C [ -40 – 185 °F ]

  • IP Dust Sealing Level  6

  • IP Water Sealing Level  IP67, 7

Other

  • EU RoHS Compliance  Compliant with Exemptions

  • EU ELV Compliance  Compliant with Exemptions, Compliant

  • Field Serviceable  Yes, No

Electrical Characteristics

  • EMI & RFI Protection & Suppression Type  Shielding

  • Operating Voltage (VAC) 30, 250, 60

  • Operating Voltage (VDC) 250, 60, 30

Termination Features

  • Termination Method to PCB  Through Hole - Solder

  • Termination Method to Wire & Cable  Solder

Dimensions

  • Panel Thickness (Recommended) (mm) 1.5 – 3.2, 2 – 3

  • Panel Thickness (Recommended) (in) .079 – .118, .071 – .126

Industry Standards

  • Compatible With Approved Standards Products  UL Recognized

  • UL Flammability Rating  UL 94V-0, UL 94HB

Packaging Features

  • Packaging Quantity  1

Reference Number

  • TE Internal Number CAT-C73765-M1H
