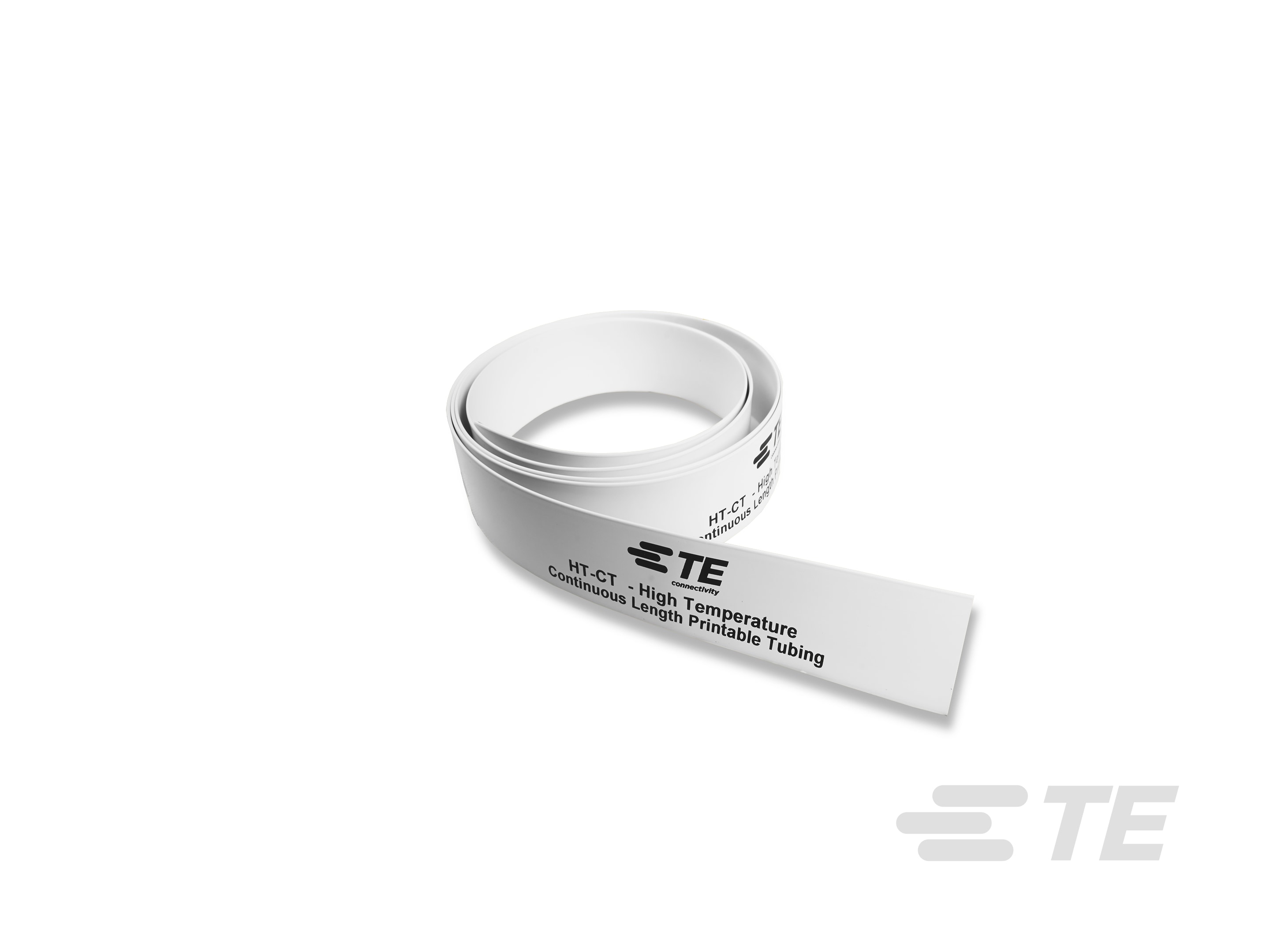

Continuous Tube High Temperature HT-CT

HT-CT

Highly flame retardant, heat-shrinkable fluoropolymer tubing for high temperature applications or when extreme resistance to fuels/lubricants/cleaning solvents is required.

More Less

Datasheet |
Digital Datasheet|

Product Features

Operating Temperature Range (°C): -55 – 225
Operating Temperature Range (°F): -67 – 437, -67 – 347
Primary Product Color : Yellow, Red, Blue, White, Black, Green, Orange
Expanded Inside Diameter (Min) (mm): 19, 4.8, 38.1, 6.4, 9.5, 25.4, 12.7, 2.4, 3.2
Expanded Inside Diameter (Min) (in): .5, .94, .094, .189, 1.5, 1, .375, .125, .75, .25
Recovered Inside Diameter (Max) (mm): 6.35, 19, .8, 4.8, 2.36, 9.5, 3.18, 12.7, 2.4, 4.75, 1.57
Recovered Inside Diameter (Max) (in): .5, .093, .031, .094, .062, .375, .125, .75, .187, .25
Shrink Ratio : 2:1, 3:1

Available from

Product	TE Part #	Documents	Printable Tubing Grade	Shrink Ratio	Primary Product Color	Expanded Inside Diameter (Min)	Recovered Inside Diameter (Max)	Compatible Cable Diameter Range	Operating Temperature Range
HT-CT-50M-1/2-OUT-3	ER7541-000	Product Drawing	High Temperature	2:1	Orange	12.7 mm	6.35 mm	6.9 – 10.6 mm	-55 – 225 °C
HT-CT-50M-3/8-OUT-0	ER2143-000	Product Drawing	High Temperature	2:1	Black	9.5 mm	4.8 mm	5.3 – 8.1 mm	-55 – 225 °C
HT-CT-50M-3/32-OUT-9	EL7354-000	Product Drawing	High Temperature	3:1	White	2.4 mm	.8 mm	.81 – 1.9 mm	-55 – 225 °C
HT-CT-50M-3/32-OUT-5	ES1477-000	Product Drawing	High Temperature	3:1	Green	2.4 mm	.8 mm	.81 – 1.9 mm	-55 – 225 °C
HT-CT-50M-3/32-OUT-6	ES1485-000	Product Drawing	High Temperature	3:1	Blue	2.4 mm	.8 mm	.81 – 1.9 mm	-55 – 225 °C
HT-CT-50M-1/4-OUT-2	ES1463-000	Product Drawing	High Temperature	2:1	Red	6.4 mm	3.18 mm	3.4 – 6 mm	-55 – 225 °C
HT-CT-50M-1-1/2-OUT-0	ER2147-000	Product Drawing	High Temperature	2:1	Black	38.1 mm	19 mm	19 – 30.48 mm	-55 – 225 °C
HT-CT-50M-1/4-OUT-6	ES1488-000	Product Drawing	High Temperature	2:1	Blue	6.4 mm	3.18 mm	3.4 – 6 mm	-55 – 225 °C
HT-CT-50M-1-OUT-0	ER2146-000	Product Drawing	High Temperature	2:1	Black	25.4 mm	12.7 mm	12.7 – 20.32 mm	-55 – 225 °C
HT-CT-50M-3/32-OUT-4	EL8070-000	Product Drawing	High Temperature	3:1	Yellow	2.4 mm	.8 mm	.81 – 1.9 mm	-55 – 225 °C
HT-CT-50M-3/4-OUT-3	ER7304-000	Product Drawing	High Temperature	2:1	Orange	19 mm	9.5 mm	9.9 – 15.3 mm	-55 – 225 °C
HT-CT-50M-1/2-OUT-6	ES1490-000	Product Drawing	High Temperature	2:1	Blue	12.7 mm	6.35 mm	6.9 – 10.6 mm	-55 – 225 °C
HT-CT-50M-3/8-OUT-6	ES1489-000	Product Drawing	High Temperature	2:1	Blue	9.5 mm	4.8 mm	5.3 – 8.1 mm	-55 – 225 °C
HT-CT-50M-1/2-OUT-5	ES1482-000	Product Drawing	High Temperature	2:1	Green	12.7 mm	6.35 mm	6.9 – 10.6 mm	-55 – 225 °C
HT-CT-50M-1-OUT-3	ER7540-000	Product Drawing	High Temperature	2:1	Orange	25.4 mm	12.7 mm	12.7 – 20.32 mm	-55 – 225 °C
HT-CT-50M-3/8-OUT-3	ER7542-000	Product Drawing	High Temperature	2:1	Orange	9.5 mm	4.75 mm	5.3 – 8.1 mm	-55 – 225 °C
HT-CT-50M-3/8-OUT-5	ES1481-000	Product Drawing	High Temperature	2:1	Green	9.5 mm	4.8 mm	5.3 – 8.1 mm	-55 – 225 °C
HT-CT-50M-1/4-OUT-5	ES1480-000	Product Drawing	High Temperature	2:1	Green	6.4 mm	3.18 mm	3.4 – 6 mm	-55 – 225 °C
HT-CT-50M-1/4-OUT-3	ER7543-000	Product Drawing	High Temperature	2:1	Orange	6.4 mm	3.18 mm	3.4 – 6 mm	-55 – 225 °C
HT-CT-50M-1/4-OUT-9 Buy on te.com	EL7357-000	Product Drawing	High Temperature	2:1	White	6.4 mm	3.18 mm	3.4 – 6 mm	-55 – 225 °C
HT-CT-50M-1/8-OUT-9	EL7355-000	Product Drawing	High Temperature	2:1	White	3.2 mm	1.57 mm	1.75 – 2.66 mm	-55 – 225 °C
HT-CT-50M-3/16-OUT-9 Buy on te.com	EL7356-000	Product Drawing	High Temperature	2:1	White	4.8 mm	2.4 mm	2.54 – 4.06 mm	-55 – 225 °C
HT-CT-50M-3/8-OUT-9 Buy on te.com	EL7358-000	Product Drawing	High Temperature	2:1	White	9.5 mm	4.8 mm	5.3 – 8.1 mm	-55 – 225 °C
HT-CT-50M-1/2-OUT-9	EL7359-000	Product Drawing	High Temperature	2:1	White	12.7 mm	6.35 mm	6.9 – 10.6 mm	-55 – 225 °C
HT-CT-50M-3/4-OUT-9	EL7360-000	Product Drawing	High Temperature	2:1	White	19 mm	9.5 mm	9.9 – 15.3 mm	-55 – 225 °C
HT-CT-50M-3/8-OUT-4	EL8074-000	Product Drawing	High Temperature	2:1	Yellow	9.5 mm	4.75 mm	5.3 – 8.1 mm	-55 – 225 °C
HT-CT-50M-1/2-OUT-4	EL8075-000	Product Drawing	High Temperature	2:1	Yellow	12.7 mm	6.35 mm	6.9 – 10.6 mm	-55 – 225 °C
HT-CT-50M-3/32-OUT-0	ER2139-000	Product Drawing	High Temperature	3:1	Black	2.4 mm	.8 mm	.81 – 1.9 mm	-55 – 225 °C
HT-CT-50M-1/8-OUT-0 Buy on te.com	ER2140-000	Product Drawing	High Temperature	2:1	Black	3.2 mm	1.57 mm	1.75 – 2.66 mm	-55 – 225 °C
HT-CT-50M-1/8-OUT-3	ER7299-000	Product Drawing	High Temperature	2:1	Orange	3.2 mm	1.57 mm	1.75 – 2.66 mm	-55 – 225 °C
HT-CT-50M-3/16-OUT-3 Buy on te.com	ER7544-000	Product Drawing	-	2:1	Orange	4.8 mm	2.36 mm	2.54 – 4.06 mm	-55 – 225 °C
HT-CT-50M-3/16-OUT-2	ES1461-000	Product Drawing	High Temperature	2:1	Red	4.8 mm	2.4 mm	2.54 – 4.06 mm	-55 – 225 °C
HT-CT-50M-3/16-OUT-6	ES1487-000	Product Drawing	High Temperature	2:1	Blue	4.8 mm	2.4 mm	2.54 – 4.06 mm	-55 – 225 °C
HT-CT-50M-1/8-OUT-4	EL8071-000	Product Drawing	High Temperature	2:1	Yellow	3.2 mm	1.57 mm	1.75 – 2.66 mm	-55 – 225 °C
HT-CT-50M-3/16-OUT-4	EL8072-000	Product Drawing	-	2:1	Yellow	4.8 mm	2.36 mm	2.54 – 4.06 mm	-55 – 225 °C
HT-CT-50M-1/4-OUT-4	EL8073-000	Product Drawing	High Temperature	2:1	Yellow	6.4 mm	3.18 mm	3.4 – 6 mm	-55 – 225 °C
HT-CT-50M-3/4-OUT-4	EL8076-000	Product Drawing	High Temperature	2:1	Yellow	19 mm	9.5 mm	9.9 – 15.3 mm	-55 – 225 °C
HT-CT-50M-3/16-OUT-0	ER2141-000	Product Drawing	High Temperature	2:1	Black	4.8 mm	2.4 mm	2.54 – 4.06 mm	-55 – 225 °C
HT-CT-50M-1/4-OUT-0	ER2142-000	Product Drawing	High Temperature	2:1	Black	6.4 mm	3.18 mm	3.4 – 6 mm	-55 – 225 °C
HT-CT-50M-1/2-OUT-0	ER2144-000	Product Drawing	High Temperature	2:1	Black	12.7 mm	6.35 mm	6.9 – 10.6 mm	-55 – 225 °C
HT-CT-50M-3/4-OUT-0 Buy on te.com	ER2145-000	Product Drawing	High Temperature	2:1	Black	19 mm	9.5 mm	9.9 – 15.3 mm	-55 – 225 °C
HT-CT-50M-1/8-OUT-2	ES1459-000	Product Drawing	High Temperature	2:1	Red	3.2 mm	1.57 mm	1.75 – 2.66 mm	-55 – 225 °C
HT-CT-50M-1/8-OUT-5	ES1478-000	Product Drawing	High Temperature	2:1	Green	3.2 mm	1.57 mm	1.75 – 2.66 mm	-55 – 225 °C
HT-CT-50M-3/16-OUT-5	ES1479-000	Product Drawing	High Temperature	2:1	Green	4.8 mm	2.4 mm	2.54 – 4.06 mm	-55 – 225 °C

Overview

Highly flame retardant, heat-shrinkable fluoropolymer tubing for high temperature applications or when extreme resistance to fuels/lubricants/cleaning solvents is required.

Key Features

High Temperature
Excellent chemical resistance.
Flame retarded, Self Extinguishing, UL VW-1 rated.
Resistant to key Aerospace, Military, Rail and Industrial fluids (defined by TE specification RW-2512)
Sleeve diameters from 3/32 to 3/4inch (2.4mm to 19.0mm)
Shrink ratio 2:1 (3/32 is 3:1)
More open profile for easier use

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Printable Tubing Type Continuous
Printable Tubing Grade High Temperature

Body Features

Primary Product Color Yellow, Red, Blue, White, Black, Green, Orange
Shrink Ratio 2:1, 3:1

Dimensions

Expanded Inside Diameter (Min) (mm) 2.4, 3.2, 4.8, 6.4, 9.5, 12.7, 19, 25.4, 38.1
Expanded Inside Diameter (Min) (in) .094, .125, .189, .25, .375, .5, .75, .94, 1, 1.5
Recovered Inside Diameter (Max) (mm) .8, 1.57, 2.36, 2.4, 3.18, 4.75, 4.8, 6.35, 9.5, 12.7, 19
Recovered Inside Diameter (Max) (in) .031, .062, .093, .094, .125, .187, .25, .375, .5, .75
Compatible Cable Diameter Range (mm) .81 – 1.9, 1.75 – 2.66, 2.54 – 4.06, 3.4 – 6, 5.3 – 8.1, 6.9 – 10.6, 9.9 – 15.3, 12.7 – 20.32, 19 – 30.48
Compatible Cable Diameter Range (in) .032 – .076, .032 – .075, .069 – .105, .1 – .16, .134 – .236, .209 – .319, .272 – .417, .39 – .602, .5 – .8, .75 – 1.2

Usage Conditions

Operating Temperature Range (°C) -55 – 225
Operating Temperature Range (°F) -67 – 437, -67 – 347

Printer/Label Features

Printer Technology Thermal Transfer

Packaging Features

Packaging Quantity 50

Reference Number

TE Internal Number CAT-C7679-H85999

Related Materials

Datasheets & Catalog Pages

HT-CT, Continuous High Temperature Heat Shrink Identification Tube pdf English
