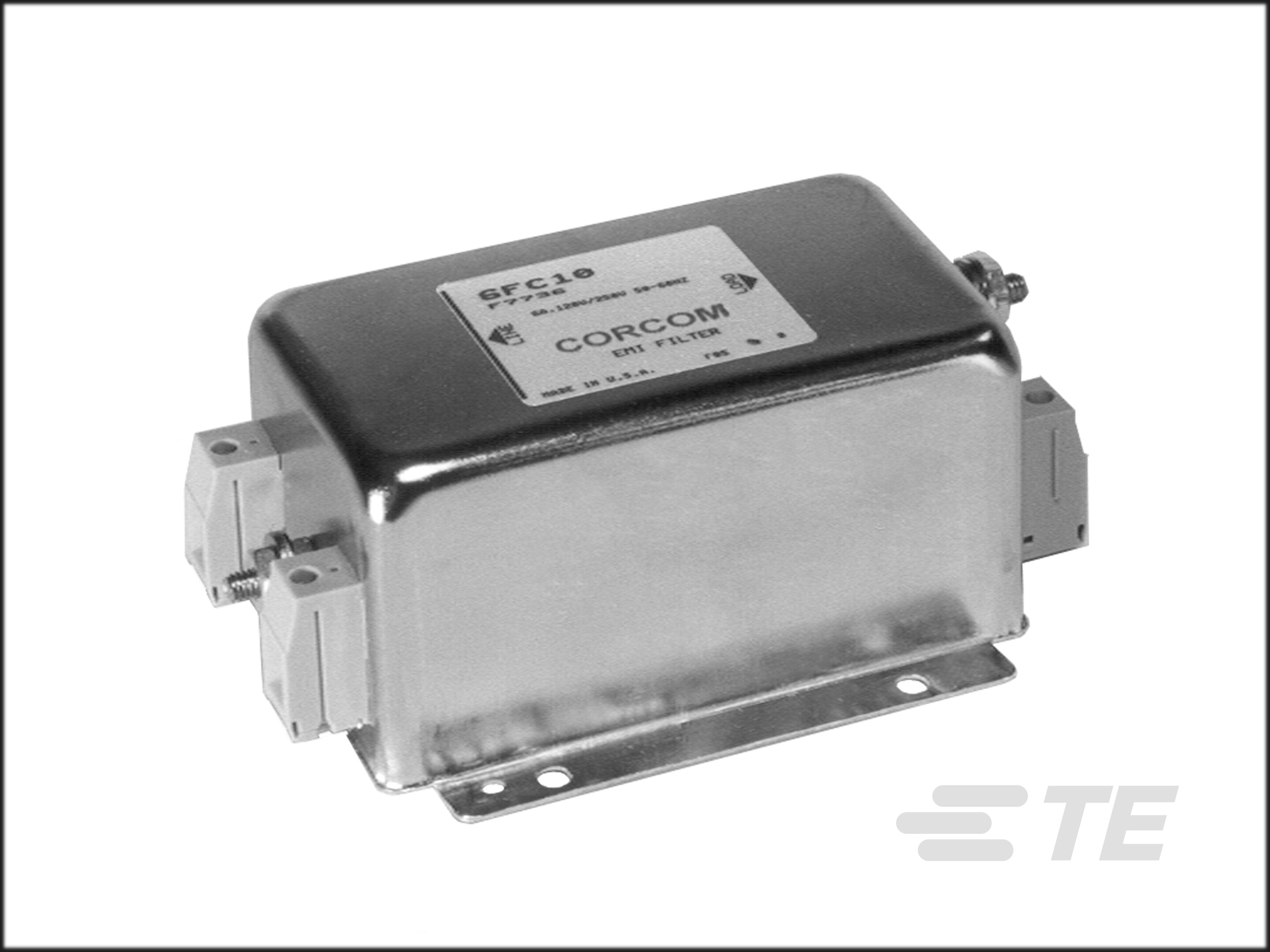

Single Phase Filters, Corcom FC Series

Single Phase Filters, Corcom FC Series-CAT-C8114-F299B
  • Corcom
|
  • Corcom FC
Single Phase Power Line Filter for Frequency Converters. Designed for frequency inverters and variable speed motor drives.
More Less

Product Features

  • Current Rating (A): 50, 16, 36, 25, 6, 12

  • Input Termination Type : Terminal Block

  • Output Termination Type : Terminal Block

  • Leakage Current (Max) (120VAC, 60Hz) (mA): 3.9, 7, 3.8

  • Leakage Current (Max) (250VAC, 50Hz) (mA): 3.8, 6.7, 7

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Filtering Requirements  Filtered

  • Ground Choke Option  No

  • Input Termination Type  Terminal Block

  • Output Termination Type  Terminal Block

Mechanical Attachment

  • Panel Mount Feature Type  Flange

Usage Conditions

  • Operating Temperature Range (°C) -10 – 40

Electrical Characteristics

  • Current Rating (A) 50, 16, 36, 25, 6, 12

  • Leakage Current (Max) (120VAC, 60Hz) (mA) 3.9, 7, 3.8

  • Leakage Current (Max) (250VAC, 50Hz) (mA) 3.8, 6.7, 7

  • Operating Voltage (VAC) 250

Other

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Reference Number

  • TE Internal Number CAT-C8114-F299B
