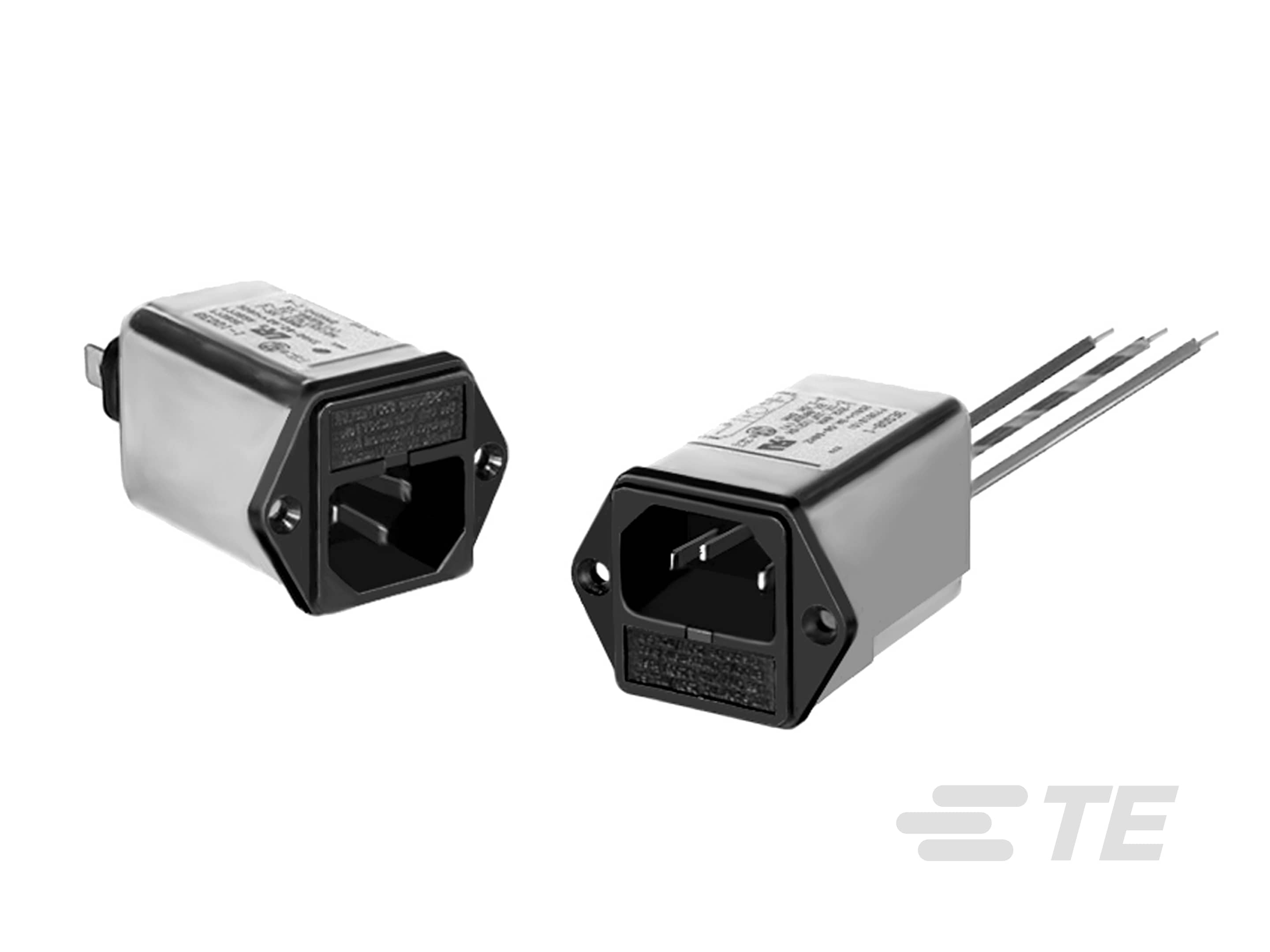

CORCOM GG SERIES MULTI-FUNCTION INLET FI

CORCOM GG SERIES MULTI-FUNCTION INLET FI-CAT-C8114-G34
  • Corcom
|
  • Corcom GG
Smallest Power Entry Module with Metric Fuse Holders. Available with an internal ground-circuit inductor (C versions) to isolate equipment chassis from power line ground at radio frequencies.
More Less

Product Features

  • Filter Type : Power Entry (Filtered/Unfiltered), Power Entry Module

  • Input Voltage Selection : None

  • Filter Switch Type : No Switch

  • Filter Shield Type : Shielded, Filter Shield, Complete Shield, Complete Can

  • Product Orientation : Vertical, Right Angle

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Configuration Features

  • Extender Options  None

  • Fuse Options  Dual, Single

Product Type Features

  • Ground Choke Option  No, Yes

  • Filter Type  Power Entry (Filtered/Unfiltered), Power Entry Module

  • Filter Switch Type  No Switch

  • Output Termination Type  Wire Lead, .250" FASTON

  • Filtering Requirements  Filtered

  • Filter Connector Type  IEC 60320-1 C-14, IEC 320/C-14

Mechanical Attachment

  • Panel Mount Feature Type  Snap-In, Flange

Usage Conditions

  • Operating Temperature Range (°C) -10 – 40

Electrical Characteristics

  • Input Voltage Selection  None

  • Leakage Current (Max) (120VAC, 60Hz) (µA) 220, 250

  • Leakage Current (Max) (250VAC, 50Hz) (µA) 380, 420

  • Current Rating (A) 6, 10, 3, 1

  • Operating Voltage (VAC) 250

Body Features

  • Filter Shield Type  Shielded, Filter Shield, Complete Shield, Complete Can

  • Product Orientation  Vertical, Right Angle

Other

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Reference Number

  • TE Internal Number CAT-C8114-G34
