CORCOM M SERIES MULTI-FUNCTION INLET FIL

Corcom

Corcom M

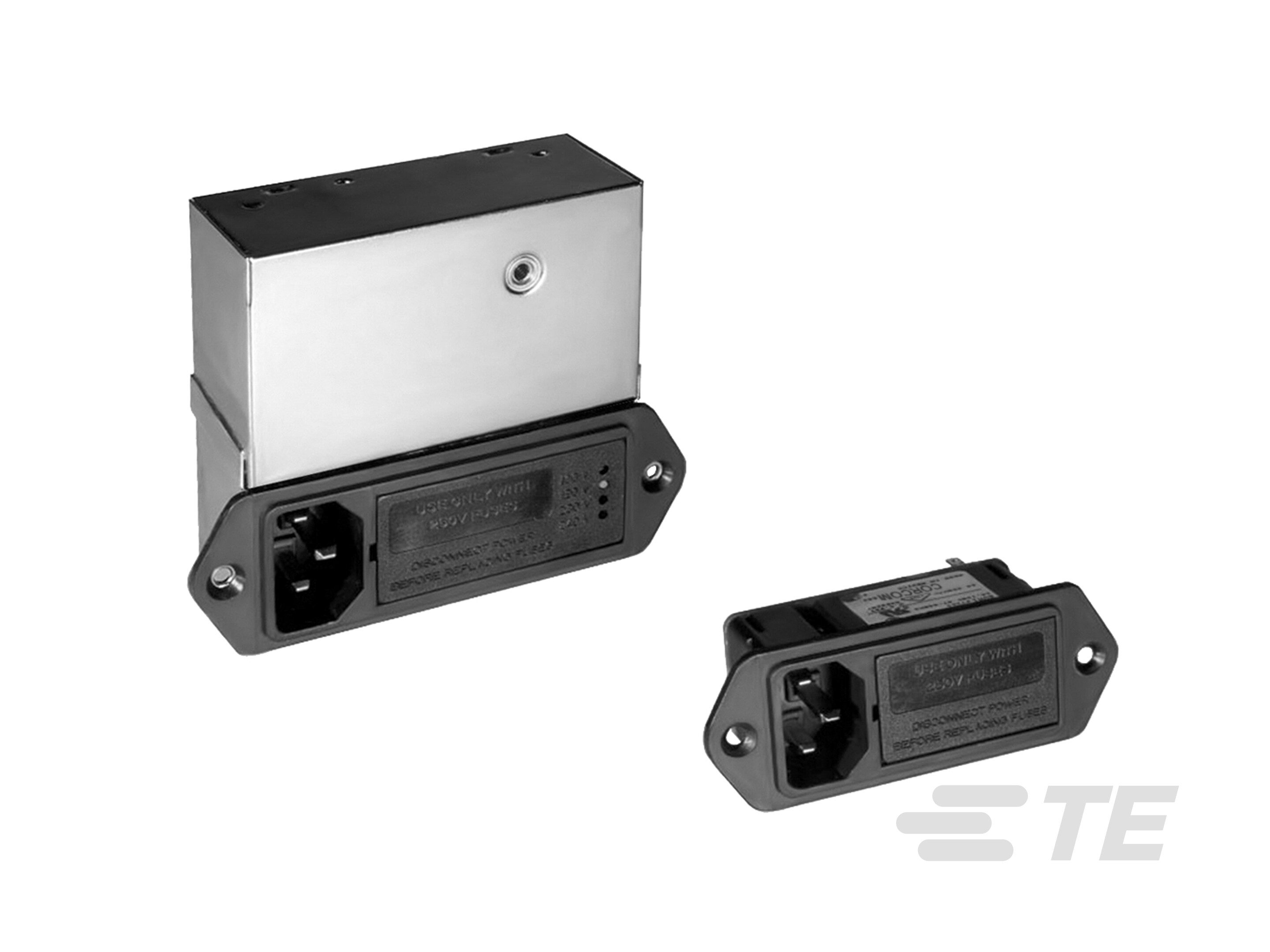

Slim Power Entry Module Family with multiple options that consume minimal depth behind panels.

More Less

Digital Datasheet|

Product Features

Filter Type : Power Entry Module
Input Voltage Selection : Quad AC, Single AC, Dual AC (Series/Parallel)
Filter Switch Type : DPST, No Switch
Filter Shield Type : None, Filter Shield
Product Orientation : Vertical, Right Angle

Available from

Product	TE Part #	Documents	Input Voltage Selection	Filter Switch Type	Filter Shield Type	Product Orientation	Leakage Current (Max) (120VAC, 60Hz)	Leakage Current (Max) (250VAC, 50Hz)	Current Rating	Operating Voltage	Filtering Requirements	Filter Connector Type	EU RoHS Compliance	EU ELV Compliance
3EXM4=F8120 Buy on te.com	6609131-8	Product Drawing 3D PDF	Quad AC	No Switch	Filter Shield	Right Angle	300 µA	500 µA	3 A	100 VAC, 120 VAC, 240 VAC, 230 VAC	Filtered	IEC 320/C-14	Compliant with Exemptions	Compliant with Exemptions
5EFM1C=F8106 Buy on te.com	2-6609129-2	Product Drawing 3D PDF	Single AC	No Switch	Filter Shield	Vertical	250 µA	500 µA	5 A	120 VAC, 240 VAC	Filtered	IEC 320/C-14	Compliant	Compliant
6VM1S=F8096 Buy on te.com	2-6609128-8	Product Drawing 3D PDF	Single AC	DPST	None	Vertical	2 µA	5 µA	6 A	120 VAC, 240 VAC	Unfiltered	IEC 320/C-14	Compliant	Compliant
6VM4=F8101 Buy on te.com	3-6609128-3	Product Drawing 3D PDF	Quad AC	No Switch	None	Vertical	2 µA	5 µA	6 A	100 VAC, 120 VAC, 240 VAC, 230 VAC	Unfiltered	IEC 320/C-14	Compliant	Compliant
3EZM1S=F8122	6609132-8	Product Drawing 3D PDF	Single AC	No Switch	Filter Shield	Right Angle	300 µA	500 µA	3 A	120 VAC, 240 VAC	Filtered	IEC 320/C-14	Compliant	Compliant
6VM4SC=F8105	3-6609128-7	Product Drawing 3D PDF	Quad AC	DPST	None	Vertical	2 µA	5 µA	6 A	100 VAC, 120 VAC, 240 VAC, 230 VAC	Unfiltered	IEC 60320-1 C-14	Compliant	Compliant
6VM4C=F8102	3-6609128-4	Product Drawing 3D PDF	Quad AC	No Switch	None	Vertical	2 µA	5 µA	6 A	100 VAC, 120 VAC, 240 VAC, 230 VAC	Unfiltered	IEC 320/C-14	Compliant	Compliant
6VM2=F8098 Buy on te.com	3-6609128-0	Product Drawing 3D PDF	Dual AC (Series/Parallel)	No Switch	None	Vertical	2 µA	5 µA	6 A	120 VAC, 240 VAC	Unfiltered	IEC 320/C-14	Compliant	Compliant
5EFM4C=F8111	2-6609129-7	Product Drawing 3D PDF	Quad AC	No Switch	Filter Shield	Vertical	250 µA	500 µA	5 A	100 VAC, 120 VAC, 240 VAC, 230 VAC	Filtered	IEC 320/C-14	Compliant	Compliant
5EFM1SC=F8109	2-6609129-5	Product Drawing 3D PDF	Single AC	DPST	Filter Shield	Vertical	250 µA	500 µA	5 A	120 VAC, 240 VAC	Filtered	IEC 320/C-14	Compliant	Compliant
5EHM1=F8093 Buy on te.com	1-6609130-1	Product Drawing 3D PDF	Single AC	No Switch	Filter Shield	Vertical	2 µA	5 µA	5 A	120 VAC, 240 VAC	Filtered	IEC 320/C-14	Compliant	Compliant
5EHM4S=F8117 Buy on te.com	1-6609130-5	Product Drawing 3D PDF	Quad AC	DPST	Filter Shield	Vertical	2 µA	5 µA	5 A	100 VAC, 120 VAC, 240 VAC, 230 VAC	Filtered	IEC 320/C-14	Compliant	Compliant
3EXM4S=F8121 Buy on te.com	6609131-9	Product Drawing 3D PDF	Quad AC	DPST	Filter Shield	Right Angle	300 µA	500 µA	3 A	100 VAC, 120 VAC, 240 VAC, 230 VAC	Filtered	IEC 320/C-14	Compliant	Compliant
3EZM4=F8123	6609132-9	Product Drawing 3D PDF	Quad AC	No Switch	Filter Shield	Right Angle	300 µA	500 µA	3 A	100 VAC, 120 VAC, 240 VAC, 230 VAC	Filtered	IEC 320/C-14	Compliant with Exemptions	Compliant with Exemptions
5EFM4SC=F8114	3-6609129-0	Product Drawing 3D PDF	Quad AC	DPST	Filter Shield	Vertical	250 µA	500 µA	5 A	100 VAC, 120 VAC, 240 VAC, 230 VAC	Filtered	IEC 320/C-14	Compliant	Compliant
6VM1C=F8095	2-6609128-7	Product Drawing 3D PDF	Single AC	No Switch	None	Vertical	2 µA	5 µA	6 A	120 VAC, 240 VAC	Unfiltered	IEC 320/C-14	Compliant	Compliant
3EXM1S=F8119 Buy on te.com	6609131-7	Product Drawing 3D PDF	Quad AC	DPST	Filter Shield	Right Angle	300 µA	500 µA	3 A	120 VAC, 240 VAC	Filtered	IEC 320/C-14	Compliant	Compliant
6VM2S=F8099 Buy on te.com	3-6609128-1	Product Drawing 3D PDF	Dual AC (Series/Parallel)	DPST	None	Vertical	2 µA	5 µA	6 A	120 VAC, 240 VAC	Unfiltered	IEC 320/C-14	Compliant	Compliant
6VM1=F8091	2-6609128-6	Product Drawing 3D PDF	Single AC	No Switch	-	Vertical	2 µA	5 µA	6 A	120 VAC, 240 VAC	Unfiltered	IEC 320/C-14	Compliant	Compliant
5EHM4=F8116	1-6609130-4	Product Drawing 3D PDF	Dual AC (Series/Parallel)	No Switch	Filter Shield	Vertical	2 µA	5 µA	5 A	120 VAC, 240 VAC	Filtered	IEC 320/C-14	Compliant	Compliant
5EFM1=F8092 Buy on te.com	2-6609129-1	Product Drawing 3D PDF	Single AC	No Switch	Filter Shield	Vertical	250 µA	500 µA	5 A	120 VAC, 240 VAC	Filtered	IEC 320/C-14	Compliant	Compliant
5EHM1S=F8115 Buy on te.com	1-6609130-3	Product Drawing 3D PDF	Single AC	DPST	Filter Shield	Vertical	2 µA	5 µA	5 A	120 VAC, 240 VAC	Filtered	IEC 320/C-14	Compliant	Compliant
5EFM4=F8110 Buy on te.com	2-6609129-6	Product Drawing 3D PDF	Quad AC	No Switch	Filter Shield	Vertical	250 µA	500 µA	5 A	100 VAC, 120 VAC, 240 VAC, 230 VAC	Filtered	IEC 320/C-14	Compliant	Compliant
3EZM4S=F8124	1-6609132-0	Product Drawing 3D PDF	Quad AC	DPST	Filter Shield	Vertical	300 µA	500 µA	3 A	100 VAC, 120 VAC, 240 VAC, 230 VAC	Filtered	IEC 320/C-14	Compliant	Compliant
5EFM4S=F8112	2-6609129-8	Product Drawing 3D PDF	Quad AC	DPST	Filter Shield	Vertical	250 µA	500 µA	5 A	100 VAC, 120 VAC, 240 VAC, 230 VAC	Filtered	IEC 320/C-14	Compliant	Compliant
6VM1SC=F8097 Buy on te.com	2-6609128-9	Product Drawing 3D PDF	Single AC	DPST	None	Vertical	2 µA	5 µA	6 A	120 VAC, 240 VAC	Unfiltered	IEC 320/C-14	Compliant	Compliant
6VM4S=F8103	3-6609128-5	Product Drawing 3D PDF	Quad AC	DPST	None	Vertical	2 µA	5 µA	6 A	100 VAC, 120 VAC, 240 VAC, 230 VAC	Unfiltered	IEC 320/C-14	Compliant	Compliant
5EFM1S=F8107 Buy on te.com	2-6609129-3	Product Drawing 3D PDF	Single AC	DPST	Filter Shield	Vertical	250 µA	500 µA	5 A	120 VAC, 240 VAC	Filtered	IEC 320/C-14	Compliant	Compliant

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Ground Choke Option No
Filter Type Power Entry Module
Filter Switch Type DPST, No Switch
Output Termination Type .110" FASTON
Filtering Requirements Filtered, Unfiltered
Filter Connector Type IEC 60320-1 C-14, IEC 320/C-14

Mechanical Attachment

Panel Mount Feature Type Mounting Ears (Horizontal), Snap-In, Flange

Usage Conditions

Operating Temperature Range (°C) -10 – 40

Electrical Characteristics

Input Voltage Selection Quad AC, Single AC, Dual AC (Series/Parallel)
Leakage Current (Max) (120VAC, 60Hz) (µA) 300, 2, 250
Leakage Current (Max) (250VAC, 50Hz) (µA) 5, 500
Current Rating (A) 6, 3, 5
Operating Voltage (VAC) 240, 120, 100, 230

Body Features

Filter Shield Type None, Filter Shield
Product Orientation Vertical, Right Angle

Configuration Features

Fuse Options Dual, Single

Other

EU RoHS Compliance Compliant, Compliant with Exemptions
EU ELV Compliance Compliant, Compliant with Exemptions

Reference Number

TE Internal Number CAT-C8114-M1
