VOLTAGE DIVIDER STRING POT

VOLTAGE DIVIDER STRING POT-CAT-CAPS0014
  • MEAS
|
  • MEAS PT101

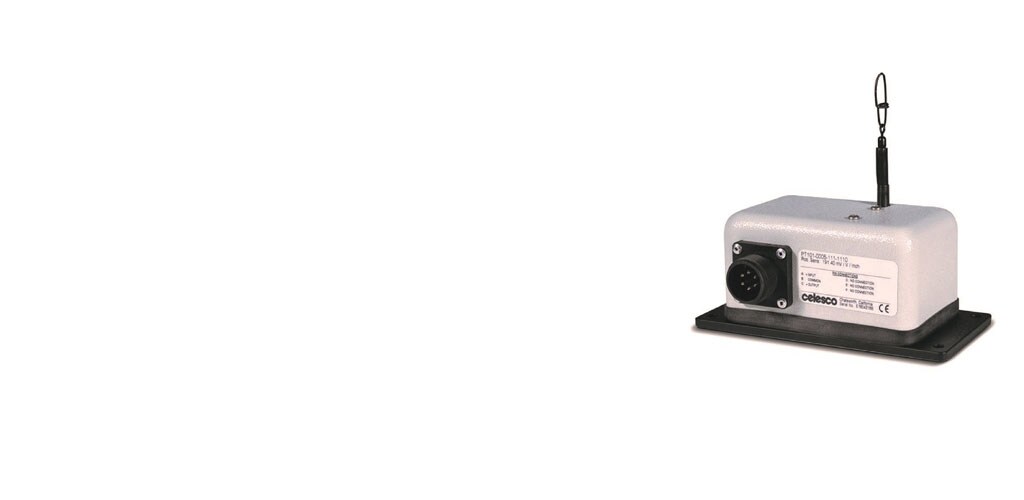

The PT101 series voltage divider IP50 classic string pot is available in full stroke ranges up to 100-inches and provides a voltage feedback signal linearly proportional to the position of its traveling stainless steel measuring cable.
More Less

Product Features

  • Position Sensor Product Type : PT101 - Voltage Divider

  • Full Stroke Range (mm): 254, 381, 635, 1016, 1270, 1905, 2540

  • Full Stroke Range (in): 10, 15, 25, 40, 50, 75, 100

  • Output Signal Type : Voltage Divider (Potentiometric)

  • Accuracy (% of FS): ±.1, ±.15

  • Repeatability (% of FS): .02

Available from

LADD Inc
Overview
The PT101 series voltage divider IP50 classic string pot offers full stroke measurement up to 100 inches and has thousands of applications.

The PT101 series voltage divider IP50 classic string pot has literally thousands of applications including aircraft structural testing, hydraulic cylinder control, valve stem opening, and factory automation. Available in full stroke ranges up to 100-inches, the PT101 provides a voltage feedback signal linearly proportional to the position of its traveling stainless steel measuring cable. Additionally the PT101 installs in minutes and doesn’t require perfect parallel alignment. Simply secure the base to a fixed surface and attach the measuring cable to your moving object.

Benefits

  • Absolute Linear Position
  • Classic Stringpot Design
  • Stroke Range Options: 0–2 to 0–100 inches
  • Powder Painted & Anodized Aluminum Enclosure
  • Industrial Automation & Testing Applications
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Position Sensor Product Type  PT101 - Voltage Divider

Body Features

  • Case Material  Aluminum

Dimensions

  • Full Stroke Range (mm) 254, 381, 635, 1016, 1270, 1905, 2540

  • Full Stroke Range (in) 10, 15, 25, 40, 50, 75, 100

Usage Conditions

  • Accuracy (% of FS) ±.1, ±.15

  • Operating Temperature Range  -40 – 90 °C [ -40 – 194 °F ]

Operation/Application

  • Output Signal Type  Voltage Divider (Potentiometric)

Industry Standards

  • IP Rating  IP50

Other

  • Repeatability (% of FS) .02

  • Encoder Drive  No

  • Measuring Cable  .019 Inch Dia Nylon-Coated Stainless Steel, Nylon-Coated Stainless Steel

Reference Number

  • TE Internal Number CAT-CAPS0014
