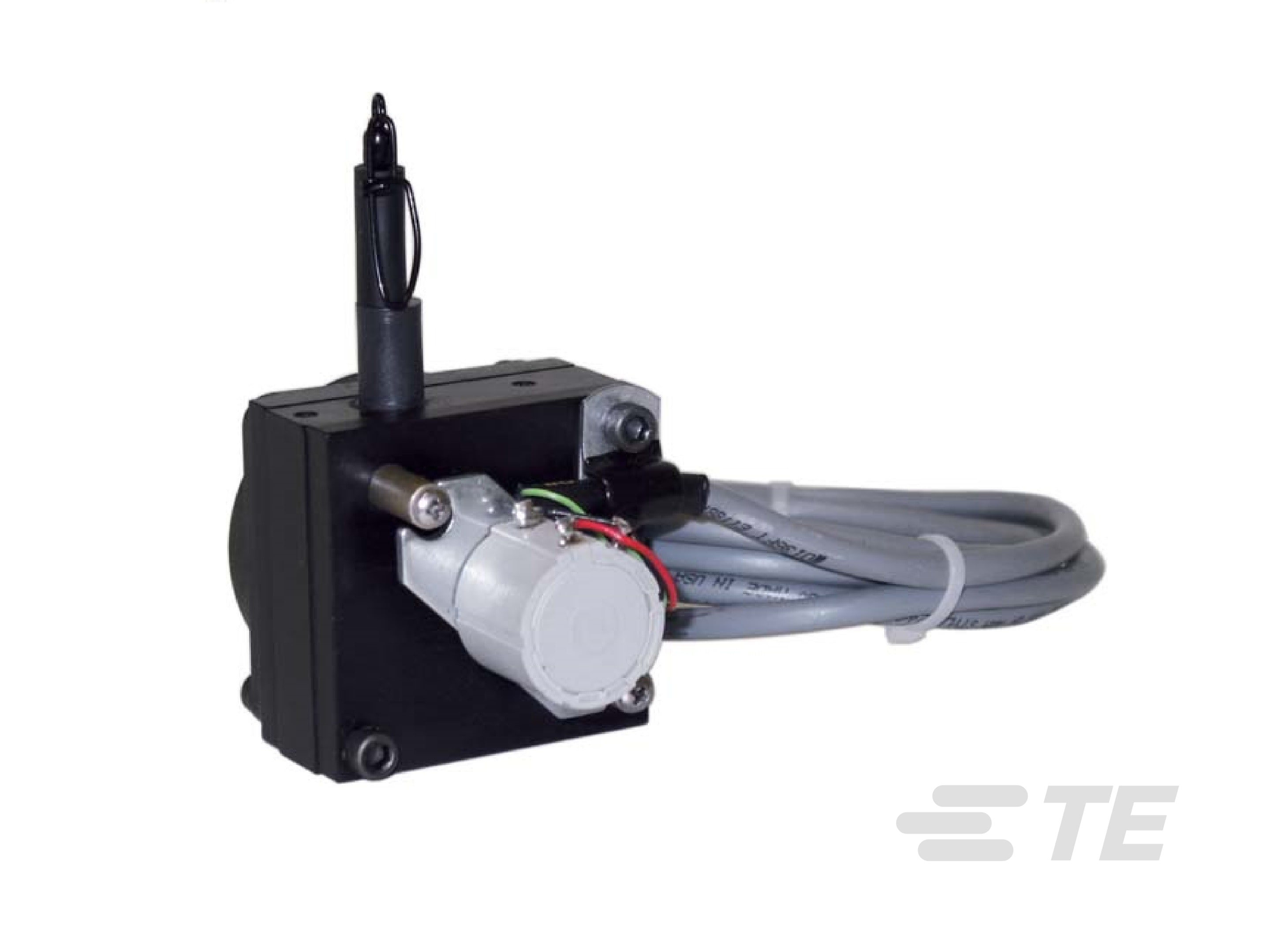

100in. Range Cable Extension Transducer

100in. Range Cable Extension Transducer-CAT-CAPS0054
  • MEAS
|
  • MEAS PTX101
The PTX101 series classic string potentiometer is a low cost, compact and easy-to-use cable-extension transducer available with full-scale measurement ranges from 2 to 100 inches. Recommended for applications where space is limited. This product is configurable, please refer to the datasheet for available options.
More Less

Product Features

  • Position Sensor Product Type : PTX101 - Voltage Divider

  • Full Stroke Range (mm): 1016, 50.8, 2540

  • Full Stroke Range (in): 40, 100, 2

  • Output Signal Type : Voltage Divider (Potentiometric)

  • Accuracy (% of FS): ±.25, ±.1

  • Repeatability (% of FS): .02

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Position Sensor Product Type  PTX101 - Voltage Divider

Dimensions

  • Full Stroke Range (mm) 1016, 50.8, 2540

  • Full Stroke Range (in) 40, 100, 2

Operation/Application

  • Output Signal Type  Voltage Divider (Potentiometric)

Usage Conditions

  • Accuracy (% of FS) ±.25, ±.1

  • Operating Temperature Range  -40 – 90 °C [ -40 – 194 °F ]

Other

  • Repeatability (% of FS) .02

  • Encoder Drive  No

  • Measuring Cable  .019 Inch Dia Nylon-Coated Stainless Steel

  • EU RoHS Compliance  Compliant, Compliant with Exemptions

Body Features

  • Case Material  Aluminum

Industry Standards

  • IP Rating  IP50

  • Hazardous Area Approval  No

Reference Number

  • TE Internal Number CAT-CAPS0054
