String Pots - SG1

String Pots - SG1-CAT-CAPS0056
  • MEAS
|
  • MEAS SG

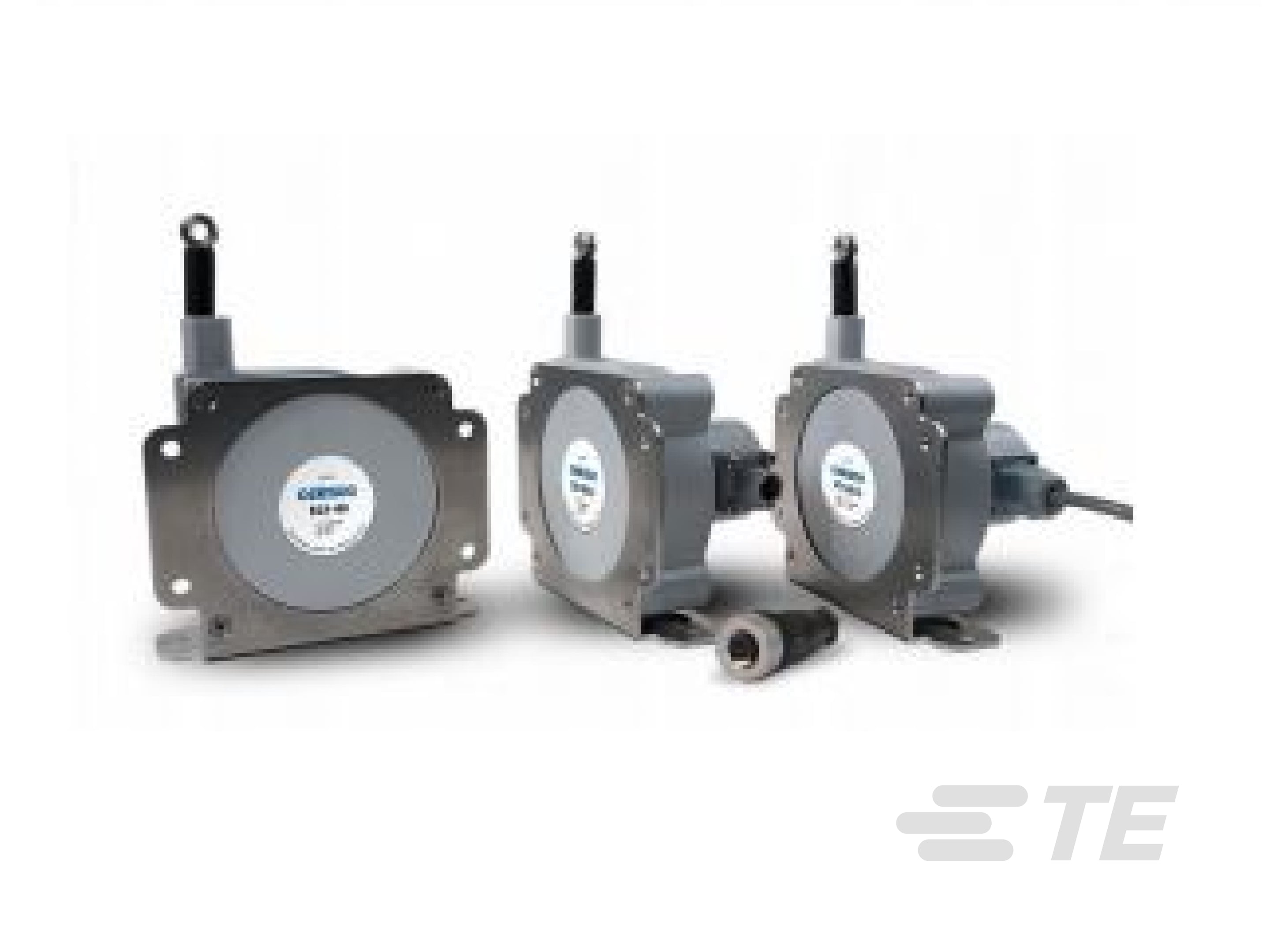

The SG1 series string pot is available in an 80-inch or 120-inch stroke range and offers optional IP67 protection for wet or outdoor installations and an M12 connector for easy installation. This product is configurable, please refer to the datasheet for available options.
More Less

Product Features

  • Position Sensor Product Type : SG Series String Pots

  • Full Stroke Range (mm): 3048, 2032

  • Full Stroke Range (in): 120, 80

  • Output Signal Type : Voltage Divider (Potentiometric)

  • Accuracy (% of FS): ±.35

  • Repeatability (% of FS): .02

Available from

LADD Inc
Overview

The SG1 series is compact mid-range string pot that is constructed with a rugged polycarbonate body. The SG1 uses a precision high-cycle plastic hybrid potentiometer and an extremely durable spring-loaded stainless steel measuring cable to provide an accurate reliable position feedback signal over the entire stroke.  With its slim design and versatile mounting bracket, the SG1 has been designed to fit into spaces no other measurement device can.  For the OEM customer, custom mounting hardware and electrical connections are available.

Benefits

  • Compact Mid-Range String Pot
  • Absolute Position
  • 80, 120-inch Stroke Range Options
  • Polycarbonate Enclosure
  • IP50, IP67 (M12 connector & pigtail options)
  • Optional cordset
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Position Sensor Product Type  SG Series String Pots

Dimensions

  • Full Stroke Range (mm) 3048, 2032

  • Full Stroke Range (in) 120, 80

Operation/Application

  • Output Signal Type  Voltage Divider (Potentiometric)

Usage Conditions

  • Accuracy (% of FS) ±.35

  • Operating Temperature Range  -40 – 70 °C [ -40 – 158 °F ]

Other

  • Repeatability (% of FS) .02

  • Encoder Drive  No

  • Measuring Cable  Nylon-Coated Stainless Steel

  • EU RoHS Compliance  Compliant with Exemptions

  • EU ELV Compliance  Compliant with Exemptions

Body Features

  • Case Material  Polycarbonate + Stainless Mounting Bracket

Industry Standards

  • IP Rating  IP50

  • Hazardous Area Approval  No

Reference Number

  • TE Internal Number CAT-CAPS0056
