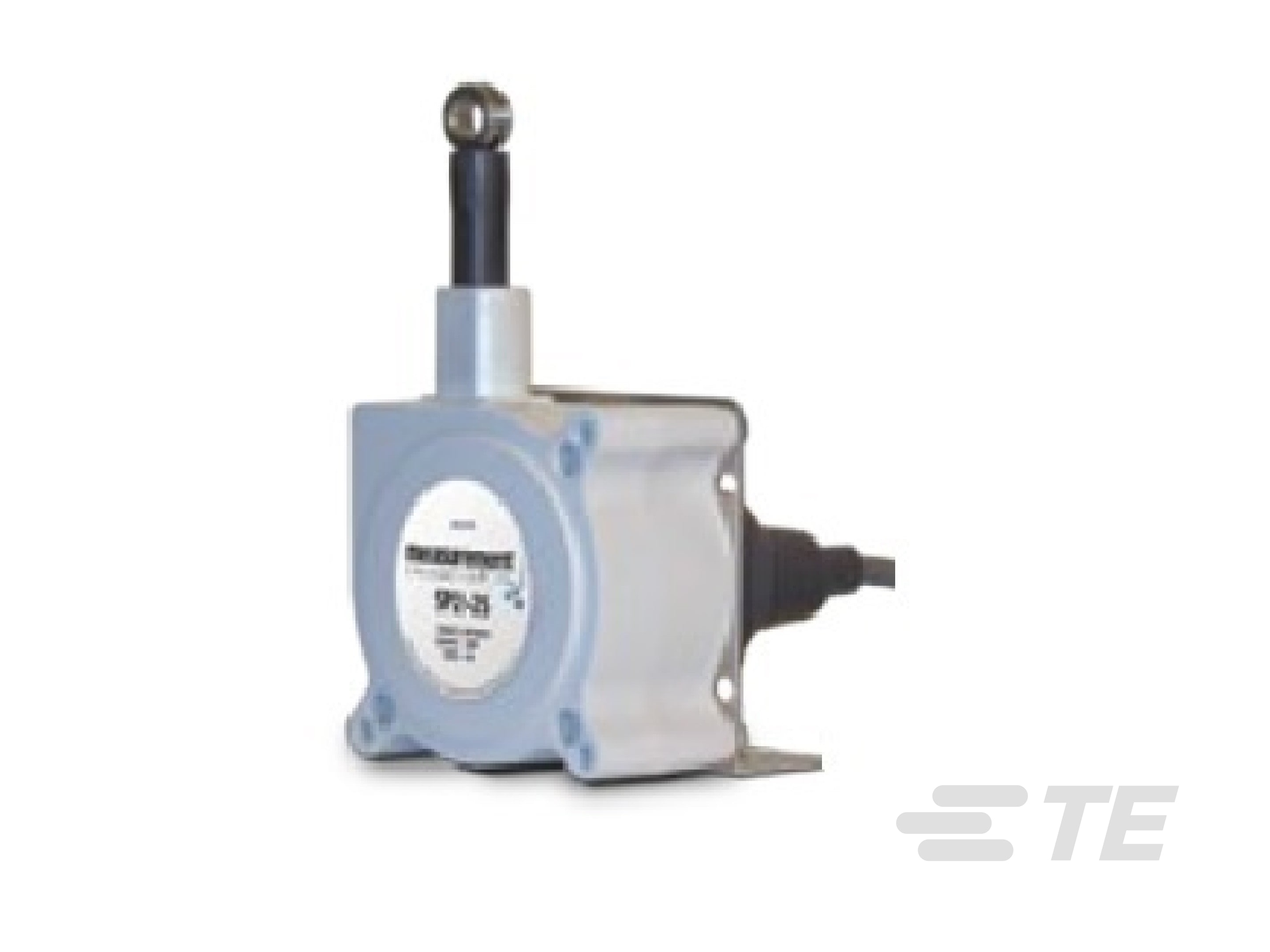

IP67 String Pot, 40in. Electrical Cable

IP67 String Pot, 40in. Electrical Cable-CAT-CAPS0068
  • MEAS
|
  • MEAS SP
The SP2 series IP-51 voltage divider string pot is a compact, economical and water resistant device that utilizes a flexible cable, a spring-loaded spool and a potentiometer to detect and measure linear position.
More Less

Product Features

  • Position Sensor Product Type : SP Series, String Pots

  • Full Stroke Range : 101.6 – 1270 mm [ 4 – 50 in ]

  • Output Signal Type : Voltage Divider (Potentiometric)

  • Accuracy (% of FS): ±.25

  • Repeatability (% of FS): .02

Available from

LADD Inc
Overview

The SP2 string pot is identical to the SP1 except for an added 40-inch electrical cable with a watertight rubber strain relief. The SP2 has been compactly designed for tight spaces and high cycle applications and generously allows for measuring cable misalignment.  With 4 different ranges and a handy mounting bracket, the SP2 is a perfect solution for many applications from light industrial to OEM.

Benefits

  • Linear position to 50 inches (1270 mm)
  • Rugged polycarbonate enclosure
  • 40-in. electrical cable w/ watertight rubber strain relief
  • Free-release tolerant
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Position Sensor Product Type  SP Series, String Pots

Body Features

  • Case Material  Polycarbonate + Stainless Mounting Bracket

Dimensions

  • Full Stroke Range  101.6 – 1270 mm [ 4 – 50 in ]

Usage Conditions

  • Accuracy (% of FS) ±.25

  • Operating Temperature Range  -18 – 71 °C [ 0 – 160 °F ]

Operation/Application

  • Output Signal Type  Voltage Divider (Potentiometric)

Industry Standards

  • IP Rating  IP51

  • Hazardous Area Approval  None

Other

  • Repeatability (% of FS) .02

  • Encoder Drive  No

  • Measuring Cable  Nylon-Coated Stainless Steel

Reference Number

  • TE Internal Number CAT-CAPS0068
