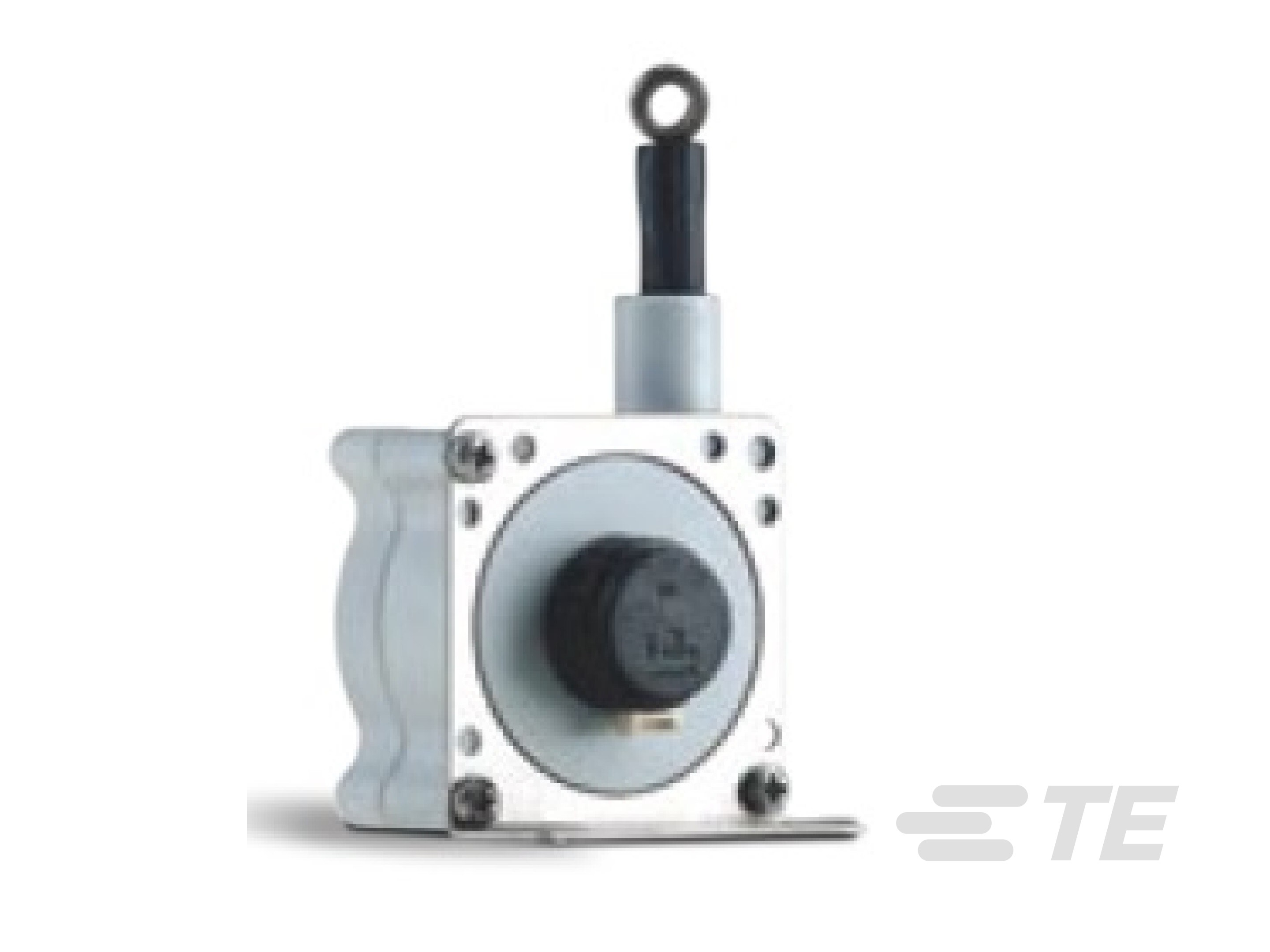

SE1 String Pot Incremental Encoder

SE1 String Pot Incremental Encoder-CAT-CAPS0071
  • MEAS
|
  • MEAS SP
The SE1 series incremental encoder string pot is an economical and durable digital encoder device that utilizes a flexible cable, a spring-loaded spool and an incremental optical encoder to detect and measure linear position.
More Less

Product Features

  • Position Sensor Product Type : SE1 - Compact String Pot

  • Full Stroke Range (mm): 635, 1270

  • Full Stroke Range (in): 25, 50

  • Output Signal Type : Incremental Encoder

  • Accuracy (% of FS): ±.1

  • Repeatability (% of FS): .02

Available from

LADD Inc
Overview
The SE1 series incremental encoder string pot utilizes a flexible cable, a spring-loaded spool and an incremental optical encoder to detect and measure linear position.

The SE1 series incremental encoder string pot is designed for tight spaces, high-cycle applications and generously allows cable misalignment. With a handy mounting bracket included, and 2 basic measurement ranges, the SE1 is a perfect solution for many applications, from light industrial to OEM.

Benefits

  • Encoder Linear Position to 50 inches (1270 mm)
  • Low-Cost, Long Life
  • Rugged Polycarbonate Enclosure
  • Free-Release Tolerant Measuring Cable
  • Various configurations available in stock
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Position Sensor Product Type  SE1 - Compact String Pot

Body Features

  • Case Material  Polycarbonate + Stainless Mounting Bracket

Dimensions

  • Full Stroke Range (mm) 635, 1270

  • Full Stroke Range (in) 25, 50

Usage Conditions

  • Accuracy (% of FS) ±.1

  • Operating Temperature Range  -10 – 85 °C [ 14 – 185 °F ]

Operation/Application

  • Resolution (ppmm) 1432

  • Output Signal Type  Incremental Encoder

Industry Standards

  • IP Rating  IP50

Other

  • Repeatability (% of FS) .02

  • Encoder Drive  No

  • Measuring Cable  Nylon-Coated Stainless Steel

Reference Number

  • TE Internal Number CAT-CAPS0071
