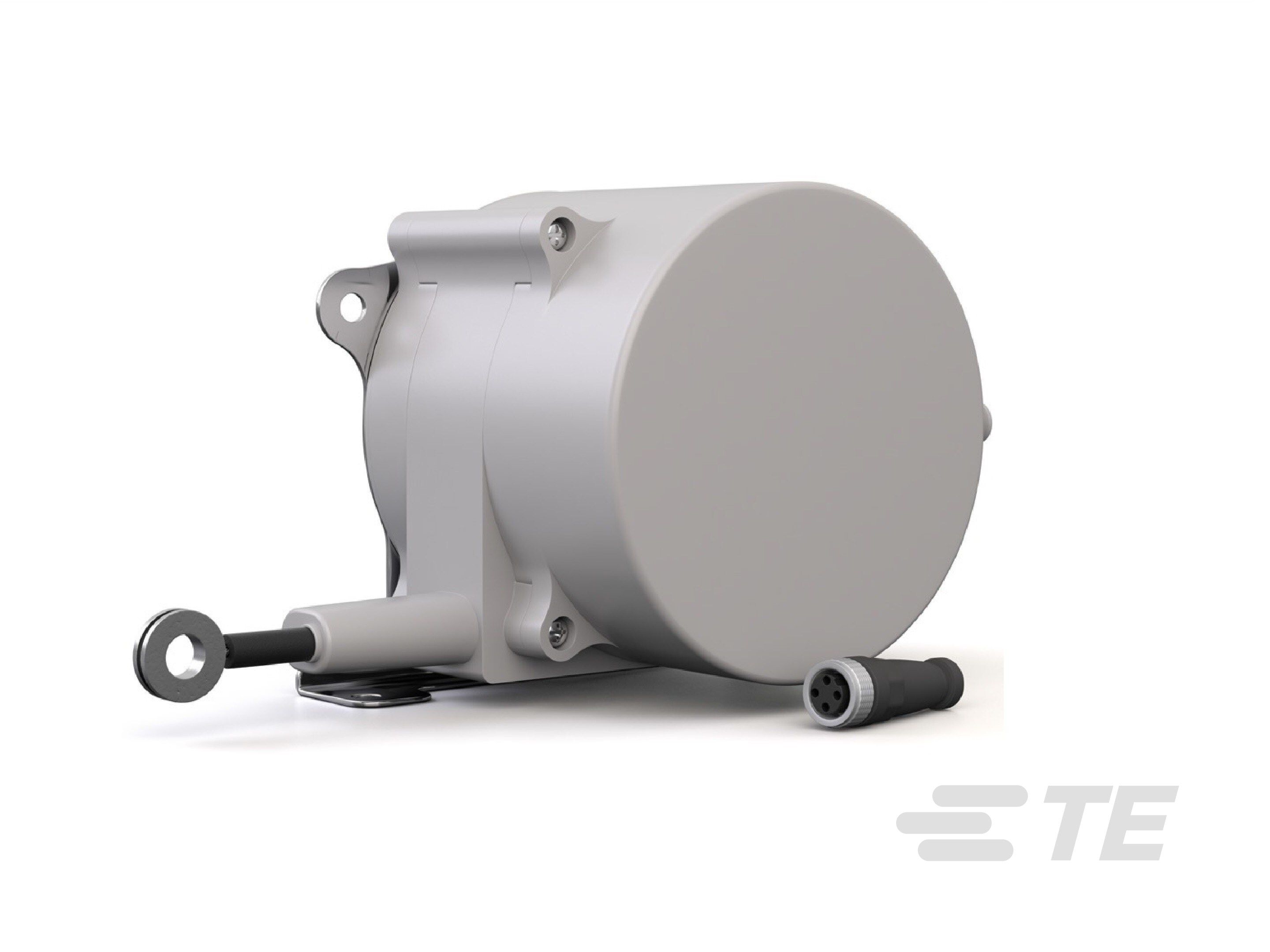

Industrial CANBus J1939 String Pot

Industrial CANBus J1939 String Pot-CAT-CAPS0079
  • MEAS
|
  • MEAS SR
The SR1J model CANJ1939 string potentiometer is available in 0-125 inches and 0-175 inches full stroke ranges and is the designed for applications such as mobile crane outrigger position or hydraulic lifts. Mounting bracket included.
More Less

Product Features

  • Position Sensor Product Type : SR Series, IP67 String Pots

  • Full Stroke Range (mm): 4445, 3175

  • Full Stroke Range (in): 175, 125

  • Output Signal Type : CAN J1939

  • Accuracy (% of FS): ±.5

  • Repeatability (% of FS): .02

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Operation/Application

  • Digital Resolution (bit) 12

  • Output Signal Type  CAN J1939

Product Type Features

  • Position Sensor Product Type  SR Series, IP67 String Pots

Dimensions

  • Full Stroke Range (mm) 4445, 3175

  • Full Stroke Range (in) 175, 125

Usage Conditions

  • Accuracy (% of FS) ±.5

  • Operating Temperature Range  -40 – 85 °C [ -40 – 185 °F ]

Other

  • Repeatability (% of FS) .02

  • Encoder Drive  No

  • Measuring Cable  Bare Stainless Steel

Body Features

  • Case Material  Polycarbonate + Stainless Mounting Bracket

Industry Standards

  • IP Rating  IP67

  • Hazardous Area Approval  No

Reference Number

  • TE Internal Number CAT-CAPS0079
