CBP-5T MKII Benchtop Press - Servo Electric

TE Connectivity

TE CONNECTOR SEATING MACHINE LINEUP

Offering a Wide Range of Production Equipment for Compliant Pin Connector Technology

CONNECTOR SEATING MACHINE LINEUP

- Highly Customizable to Meet Your Production Requirements

- Simple Programming

- Force Monitoring for Control and Quality

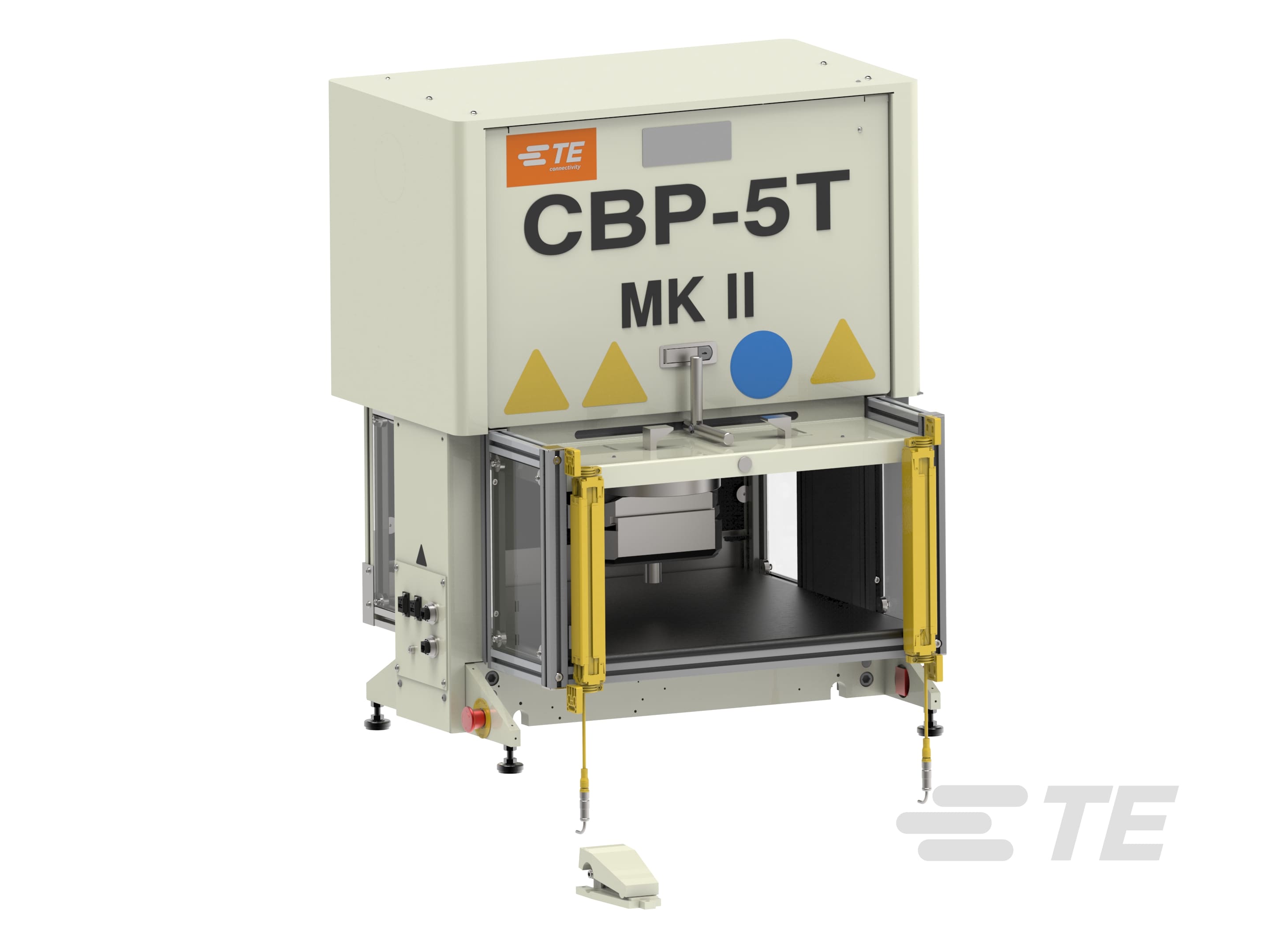

CBP-5T MKII & CSP-5T MKII

-          Compact Size

-          PCB Capacity

o    460 x 610 mm (18 x 24 in)

Ideal for low-medium production volumes

Additional Features Include:

-          Servo drive precision

-          44 kN (5 ton) force capacity

-          Robust software to closely monitor force, distance and speed

-          Database driven software for simple programming and setup

CMP-5T MKII & CMP-10T MKII

Features:

- Designed on a rigid "H" frame to minimize deflection

Features:

- 44 kN (5 tons) of force on the 5T model

- 89 kN (10 tons) of force on the 10T model

Features:

- Uses an air bearing system for effortless press head positioning

PCB Capacity:

- 5T Model: 610 x 915 mm (24 x 36 in)

- 10T Model: 760 x 900 mm (30 x 36 in)

Other Features Include:

- Speed, height and force control

- Wide range of insertion heads for TE & non-TE terminals

CAP-6T & CAPI-6T

- Combines the quality assurance of the TE Connector Seating Machine lineup with the speed of an automated press

PCB Capacity

- 760 x 915 mm (30 x 36 in)

- Capable of handling a large variety of demanding applications like daughter cards and mid-plane and back-plane boards

Features:

- Press force up to 52kN (6 tons)

- X/Y gantry locates the press head to automatically press connector

Features:

- Ability to monitor control force, distance and speed for every press cycle

Features:

- Includes tool holder for up to 12 insertion tools with built in ID verification feature

Features:

- Electric press automatically selects the proper insertion tool and press program information for each connector pressed

TE CONNECTOR SEATING MACHINE LINEUP

Additional Features

Advanced CPU Control

- All TE Connector Seating Machine Models include a touch screen monitor with improved software for enhanced machine operation

Advanced CPU Control

- Product setup for these machines is accomplished without any required hardware adjustments

- Tool and connector databases, and a press sequence program provides a fully data driven press cycle

Advanced CPU Control

- The SPC feature within the included press software provides a press log and allows press force plotting for every connector

Advanced CPU Control

- The SPC feature within the included press software provides a press log and allows press force plotting for every connector

Introducing SensiPress Technology

The sensible solution to reducing bent pins in press fit applications

CHALLENGE

High performance connectors with higher pin densities and smaller pin tails are now more common.

Industry Trend

Smaller pin sizes

CHALLENGE

Due to mechanical noise, small bent pins can be difficult to sense

Good Press Cycle Scenario

TE Connector Press Fit machines are designed to measure press force to determine successful press cycles.

No SensiPress

With SensiPress

Bent Pin Scenario

SensiPress technology enables TE Connector Press Fit machines to more accurately measure press force and halt the seating cycle if it detects early contact with the tool.

Value of SensiPress

As little as 3 lbs of force can crush small pins.

Value of SensiPress

We optimized our load cell positioning and isolated the force sensors to eliminate excessive force noise.

Value of SensiPress

We can now eliminate excessive force noise, making it easier to detect bent pins and stopping the press cycle before damaging expensive PC boards.

SENSIPRESS detects bent pins and cancels press cycle

Field Installed, Servo-controlled SensiPress Upgrade

Available on BMEP, MEP, CBP and CMP models from TE Connectivity.

Retrofits to select machines can be made on-site by a trained TE Field Service Engineer.

No additional software is required and installation takes only a few hours to complete.

For a free quote visit www.te.com/SENSIPRESS
