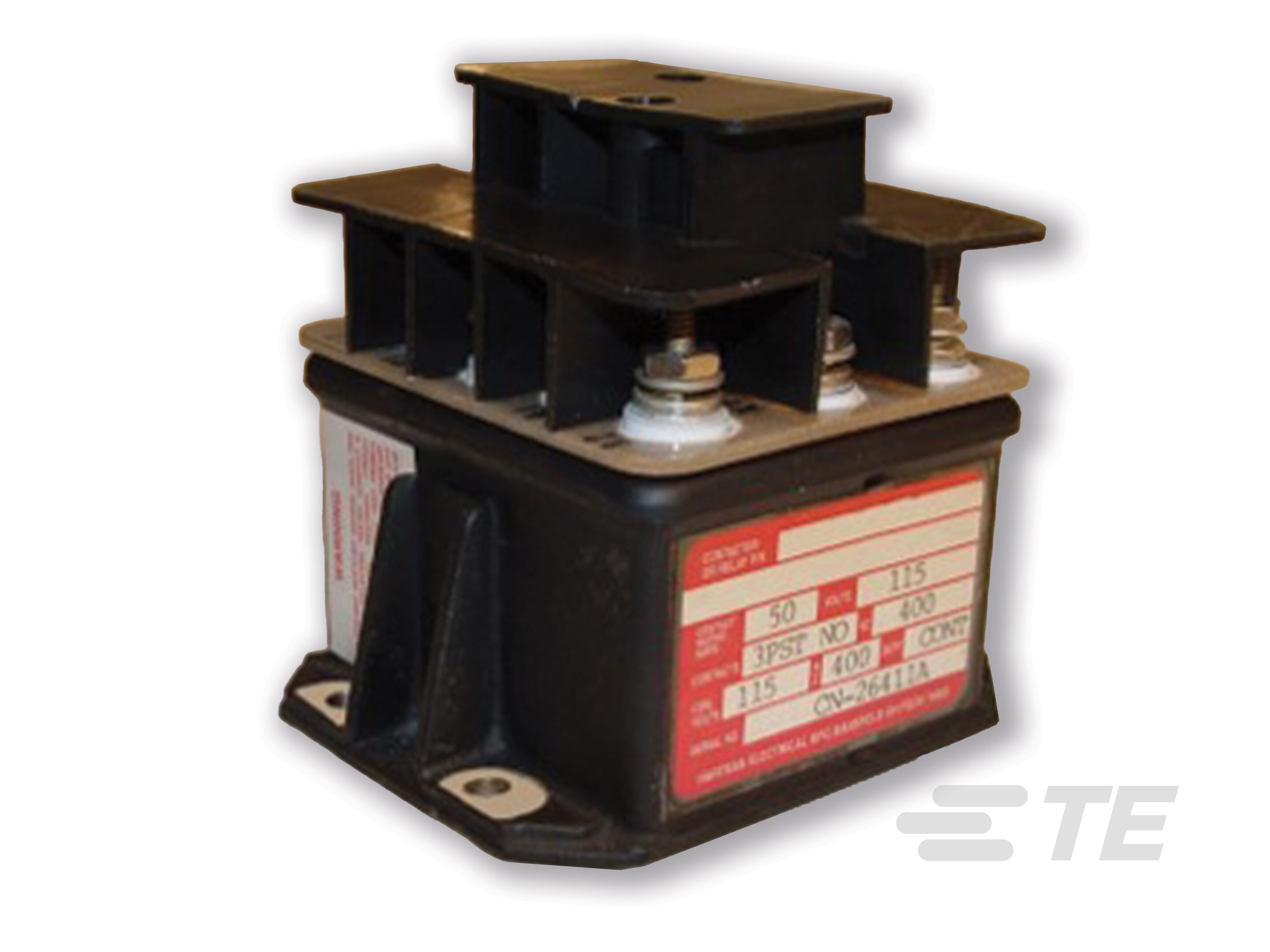

AC Contactors: 3PDT, 2PDT

AC Contactors: 3PDT, 2PDT-CAT-D-PDT-AC-CONT
TE's Hartman intelligent power protection AC contactors are gasket sealed with SPDT, 2PDT & 3PDT switch configuration rated upto 125 Amps.
More Less

Product Features

  • Relay & Contactor Type : General Purpose Contactor

  • Current Type : DC

  • Contact Arrangement : 2PDT-NO, 3PDT- Centre Off, 3PDT-NO, 3PDT, SPDT- Centre Off DB, SPDT-DB

  • Contact Current Rating (A): 60, 25, 50, 125, 100

  • Coil Voltage Rating (VAC): 115

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Termination Features

  • Auxiliary Termination & Connection Type  D-Sub, Wire - Connector, 6-32 UNC-2A Stud

  • Main Termination & Connection Type  8-32 UNC-2A Stud, 1/4-28 UNF-2A Stud, 10-32 UNF-2A, 10-32 UNF-2A Stud

  • Coil Termination & Connection Type  6-32 UNC-2A Stud, Connector, D-Sub, 6-32 UNC-2A

Configuration Features

  • Contact Number of Poles  2, 1, 3

  • Contact Arrangement  2PDT-NO, 3PDT- Centre Off, 3PDT-NO, 3PDT, SPDT- Centre Off DB, SPDT-DB

Product Type Features

  • Relay & Contactor Type  General Purpose Contactor

Operation/Application

  • Current Type  DC

Electrical Characteristics

  • Contact Current Rating (A) 60, 25, 50, 125, 100

  • Coil Voltage Rating (VAC) 115

  • Coil Voltage Rating (VDC) 28

Body Features

  • Enclosure Type  Environmentally Sealed

Mechanical Attachment

  • Product Mount Type  Chassis Mount

Other

  • EU RoHS Compliance  Not Compliant, Compliant

  • EU ELV Compliance  Compliant, Not Compliant

Reference Number

  • TE Internal Number CAT-D-PDT-AC-CONT
