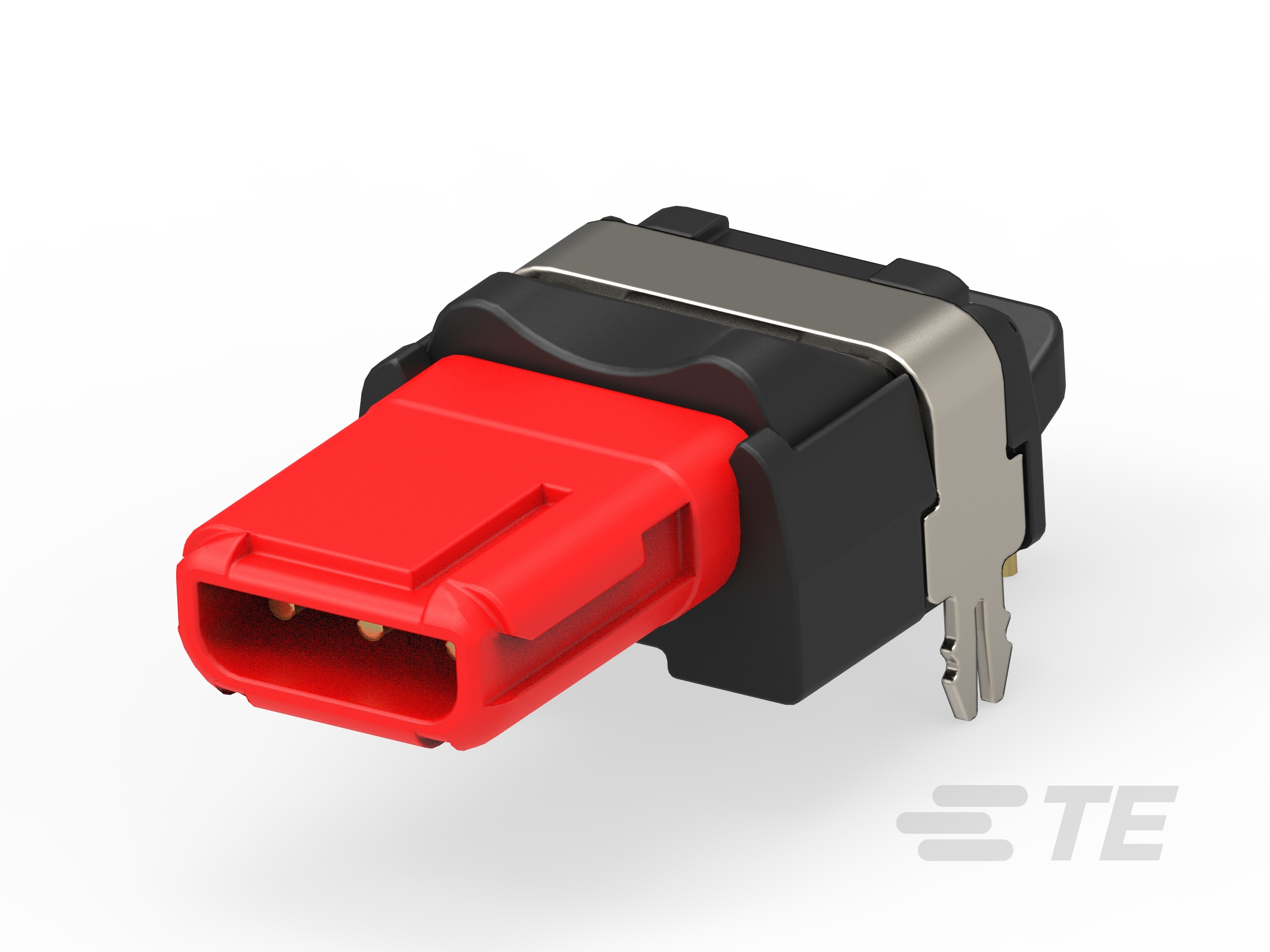

PCB Mount Receptacle: 3-Way Inline

Please review product documents or contact us for the latest agency approval information.

• PCB Connector Type  PCB Mount Receptacle

• Connector System  Wire-to-Board

• Sealable  Yes

• Connector & Contact Terminates To  Printed Circuit Board

• Connector Product Type  Connector Assembly

• Number of Columns  3

• Number of Loaded Positions  6

• PCB Mount Orientation  Right Angle

• Number of Positions  3

• Number of Rows  1

• Dielectric Withstanding Voltage (Max) (V) 1500

• Connector & Keying Code  A, B, C, D, N

• Primary Product Color  Black, Blue, Green, Red, Yellow

• Contact Layout  Inline

• Contact Shape & Form  Round

• Contact Base Material  Copper Alloy

• PCB Contact Termination Area Plating Material  Gold, Tin

• Contact Mating Area Plating Material  Gold (Au)

• Contact Type  Pin, Socket

• Contact Current Rating (Max) (A) 5

• Termination Post & Tail Diameter  .62 mm [ .025 in ]

• Termination Method to PCB  Through Hole - Solder

• PCB Mount Retention Type  Retention Leg

• Mating Retention  With

• Mating Alignment Type  Keyed

• PCB Mount Retention  With

• PCB Mount Alignment  With

• Connector Mounting Type  Board Mount

• Mating Alignment  With

• Housing Material  Thermoplastic

• Centerline (Pitch)  2.54 mm [ .1 in ]

• Operating Temperature Range  -55 – 175 °C [ -67 – 347 °F ]

• Circuit Application  Signal

• Packaging Quantity  1

• Packaging Method  Package
