View products below to see detailed pricing

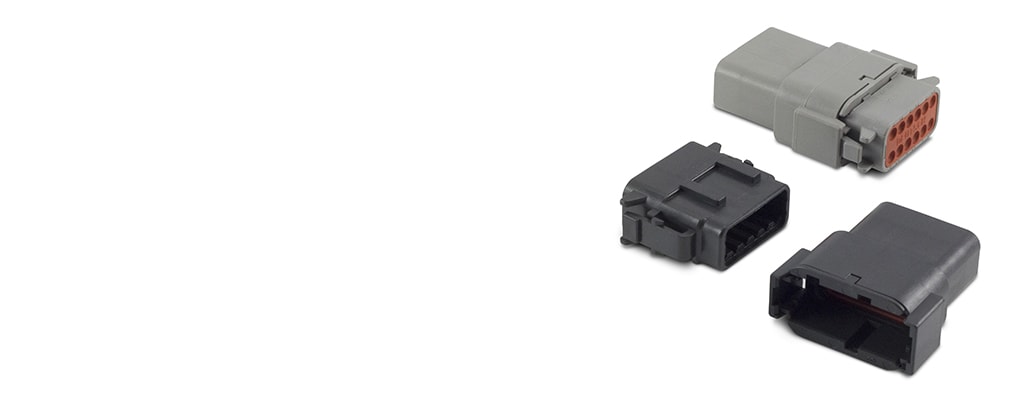

DEUTSCH DTM Housings

DEUTSCH

DEUTSCH DT
DEUTSCH DTM

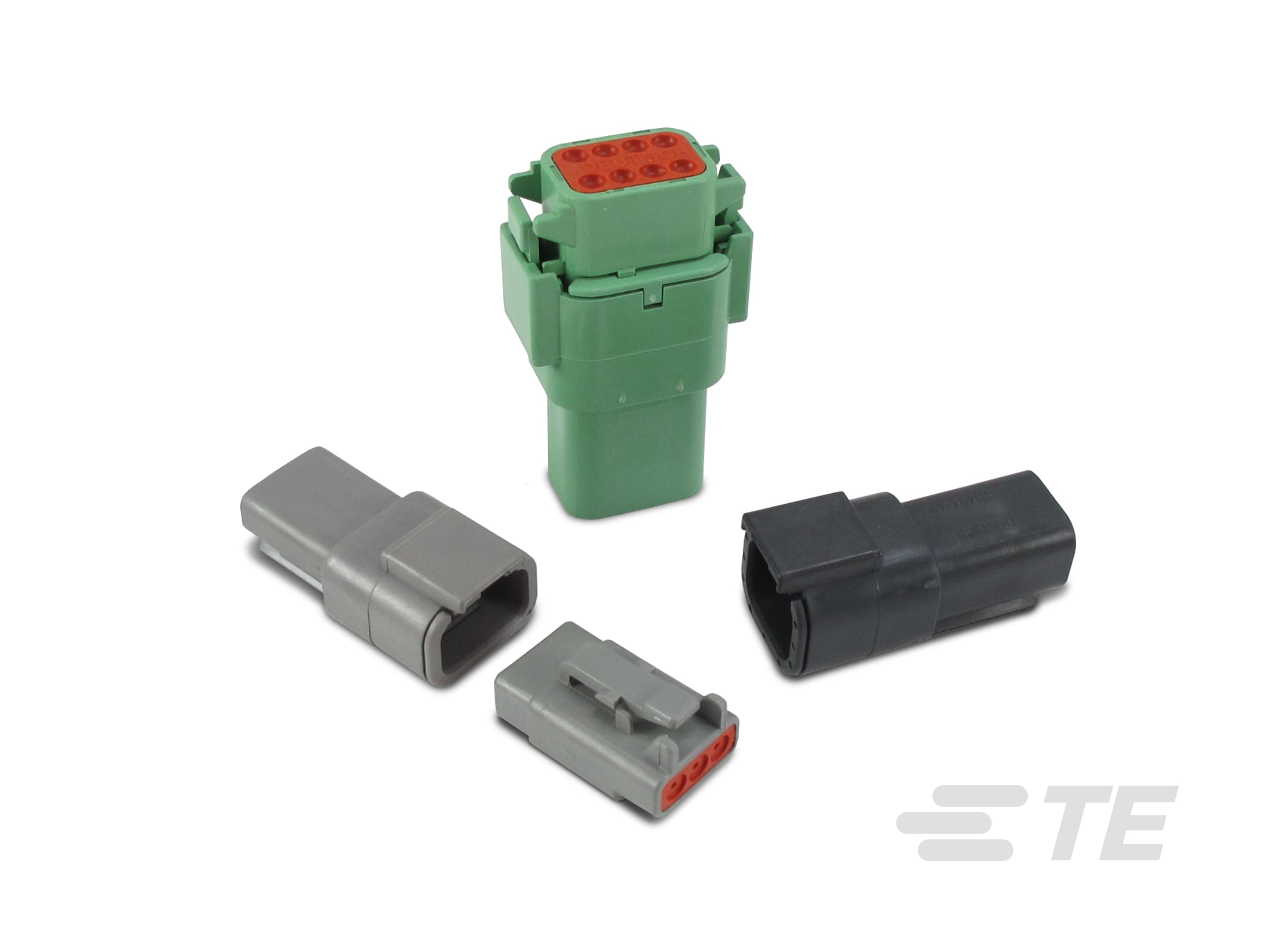

DEUTSCH DTM housings are available in 2, 3, 4, 6, 8, and 12 pin counts and use size 20 DEUTSCH contacts, each with 7.5-amp continuous capacity. DTM housings feature an integrated latch for mating.

More Less

Product Features

Number of Positions : 12, 3, 6, 8, 2, 4
Connector & Housing Type : Housing for Female Terminals, Receptacle, Plug, Housing for Male Terminals
Mating Pin Diameter (mm): 1.02, 1, 1.59
Mating Pin Diameter (in): .04, .063, .039
Connector System : Wire-to-Wire, Wire-to-Panel, Component-to-Wire
Centerline (Pitch) (mm): 5.46, 3.81, 4.19, 4.2
Centerline (Pitch) (in): .164, .15, .215, .165

Available from

Product	TE Part #	Documents	Connector System	Number of Positions	Connector & Housing Type	Centerline (Pitch)	Mating Pin Diameter	Number of Rows	Primary Product Color	Contact Current Rating (Max)	Circuit Application	Connector Mounting Type	Operating Temperature (Max)	Nominal Voltage Architecture	Connector & Keying Code	Operating Temperature Range	EU RoHS Compliance	EU ELV Compliance
REC, 12P, GRY, N, FLANGE, A	DTM04-12PA-L012	Product Drawing 3D PDF	Wire-to-Panel	12	Housing for Male Terminals	4.19 mm	1 mm	2	Gray	7.5 A	Power	Panel Mount	125 °C	-	A	-55 – 125 °C	Compliant	Compliant
REC, 2P, BLK, N, HI TEMP, C Buy on te.com	DTMH04-2PC	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Male Terminals	4.19 mm	1 mm	1	Black	7.5 A	Power	Cable Mount (Free-Hanging)	150 °C	250 V	C	-55 – 150 °C	Compliant	Compliant
PLG, 12P, GRN, N, XCAP, C	DTM06-12SC-E007	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Female Terminals	3.81 mm	1.02 mm	2	Green	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	C	-55 – 125 °C	Compliant	Compliant
REC, 2P, GRY, 4700 OHM RESISTOR, AU Buy on te.com	DT04-2P-P049	3D PDF	Wire-to-Wire	2	Housing for Male Terminals	5.46 mm	1.59 mm	1	Gray	13 A	Power	-	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
PLG, 12P, GRN, N, C Buy on te.com	DTM06-12SC	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Female Terminals	3.81 mm	1.02 mm	2	Green	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	C	-55 – 125 °C	Compliant	Compliant
REC, 2P, BLK, 620 OHM RESISTOR, NI Buy on te.com	DT04-2P-RT22	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Male Terminals	5.46 mm	1.59 mm	1	Black	13 A	Power	-	125 °C	250 V	-	-55 – 125 °C	Compliant with Exemptions	Compliant with Exemptions
REC, 2P, BLK, N Buy on te.com	DTM04-2P-E004	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Male Terminals	3.81 mm	1 mm	1	Black	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
DTM06-08SD-E003, PLG, 8P, GRY, N, CAP, D	2289630-4	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Female Terminals	4.19 mm	1.02 mm	2	Brown	7.5 A	Power & Signal	Cable Mount (Free-Hanging)	125 °C	24 V, 48 V, 12 V	D	-55 – 125 °C	Compliant	Compliant
REC, 2P, BLK, N, XCAP Buy on te.com	DTM04-2P-EE03	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Male Terminals	3.81 mm	1 mm	1	Black	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
REC, 4P, BLK, N, HI TEMP, A Buy on te.com	DTMH04-4PA	Product Drawing 3D PDF	Wire-to-Wire	4	Housing for Male Terminals	4.19 mm	1 mm	2	Black	7.5 A	Power	Cable Mount (Free-Hanging)	150 °C	250 V	A	-55 – 150 °C	Compliant	Compliant
REC, 12P, GRY, N, FLANGE, A	2303064-1	Product Drawing 3D PDF	Wire-to-Panel	12	Receptacle	4.19 mm	1 mm	2	Gray	7.5 A	Signal	Panel Mount	125 °C	-	A	-55 – 125 °C	Compliant	Compliant
REC, 2P, BLK, 120 OHM RESISTOR, NI Buy on te.com	DT04-2P-RT24	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Male Terminals	5.46 mm	1.59 mm	1	Black	13 A	Power	-	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
REC, 3P, BLK, N Buy on te.com	DTM04-3P-E004	Product Drawing 3D PDF	Wire-to-Wire	3	Housing for Male Terminals	3.81 mm	1 mm	1	Black	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
PLG, 8P, BLK, N, XCAP, B Buy on te.com	DTM06-08SB-E007	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Female Terminals	3.81 mm	1.02 mm	2	Black	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	B	-55 – 125 °C	Compliant	Compliant
PLG, 6P, GRY, BLOCKED	DTM06-6S-C017	Product Drawing 3D PDF	Wire-to-Wire	6	Housing for Female Terminals	4.19 mm	1.02 mm	2	Gray	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
REC, 12P, GRY, N, CAP, A Buy on te.com	DTM04-12PA-E003	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Male Terminals	4.19 mm	1.02 mm	2	Gray	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	24 V, 48 V, 12 V	A	-55 – 125 °C	Compliant	Compliant
REC, 2P, GRY, N, CAP Buy on te.com	DTM04-2P-E003	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Male Terminals	3.81 mm	1 mm	1	Gray	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
PLG, 4P, GRY, N, XCAP Buy on te.com	DTM06-4S-E007	Product Drawing 3D PDF	Wire-to-Wire	4	Housing for Female Terminals	4.19 mm	1.02 mm	2	Gray	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
PLG, 8P, BLK, N, HIGH TEMP, CAP, A	DTM06-08SA-EE08	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Female Terminals	3.81 mm	1.02 mm	2	Black	7.5 A	Power	Cable Mount (Free-Hanging)	150 °C	250 V	A	-55 – 150 °C	Compliant	Compliant
PLG, 8P, GRN, N, C Buy on te.com	DTM06-08SC	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Female Terminals	3.81 mm	1.02 mm	2	Green	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	C	-55 – 125 °C	Compliant	Compliant
REC, 4P, GRY, N Buy on te.com	DTM04-4P	Product Drawing 3D PDF	Wire-to-Wire	4	Housing for Male Terminals	3.81 mm	1 mm	2	Gray	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
REC, 12P, BLK, N, FLANGE, B Buy on te.com	DTM04-12PB-L012	Product Drawing 3D PDF	Wire-to-Panel	12	Housing for Male Terminals	4.19 mm	1 mm	2	Black	7.5 A	Power	Panel Mount	125 °C	-	B	-55 – 125 °C	Compliant	Compliant
REC, 8P, BLK, N, HIGH TEMP, A	DTM04-08PA-EE04	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Male Terminals	4.19 mm	1 mm	2	Black	7.5 A	Power	Cable Mount (Free-Hanging)	150 °C	250 V	A	-55 – 150 °C	Compliant	Compliant
REC, 12P, BLK, N, CAP, A	DTM04-12PA-E005	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Male Terminals	4.19 mm	1.02 mm	2	Black	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	24 V, 48 V, 12 V	A	-55 – 125 °C	Compliant	Compliant
PLG, 2P, BLK, N, HI TEMP, A Buy on te.com	DTMH06-2SA	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Female Terminals	4.19 mm	1 mm	1	Black	7.5 A	Power	Cable Mount (Free-Hanging)	150 °C	250 V	A	-55 – 150 °C	Compliant	Compliant
DTM06-08SA-E003, PLG, 8P, GRY, N, CAP, A	2289630-1	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Female Terminals	4.19 mm	1.02 mm	2	Gray	7.5 A	Power & Signal	Cable Mount (Free-Hanging)	125 °C	24 V, 48 V, 12 V	A	-55 – 125 °C	Compliant	Compliant
PLG, 12P, GRY, N, CAP, A Buy on te.com	DTM06-12SA-E003	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Female Terminals	3.81 mm	1.02 mm	2	Gray	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	A	-55 – 125 °C	Compliant	Compliant
REC, 6P, GRY, N, CAP Buy on te.com	DTM04-6P-E003	Product Drawing 3D PDF	Wire-to-Wire	6	Housing for Male Terminals	3.81 mm	1 mm	2	Gray	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
PLG, 12P, BLK, N, B Buy on te.com	DTM06-12SB	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Female Terminals	3.81 mm	1.02 mm	2	Black	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	B	-55 – 125 °C	Compliant	Compliant
PLG, 4P, GRY, N Buy on te.com	DTM06-4S	Product Drawing 3D PDF	Wire-to-Wire	4	Housing for Female Terminals	4.19 mm	1.02 mm	2	Gray	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
DTM06-08SB-E003, PLG, 8P, GRY, N, CAP, B	2289630-2	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Female Terminals	4.19 mm	1.02 mm	2	Black	7.5 A	Power & Signal	Cable Mount (Free-Hanging)	125 °C	24 V, 48 V, 12 V	B	-55 – 125 °C	Compliant	Compliant
DTM06-4S-E003, PLG, 4P, GRY, N, CAP Buy on te.com	2298287-1	Product Drawing 3D PDF	Wire-to-Wire	4	Plug	4.2 mm	1 mm	2	Gray	7.5 A	-	Cable Mount (Free-Hanging)	125 °C	-	-	-55 – 125 °C	Compliant	Compliant
REC, 8P, BLK, N, CAP, A Buy on te.com	DTM04-08PA-E005	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Male Terminals	4.19 mm	1 mm	2	Black	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	A	-55 – 125 °C	Compliant	Compliant
PLG, 4P, BLK, N	DTM06-4S-E004	Product Drawing 3D PDF	Wire-to-Wire	4	Housing for Female Terminals	4.19 mm	1.02 mm	2	Black	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
PLG, 12P, GRY, N, XCAP, A Buy on te.com	DTM06-12SA-E007	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Female Terminals	3.81 mm	1.02 mm	2	Gray	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	A	-55 – 125 °C	Compliant	Compliant
REC, 12P, GRY, N, A	DTM04-12PA	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Male Terminals	4.19 mm	1.02 mm	2	Gray	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	24 V, 48 V, 12 V	A	-55 – 125 °C	Compliant	Compliant
REC, 2P, BLK, FEEDTHRU, NI	DT04-2P-N006	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Male Terminals	5.46 mm	1.59 mm	1	Black	13 A	Power	Panel Mount	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
PLG, 6P, BLK, N, HIGH TEMP Buy on te.com	DTM06-6S-EE04	Product Drawing 3D PDF	Wire-to-Wire	6	Housing for Female Terminals	4.19 mm	1.02 mm	2	Black	7.5 A	Power	Cable Mount (Free-Hanging)	150 °C	250 V	-	-55 – 150 °C	Compliant	Compliant
REC, 3P, BLK, N, HI TEMP, A	DTMH04-3PA	Product Drawing 3D PDF	Wire-to-Wire	3	Housing for Male Terminals	4.19 mm	1 mm	1	Black	7.5 A	Power	Cable Mount (Free-Hanging)	150 °C	250 V	A	-55 – 150 °C	Compliant	Compliant
PLG, 3P, BLK, N, HI TEMP, A	DTMH06-3SA	Product Drawing 3D PDF	Wire-to-Wire	3	Housing for Female Terminals	4.19 mm	1 mm	1	Black	7.5 A	Power	Cable Mount (Free-Hanging)	150 °C	250 V	A	-55 – 150 °C	Compliant	Compliant
REC, 4P, GRY, N, CAP Buy on te.com	DTM04-4P-E003	Product Drawing 3D PDF	Wire-to-Wire	4	Housing for Male Terminals	3.81 mm	1 mm	2	Gray	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
PLG, 12P, BLK, N, CAP, B Buy on te.com	DTM06-12SB-E003	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Female Terminals	3.81 mm	1.02 mm	2	Black	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	B	-55 – 125 °C	Compliant	Compliant
PLG, 12P, BLK, N, XCAP, B Buy on te.com	DTM06-12SB-E007	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Female Terminals	3.81 mm	1.02 mm	2	Black	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	B	-55 – 125 °C	Compliant	Compliant
PLG, 2P, GRY, BLOCKED	DTM06-2S-C017	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Female Terminals	4.19 mm	1.02 mm	1	Gray	7.5 A	Power & Signal	Cable Mount (Free-Hanging)	125 °C	24 V, 48 V, 12 V	-	-55 – 125 °C	Compliant	Compliant
REC, 2P, BLK, N, HI TEMP, A Buy on te.com	DTMH04-2PA	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Male Terminals	4.19 mm	1 mm	1	Black	7.5 A	Power	Cable Mount (Free-Hanging)	150 °C	250 V	A	-55 – 150 °C	Compliant	Compliant
PLG, 8P, BLK, N, A	DTM06-08SA-E004	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Female Terminals	3.81 mm	1.02 mm	2	Black	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	A	-55 – 125 °C	Compliant	Compliant
DTM04-3P-E007, REC, 3P, GRY, N, XCAP Buy on te.com	2296610-1	Product Drawing 3D PDF	Wire-to-Wire	3	Receptacle	4.2 mm	1 mm	1	Gray	7.5 A	-	Cable Mount (Free-Hanging)	125 °C	-	-	-55 – 125 °C	Compliant	Compliant
REC, 2P, BLK, 27K OHM RESISTOR, NI	DT04-2P-RT25	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Male Terminals	5.46 mm	1.59 mm	1	Black	13 A	Power	-	125 °C	250 V	-	-55 – 125 °C	Compliant with Exemptions	Compliant with Exemptions
REC, 12P, BLK, N, HIGH TEMP, D Buy on te.com	DTM04-12PD-EE04	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Male Terminals	3.81 mm	1 mm	2	Black	7.5 A	Power	Cable Mount (Free-Hanging)	150 °C	250 V	D	-55 – 150 °C	Compliant	Compliant
PLG, 12P, BLK, N, HIGH TEMP, A Buy on te.com	DTM06-12SA-EE04	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Female Terminals	3.81 mm	1.02 mm	2	Black	7.5 A	Power	Cable Mount (Free-Hanging)	150 °C	250 V	A	-55 – 150 °C	Compliant	Compliant
PLG, 2P, GRY, N, XCAP Buy on te.com	DTM06-2S-E007	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Female Terminals	4.19 mm	1.02 mm	1	Gray	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
PLG, 3P, BLK, N Buy on te.com	DTM06-3S-E004	Product Drawing 3D PDF	Wire-to-Wire	3	Housing for Female Terminals	4.19 mm	1.02 mm	1	Black	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
REC, 12P, BRN, N, D Buy on te.com	DTM04-12PD	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Male Terminals	3.81 mm	1 mm	2	Brown	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	D	-55 – 125 °C	Compliant	Compliant
REC, 2P, GRY, N Buy on te.com	DTM04-2P	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Male Terminals	3.81 mm	1 mm	1	Gray	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
PLG, 8P, GRY, N, A Buy on te.com	DTM06-08SA	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Female Terminals	3.81 mm	1.02 mm	2	Gray	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	A	-55 – 125 °C	Compliant	Compliant
REC, 8P, GRY, N, A Buy on te.com	DTM04-08PA	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Male Terminals	4.19 mm	1 mm	2	Gray	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	A	-55 – 125 °C	Compliant	Compliant
REC, 8P, BLK, N, B	DTM04-08PB	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Male Terminals	4.19 mm	1 mm	2	Black	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	B	-55 – 125 °C	Compliant	Compliant
PLG, 12P, BRN, N, CAP, D Buy on te.com	DTM06-12SD-E003	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Female Terminals	3.81 mm	1.02 mm	2	Brown	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	D	-55 – 125 °C	Compliant	Compliant
PLG, 2P, BLK, N, HI TEMP, B Buy on te.com	DTMH06-2SB	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Female Terminals	4.19 mm	1 mm	1	Black	7.5 A	Power	Cable Mount (Free-Hanging)	150 °C	250 V	B	-55 – 150 °C	Compliant	Compliant
PLG, 8P, BLK, N, HIGH TEMP, A Buy on te.com	DTM06-08SA-EE04	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Female Terminals	3.81 mm	1.02 mm	2	Black	7.5 A	Power	Cable Mount (Free-Hanging)	150 °C	250 V	A	-55 – 150 °C	Compliant	Compliant
PLG, 6P, BLK, N, XCAP Buy on te.com	DTM06-6S-EE03	Product Drawing 3D PDF	Wire-to-Wire	6	Housing for Female Terminals	4.19 mm	1.02 mm	2	Black	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
REC, 6P, BLK, N Buy on te.com	DTM04-6P-E004	Product Drawing 3D PDF	Wire-to-Wire	6	Housing for Male Terminals	3.81 mm	1 mm	2	Black	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
REC, 6P, BLK, N, CAP Buy on te.com	DTM04-6P-E005	Product Drawing 3D PDF	Wire-to-Wire	6	Housing for Male Terminals	3.81 mm	1 mm	2	Black	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
PLG, 12P, GRY, N, A Buy on te.com	DTM06-12SA	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Female Terminals	3.81 mm	1.02 mm	2	Gray	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	A	-55 – 125 °C	Compliant	Compliant
PLG, 6P, BLK, N, CAP Buy on te.com	DTM06-6S-E005	Product Drawing 3D PDF	Wire-to-Wire	6	Housing for Female Terminals	4.19 mm	1.02 mm	2	Black	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
REC, 2P, BLK, FEEDTHRU, NI	DT04-2P-P036	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Male Terminals	5.46 mm	1.59 mm	1	Black	13 A	Power	Panel Mount	125 °C	250 V	-	-55 – 125 °C	Compliant with Exemptions	Compliant with Exemptions
REC, 2P, BLK, Y-SPLITTER, AU, AB, B	DTM04-2P-P007	Product Drawing 3D PDF	Wire-to-Panel, Wire-to-Wire	2	Housing for Male Terminals	4.19 mm	1.02 mm	1	Black	7.5 A	Power	Panel Mount	125 °C	250 V	B, A	-55 – 125 °C	Compliant	Compliant
PLG, 2P, GRY, N Buy on te.com	DTM06-2S	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Female Terminals	4.19 mm	1.02 mm	1	Gray	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
PLG, 2P, BLK, N Buy on te.com	DTM06-2S-E004	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Female Terminals	4.19 mm	1.02 mm	1	Black	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
REC, 2P, BLK, 120 OHM RESISTOR, AU, B Buy on te.com	DTM04-2P-EP10	Product Drawing 3D PDF	Component-to-Wire	2	Housing for Male Terminals	4.19 mm	1.02 mm	1	Black	7.5 A	Power	-	125 °C	250 V	B	-55 – 125 °C	Compliant with Exemptions	Compliant with Exemptions
PLG, 8P, BLK, N, B Buy on te.com	DTM06-08SB	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Female Terminals	3.81 mm	1.02 mm	2	Black	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	B	-55 – 125 °C	Compliant	Compliant
PLG, 12P, GRN, N, CAP, C	DTM06-12SC-E003	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Female Terminals	3.81 mm	1.02 mm	2	Green	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	C	-55 – 125 °C	Compliant	Compliant
PLG, 12P, BLK, N, HIGH TEMP, D Buy on te.com	DTM06-12SD-EE04	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Female Terminals	3.81 mm	1.02 mm	2	Black	7.5 A	Power	Cable Mount (Free-Hanging)	150 °C	250 V	D	-55 – 150 °C	Compliant	Compliant
PLG, 3P, GRY, BLOCKED	DTM06-3S-C017	Product Drawing 3D PDF	Wire-to-Wire	3	Housing for Female Terminals	4.19 mm	1.02 mm	1	Gray	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
PLG, 2P, BLK, N, CAP Buy on te.com	DTM06-2S-E005	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Female Terminals	4.19 mm	1.02 mm	1	Black	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
REC, 2P, BLK, 600V, 1.28V, 4A DIODE, NI	DT04-2P-RT01	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Male Terminals	5.46 mm	1.59 mm	1	Black	13 A	Power	-	125 °C	250 V	-	-55 – 125 °C	Compliant with Exemptions	Compliant with Exemptions
REC, 2P, GRY, N, XCAP Buy on te.com	DTM04-2P-E007	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Male Terminals	3.81 mm	1 mm	1	Gray	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
REC, 6P, BLK, N, HIGH TEMP Buy on te.com	DTM04-6P-EE04	Product Drawing 3D PDF	Wire-to-Wire	6	Housing for Male Terminals	3.81 mm	1 mm	2	Black	7.5 A	Power	Cable Mount (Free-Hanging)	150 °C	250 V	-	-55 – 150 °C	Compliant	Compliant
PLG, 2P, BLK, 120 OHM RESISTOR, AU, B	DTM06-2S-EP10	Product Drawing 3D PDF	Component-to-Wire	2	Housing for Female Terminals	4.19 mm	1.02 mm	1	Black	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	B	-55 – 125 °C	Compliant with Exemptions	Compliant with Exemptions
PLG, 2P, GRY, 120 OHM RESISTOR, AU, A	DTM06-2S-P006	Product Drawing 3D PDF	Component-to-Wire	2	Housing for Female Terminals	4.19 mm	1.02 mm	1	Gray	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	A	-55 – 125 °C	Compliant with Exemptions	Compliant with Exemptions
REC, 4P, BLK, N, CAP Buy on te.com	DTM04-4P-E005	Product Drawing 3D PDF	Wire-to-Wire	4	Housing for Male Terminals	3.81 mm	1 mm	2	Black	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
PLG, 12P, BRN, N, D	DTM06-12SD	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Female Terminals	3.81 mm	1.02 mm	2	Brown	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	D	-55 – 125 °C	Compliant	Compliant
PLG, 6P, GRY, N Buy on te.com	DTM06-6S	Product Drawing 3D PDF	Wire-to-Wire	6	Housing for Female Terminals	4.19 mm	1.02 mm	2	Gray	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
REC, 2P, BLK, N, CAP Buy on te.com	DTM04-2P-E005	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Male Terminals	3.81 mm	1 mm	1	Black	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
REC, 3P, GRY, N Buy on te.com	DTM04-3P	Product Drawing 3D PDF	Wire-to-Wire	3	Housing for Male Terminals	3.81 mm	1 mm	1	Gray	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
REC, 12P, BLK, N, B Buy on te.com	DTM04-12PB	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Male Terminals	4.19 mm	1 mm	2	Black	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	-	B	-55 – 125 °C	Compliant	Compliant
PLG, 2P, GRY, N, CAP Buy on te.com	DTM06-2S-E003	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Female Terminals	4.19 mm	1.02 mm	1	Gray	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
PLG, 4P, GRY, BLOCKED	DTM06-4S-C017	3D PDF	Wire-to-Wire	4	Housing for Female Terminals	4.19 mm	1.02 mm	2	Gray	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
PLG, 6P, GRY, N, XCAP Buy on te.com	DTM06-6S-E007	Product Drawing 3D PDF	Wire-to-Wire	6	Housing for Female Terminals	4.19 mm	1.02 mm	2	Gray	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
REC, 2P, GRN, TVS DIODE, NI	DT04-2P-RT06	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Male Terminals	5.46 mm	1.59 mm	1	Green	13 A	Power	-	125 °C	250 V	-	-55 – 125 °C	Compliant with Exemptions	Compliant
REC, 2P, GRY, 120 OHM RESISTOR, AU, A Buy on te.com	DTM04-2P-P006	Product Drawing 3D PDF	Component-to-Wire	2	Housing for Male Terminals	4.19 mm	1.02 mm	1	Gray	7.5 A	Power	-	125 °C	250 V	A	-55 – 125 °C	Compliant with Exemptions	Compliant with Exemptions
REC, 6P, GRY, N Buy on te.com	DTM04-6P	Product Drawing 3D PDF	Wire-to-Wire	6	Housing for Male Terminals	3.81 mm	1 mm	2	Gray	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
PLG, 12P, BRN, N, XCAP, D Buy on te.com	DTM06-12SD-E007	Product Drawing 3D PDF	Wire-to-Wire	12	Housing for Female Terminals	3.81 mm	1.02 mm	2	Brown	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	D	-55 – 125 °C	Compliant	Compliant
12POS,STAMPED 20,PIN HSG ASSY,SLD,COD 2	1-2303064-2	Product Drawing 3D PDF	Wire-to-Panel	12	Receptacle	4.19 mm	1 mm	2	Black	7.5 A	Signal	Panel Mount	125 °C	-	B	-55 – 125 °C	Compliant	Compliant
REC, 8P, GRY, N, CAP, A	DTM04-08PA-E003	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Male Terminals	4.19 mm	1 mm	2	Gray	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	A	-55 – 125 °C	Compliant	Compliant
REC, 3P, GRY, N, CAP Buy on te.com	DTM04-3P-E003	Product Drawing 3D PDF	Wire-to-Wire	3	Housing for Male Terminals	3.81 mm	1 mm	1	Gray	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
PLG, 8P, BRN, N, D Buy on te.com	DTM06-08SD	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Female Terminals	3.81 mm	1.02 mm	2	Brown	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	D	-55 – 125 °C	Compliant	Compliant
PLG, 2P, BLK, N, XCAP Buy on te.com	DTM06-2S-EE03	Product Drawing 3D PDF	Wire-to-Wire	2	Housing for Female Terminals	4.19 mm	1.02 mm	1	Black	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
PLG, 6P, BLK, N Buy on te.com	DTM06-6S-E004	Product Drawing 3D PDF	Wire-to-Wire	6	Housing for Female Terminals	4.19 mm	1.02 mm	2	Black	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	250 V	-	-55 – 125 °C	Compliant	Compliant
REC, 8P, BRN, N, D Buy on te.com	DTM04-08PD	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Male Terminals	4.19 mm	1.02 mm	2	Brown	7.5 A	Power	Cable Mount (Free-Hanging)	125 °C	24 V, 48 V, 12 V	D	-55 – 125 °C	Compliant	Compliant

Overview

DEUTSCH DTM housings offer lower amperage, multi-pin solutions.

Series Overview

Accepts contact size 20 (7.5 amps)
14-22 AWG (2.50-0.35 mm²)
2, 3, 4, 6, 8, and 12 cavity arrangements
In-line, flange, or PCB mount
Rectangular, thermoplastic housing

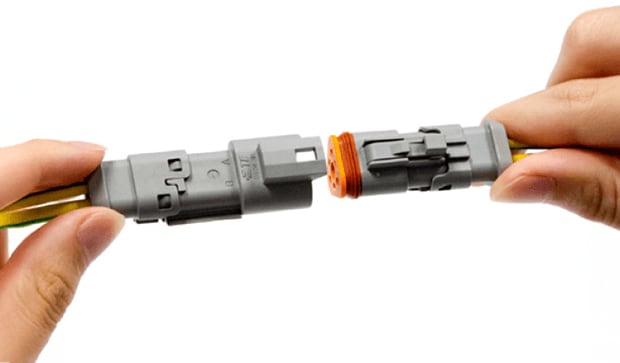

Integrated latch for mating
Wedgelocks confirm contact alignment and retention
Available accessories: boots, mounting clips, dust caps, and backshells

Additional DEUTSCH DTM products

VIEW ALL DEUTSCH DTM PRODUCTS
DEUTSCH DTM connectors fill the need for lower amperage, multi-pin connectors. They are environmentally sealed and stand up to harsh environments.

FAQ

Frequently Asked Questions

Q: What is a DTM connector?

A: DEUTSCH DTM environmentally sealed connectors are designed for cable to cable, cable to board, and cable to device applications. DTM connectors are used in harsh environment applications where even a small degradation in connection may be critical.

Q: What are the appropriate applications for DTM connectors?

A: Truck, Bus, Off-highway, Construction, Agriculture, Mining, Emergency Vehicles, Forestry, Recreational, Marine, Motorcycle

Features

Please review product documents or contact us for the latest agency approval information.

Other

Serviceable No, Yes
Connector Position Assurance Capable No
EU RoHS Compliance Compliant, Compliant with Exemptions
EU ELV Compliance Compliant with Exemptions, Compliant

Packaging Features

Packaging Method Package, Bulk, Box
Packaging Quantity 960, 200, 100, 350, 650, 1, 2500, 1000, 900, 550, 180, 500

Body Features

Cable Exit Angle 90°, 180°
Primary Product Color Black, Green, Brown, Gray
Connector & Keying Code D, A, C, B

Electrical Characteristics

Operating Voltage (VDC) 250
Operating Voltage (VAC) 250
Nominal Voltage Architecture (V) 24, 12, 48, 250

Dimensions

Wire Size (AWG) 20 – 16, 16 – 22
Connector Height (mm) 37.41, 43.7, 27.6, 35.6, 37.3, 16.21, 31.1, 22.71, 44.9, 40.01, 28.8, 30.1, 48.64, 39.9, 42.7, 17.05, 31.4, 12.9, 31.62, 29.9, 14.94, 41.1, 50.9, 29.1, 31.6, 37.4
Connector Height (in) 1.62, 1.09, 1.1, 2, 1.18, .588, 1.915, 1.14, 1.72, 1.13, 1.85, .508, 1.22, 1.24, 1.4, 1.77, .873, 1.245, 1.575, 1.68, .67, .638, 1.473, 1.47, 1.76, 1.57
Row-to-Row Spacing (mm) 4.2, 7.1, 4.19, 7.11
Row-to-Row Spacing (in) .28, .279, .165
Product Length (mm) 45.21, 31.62, 18.6, 29.08, 22.1, 31.6, 16.5, 16.3, 41.53, 12.1, 39.5, 20.7, 14.1, 18.5, 37.8, 46.18, 15.2, 14.4, 42.67, 20.6, 40, 21.2, 50.8, 23.8, 55.1, 19.2, 43.69, 44.96, 17.6
Product Length (in) 1.24, 1.49, 1.145, .598, .756, 1.555, 1.78, 1.72, .567, .476, .555, .836, 1.818, 2, 1.635, .937, .692, 1.68, 1.245, .732, 1.57, .815, .649, .642, 2.17, .811, .693, 1.77, .87, .728
Compatible Insulation Diameter Range (mm) 1.35 – 3.05, 1.3 – 3.2, 3, 1.3 – 3
Compatible Insulation Diameter Range (in) .118, .053 – .12, .053 – .126
Product Width (mm) 43.7, 16, 16.5, 15.2, 21.9, 14.2, 18.8, 17.6, 23, 17.15, 19.2, 57.15, 12.9, 25.4, 35.6, 16.51, 20.2, 20.7, 16.54, 19.6, 14, 14.45, 16.2, 41.99, 20.22
Product Width (in) .74, .772, .675, .65, .569, .638, .795, 1, .508, .905, 1.72, .651, .862, 1.653, .598, .756, .6, .796, .693, 1.4, .815, 2.25, .629, .551, .559
Wire Size (mm²) .5 – 1

Contact Features

Contact Type Socket, Pin
Contact Size Size 16, Size 20
Mating Pin Diameter (mm) 1.02, 1, 1.59
Mating Pin Diameter (in) .04, .063, .039
Contact Current Rating (Max) (A) 13, 7.5

Housing Features

Housing Material PA 66 GF15, Nylon 66 GF, Plastic, PA 66 GF, PA GF, PA 66, PA 46 GF
Centerline (Pitch) (mm) 5.46, 3.81, 4.19, 4.2
Centerline (Pitch) (in) .164, .15, .215, .165

Configuration Features

Connector Seal Code N Seal
Connector Modification Molded-In Diode (Vishay 1N5625GP), Welded Flange, Molded-In Diode (MUR460), Molded-In Diode, J1939, End Cap, Molded-In Resistor, Shrink Boot Adapter, Terminating Resistor, J1939
Blank Cavity Position 3, 6, 4, 0
Number of Positions 12, 3, 6, 8, 2, 4
Number of Rows 2, 1

Product Type Features

Connector Shape Rectangular
Mixed & Hybrid Connector No
Connector & Housing Type Housing for Female Terminals, Receptacle, Plug, Housing for Male Terminals
Connector System Wire-to-Wire, Wire-to-Panel, Component-to-Wire
Sealable Yes
Primary Locking Feature Integrated in Housing
Connector & Contact Terminates To Wire & Cable

Industry Standards

UL Flammability Rating 20mm Flame Test per Standard UL-94, Not tested, UL 94V-0
Compatible With Agency/Standards Products SAE J2030
IP Rating IP6K9K, IP68

Mechanical Attachment

Terminal Position Assurance Yes, No
Mating Alignment Type Polarized, Keyed
Strain Relief Without, Add By Accessory
Mating Alignment With
Connector Mounting Type Cable Mount (Free-Hanging), Panel Mount

Usage Conditions

Operating Temperature (Max) (°C) 125, 150
Operating Temperature (Max) (°F) 302, 257
Operating Temperature Range (°C) -55 – 125, -55 – 150
Operating Temperature Range (°F) -67 – 302, -67 – 257

Operation/Application

Circuit Application Signal, Power & Signal, Power

Reference Number

TE Internal Number CAT-D485-CH8172

Related Materials

DEUTSCH, TE Connectivity, and TE connectivity (logo) are trademarks.

DEUTSCH DTM Housings

Product Features

Number of Positions : 12, 3, 6, 8, 2, 4

Connector & Housing Type : Housing for Female Terminals, Receptacle, Plug, Housing for Male Terminals

Mating Pin Diameter (mm): 1.02, 1, 1.59

Mating Pin Diameter (in): .04, .063, .039

Connector System : Wire-to-Wire, Wire-to-Panel, Component-to-Wire

Centerline (Pitch) (mm): 5.46, 3.81, 4.19, 4.2

Centerline (Pitch) (in): .164, .15, .215, .165

Series Overview

Additional DEUTSCH DTM products

Frequently Asked Questions

Other

Serviceable No, Yes

Connector Position Assurance Capable No

EU RoHS Compliance Compliant, Compliant with Exemptions

EU ELV Compliance Compliant with Exemptions, Compliant

Packaging Features

Packaging Method Package, Bulk, Box

Packaging Quantity 960, 200, 100, 350, 650, 1, 2500, 1000, 900, 550, 180, 500

Body Features

Cable Exit Angle 90°, 180°

Primary Product Color Black, Green, Brown, Gray

Connector & Keying Code D, A, C, B

Electrical Characteristics

Operating Voltage (VDC) 250

Operating Voltage (VAC) 250

Nominal Voltage Architecture (V) 24, 12, 48, 250

Dimensions

Wire Size (AWG) 20 – 16, 16 – 22

Connector Height (mm) 37.41, 43.7, 27.6, 35.6, 37.3, 16.21, 31.1, 22.71, 44.9, 40.01, 28.8, 30.1, 48.64, 39.9, 42.7, 17.05, 31.4, 12.9, 31.62, 29.9, 14.94, 41.1, 50.9, 29.1, 31.6, 37.4

Connector Height (in) 1.62, 1.09, 1.1, 2, 1.18, .588, 1.915, 1.14, 1.72, 1.13, 1.85, .508, 1.22, 1.24, 1.4, 1.77, .873, 1.245, 1.575, 1.68, .67, .638, 1.473, 1.47, 1.76, 1.57

Row-to-Row Spacing (mm) 4.2, 7.1, 4.19, 7.11

Row-to-Row Spacing (in) .28, .279, .165

Product Length (mm) 45.21, 31.62, 18.6, 29.08, 22.1, 31.6, 16.5, 16.3, 41.53, 12.1, 39.5, 20.7, 14.1, 18.5, 37.8, 46.18, 15.2, 14.4, 42.67, 20.6, 40, 21.2, 50.8, 23.8, 55.1, 19.2, 43.69, 44.96, 17.6

Product Length (in) 1.24, 1.49, 1.145, .598, .756, 1.555, 1.78, 1.72, .567, .476, .555, .836, 1.818, 2, 1.635, .937, .692, 1.68, 1.245, .732, 1.57, .815, .649, .642, 2.17, .811, .693, 1.77, .87, .728

Compatible Insulation Diameter Range (mm) 1.35 – 3.05, 1.3 – 3.2, 3, 1.3 – 3

Compatible Insulation Diameter Range (in) .118, .053 – .12, .053 – .126

Product Width (mm) 43.7, 16, 16.5, 15.2, 21.9, 14.2, 18.8, 17.6, 23, 17.15, 19.2, 57.15, 12.9, 25.4, 35.6, 16.51, 20.2, 20.7, 16.54, 19.6, 14, 14.45, 16.2, 41.99, 20.22

Product Width (in) .74, .772, .675, .65, .569, .638, .795, 1, .508, .905, 1.72, .651, .862, 1.653, .598, .756, .6, .796, .693, 1.4, .815, 2.25, .629, .551, .559

Wire Size (mm²) .5 – 1

Contact Features

Contact Type Socket, Pin

Contact Size Size 16, Size 20

Mating Pin Diameter (mm) 1.02, 1, 1.59

Mating Pin Diameter (in) .04, .063, .039

Contact Current Rating (Max) (A) 13, 7.5

Housing Features

Housing Material PA 66 GF15, Nylon 66 GF, Plastic, PA 66 GF, PA GF, PA 66, PA 46 GF

Centerline (Pitch) (mm) 5.46, 3.81, 4.19, 4.2

Centerline (Pitch) (in) .164, .15, .215, .165

Configuration Features

Connector Seal Code N Seal

Connector Modification Molded-In Diode (Vishay 1N5625GP), Welded Flange, Molded-In Diode (MUR460), Molded-In Diode, J1939, End Cap, Molded-In Resistor, Shrink Boot Adapter, Terminating Resistor, J1939

Blank Cavity Position 3, 6, 4, 0

Number of Positions 12, 3, 6, 8, 2, 4

Number of Rows 2, 1

Product Type Features

Connector Shape Rectangular

Mixed & Hybrid Connector No

Connector & Housing Type Housing for Female Terminals, Receptacle, Plug, Housing for Male Terminals

Connector System Wire-to-Wire, Wire-to-Panel, Component-to-Wire

Sealable Yes

Primary Locking Feature Integrated in Housing

Connector & Contact Terminates To Wire & Cable

Industry Standards

UL Flammability Rating 20mm Flame Test per Standard UL-94, Not tested, UL 94V-0

Compatible With Agency/Standards Products SAE J2030

IP Rating IP6K9K, IP68

Mechanical Attachment

Terminal Position Assurance Yes, No

Mating Alignment Type Polarized, Keyed

Strain Relief Without, Add By Accessory

Mating Alignment With

Connector Mounting Type Cable Mount (Free-Hanging), Panel Mount

Usage Conditions

Operating Temperature (Max) (°C) 125, 150

Operating Temperature (Max) (°F) 302, 257

Operating Temperature Range (°C) -55 – 125, -55 – 150

Operating Temperature Range (°F) -67 – 302, -67 – 257
