DEUTSCH DTM Headers

DEUTSCH DTM Headers-CAT-D485-H342
  • DEUTSCH
|
  • DEUTSCH DT
    • ,
  • DEUTSCH DTM

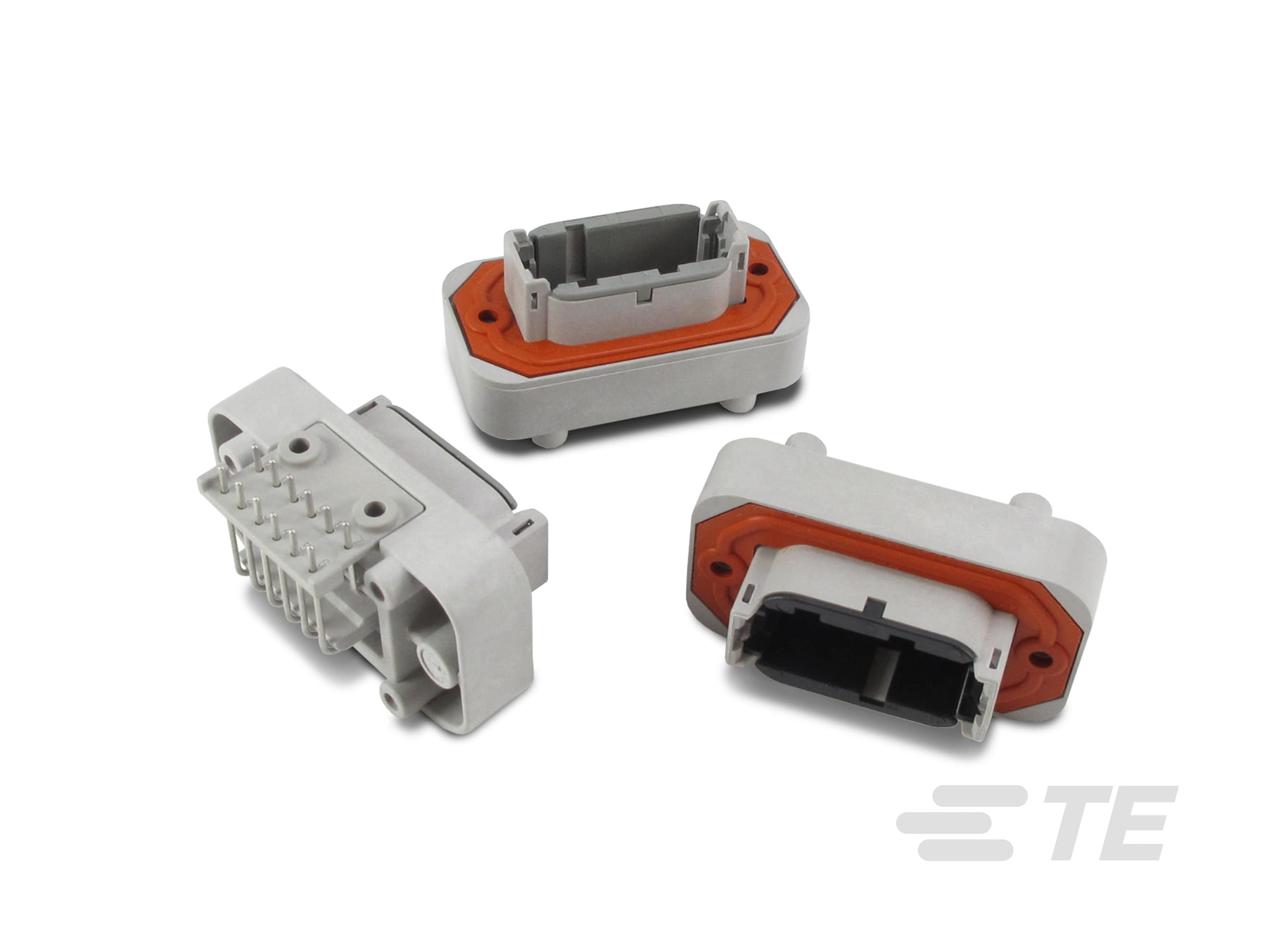

DEUTSCH DTM headers are printed circuit board connectors available with straight or right angle pins. DTM headers are available with 12 or 48 cavities and accommodate size 20 contacts, rated for 7.5 amps.
More Less

Product Features

  • Packaging Method : Box

  • Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

  • Primary Product Color : Black, Gray

  • IP Rating : IP67, IP6K9K, Not Tested, IP68

Available from

LADD Inc
Overview
DEUTSCH DTM headers provide an environmentally sealed solution for PCB applications.

DEUTSCH DTM Connectors Overview

  • Accepts contact size 20 (7.5 amps)
  • 14-22 AWG (2.50-0.35 mm2)
  • 2, 3, 4, 6, 8, and 12 cavity arrangements
  • In-line, flange, or PCB mount
  • Rectangular, thermoplastic housing
  • Integrated latch for mating
  • Wedgelocks confirm contact alignment and retention
  • Available accessories: boots, mounting clips
  1. DEUTSCH DT Family Connector Overview & Assembly Instructions (English)

Learn about our field proven DEUTSCH DT, DTM, and DTP connectors for harsh environment applications. Watch this video for an overview of the connectors and for step-by-step instructions on inserting and removing contacts, as well as mating and unmating.

How-to instruction video for TE's DEUTSCH DT connector family including DT, DTM, and DTP connectors.

Additional DEUTSCH DTM products

  • VIEW ALL DEUTSCH DTM PRODUCTS

    DEUTSCH DTM connectors fill the need for lower amperage, multi-pin connectors. They are environmentally sealed and stand up to harsh environments.

DEUTSCH Connector Solutions

DEUTSCH Solutions for Trust and Reliability

Our high-quality, easy-to-use DEUTSCH connectors are designed for applications where failure is not an option. These durable connectors provide high-performance and reliability in harsh environments.
FAQ

Frequently Asked Questions

Q:    What is a DTM connector?

A:     DEUTSCH DTM environmentally sealed connectors are designed for cable to cable, cable to board, and cable to device applications. DTM connectors are used in harsh environment applications where even a small degradation in connection may be critical.

Q:    What are the appropriate applications for DTM connectors?

A:     Truck, Bus, Off-highway, Construction, Agriculture, Mining, Emergency Vehicles, Forestry, Recreational, Marine, Motorcycle



READ MORE FAQS ABOUT DEUTSCH DTM CONNECTORS

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector System  Wire-to-Board

  • Sealable  Yes

  • Connector & Contact Terminates To  Wire & Cable

  • Connector Shape  Rectangular

  • Mixed & Hybrid Header  No

  • Header Type  Fully Shrouded

  • PCB Connector Assembly Type  PCB Mount Header

Configuration Features

  • Number of Sections  1, 2, 4

  • Connector Modification  PCB Enclosure Header, Custom Flange

  • Number of Positions  8, 12, 24, 48

  • Number of Rows  2

  • Number of Signal Positions  8, 12, 24, 48

  • PCB Mount Orientation  Right Angle, Vertical

Electrical Characteristics

  • Operating Voltage (VAC) 250

  • Voltage Rating (Max) (VAC) 250

  • Operating Voltage (VDC) 250

  • Nominal Voltage Architecture (V) 12, 24

  • Voltage Rating (Max) (VDC) 250

Body Features

  • Primary Product Color  Black, Gray

  • Connector & Keying Code  AC, AD, A, B, CB, C, CD, AB, ABCD, D

Contact Features

  • Contact Current Rating (Max) (A) 7.5

  • Mating Pin Diameter  1.02 mm [ .04 in ]

  • Contact Size  Size 20

  • Contact Type  Pin

  • Contact Mating Area Plating Material  Nickel, Gold, Tin

Mechanical Attachment

  • Mating Alignment  With

  • Mounting Holes  With

  • Panel Mount Feature  Without, With

  • Mating Retention Type  Locking Interface

  • Mating Alignment Type  Keyed

  • PCB Mount Retention  With

  • PCB Mount Retention Type  Mounting Screw

  • PCB Mount Alignment  Without

  • Mating Retention  With

  • Connector Mounting Type  Panel Mount, Board Mount

Housing Features

  • Centerline (Pitch)  4.19 mm [ .165 in ]

Dimensions

  • PCB Thickness (Recommended) (mm) .78 – 1.57, .78 – 2.36

  • PCB Thickness (Recommended) (in) .031 – .062, .031 – .093

  • Connector Length (mm) 28.37, 30.23, 36.91, 37.62, 38.1, 38.23, 39.37

  • Connector Length (in) 1.117, 1.19, 1.453, 1.481, 1.5, 1.505, 1.55

  • Profile Height from PCB (mm) 23.6, 25.71, 26.29, 28.37, 30.23, 33.5, 35.54

  • Profile Height from PCB (in) .929, 1.012, 1.035, 1.117, 1.19, 1.195, 1.319, 1.36

  • Connector Width (mm) 33.02, 47.02, 60.96, 61, 62.89, 68.58, 82.7, 101

  • Connector Width (in) 1.3, 1.851, 2.4, 2.476, 2.7, 3.256, 3.976

Usage Conditions

  • Operating Temperature Range  -55 – 125 °C [ -67 – 257 °F ]

  • Operating Temperature (Max)  125 °C [ 257 °F ]

Operation/Application

  • Shielded  No

  • Circuit Application  Signal

Industry Standards

  • IP Rating  IP67, IP6K9K, Not Tested, IP68

  • UL Rating  None, Recognized

  • UL Flammability Rating  Not tested, UL 94V-0, 20mm Flame Test per Standard UL-94

Packaging Features

  • Packaging Method  Box

  • Packaging Quantity  63, 105, 125

Other

  • Interface Number  DTM04-12P, DTM04-08P

Reference Number

  • TE Internal Number CAT-D485-H342
