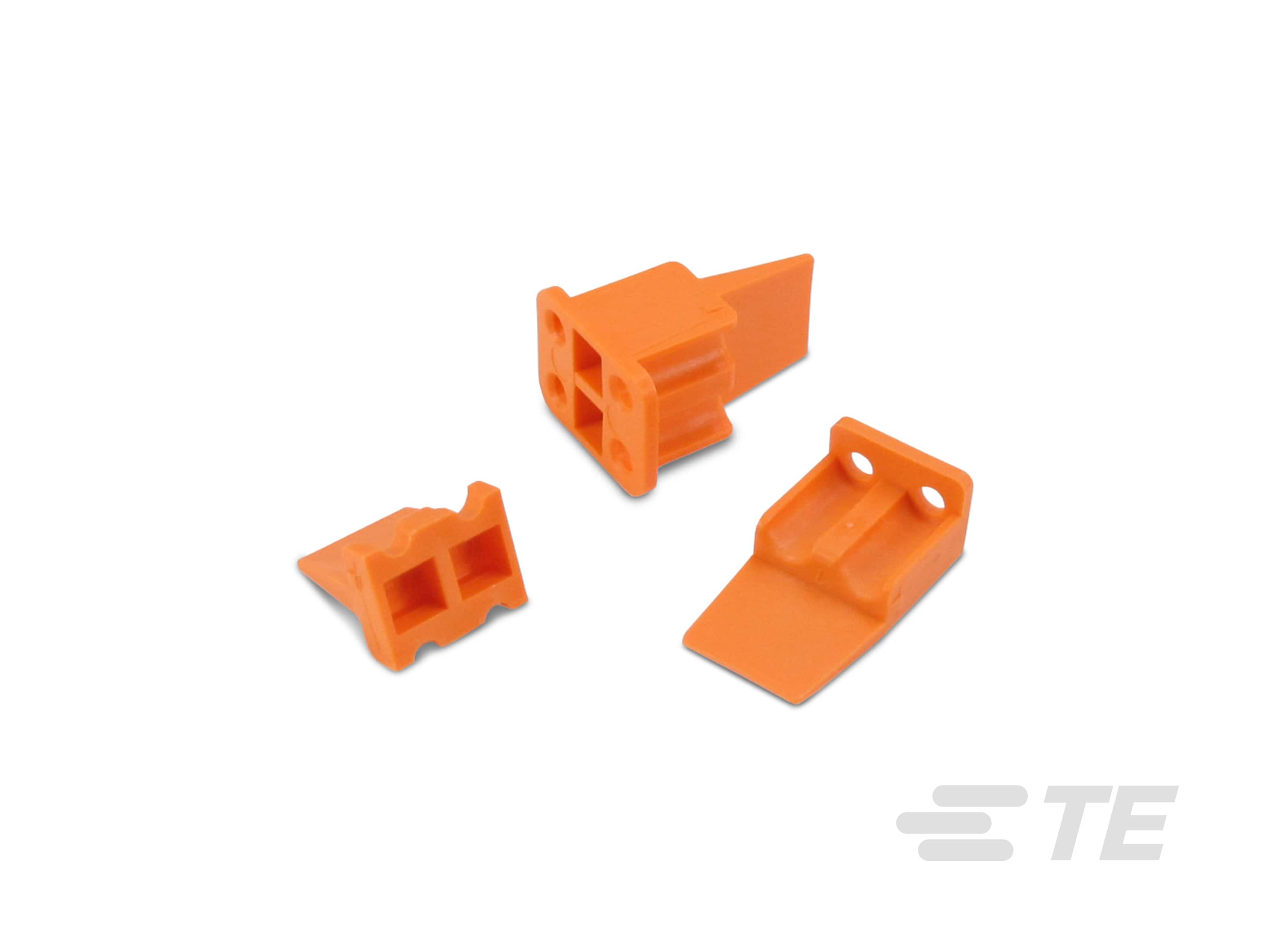

DEUTSCH DTP Wedgelocks

DEUTSCH DTP Wedgelocks-CAT-D486-W416
  • DEUTSCH
|
  • DEUTSCH DT
    • ,
  • DEUTSCH DTP
DEUTSCH DTP wedgelocks help confirm proper contact alignment within each connector. They are assembled at the mating interface and press into place. Wedgelocks are required components for all DEUTSCH DTP connectors.
More Less

Product Features

  • Packaging Method : Box

  • Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

  • Primary Product Color : Orange

  • Primary Product Material : PBT

  • Number of Positions : 2, 4

Available from

LADD Inc
Overview
DEUTSCH DTP wedgelocks are required for plugs and receptacles.
  1. DEUTSCH DT Family Connector Overview & Assembly Instructions (English)

Learn about our field proven DEUTSCH DT, DTM, and DTP connectors for harsh environment applications. Watch this video for an overview of the connectors and for step-by-step instructions on inserting and removing contacts, as well as mating and unmating.

How-to instruction video for TE's DEUTSCH DT connector family including DT, DTM, and DTP connectors.

Additional DEUTSCH DTP products

DEUTSCH Connector Solutions

DEUTSCH Solutions for Trust and Reliability

Our high-quality, easy-to-use DEUTSCH connectors are designed for applications where failure is not an option. These durable connectors provide high-performance and reliability in harsh environments.
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector & Contact Retention Accessory Type  Secondary Lock

  • Sealable  No

Configuration Features

  • Number of Positions  2, 4

Body Features

  • Primary Product Color  Orange

  • Primary Product Material  PBT

Usage Conditions

  • Operating Temperature Range  -55 – 125 °C [ -67 – 257 °F ]

Industry Standards

  • UL Flammability Rating  UL 94HB

Packaging Features

  • Packaging Method  Box

Other

  • Serviceable  Yes

Reference Number

  • TE Internal Number CAT-D486-W416
