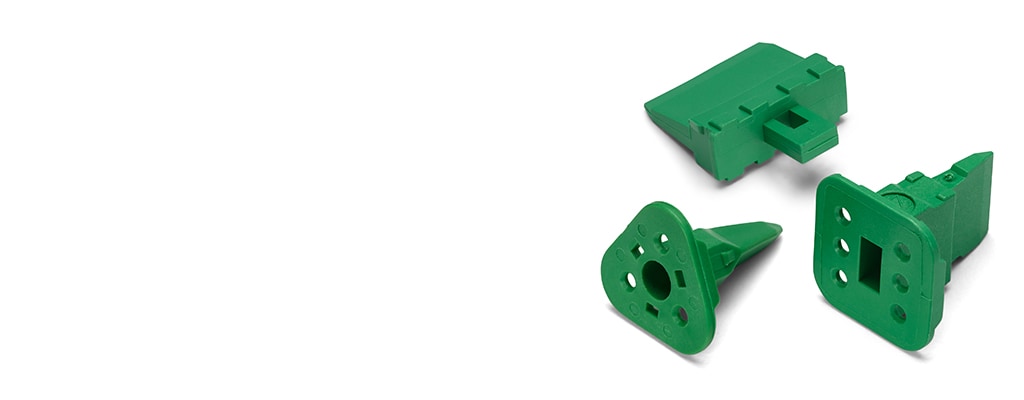

Wedgelocks: DEUTSCH DT
- DEUTSCH
- DEUTSCH DT
DEUTSCH DT wedgelocks help confirm proper contact alignment within each connector. They are assembled at the mating interface and press into place. Wedgelocks are required components for all DEUTSCH DT housings.
Product Features
-
Connector & Contact Retention Accessory Type : Secondary Lock, TPA (Terminal Position Assurance)
-
Primary Product Color : Brown, Orange, Black, Red, Green, Gray, Blue
-
Primary Product Material : PBT, PBT GF
-
Number of Positions : 6, 8, 12, 2, 18, 4, 3
-
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
Overview
Several DEUTSCH DT wedgelocks offer keying options, for additional design flexibility.
Learn about our field proven DEUTSCH DT, DTM, and DTP connectors for harsh environment applications. Watch this video for an overview of the connectors and for step-by-step instructions on inserting and removing contacts, as well as mating and unmating.
Additional DEUTSCH DT products
-
VIEW ALL DEUTSCH DT PRODUCTS
DEUTSCH DT connectors offer field proven reliability and rugged quality. The DT design strengths include optional flange mounting, multi-pin arrangements, and design flexibility.
Features
Please review product documents or contact us for the latest agency approval information.
Other
-
Serviceable Yes
-
EU RoHS Compliance Compliant
-
EU ELV Compliance Compliant
Packaging Features
-
Packaging Method Package, Box
-
Packaging Quantity 1, 5000, 3500
Product Type Features
-
Sealable No
-
Connector & Contact Retention Accessory Type Secondary Lock, TPA (Terminal Position Assurance)
Industry Standards
-
UL Flammability Rating UL 94HB
Body Features
-
Primary Product Color Brown, Orange, Black, Red, Green, Gray, Blue
-
Primary Product Material PBT, PBT GF
Configuration Features
-
Number of Positions 6, 8, 12, 2, 18, 4, 3
Usage Conditions
-
Operating Temperature Range -55 – 125 °C [ -67 – 257 °F ]
Reference Number
-
TE Internal Number CAT-D487-W416
