DEUTSCH DRC Backshells
- DEUTSCH
- DEUTSCH DRC

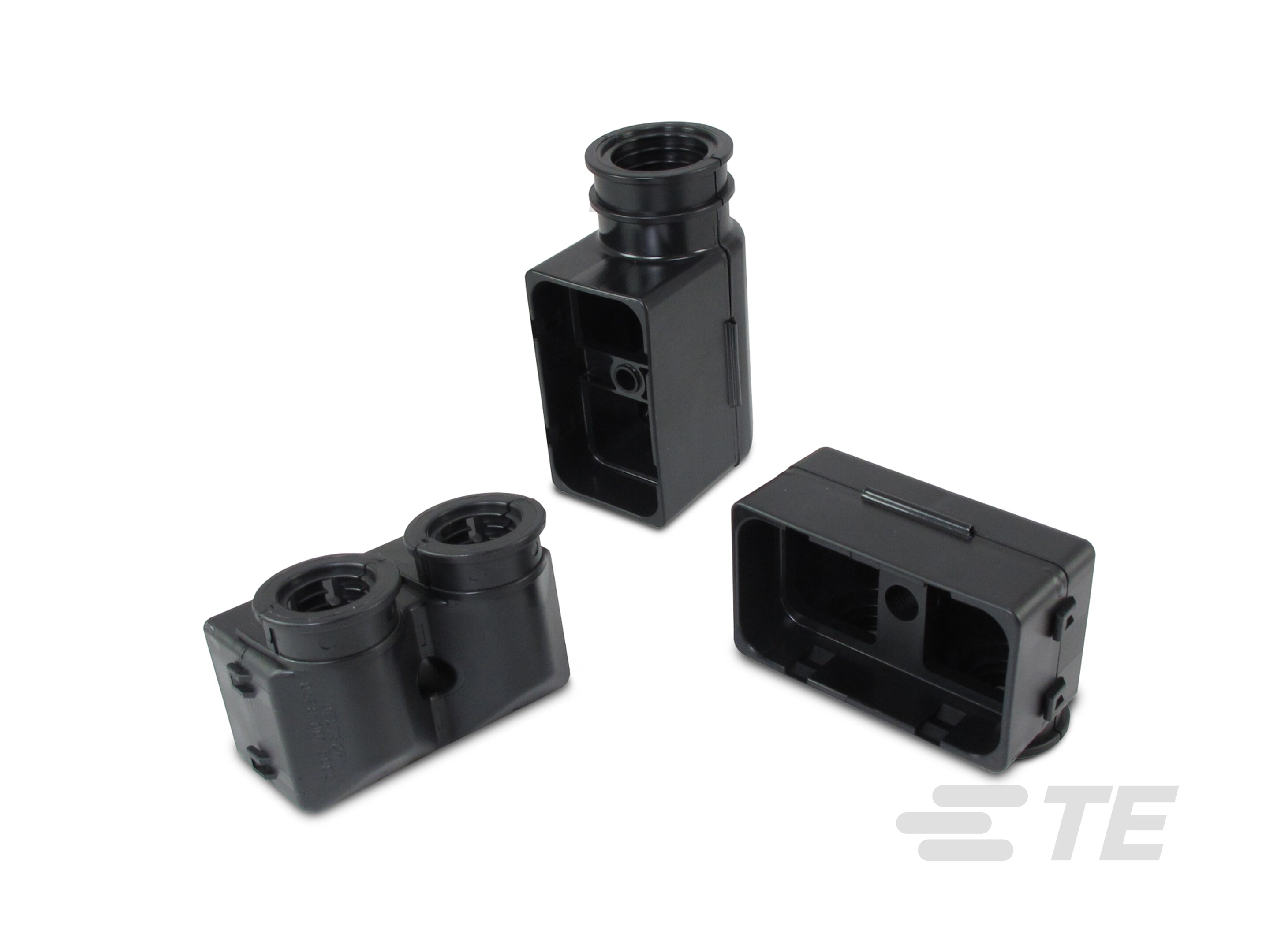

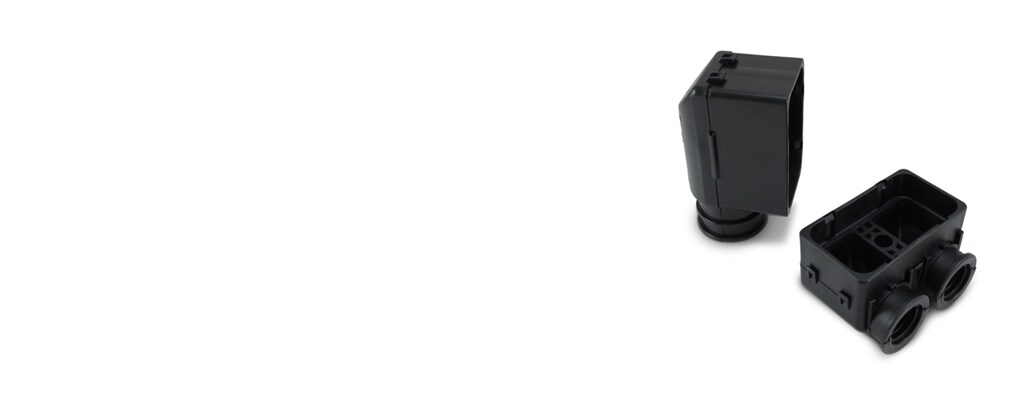

DEUTSCH DRC backshells are designed to snap onto the back of the connectors and accept convoluted tubing. The backshells are available in straight and 90° version and are compatible with 40, 50, 60, and 70 cavity connectors.
Product Features
-
Packaging Method : Box
-
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
-
Primary Product Color : Black
-
Primary Product Material : Nylon 66, PA GF
-
Compatible Cable Diameter Range (mm): 0 – 17, 0 – 26
-
Compatible Cable Diameter Range (in): 0 – .669, 0 – 1.024
Overview
DEUTSCH DRC backshells offer a high level of protection, provide strain relief, and improve aesthetics.
VIEW ALL DEUTSCH DRC PRODUCTS
-
VIEW ALL DEUTSCH DRC PRODUCTS
DEUTSCH DRC connectors are designed for high-pin count, harsh environment applications.
Features
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Sealable No
-
Connector Backshell Product Type Backshell
Configuration Features
-
Number of Positions 70
Body Features
-
Primary Product Color Black
-
Primary Product Material Nylon 66, PA GF
Housing Features
-
Body Orientation 90
Dimensions
-
Compatible Cable Diameter Range (mm) 0 – 17, 0 – 26
-
Compatible Cable Diameter Range (in) 0 – .669, 0 – 1.024
Usage Conditions
-
Operating Temperature Range -55 – 125 °C [ -67 – 257 °F ]
-
Operating Temperature (Max) 125 °C [ 257 °F ]
Industry Standards
-
IP Rating IP6K9K
-
UL Flammability Rating UL 94HB
Packaging Features
-
Packaging Method Box
-
Packaging Quantity 1, 48, 90, 144, 150
Other
-
Serviceable Yes
Reference Number
-
TE Internal Number CAT-D799-B128
