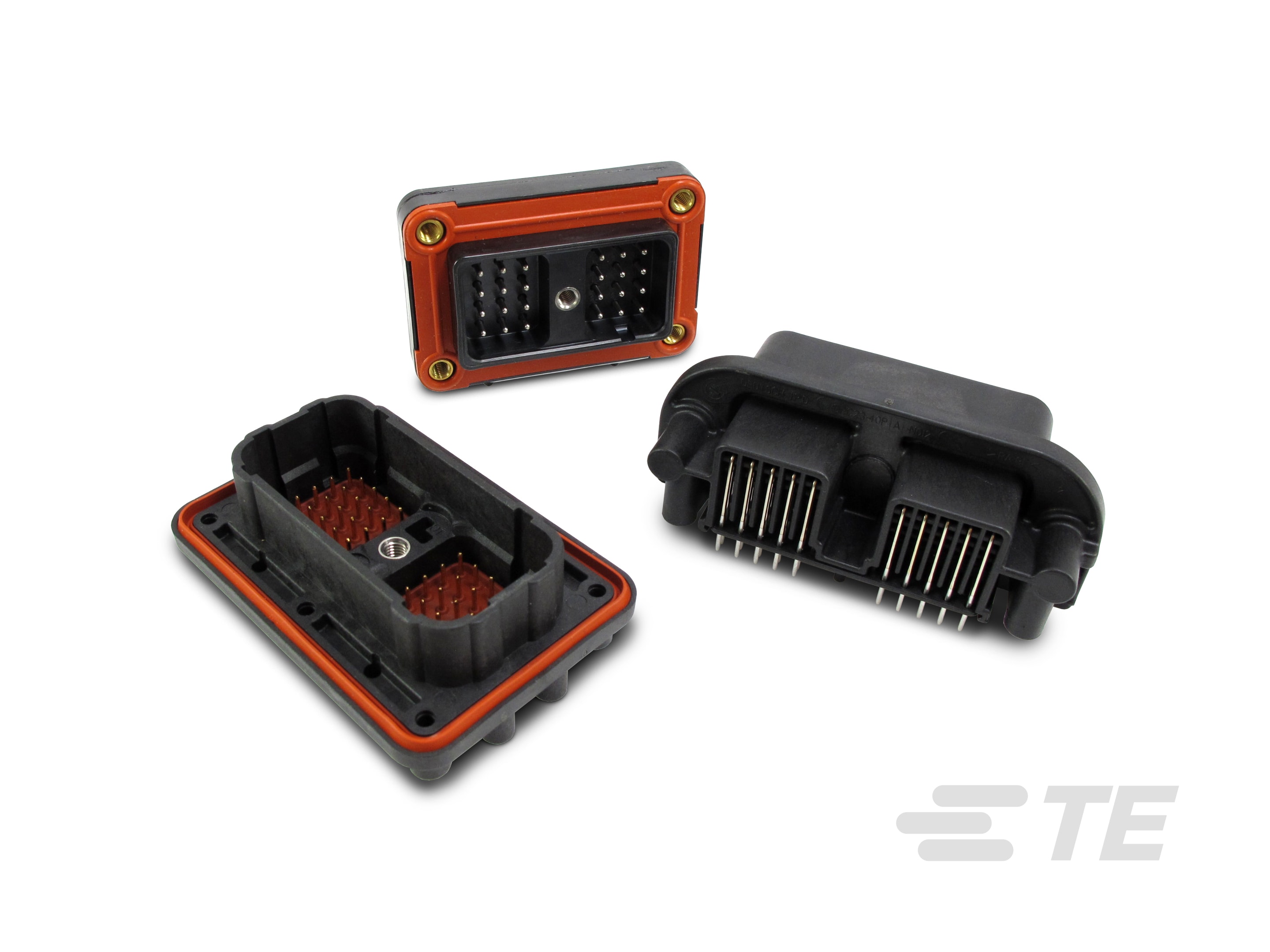

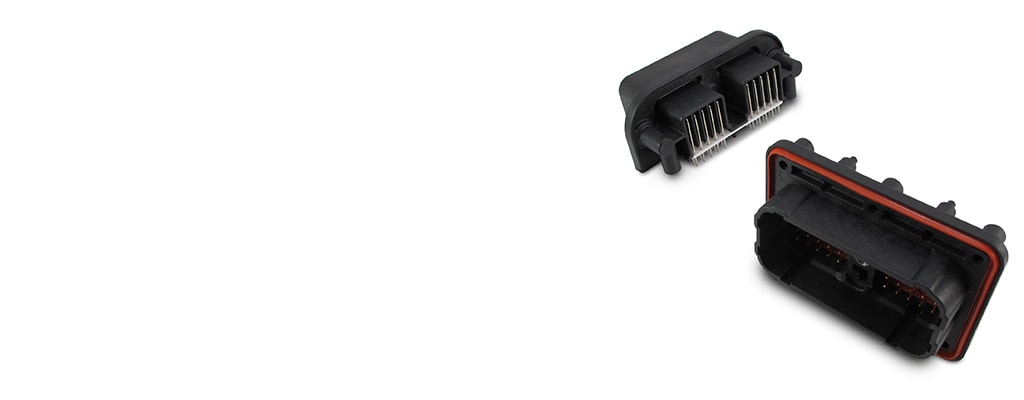

DEUTSCH DRC Headers

DEUTSCH

DEUTSCH DRC

DEUTSCH DRC headers are rugged rectangular connectors that are available in 24-64 cavities and accept size 16 and 20 DEUTSCH contacts, rated for 13 and 7.5 amps. DRC headers are available with straight or 90° pins and inside or outside mounting options.

More Less

Product Features

Packaging Method : Box
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
Primary Product Color : Black
IP Rating : Not Tested, IP6K9K

Available from

Product	TE Part #	Documents	PCB Connector Assembly Type	Number of Positions	Number of Rows	Centerline (Pitch)	PCB Mount Orientation	Header Type	Contact Mating Area Plating Material	Connector & Contact Terminates To	Contact Current Rating (Max)	UL Flammability Rating	Circuit Application	Connector Mounting Type	Mating Alignment	PCB Mount Alignment	EU RoHS Compliance	EU ELV Compliance
HDR, 40P, BLK, RA, M5 FLG, SN/NI/CU, A	DRC13-40PA-CG01	Product Drawing 3D PDF	PCB Mount Header	40	4	5.45 mm	Right Angle	Fully Shrouded	Tin	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	With	-	-
HDR, 40P, BLK, RA, M5 FLG, SN/NI/CU, B	DRC13-40PB-CG01	Product Drawing 3D PDF	PCB Mount Header	40	4	5.45 mm	Right Angle	Fully Shrouded	Tin	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	With	-	-
HDR, 50P, BLK, ST, AU/NI/CU, 02	DRC20-50P02	Product Drawing 3D PDF	PCB Mount Header	50	5	4.42 mm	Vertical	Fully Shrouded	Gold	Wire & Cable	7.5 A	UL 94V-0	Power & Signal	Board Mount	With	With	-	-
HDR, 40P, BLK, RA, AU/NI/CU, B	DRC23-40PB-N012	Product Drawing 3D PDF	PCB Mount Header	40	4	4.42 mm	Right Angle	Fully Shrouded	Gold	Wire & Cable	7.5 A	UL 94V-0	Power & Signal	Panel Mount	With	With	-	-
HDR, 50P, BLK, ST, AU/NI/CU, 05 Buy on te.com	DRC22-50P05	Product Drawing 3D PDF	PCB Mount Header	50	5	4.42 mm	Vertical	Fully Shrouded	Gold	Wire & Cable	7.5 A	UL 94V-0	Power & Signal	Board Mount	With	With	-	-
HDR, 40P, BLK, RA, AU/NI/CU, C Buy on te.com	DRC23-40PC-N012	Product Drawing 3D PDF	PCB Mount Header	40	4	4.42 mm	Right Angle	Fully Shrouded	Gold	Wire & Cable	7.5 A	UL 94V-0	Power & Signal	Panel Mount	With	With	-	-
HDR, 70P, BLK, RA, M5, FLG, NI/CU, B	DRC13-70PB-B027	Product Drawing 3D PDF	PCB Mount Header	70	5	5.5 mm	Right Angle	Fully Shrouded	Nickel (Ni)	Printed Circuit Board	13 A	-	Power	Board Mount	With	With	-	-
HDR, 70P, BLK, RA, M5, FLG, NI/CU, C	DRC13-70PC-B027	Product Drawing 3D PDF	PCB Mount Header	70	5	5.5 mm	Right Angle	Fully Shrouded	Nickel (Ni)	Printed Circuit Board	13 A	-	Power	Board Mount	With	With	-	-
HDR, 70P, BLK, RA, M5, FLG, NI/CU, D	DRC13-70PD-B027	Product Drawing 3D PDF	PCB Mount Header	70	5	5.5 mm	Right Angle	Fully Shrouded	Nickel (Ni)	Printed Circuit Board	13 A	-	Power	Board Mount	With	With	-	-
HDR, 50P, BLK, ST, AU/NI/CU, 04 Buy on te.com	DRC22-50P04	Product Drawing 3D PDF	PCB Mount Header	50	5	4.42 mm	Vertical	Fully Shrouded	Gold	Wire & Cable	7.5 A	UL 94V-0	Power & Signal	Board Mount	With	With	-	-
HDR, 24P, BLK, RA, M5 FLG, SN/NI/CU, A	DRC13-24PA-CG01	Product Drawing 3D PDF	PCB Mount Header	24	4	5.45 mm	Right Angle	Fully Shrouded	Tin	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	With	-	-
HDR, 70P, BLK, RA, M5, FLG, NI/CU, A	DRC13-70PA-B027	Product Drawing 3D PDF	PCB Mount Header	70	5	5.45 mm	Right Angle	-	Nickel	Wire & Cable	13 A	Not tested	Power & Signal	Board Mount	With	With	-	-
HDR, 60P, BLK, ST, AU/NI/CU, 07	DRC20-60P07	Product Drawing 3D PDF	PCB Mount Header	60	6	4.42 mm	Vertical	Fully Shrouded	Gold	Wire & Cable	7.5 A	UL 94V-0	Power & Signal	Board Mount	With	With	-	-
HDR, 50P, BLK, ST, AU/NI/CU, 07 Buy on te.com	DRC22-50P07	Product Drawing 3D PDF	PCB Mount Header	50	5	4.42 mm	Vertical	Fully Shrouded	Gold	Wire & Cable	7.5 A	UL 94V-0	Power & Signal	Board Mount	With	With	-	-
HDR, 50P, BLK, ST, AU/NI/CU, 09	DRC20-50P09	Product Drawing 3D PDF	PCB Mount Header	50	5	4.42 mm	Vertical	Fully Shrouded	Gold	Wire & Cable	7.5 A	UL 94V-0	Power & Signal	Board Mount	With	With	-	-
HDR, 40P, BLK, ST, PIN, SN/NI/CU Buy on te.com	DRC10-40P-A004	Product Drawing 3D PDF	PCB Mount Header	40	4	5.45 mm	Vertical	Fully Shrouded	Tin	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	Without	Without	-	-
HDR, 40P, BLK, RA, 1032 FLG, SN/NI/CU, A	DRC13-40PA	Product Drawing 3D PDF	PCB Mount Header	40	4	5.45 mm	Right Angle	Fully Shrouded	Tin	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	With	-	-
HDR, 50P, BLK, ST, AU/NI/CU, 01 Buy on te.com	DRC20-50P01	Product Drawing 3D PDF	PCB Mount Header	50	5	4.42 mm	Vertical	Fully Shrouded	Gold	Wire & Cable	7.5 A	UL 94V-0	Power & Signal	Board Mount	With	With	-	-
HDR, 64P, BLK, RA, AU/NI/CU, AA	DRC23-64PAA	Product Drawing 3D PDF	PCB Mount Header	64	4	4.42 mm	Right Angle	Fully Shrouded	Gold	Wire & Cable	7.5 A	UL 94V-0	Power & Signal	Board Mount	With	With	-	-
HDR, 60P, BLK, ST, AU/NI/CU, 06 Buy on te.com	DRC20-60P06	Product Drawing 3D PDF	PCB Mount Header	60	6	4.42 mm	Vertical	Fully Shrouded	Gold	Wire & Cable	7.5 A	UL 94V-0	Power & Signal	Board Mount	With	With	-	-
HDR 24P, BLK, RA, AU/NI/CU, B	DRC23-24PB	Product Drawing 3D PDF	PCB Mount Header	24	4	4.42 mm	Right Angle	Fully Shrouded	Gold	Wire & Cable	7.5 A	UL 94V-0	Power & Signal	Panel Mount	With	With	-	-
HDR, 24P, BLK, ST, SDR CUP, SN/NI/CU, A Buy on te.com	DRC10-24PA	Product Drawing 3D PDF	PCB Mount Header	24	4	5.45 mm	Vertical	Fully Shrouded	Tin	Wire & Cable	13 A	UL 94V-0	Power & Signal	Board Mount	With	Without	-	-
HDR, 24P, BLK, RA, 1032 FLG, SN/NI/CU, A	DRC13-24PA	Product Drawing 3D PDF	PCB Mount Header	24	4	5.45 mm	Right Angle	Fully Shrouded	Tin	Wire & Cable	13 A	UL 94V-0	Power & Signal	Board Mount	With	With	-	-
HDR, 24P, BLK, RA, 1032 FLG, SN/NI/CU, B Buy on te.com	DRC13-24PB	Product Drawing 3D PDF	PCB Mount Header	24	4	5.45 mm	Right Angle	Fully Shrouded	Tin	Wire & Cable	13 A	UL 94V-0	Power & Signal	Board Mount	With	With	-	-
HDR, 40P, BLK, RA, 1032 FLG, SN/NI/CU, C Buy on te.com	DRC13-40PC	Product Drawing 3D PDF	PCB Mount Header	40	4	5.45 mm	Right Angle	Fully Shrouded	Tin	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	With	-	-
HDR, 40P, BLK, RA, 1032 FLG, SN/NI/CU, D	DRC13-40PD	Product Drawing 3D PDF	PCB Mount Header	40	4	5.45 mm	Right Angle	Fully Shrouded	Tin	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	With	-	-
HDR, 50P, BLK, ST, AU/NI/CU, 03 Buy on te.com	DRC20-50P03	Product Drawing 3D PDF	PCB Mount Header	50	5	4.42 mm	Vertical	Fully Shrouded	Gold	Wire & Cable	7.5 A	UL 94V-0	Power & Signal	Board Mount	With	With	-	-
HDR, 50P, BLK, ST, AU/NI/CU, 04 Buy on te.com	DRC20-50P04	Product Drawing 3D PDF	PCB Mount Header	50	5	4.42 mm	Vertical	Fully Shrouded	Gold	Wire & Cable	7.5 A	UL 94V-0	Power & Signal	Board Mount	With	With	-	-
HDR, 50P, BLK, ST, AU/NI/CU, 07	DRC20-50P07	Product Drawing 3D PDF	PCB Mount Header	50	5	4.42 mm	Vertical	Fully Shrouded	Gold	Wire & Cable	7.5 A	UL 94V-0	Power & Signal	Board Mount	With	With	-	-
HDR, 50P, BLK, ST, AU/NI/CU, 08	DRC20-50P08	Product Drawing 3D PDF	PCB Mount Header	50	5	4.42 mm	Vertical	Fully Shrouded	Gold	Wire & Cable	7.5 A	UL 94V-0	Power & Signal	Board Mount	With	With	-	-
HDR, 75P, BLK, ST, AU/NI/CU, 12/20 ,0102	DRC20-75P0102	Product Drawing 3D PDF	PCB Mount Receptacle	75	5	4.42 mm	Vertical	Fully Shrouded	Gold	Wire & Cable	25 A, 7.5 A	UL 94V-0	Power & Signal	Board Mount	Without	With	-	-
HDR 24P, BLK, RA, AU/NI/CU, A	DRC23-24PA	Product Drawing 3D PDF	PCB Mount Header	24	4	4.42 mm	Right Angle	Fully Shrouded	Gold	Wire & Cable	7.5 A	UL 94V-0	Power & Signal	Panel Mount	With	With	-	-
HDR, 24P, BLK, ST, PIN, SN/NI/CU, A	DRC10-24PA-A004	Product Drawing 3D PDF	PCB Mount Header	24	4	5.45 mm	Vertical	Fully Shrouded	Tin	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	Without	-	-
HDR, 40P, BLK, ST, SDR CUP, SN/NI/CU Buy on te.com	DRC10-40P	Product Drawing 3D PDF	PCB Mount Header	40	4	5.45 mm	Vertical	Fully Shrouded	Tin	Wire & Cable	13 A	UL 94V-0	Power & Signal	Board Mount	Without	Without	-	-
HDR, 40P, BLK, RA, 1032 FLG, SN/NI/CU, B	DRC13-40PB	Product Drawing 3D PDF	PCB Mount Header	40	4	5.45 mm	Right Angle	Fully Shrouded	Tin	Wire & Cable	13 A	UL 94V-0	Power & Signal	Panel Mount	With	With	-	-
HDR, 50P, BLK, ST, AU/NI/CU, 05	DRC20-50P05	Product Drawing 3D PDF	PCB Mount Header	50	5	4.42 mm	Vertical	Fully Shrouded	Gold	Wire & Cable	7.5 A	UL 94V-0	Power & Signal	Board Mount	With	With	-	-
HDR, 60P, BLK, ST, AU/NI/CU, 05 Buy on te.com	DRC20-60P05	Product Drawing 3D PDF	PCB Mount Header	60	6	4.42 mm	Vertical	Fully Shrouded	Gold	Wire & Cable	7.5 A	UL 94V-0	Power & Signal	Board Mount	With	With	-	-
HDR, 50P, BLK, ST, AU/NI/CU, 01	DRC22-50P01	Product Drawing 3D PDF	PCB Mount Header	50	5	4.42 mm	Vertical	Fully Shrouded	Gold	Wire & Cable	7.5 A	UL 94V-0	Power & Signal	Board Mount	With	With	-	-
HDR, 50P, BLK, ST, AU/NI/CU, 02	DRC22-50P02	Product Drawing 3D PDF	PCB Mount Header	50	5	4.42 mm	Vertical	Fully Shrouded	Gold	Wire & Cable	7.5 A	UL 94V-0	Power & Signal	Board Mount	With	With	-	-
HDR, 50P, BLK, ST, AU/NI/CU, 03	DRC22-50P03	Product Drawing 3D PDF	PCB Mount Header	50	5	4.42 mm	Vertical	Fully Shrouded	Gold	Wire & Cable	7.5 A	UL 94V-0	Power & Signal	Board Mount	With	With	-	-
HDR, 40P, BLK, RA, AU/NI/CU, A	DRC23-40PA-N012	Product Drawing 3D PDF	PCB Mount Header	40	4	4.42 mm	Right Angle	Fully Shrouded	Gold	Wire & Cable	7.5 A	UL 94V-0	Power & Signal	Panel Mount	With	With	-	-
HDR, 64P, BLK, RA, AU/NI/CU, AA	DRC23-64PAA-N010	Product Drawing 3D PDF	PCB Mount Header	64	4	4.42 mm	Right Angle	Fully Shrouded	Gold	Wire & Cable	7.5 A	UL 94V-0	Power & Signal	Panel Mount	With	With	-	-
HDR, 40P, BLK, RA, AU/NI/CU, B	DRC23-40PB-N010	Product Drawing 3D PDF	PCB Mount Header	40	4	4.42 mm	Right Angle	Fully Shrouded	Gold	Wire & Cable	7.5 A	UL 94V-0	Power & Signal	Panel Mount	With	With	-	-
HDR, 80P, BLK, RA, AU/NI/CU, AB	DRC23-80P	Product Drawing 3D PDF	PCB Mount Header	80	4	4.42 mm	Right Angle	Fully Shrouded	Gold	Wire & Cable	7.5 A	UL 94V-0	Power & Signal	Panel Mount	With	With	-	-

Overview

DEUTSCH DRC headers are available in several keying options and are suited for PCB applications in harsh environments.

DEUTSCH DRC Connectors Overview

Accepts contact sizes 16 (13 amps), and 20 (7.5 amps)
14-22 AWG (2.50-0.35 mm²)
24, 38, 40, 50, 60, and 64 cavity arrangements
In-line, flange, or PCB mount
Rectangular, thermoplastic housing
Jackscrew for mating

VIEW ALL DEUTSCH DRC PRODUCTS

VIEW ALL DEUTSCH DRC PRODUCTS
DEUTSCH DRC connectors are designed for high-pin count, harsh environment applications.

FAQ

Frequently Asked Questions

Q: What is a DRC connector?

A: DEUTSCH DRC environmentally sealed connectors are designed for cable to cable, cable to board, and cable to device applications . DRC connectors are used in harsh environment applications where even a small degradation in connection may be critical.

Q: What are the appropriate applications for DRC connectors?

A: Truck, Bus, Off-highway, Construction, Agriculture, Mining, Emergency Vehicles, Forestry, Recreational, Marine, Motorcycle

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Connector System Wire-to-Board
Sealable Yes
Connector & Contact Terminates To Wire & Cable, Printed Circuit Board
Connector Shape Rectangular
Mixed & Hybrid Header No
Header Type Fully Shrouded
PCB Connector Assembly Type PCB Mount Header, PCB Mount Receptacle

Configuration Features

Number of Sections 2, 4
Connector Modification One Piece Design
Number of Positions 24, 40, 50, 60, 64, 70, 75, 80
Number of Rows 4, 5, 6
Number of Signal Positions 24, 40, 50, 60, 64, 68, 70, 80
PCB Mount Orientation Vertical, Right Angle

Electrical Characteristics

Operating Voltage (VAC) 250
Voltage Rating (Max) (VAC) 250
Operating Voltage (VDC) 250
Nominal Voltage Architecture (V) 12, 24
Voltage Rating (Max) (VDC) 250

Body Features

Primary Product Color Black
Connector & Keying Code 08, 09, 0102, A, 05, 04, AA, 03, 06, B, C, 02, 07, AB, 01, D

Contact Features

Contact Current Rating (Max) (A) 7.5, 13, 25
Mating Pin Diameter (mm) 1.02, 1.56, 1.59, 2.39
Mating Pin Diameter (in) .04, .061, .063, .094
Contact Size Size 16, Size 20
Contact Type Pin
Contact Mating Area Plating Material Tin, Gold, Nickel (Ni), Nickel

Mechanical Attachment

Mating Alignment Without, With
Mounting Holes With
Panel Mount Feature With
Mating Retention Type Locking Interface
Mating Alignment Type Not Keyed, Keyed
PCB Mount Retention With
PCB Mount Retention Type Mounting Screw
PCB Mount Alignment Without, With
Mating Retention With
Connector Mounting Type Board Mount, Panel Mount

Housing Features

Centerline (Pitch) (mm) 4.42, 5.45, 5.5
Centerline (Pitch) (in) .174, .216

Dimensions

PCB Thickness (Recommended) (mm) .78 – 2.36, .78 – 1.57
PCB Thickness (Recommended) (in) .031 – .093, .031 – .062
Connector Length (mm) 21.72, 22.73, 28.63, 35.31, 36.32, 45.34, 46.3, 46.41, 50.47, 54.86, 57.15, 127
Connector Length (in) .855, .895, 1.127, 1.39, 1.43, 1.785, 1.822, 1.827, 1.987, 2.161, 2.25, 5
Profile Height from PCB (mm) 21.72, 22.73, 28.32, 38.1, 50.42, 52.98, 54
Profile Height from PCB (in) .855, .895, 1.115, 1.5, 1.985, 2.086, 2.12, 2.126
Connector Width (mm) 46.3, 74.42, 77.47, 78.59, 78.84, 80.11, 83.64, 95.05, 96.52, 97.82, 127, 133.45, 144.42, 149, 161.62
Connector Width (in) 1.82, 2.93, 3.05, 3.094, 3.104, 3.154, 3.293, 3.742, 3.8, 3.851, 5, 5.254, 5.686, 5.866, 6.363

Usage Conditions

Operating Temperature Range -55 – 125 °C [ -67 – 257 °F ]
Operating Temperature (Max) 125 °C [ 257 °F ]

Operation/Application

Shielded No
Circuit Application Power & Signal, Power

Industry Standards

IP Rating Not Tested, IP6K9K
UL Rating Recognized
UL Flammability Rating UL 94V-0, Not tested

Packaging Features

Packaging Method Box
Packaging Quantity 1, 24, 36, 40, 48, 50, 60, 64

Other

Interface Number DRC23-40PX, DRC14-24PX, DRC20-50PXX, DRC14-70PX, DRC23-24PX, DRC20-60PXX, DRC14-40PX

Reference Number

TE Internal Number CAT-D799-H342
