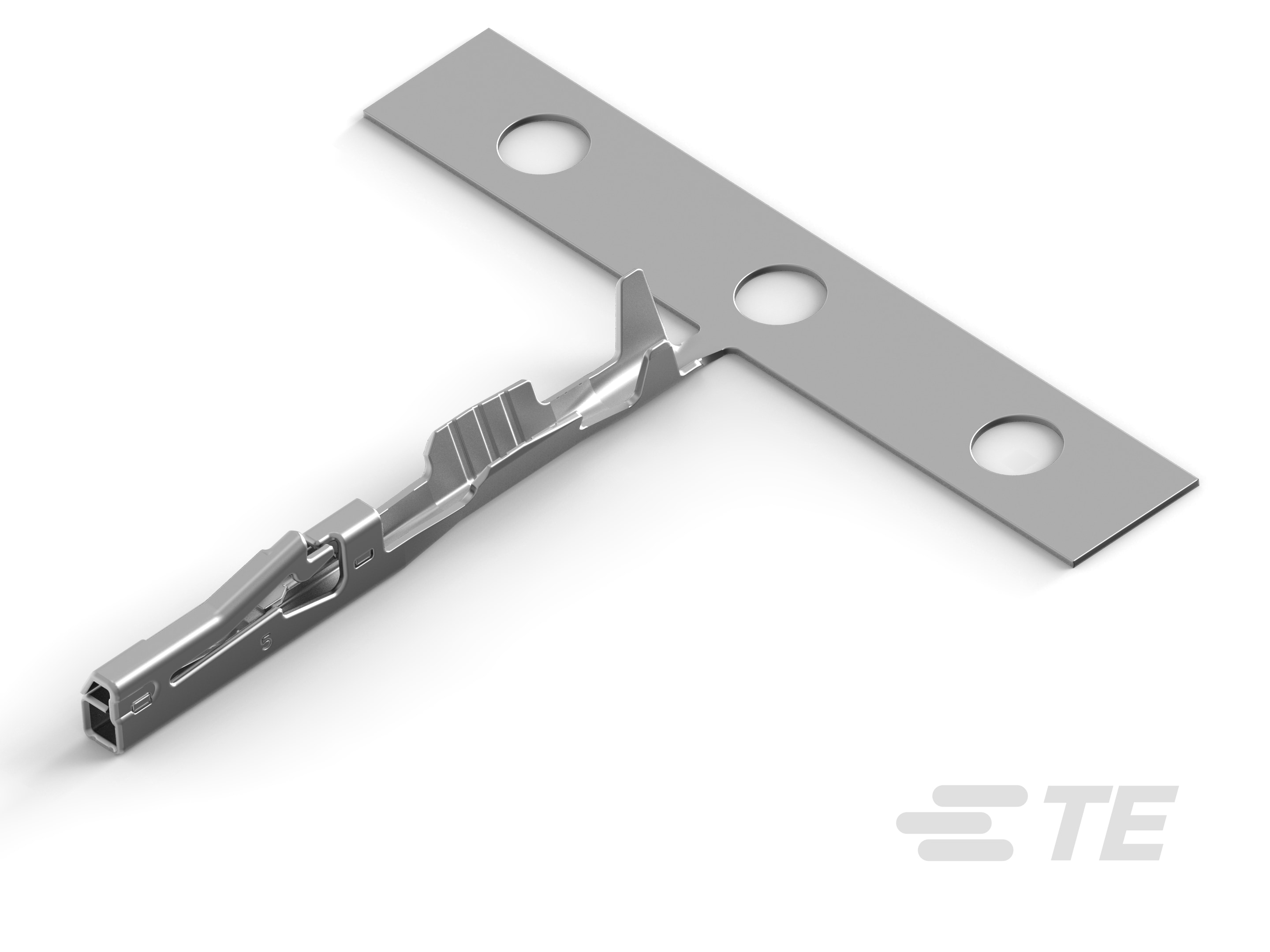

Connector Contact: Wire-to-Board

Connector Contact: Wire-to-Board-CAT-D9932-M6641B
  • Dynamic Series
|
  • Mini Dynamic Series
Dynamic Mini Series has 2 options to fit to different wire size-AWG 22, 24 and 26, both of which are plated with Tin.
More Less

Product Features

  • Contact Type : Receptacle

  • Contact Mating Area Plating Material : Tin (Sn)

  • Compatible With Wire & Cable Type : Discrete Wire

  • Wire Size (AWG): 26, 24 – 22

  • Wire Size (mm²): .4, .2 – .34

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Discrete Wire Type  Stranded

Configuration Features

  • Compatible With Wire & Cable Type  Discrete Wire

Contact Features

  • Contact Underplating Material  Nickel

  • Contact Length  13.9 mm [ .547 in ]

  • Barrel Type  Open

  • Contact Orientation  Straight

  • Contact Type  Receptacle

  • Contact Mating Area Plating Material  Tin (Sn)

  • Contact Base Material  Copper Alloy

  • Contact Current Rating (Max) (A) 3

Termination Features

  • Termination Method to Wire & Cable  Crimp

  • Product Terminates To  Wire & Cable

Mechanical Attachment

  • Wire Insulation Support  With

Dimensions

  • Compatible Insulation Diameter Range  .95 – 1.3 mm [ .037 – .051 in ]

  • Wire Size (AWG) 26, 24 – 22

  • Wire Size (mm²) .4, .2 – .34

Usage Conditions

  • Operating Temperature Range  -40 – 125 °C [ -40 – 257 °F ]

Operation/Application

  • Circuit Application  Signal

Packaging Features

  • Packaging Method  Reel & Box

  • Packaging Quantity  17000

Reference Number

  • TE Internal Number CAT-D9932-M6641B
