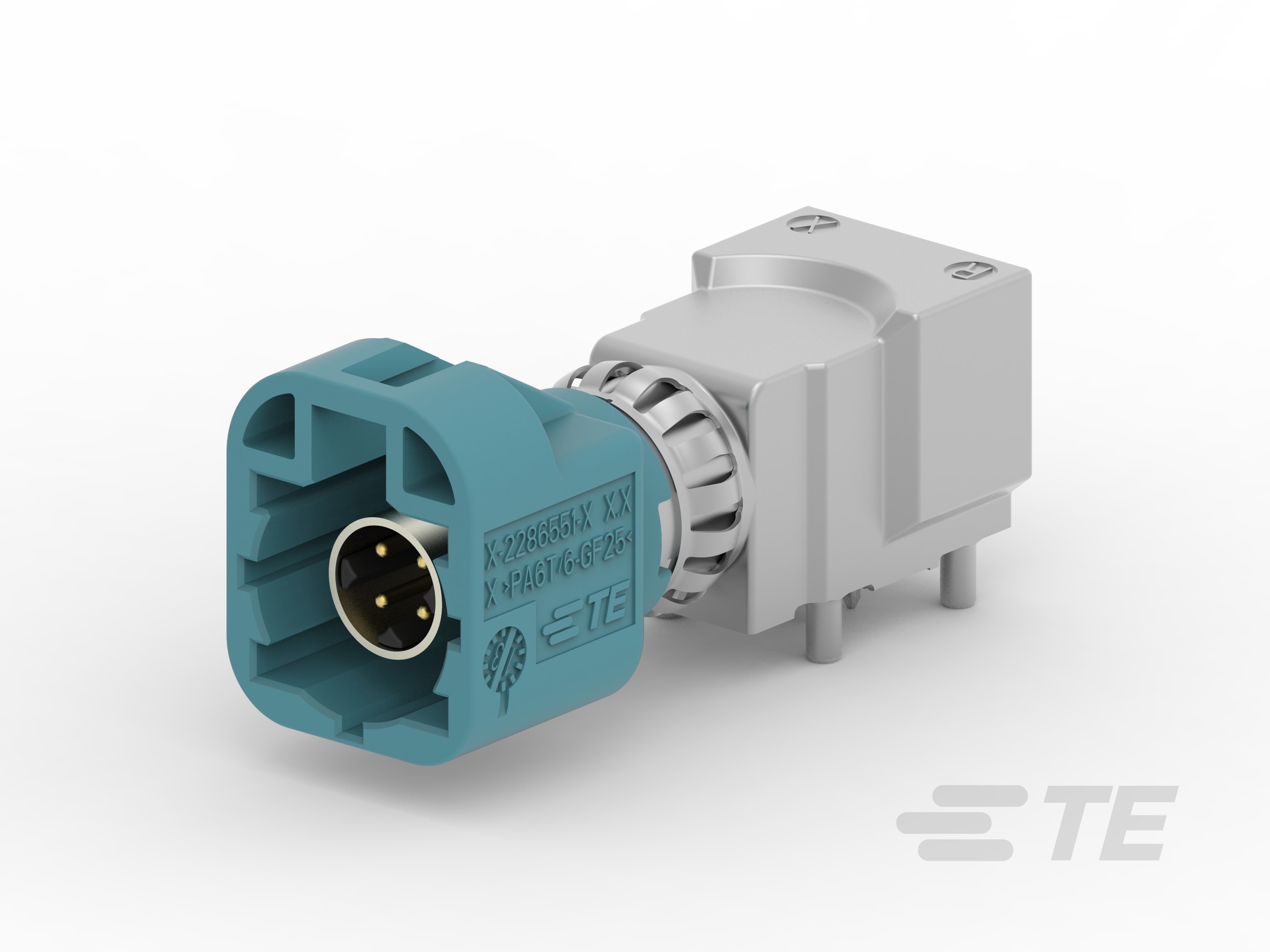

Data Connectivity Header

Data Connectivity Header-CAT-DCH2623
TE solutions help to meet the evolving challenges and requirements of the automotive industry, including data connectivity through a wide range of technologies based on coax, shielded, optical and wireless mediums.
More Less

Product Features

  • PCB Connector Assembly Type : PCB Mount Header

  • PCB Mount Orientation : Vertical

  • Connector System : Wire-to-Board

  • Number of Rows : 6, 2, 1, 4

  • Centerline (Pitch) (mm): 8.1, 2.54, 5.08

  • Centerline (Pitch) (in): .2, .1, .319

Available from

LADD Inc
Overview

Data Connectivity Headers

Connectivity is core to seamless power, signal and data for vehicles. TE solutions help to meet the evolving challenges and requirements of the auto industry, including data connectivity through a wide range of technologies based on coax, shielded, optical and wireless mediums.



Our solutions also provide reliable performance in harsh environments, such as extreme temperature variations and vibrations in rugged terrain.

Circuits Sealed Orientation Tab Width Hybrid Termination Method
1-6 No 90° | 180° 0.51, 0.68mm No Solder | Laser Welding
Features

Please review product documents or contact us for the latest agency approval information.

Electrical Characteristics

  • Operating Voltage (VDC) 12

  • Nominal Voltage Architecture (V) 12

Operation/Application

  • Shielded  No

  • Circuit Application  Power & Signal, Signal

Mechanical Attachment

  • Panel Mount Feature  Without

  • Mating Retention Type  Locking Interface

  • Mounting Holes  Without

  • PCB Mount Retention Type  Boardlock

  • Mating Retention  With

  • PCB Mount Retention  With

  • PCB Mount Alignment  With, Without

  • Mating Alignment  With

Configuration Features

  • Number of Sections  1

  • Number of Signal Positions  40, 24

  • PCB Mount Orientation  Vertical

  • Number of Rows  6, 2, 1, 4

Product Type Features

  • Mixed & Hybrid Header  Yes

  • Connector Shape  Rectangular

  • PCB Connector Assembly Type  PCB Mount Header

  • Connector System  Wire-to-Board

  • Header Type  Fully Shrouded

  • Sealable  No

  • Connector & Contact Terminates To  Printed Circuit Board

Contact Features

  • Mating Tab Width (mm) 2.8, .63

  • Mating Tab Width (in) .11, .025

  • Mating Tab Thickness (mm) .6, .63

  • Mating Tab Thickness (in) .025, .024

  • Contact Size  2.8mm, .63mm

  • Contact Mating Area Plating Material  Tin

  • Contact Type  Tab

Dimensions

  • Connector Length (mm) 49, 49.8

  • Connector Length (in) 1.92, 1.961

  • Profile Height from PCB  28.3 mm [ 1.114 in ]

  • Connector Width (mm) 46.1, 34.5

  • Connector Width (in) 1.815, 1.358

  • PCB Thickness (Recommended) (mm) 1, .8

  • PCB Thickness (Recommended) (in) .04, .031

Usage Conditions

  • Operating Temperature (Max) (°C) 80, 70, 75

  • Operating Temperature (Max) (°F) 167, 176, 158

  • Operating Temperature Range  -40 – 85 °C [ -40 – 185 °F ]

Packaging Features

  • Packaging Quantity  120

  • Packaging Method  Box, Loose Piece

Body Features

  • Primary Product Color  Black

Termination Features

  • Termination Method to PCB  Through Hole - Solder

Housing Features

  • Centerline (Pitch) (mm) 8.1, 2.54, 5.08

  • Centerline (Pitch) (in) .2, .1, .319

Industry Standards

  • UL Flammability Rating  UL 94HB

Other

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Reference Number

  • TE Internal Number CAT-DCH2623
