XPLAINED PRO MS5805

XPLAINED PRO MS5805-CAT-DCS0048
  • MEAS

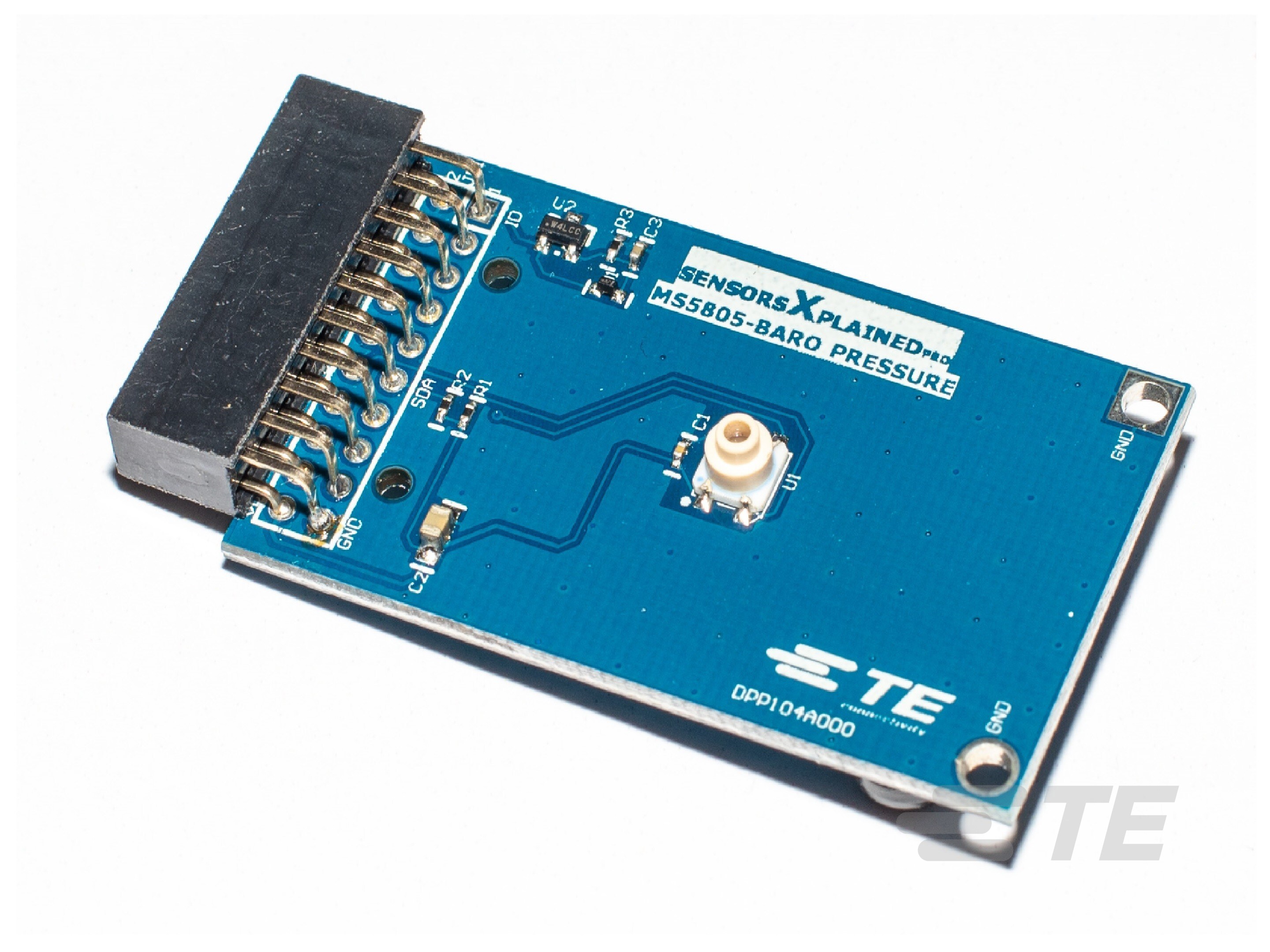

The Xplained Pro MS5805 provides the necessary hardware to interface the MS5805 digital barometric pressure and temperature sensor to any system that utilizes Xplained Pro compatible expansion ports configurable for I2C communication.
More Less

Product Features

  • Sensor Development & Evaluation Product Type : Xplained Pro

  • Sensor Type : Pressure

  • EU RoHS Compliance : Compliant with Exemptions

Available from

LADD Inc
Overview

The MS5805 miniature altimeter sensor is a self-contained pressure and temperature sensor that is fully calibrated during manufacture.  The sensor can operate from 1.5V to 3.6V. The sensor module includes a high-linearity pressure sensor and an ultralow power 24 bits ΔΣ ADC with internal factory-calibrated coefficients.

Benefits

  • 300 to 1200mbar pressure range
  • -40°C to 85°C temperature range
  • Very low power consumption
  • Operates from 1.8V to 3.6V
  • Altitude resolution at sea level is 20 cm of air
  • Fast conversion time – 0.54ms typical
  • 20-pin Xplained Pro compatible connector
  • I2C interface/Communication
  • Xplained Pro Hardware identification Chip
  • Atmel Studio 7 Project available for download
  • µC C code available for download
  • 24 bits resolution for pressure
  • 24 bits resolution for temperature
  • Fully calibrated
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Sensor Development & Evaluation Product Type  Xplained Pro

  • Sensor Type  Pressure

Other

  • EU RoHS Compliance  Compliant with Exemptions

Reference Number

  • TE Internal Number CAT-DCS0048
