PMOD MS5805

PMOD MS5805-CAT-DCS0052
  • MEAS

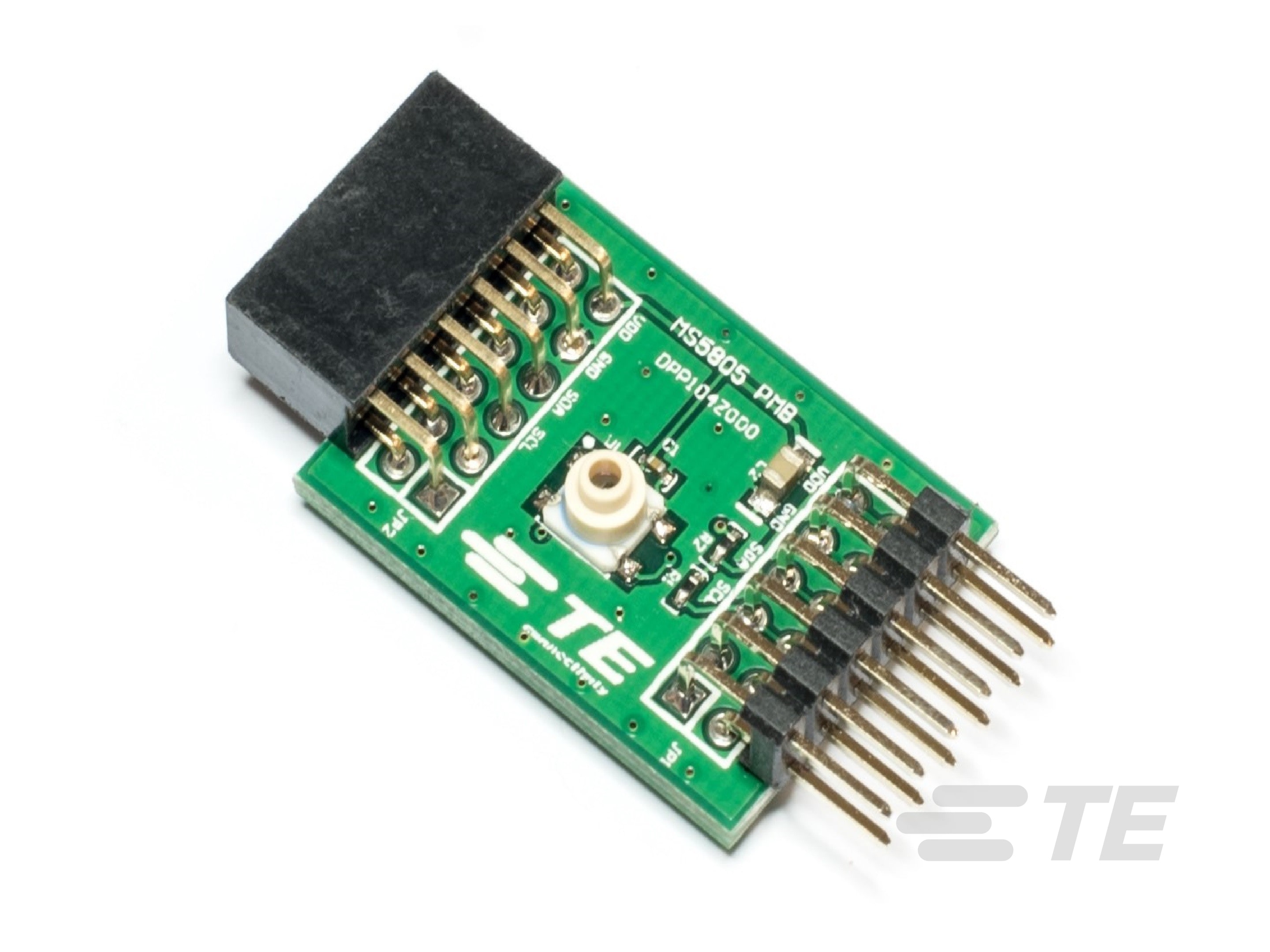

The MS5805 pressure sensor peripheral module provides the necessary hardware to interface the MS5805 digital barometric pressure and temperature sensor to any system that utilizes a Digilent Pmod™ compatible expansion ports configurable for I2C communication.
More Less

Product Features

  • Sensor Development & Evaluation Product Type : Peripheral Modules

  • Sensor Type : Pressure

Available from

LADD Inc

Build and price the product now

Overview

The MS5805 sensor is a self-contained, fully-calibrated pressure and temperature sensor. The sensor can operate from 1.5V to 3.6V. The sensor module includes a high-linearity pressure sensor and an ultra-low power 24-bits ΔΣ ADC with internal factory-calibrated coefficients.

Performance

  • 10mbar to 2000mbar pressure range
  • -40°C to 85°C temperature range
  • Very low power consumption
  • Operates from 1.8V to 3.6V
  • High resolution module 20cm
  • Fast conversion time: 0.5 ms typical

Specifications

  • 12-pin connector compatible with Digilent Pmod™
  • I2C interface
  • Secondary 12-pin connector allows daisy chain
  • FPGA bare metal drivers available for download
  • µC C code drivers available for download
  • 24-bits resolution for pressure
  • 24-bits resolution for temperature
  • Parameters stored on chip
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Sensor Type  Pressure

  • Sensor Development & Evaluation Product Type  Peripheral Modules

Reference Number

  • TE Internal Number CAT-DCS0052
