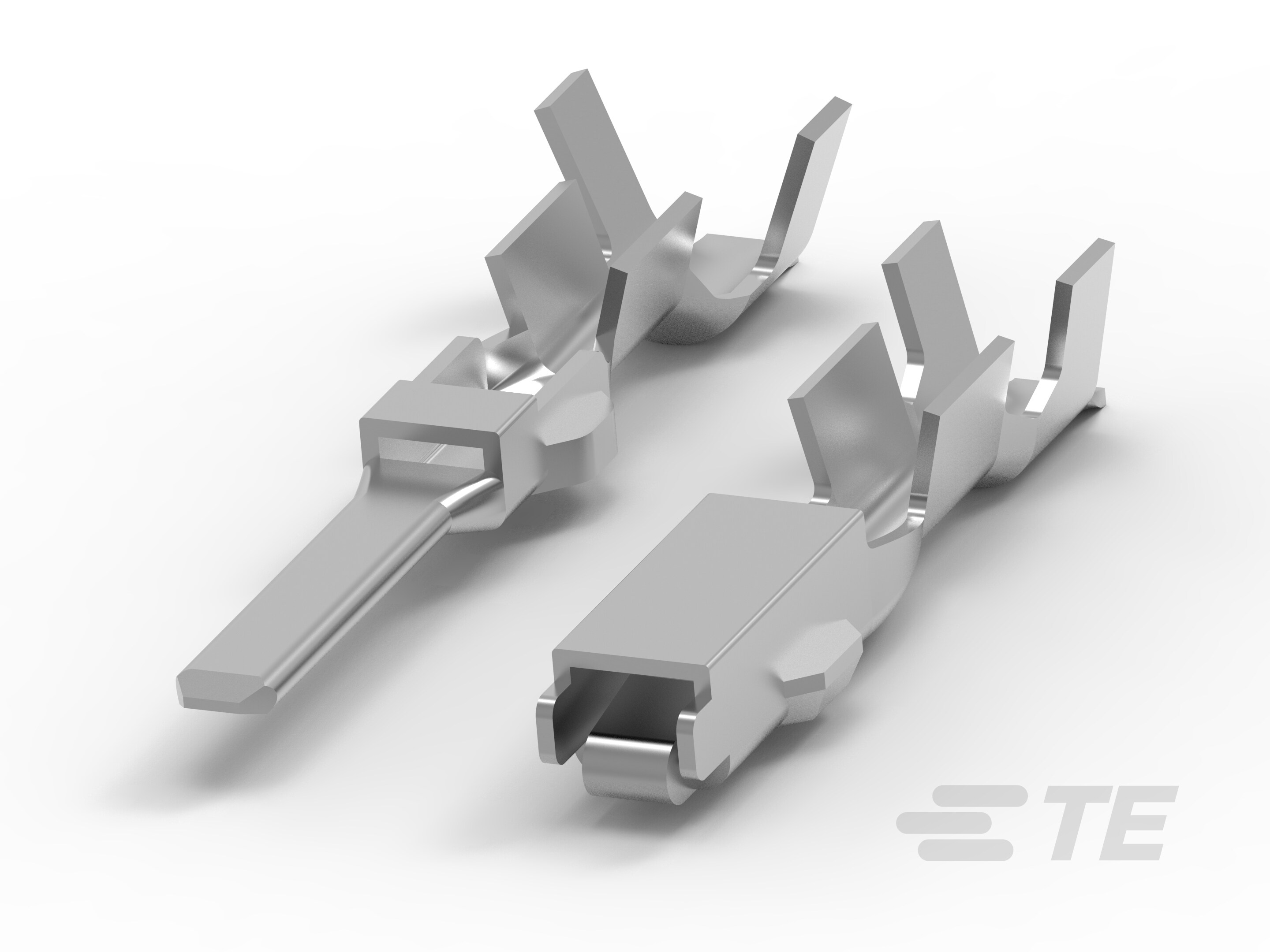

Econoseal Receptacles and Tabs

Econoseal receptacles and tabs are used to create reliable connections in the presence of automotive environmental conditions such as moisture, dust, and corrosive gasses.

More Less

Digital Datasheet|

Product Features

Terminal Type : Receptacle, Tab
Mating Tab Width (mm): 1.8, 6.3, 4.8, 6.35
Mating Tab Width (in): .07, .25, .189, .071, .248
Mating Tab Thickness (mm): .81, .64, .8
Mating Tab Thickness (in): .031, .025, .02, .024
Terminal Transmits : 41 – 100 A (High Power), 0 – 24 A (Low Power)
Wire Size (AWG): 18 – 14, 22 – 20, 20 – 16, 24 – 20, 20 – 15, 14 – 12, 20 – 18, 20, 16 – 12

Available from

Product	TE Part #	Documents	Terminal Type	Mating Tab Width	Mating Tab Thickness	Terminal Transmits	Wire Size	Wire Size	Sealable	Terminal Seal Type	Wire Size Search	Wire Size Search	Primary Locking Feature	Interface Plating	Product Terminates To	Operating Temperature (Max)	Tab Length	Operating Temperature Range	EU RoHS Compliance
WIRE TO BOARD RECPT CONT.	344113-1	Product Drawing 3D PDF	Receptacle	1.8 mm	.64 mm	0 – 24 A (Low Power)	18 – 14 AWG	.75 – 2 mm²	Yes	Single Wire Seal (SWS)	1.25 mm², 2 mm², 1 mm², 1.5 mm², .75 mm²	14 AWG, 15 AWG, 16 AWG, 17 AWG, 18 AWG	Clean Body	Gold (Au)	Wire	-	20.5 mm	-	Compliant
E-J MK-2 070 TAB CONT	171631-1	Product Drawing 3D PDF	Tab	1.8 mm	.64 mm	0 – 24 A (Low Power)	24 – 20 AWG	.2 – .5 mm²	Yes	Single Wire Seal (SWS)	.3 mm², .25 mm², .5 mm², .4 mm², .2 mm²	20 AWG, 21 AWG, 22 AWG, 23 AWG, 24 AWG	Clean Body	Tin (Sn)	Wire	105 °C	20.4 mm	-30 – 105 °C	Compliant
ECONO CONTACT REC	345806-1	Product Drawing 3D PDF	Receptacle	1.8 mm	.64 mm	0 – 24 A (Low Power)	18 – 14 AWG	.75 – 2 mm²	Yes	Single Wire Seal (SWS)	1.25 mm², 1 mm², 2 mm², 1.5 mm², .75 mm²	14 AWG, 15 AWG, 16 AWG, 17 AWG, 18 AWG	-	Tin (Sn)	Wire	-	-	-	Compliant
070 SERIES REC CONTACT	171662-4	Product Drawing 3D PDF	Receptacle	1.8 mm	.64 mm	0 – 24 A (Low Power)	20 – 16 AWG	.5 – 1.25 mm²	Yes	Single Wire Seal (SWS)	1.25 mm², 1 mm², .5 mm², .75 mm², .6 mm²	20 AWG, 16 AWG, 17 AWG, 18 AWG, 19 AWG	Clean Body	Tin (Sn)	Wire	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-30 – 105 °C	Compliant
.187 SEALD REC CONT L	175091-1	Product Drawing 3D PDF	Receptacle	4.8 mm	.8 mm	0 – 24 A (Low Power)	14 – 12 AWG	2 – 3 mm²	Yes	Single Wire Seal (SWS)	2.5 mm², 2 mm², 3 mm²	12 AWG, 13 AWG, 14 AWG	Clean Body	Tin (Sn)	Wire	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-30 – 105 °C	Compliant
E-J MK-2 070 REC CONT LP	173707-1	Product Drawing 3D PDF	Receptacle	1.8 mm	.64 mm	0 – 24 A (Low Power)	20 – 16 AWG	.5 – 1.25 mm²	Yes	Single Wire Seal (SWS)	1.25 mm², 1 mm², .5 mm², .75 mm², .6 mm²	20 AWG, 16 AWG, 17 AWG, 18 AWG, 19 AWG	Clean Body	Tin (Sn)	Wire	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-30 – 105 °C	Compliant
E-J MK-2 070 TAB CONT	171661-2	Product Drawing 3D PDF	Tab	1.8 mm	.64 mm	-	20 – 16 AWG	.5 – 1.29 mm²	No	-	-	-	Clean Body	Gold (Au)	Wire & Cable	105 °C	20.4 mm	-30 – 105 °C	Compliant
.187 SEALD TAB CONT L	175088-1	Product Drawing 3D PDF	Tab	4.8 mm	.8 mm	0 – 24 A (Low Power)	14 – 12 AWG	2 – 3 mm²	Yes	Single Wire Seal (SWS)	2.5 mm², 2 mm², 3 mm²	12 AWG, 13 AWG, 14 AWG	Clean Body	Tin (Sn)	Wire	105 °C	28.4 mm	-30 – 105 °C	Compliant
070 TYPE LOOSE PIECE REC CONT	171699-1	Product Drawing 3D PDF	Receptacle	1.8 mm	.64 mm	0 – 24 A (Low Power)	24 – 20 AWG	.2 – .5 mm²	Yes	Single Wire Seal (SWS)	.3 mm², .25 mm², .5 mm², .4 mm², .2 mm²	20 AWG, 21 AWG, 22 AWG, 23 AWG, 24 AWG	Clean Body	Tin (Sn)	Wire	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C	Compliant
ECONOSEAL RCPT CONT 0,5MM	282224-1	Product Drawing 3D PDF	Receptacle	1.8 mm	.64 mm	0 – 24 A (Low Power)	22 – 20 AWG	.35 – .5 mm²	Yes	Single Wire Seal (SWS)	.35 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Clean Body	Tin (Sn)	Wire	125 °C	-	-30 – 125 °C	Compliant
.250"SPEC.F.TAB (PLATED)	344008-1	Product Drawing 3D PDF	Tab	6.35 mm	.81 mm	41 – 100 A (High Power)	14 – 12 AWG	2 – 3 mm²	Yes	Single Wire Seal (SWS)	2.5 mm², 2 mm², 3 mm²	12 AWG, 13 AWG, 14 AWG	Integrated in Housing	Tin (Sn)	Wire	-	24.4 mm	-	Compliant
E-J MK-2 070 TAB CONT	1897641-1	Product Drawing 3D PDF	Tab	1.8 mm	.64 mm	0 – 24 A (Low Power)	20 AWG	.5 mm²	Yes	Single Wire Seal (SWS)	.5 mm²	20 AWG	-	Gold (Au)	Wire	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C	Compliant
E-J MK-2 070 TAB CONT GOLD-TIN	1897641-4	Product Drawing 3D PDF	Tab	1.8 mm	.64 mm	0 – 24 A (Low Power)	20 – 18 AWG	.5 – .75 mm²	Yes	Single Wire Seal (SWS)	.5 mm², .75 mm², .6 mm²	20 AWG, 18 AWG, 19 AWG	Clean Body	Gold (Au)	Wire	80 °C, 100 °C, 90 °C, 85 °C	-	-40 – 100 °C	Compliant
E-J MK-2 070 TAB CONT	171661-1	Product Drawing 3D PDF	Tab	1.8 mm	.64 mm	-	20 – 16 AWG	.5 – 1.29 mm²	No	-	-	-	Clean Body	Tin (Sn)	Wire & Cable	105 °C	20.4 mm	-30 – 105 °C	Compliant
E-J MK-2 070 REC CONT	171630-5	Product Drawing 3D PDF	Receptacle	1.8 mm	.64 mm	0 – 24 A (Low Power)	24 – 20 AWG	.2 – .5 mm²	Yes	Single Wire Seal (SWS)	.3 mm², .25 mm², .5 mm², .4 mm², .2 mm²	20 AWG, 21 AWG, 22 AWG, 23 AWG, 24 AWG	Clean Body	Gold (Au)	Wire	105 °C	16.5 mm	-30 – 105 °C	Compliant
E-J MK-2 070 USA REV A ONLY	171662-5	Product Drawing 3D PDF	Receptacle	1.8 mm	.64 mm	0 – 24 A (Low Power)	20 – 16 AWG	.5 – 1.25 mm²	Yes	Single Wire Seal (SWS)	1.25 mm², 1 mm², .5 mm², .75 mm², .6 mm²	20 AWG, 16 AWG, 17 AWG, 18 AWG, 19 AWG	Clean Body	Gold (Au)	Wire	105 °C	16.5 mm	-30 – 105 °C	Compliant
.070" TAB ECONOSEAL 3	345809-1	Product Drawing 3D PDF	Tab	1.8 mm	.64 mm	0 – 24 A (Low Power)	24 – 20 AWG	.2 – .5 mm²	Yes	Single Wire Seal (SWS)	.3 mm², .25 mm², .5 mm², .4 mm², .2 mm²	20 AWG, 21 AWG, 22 AWG, 23 AWG, 24 AWG	-	Tin (Sn)	Wire	-	-	-	Compliant
E-J MK-2 250 TAB CONT	171633-1	Product Drawing 3D PDF	Tab	6.3 mm	.8 mm	-	16 – 12 AWG	1.25 – 3.37 mm²	Yes	Single Wire Seal (SWS)	2.5 mm², 1.25 mm², 2 mm², 3 mm², 1.5 mm²	12 AWG, 13 AWG, 14 AWG, 15 AWG, 16 AWG	-	-	Wire	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C	Compliant
ECONO CONT. TAB	345807-1	Product Drawing 3D PDF	Tab	1.8 mm	.64 mm	0 – 24 A (Low Power)	18 – 14 AWG	.75 – 2 mm²	Yes	Single Wire Seal (SWS)	1.25 mm², 1 mm², 2 mm², 1.5 mm², .75 mm²	14 AWG, 15 AWG, 16 AWG, 17 AWG, 18 AWG	-	Tin (Sn)	Wire	-	-	-	Compliant
E-J MK-2 250 REC CONT	171632-1	Product Drawing 3D PDF	Receptacle	6.3 mm	.8 mm	-	16 – 12 AWG	1.25 – 3.37 mm²	Yes	Single Wire Seal (SWS)	2.5 mm², 1.25 mm², 2 mm², 3 mm², 1.5 mm²	12 AWG, 13 AWG, 14 AWG, 15 AWG, 16 AWG	-	-	Wire	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C	Compliant
.250"SPEC.F.RECP.(PLATED)	344009-1	Product Drawing 3D PDF	Receptacle	6.3 mm	.8 mm	0 – 24 A (Low Power)	14 – 12 AWG	2 – 3 mm²	Yes	Single Wire Seal (SWS)	2.5 mm², 2 mm², 3 mm²	12 AWG, 13 AWG, 14 AWG	-	Tin (Sn)	Wire	-	-	-	-
E-J MK-2 070 REC CONT	171662-1	Product Drawing 3D PDF	Receptacle	1.8 mm	.64 mm	0 – 24 A (Low Power)	20 – 16 AWG	.5 – 1.25 mm²	Yes	Single Wire Seal (SWS)	1.25 mm², 1 mm², .5 mm², .75 mm², .6 mm²	20 AWG, 16 AWG, 17 AWG, 18 AWG, 19 AWG	Clean Body	Tin (Sn)	Wire	105 °C	16.5 mm	-30 – 105 °C	Compliant
E-J MK-2 070 TAB CONT LP	173706-1	Product Drawing 3D PDF	Tab	1.8 mm	.64 mm	0 – 24 A (Low Power)	20 – 16 AWG	.5 – 1.25 mm²	Yes	Single Wire Seal (SWS)	1.25 mm², 1 mm², .5 mm², .75 mm², .6 mm²	20 AWG, 16 AWG, 17 AWG, 18 AWG, 19 AWG	Clean Body	Tin (Sn)	Wire	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C	Compliant
E-J MK-2 070 REC CONT	171630-1	Product Drawing 3D PDF	Receptacle	1.8 mm	.64 mm	0 – 24 A (Low Power)	24 – 20 AWG	.2 – .5 mm²	Yes	Single Wire Seal (SWS)	.3 mm², .25 mm², .5 mm², .4 mm², .2 mm²	20 AWG, 21 AWG, 22 AWG, 23 AWG, 24 AWG	Clean Body	Tin (Sn)	Wire	105 °C	16.5 mm	-30 – 105 °C	Compliant
.250"SPEC. F.TAB.(PLATED)	344069-1	Product Drawing 3D PDF	Tab	6.35 mm	.81 mm	41 – 100 A (High Power)	20 – 15 AWG	.5 – 1.5 mm²	Yes	Single Wire Seal (SWS)	1.25 mm², 1 mm², .5 mm², .75 mm², .6 mm²	20 AWG, 15 AWG, 16 AWG, 17 AWG, 18 AWG, 19 AWG	Integrated in Housing	Tin (Sn)	Wire	-	24.4 mm	-	Compliant
.250"SPEC.F.TAB.(PLATED)	344067-1	Product Drawing 3D PDF	Tab	6.3 mm	.8 mm	0 – 24 A (Low Power)	14 – 12 AWG	2 – 3 mm²	No	-	2.5 mm², 2 mm², 3 mm²	12 AWG, 13 AWG, 14 AWG	-	Tin (Sn)	Wire	-	-	-	Compliant

Features

Please review product documents or contact us for the latest agency approval information.

Packaging Features

Packaging Method Bag, Reel
Packaging Quantity 4000, 1000, 6000, 3000, 2000, 2500

Contact Features

Wire Contact Termination Area Plating Material Tin, Gold
Typical Current Rating (A) 20, 6, 10, 7
Crimp Type F-Crimp
Contact Size 6.35mm, 4.8mm, 1.8mm, 6mm, 1.7mm
Contact Fabrication Stamped & Formed
Terminal Type Receptacle, Tab
Mating Tab Width (mm) 1.8, 6.3, 4.8, 6.35
Mating Tab Width (in) .07, .25, .189, .071, .248
Mating Tab Thickness (mm) .81, .64, .8
Mating Tab Thickness (in) .031, .025, .02, .024
Interface Plating Tin (Sn), Gold (Au)

Dimensions

Compatible Insulation Diameter Range (mm) 2 – 2.5, 1.4 – 1.9, 1.2 – 1.6, 4.1 – 5.5, 2.9 – 3.8, 1.5 – 2.2, 1.7 – 2.05, 2 – 2.7, 1.6 – 1.8, 1.6 – 2.4, 1.65 – 2.7
Compatible Insulation Diameter Range (mm) 2 – 2.5, 1.4 – 1.9, 1.2 – 1.6, 4.1 – 5.5, 2.9 – 3.8, 1.5 – 2.2, 1.7 – 2.05, 2 – 2.7, 1.6 – 1.8, 1.6 – 2.4, 1.65 – 2.7
Compatible Insulation Diameter Range (in) .055 – .094, .063 – .07, .063 – .094, .055 – .075, .067 – .081, .067, .161 – .216, .065 – .106, .114 – .149, .078 – .102
Wire Size (AWG) 18 – 14, 22 – 20, 20 – 16, 24 – 20, 20 – 15, 14 – 12, 20 – 18, 20, 16 – 12
Wire Size (mm²) .5 – 1.25, 1.25 – 3.37, .5 – .75, .2 – .5, .5, .75 – 2, .35 – .5, .5 – 1.5, .5 – 1.29, 2 – 3
Wire Size Search (mm²) 2.5, .6, 3, .5, 1.25, .3, .25, 1.5, 1, .75, .2, .35, 2, .4
Wire Size Search (AWG) 23, 13, 20, 22, 16, 18, 12, 17, 21, 14, 24, 15, 19
Tab Length (mm) 16.5, 24.4, 20.4, 28.4, 20.5
Tab Length (in) .65, .8, .807, 1.118, .96

Product Type Features

Receptacle Style 180°
Sealable Yes, No
Primary Locking Feature Clean Body, Integrated in Housing

Usage Conditions

Insulation Option Uninsulated
Operating Temperature (Max) (°C) 125, 105, 80, 85, 90, 100
Operating Temperature (Max) (°F) 221, 212
Operating Temperature Range (°C) -30 – 125, -40 – 100, -30 – 105
Operating Temperature Range (°F) -40 – 212, -22 – 221, -22 – 257

Termination Features

Termination Method to Wire & Cable Crimp
Product Terminates To Wire & Cable, Wire

Operation/Application

Compatible With Wire Base Material Copper

Body Features

Terminal Seal Type Single Wire Seal (SWS)

Other

Terminal Transmits 41 – 100 A (High Power), 0 – 24 A (Low Power)
EU RoHS Compliance Compliant
EU ELV Compliance Compliant

Reference Number

TE Internal Number CAT-EC7491-T273
