FFC Connector Pin Contacts, 1.27 mm

FFC Connector Pin Contacts, 1.27 mm-CAT-F439-P65127
Our connectors for flat flexible cable (FFC) include a wide variety of high density board-to-board, wire-to-board, and wire-to-wire connectors designed for automated assembly.
More Less

Product Features

  • Contact Type : Pin, Splicing Contact

  • Contact Mating Area Plating Material : Tin, Tin-Lead, Gold Flash

  • Compatible With Wire & Cable Type : FFC

  • Termination Method to Wire & Cable : Insulation Displacement (IDC), Solder Tab

  • Contact Base Material : Phosphor Bronze

Available from

LADD Inc
Overview

Product Features

FFC Connectors

  • Cable stripping and plating eliminated
  • High speed sequential application of multiple-crimp contacts
  • Underwriters Laboratories Inc., File No. E28476
  • CSA Report No. LR 7189A-91
  • Single and double row housings: plain and latch
  • Pin, receptacle, card edge, and solder tab contact options
  • Capability of intermixing FFC cable and round wire contacts

↑

High density packaging

↓

Low profile design

↔

Wide variety of housing options

Quick Reference Guide
Flat Flexible Cable (FFC) Connectors (English)

The TE family of flat flexible cable connectors includes a wide variety of high density cable-to-board and cable-to-cable connectors designed for automated assembly. The family is composed of pin and receptacle housings on .100 [2.54] centerline contact spacing and receptacle housings on .050 [1.27] centerline contact spacing. Receptacle housings not only mate with the pin housings, but also mate with an array of printed circuit board headers from other TE connector lines, including AMPMODU connectors.

Product Line Options

FFC Connectors

  • FFC Contacts

    Multiple-crimp design is featured on all .050 [1.27] and .100 [2.54] centerline FFC contacts. Four crimping tines are used on the cable insulation and conductor, for optimum electrical and mechanical reliability. Supplied in strip form on reels for sequential termination.

  • FFC Housings

    FFC housings are loaded with the prepared FFC cable assembly before the assembly is mated with a board side header (in wire-to-board solutions), or another FFC cable assembly (in wire-to-wire solutions). Housings are available in standard or slimline, single or dual row style, with or without latching, and with or without mounting ears.

  • FFC FLEXPAC Connectors

    A versatile interconnection solution for high performance applications. Combines flat conductor cable technology with a variety of contact and connector termination styles. Coupled with polarized locking headers, these enable the specification of custom designed assemblies tailored to the specific board-to-board application.

  • ZIF Connectors

    Zero insertion force (ZIF) connectors allow for easy cable insertion and a reliable connection.

  • Trio-Mate Connectors

    Accepts FFC cable, flexible etched circuitry, or membrane switch circuitry. Contact area .005 to .015 [0.13 to 0.38] thick. High extraction force.

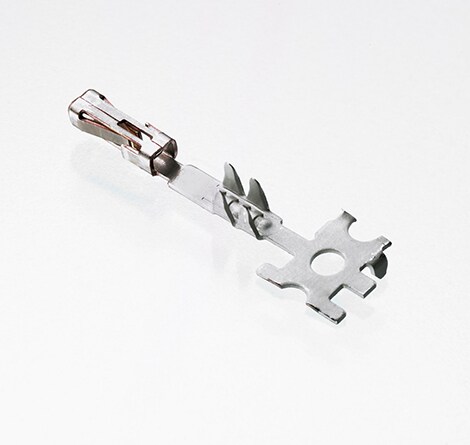

FFC Contacts
FFC Contacts: Four crimping tines for electrical and mechanical reliability.

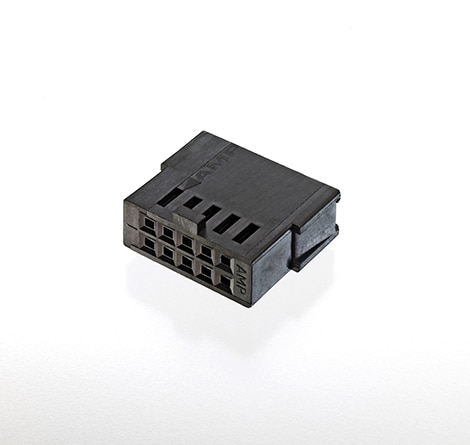

FFC Standard Connectors
FFC Standard Connectors: Available in single and dual row spacing.
FFC Slimline Connectors
FFC Slimline Connectors: Quality connections in a smaller form factor.

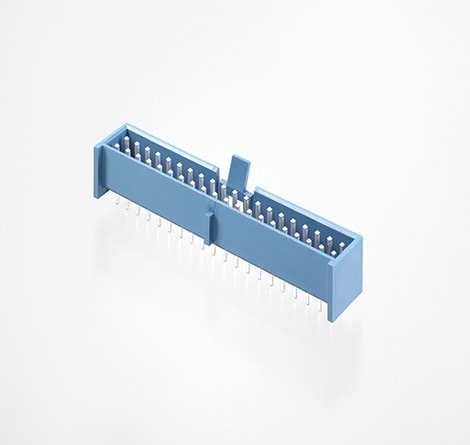

FFC FLEXPAC Connectors
FFC FLEXPAC Connectors: Versatile solution for high performance applications.

Select Applications

FFC Connectors

  • PCs
  • PDA
  • Camera
  • Membrane switches
  • Inkjet, laser, and 3D printers
  • Disk drives
  • Data systems
  • Appliances
  • Industrial controls
  • Medical devices

Product Group

LVDS Connectors (LCEDI)

These connectors use a 2.7Gbps micro coax cable to connect notebook and processor.

Product Group

Flexible Printed Circuit (FPC) Connectors

TE's FPC products are low profile and light weight and are available in a range of centerline spacing.

Introduction to Fine Pitch FPC Connectors

An introduction to fine pitch flexible printed circuits (FPCs) and benefits of angled insertion.
Features

Please review product documents or contact us for the latest agency approval information.

Packaging Features

  • Packaging Method  Reel, Strip

Contact Features

  • Contact Mating Area Plating Material Thickness (µm) 2.54

  • Contact Mating Area Plating Material Thickness (µin) 100

  • Contact Mating Area Plating Material Finish  Matte, Bright

  • PCB Contact Termination Area Plating Material  Tin, Tin-Lead, Gold Flash

  • Contact Underplating Material  Nickel

  • Contact Type  Pin, Splicing Contact

  • Contact Mating Area Plating Material  Tin, Tin-Lead, Gold Flash

  • Contact Base Material  Phosphor Bronze

  • Contact Current Rating (Max) (A) 1.5

Dimensions

  • Accepts Conductor Width (mm) .66

Configuration Features

  • Compatible With Wire & Cable Type  FFC

Termination Features

  • Termination Method to Wire & Cable  Insulation Displacement (IDC), Solder Tab

  • Product Terminates To  Wire & Cable

Usage Conditions

  • Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

  • Circuit Application  Signal

Other

  • EU RoHS Compliance  Not Compliant, Compliant

  • EU ELV Compliance  Compliant, Compliant with Exemptions

Reference Number

  • TE Internal Number CAT-F439-P65127
