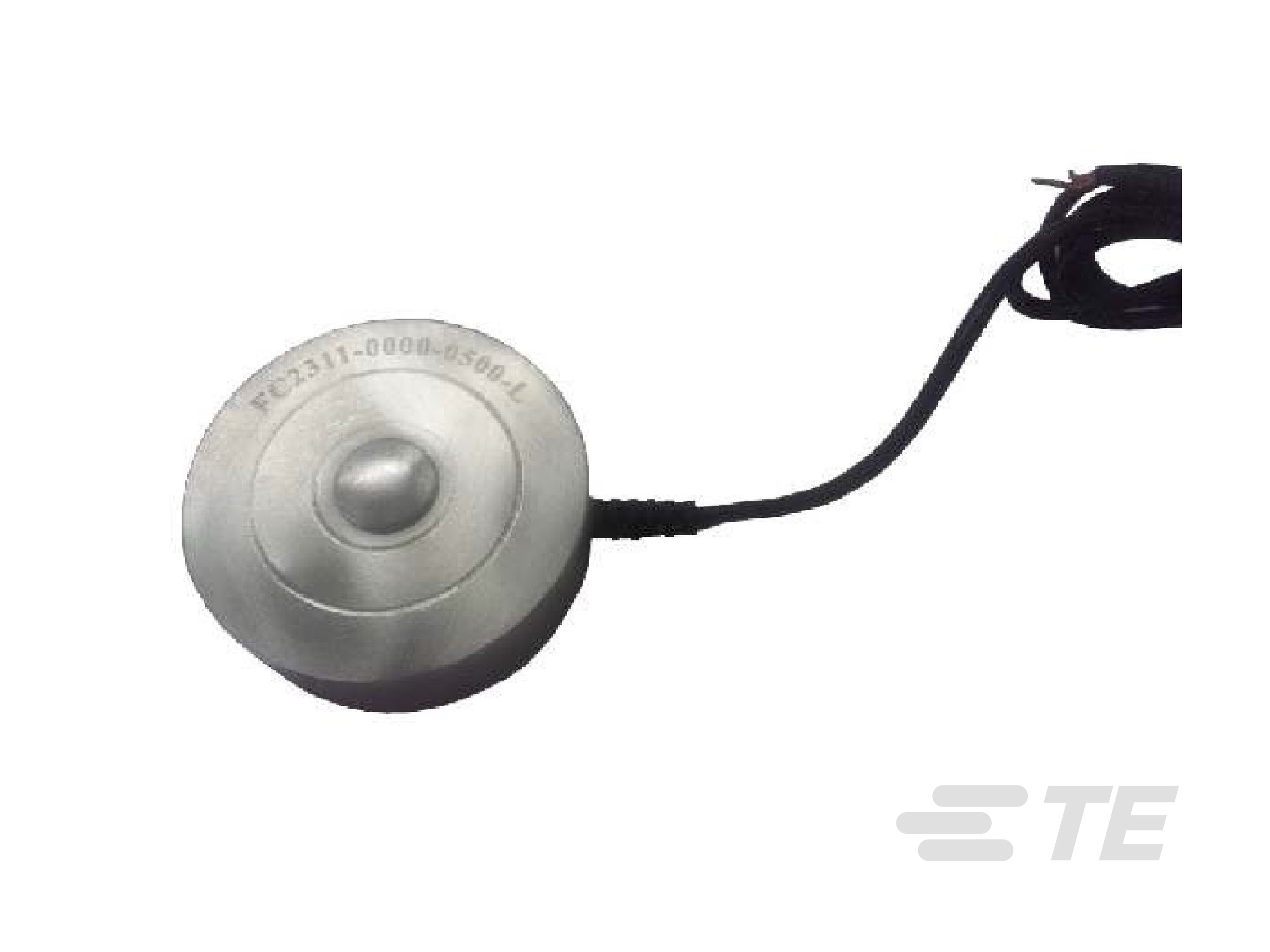

COMPRESSION LOAD CELL - 100MV / 0.5-4.5V

MEAS

MEAS FC

The FC23 is a high compression force sensor that creates new markets previously unrealizable due to cost and performance constraints.

More Less

Datasheet |
Digital Datasheet|

Product Features

Force Sensor Type : OEM Compression Load Cells
Force Direction : Compression
Full Scale Range (Newton): 0 – 2000, 0 – 2500, 0 – 5000, 0 – 250
Full Scale Range (lbf): 50, 100, 250, 500, 2000, 0 – 500, 0 – 650, 0 – 50, 0 – 1000
Operating Temperature Range : -40 – 85 °C [ -40 – 185 °F ]

Available from

Product	TE Part #	Documents	Full Scale Range	Full Scale Range	Output Signal Type	EU RoHS Compliance	EU ELV Compliance
FC23 AMPLIFIED 2FT CABLE 2000N	FC2331-0000-2000-N	3D PDF	0 – 2000 Newton	-	.5 – 4.5 V	-	-
FC23 AMPLIFIED 2FT CABLE 2500N	FC2331-0000-2500-N	3D PDF	0 – 2500 Newton	0 – 500 lbf	.5 – 4.5 V	-	-
FC23 AMPLIFIED 2FT CABLE 500L	FC2331-0000-0500-L	3D PDF	-	500 lbf	.5 – 4.5 V	-	-
FC23 MV 2FT CABLE 50L	FC2311-0000-0050-L	3D PDF	-	50 lbf	20 mV/V	-	-
FC23 AMPLIFIED 2FT CABLE 650L	FC2331-0000-0650-L	3D PDF	-	0 – 650 lbf	.5 – 4.5 V	-	-
FC23 AMPLIFIED 2FT CABLE 250L	FC2331-0000-0250-L	3D PDF	-	250 lbf	.5 – 4.5 V	-	-
FC23 AMPLIFIED 2FT CABLE 100L	FC2331-0000-0100-L	3D PDF	-	100 lbf	.5 – 4.5 V	-	-
FC23 AMPLIFIED 2FT CABLE 2000L Buy on te.com	FC2331-0000-2000-L	3D PDF	-	2000 lbf	.5 – 4.5 V	-	-
FC23 AMPLIFIED 2FT CABLE 250N	FC2331-0000-0250-N	3D PDF	0 – 250 Newton	0 – 50 lbf	.5 – 4.5 V	-	-
FC23 AMPLIFIED 2FT CABLE 1000L	FC2331-0000-1000-L	3D PDF	0 – 5000 Newton	0 – 1000 lbf	.5 – 4.5 V	-	-
FC23 MV 2FT CABLE 250L Buy on te.com	FC2311-0000-0250-L	3D PDF	-	250 lbf	20 mV/V	-	-
FC23 MV 2FT CABLE 500L Buy on te.com	FC2311-0000-0500-L	3D PDF	-	500 lbf	20 mV/V	-	-
FC23 MV 2FT CABLE 2000L Buy on te.com	FC2311-0000-2000-L	3D PDF	-	2000 lbf	20 mV/V	-	-
FC23 MV 2FT CABLE 100L	FC2311-0000-0100-L	3D PDF	-	100 lbf	20 mV/V	-	-
FC23 AMPLIFIED 2FT CABLE 50L	FC2331-0000-0050-L	3D PDF	-	50 lbf	.5 – 4.5 V	-	-
FC23 MV 2FT CABLE 1000L	FC2311-0000-1000-L	3D PDF	0 – 5000 Newton	0 – 1000 lbf	20 mV/V	-	-

Overview

The FC23 offers normalized zero and span for interchange-ability and is thermally compensated for changes in zero and span with respect to temperature. The FC23 incorporates TE proprietary technology which employs micromachined silicon piezoresistive strain gages fused with high temperature glass to a high performance stainless steel substrate. TE sensor technology eliminates age-sensitive organic epoxies used in traditional load cell designs providing excellent long term span and zero stability. The FC23 measures direct force and is therefore not subject to lead-die fatigue failure common with competitive designs which use a pressure capsule embedded within a silicone gel-filled cavity. Operating at very low strains, Microfused™ technology provides an essentially unlimited cycle life expectancy, superior resolution, and high over-range capabilities.

BENEFITS

50 – 2000 lbf Ranges
High Level or mV
Interchangeable
Compact Load Button Design
Industry Standard Packaging
CE Compliance
Low Noise
Robust: High Over-Range Capability
High Reliability
Low Deflection
Low Off Center Errors
Fast Response Time
Long Cycle Life Expectancy

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Force Sensor Type OEM Compression Load Cells

Electrical Characteristics

Full Scale Range (Newton) 0 – 2000, 0 – 2500, 0 – 5000, 0 – 250
Full Scale Range (lbf) 50, 100, 250, 500, 2000, 0 – 500, 0 – 650, 0 – 50, 0 – 1000
Supply Voltage Range (VDC) 5

Usage Conditions

Operating Temperature Range -40 – 85 °C [ -40 – 185 °F ]
Accuracy (% of FS) ±1

Operation/Application

Output Signal Type .5 – 4.5 V, 20 mV/V

Industry Standards

IP Rating IP65

Other

Force Direction Compression
Zero Shift in CTR (%FS/°C) ±.05
Sensitivity Shift (%FS/°C) ±.05

Reference Number

TE Internal Number CAT-FSE0002
