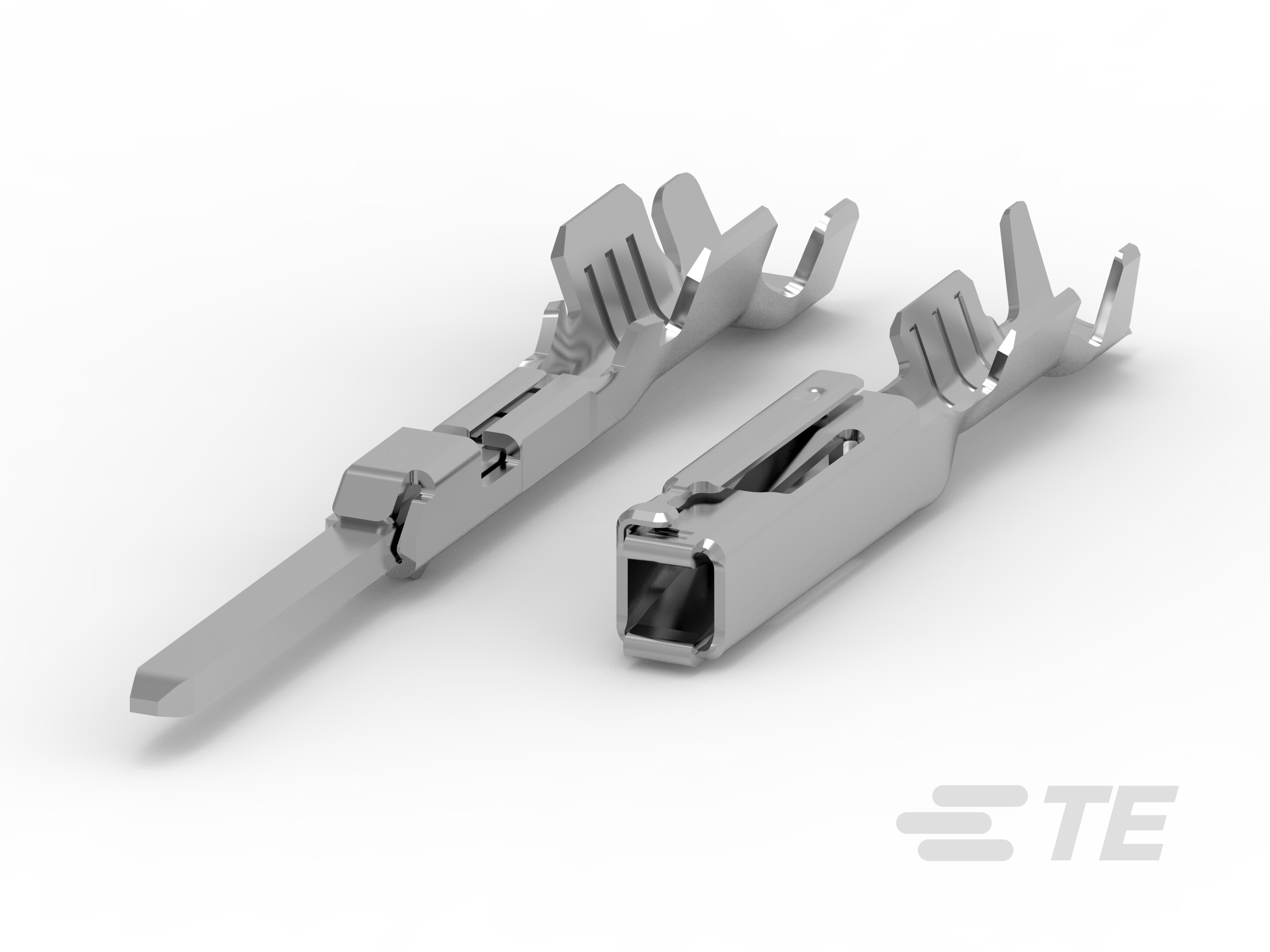

GET .64 CONNECTOR SYSTEM, RECEPT AND TAB

Digital Datasheet|

Product Features

Packaging Method : Reel, Package
Operating Temperature Range (°C): -40 – 125, -40 – 150, -40 – 145, -40 – 120
Operating Temperature Range (°F): -40 – 257, -40 – 302, -40 – 293, -40 – 248
Termination Method to Wire & Cable : Crimp
Customer Preferred Contact : Yes
Operating Temperature (Max) (°C): 120, 100, 110, 90, 80, 140, 145, 125, 130, 105, 150, 85
Operating Temperature (Max) (°F): 302, 284, 212, 248, 185, 221, 230, 257, 293, 266, 194, 176

Available from

Product	TE Part #	Documents	Terminal Type	Mating Tab Width	Mating Tab Thickness	Wire Size	Wire Size	Sealable	Terminal Seal Type	Wire Size Search	Wire Size Search	Interface Plating	Operating Temperature (Max)	Operating Temperature Range	EU RoHS Compliance
GET MALE TERM, A, AU, REREEL	1438299-1	Product Drawing 3D PDF	Tab	1 mm	.64 mm	26 AWG	.13 mm²	No	-	.13 mm²	26 AWG	Tin (Sn)	90 °C, 80 °C, 85 °C, 105 °C, 125 °C, 120 °C, 110 °C, 100 °C	-40 – 125 °C	-
GET, FEMALE TERMINAL, AGSN, TH	1924878-1	Product Drawing 3D PDF	Receptacle	.64 mm, 1.2 mm	-	24 – 22 AWG	.22 – .35 mm²	No	-	.2 mm², .3 mm², .25 mm²	24 AWG, 22 AWG, 23 AWG	Tin (Sn)	80 °C, 100 °C, 105 °C, 85 °C, 90 °C, 125 °C, 120 °C, 110 °C	-40 – 125 °C	-
V23540X7000Y 11=GET-FEM TERM S	1393367-1	Product Drawing 3D PDF	Receptacle	1 mm	.64 mm	24 – 22 AWG	.22 – .35 mm²	No	-	.2 mm², .25 mm², .3 mm²	22 AWG, 24 AWG, 23 AWG	Tin (Sn)	120 °C, 125 °C, 100 °C, 85 °C, 105 °C, 80 °C, 110 °C, 90 °C	-40 – 125 °C	-
GET MALE TERM, B, AU	2-1419158-3	Product Drawing 3D PDF	Tab	1 mm	.64 mm	20 – 18 AWG	.5 – .75 mm²	No	-	.5 mm², .6 mm², .75 mm²	20 AWG, 19 AWG, 18 AWG	Gold (Au)	140 °C, 105 °C, 85 °C, 150 °C, 145 °C, 130 °C, 90 °C, 80 °C, 100 °C, 125 °C, 120 °C, 110 °C	-40 – 150 °C	-
GET FEM TERM 1.2MM, TS, AG 1MMSQ	1924782-3	Product Drawing 3D PDF	Receptacle	1.2 mm	.64 mm	17 AWG	1 mm²	Yes	Family Seal	1 mm²	17 AWG	Silver (Ag)	100 °C, 110 °C, 120 °C, 125 °C, 80 °C, 90 °C, 85 °C, 105 °C	-40 – 125 °C	-
GET MALE TERM, B, AU, REREEL	1438299-3	Product Drawing 3D PDF	Tab	1 mm	.64 mm	20 – 18 AWG	.5 – .75 mm²	No	-	.5 mm², .75 mm², .6 mm²	20 AWG, 18 AWG, 19 AWG	Tin (Sn)	100 °C, 120 °C, 125 °C, 85 °C, 105 °C, 110 °C, 80 °C, 90 °C	-40 – 125 °C	-
V23540X7000Y 21=GET-FEM TERM S	1393366-1	Product Drawing 3D PDF	Receptacle	1 mm	.64 mm	20 – 18 AWG	.5 – .75 mm²	No	-	.75 mm², .6 mm², .5 mm²	20 AWG, 18 AWG, 19 AWG	Tin (Sn)	125 °C, 120 °C, 110 °C, 105 °C, 85 °C, 90 °C, 80 °C, 100 °C	-40 – 125 °C	-
GET-SOCKET TERMINAL, SILVER VE	2-1393367-2	Product Drawing 3D PDF	Receptacle	1 mm	.64 mm	24 – 22 AWG	.22 – .35 mm²	No	-	.3 mm², .25 mm², .2 mm²	24 AWG, 23 AWG, 22 AWG	Silver (Ag)	105 °C, 125 °C, 120 °C, 110 °C, 100 °C, 80 °C, 90 °C, 85 °C	-40 – 125 °C	-
GET-SOCKET TERMINAL, SILVER VE	1393367-2	Product Drawing 3D PDF	Receptacle	1 mm	.64 mm	24 – 22 AWG	.22 – .35 mm²	No	-	.3 mm², .2 mm², .25 mm²	22 AWG, 23 AWG, 24 AWG	Silver (Ag)	100 °C, 80 °C, 105 °C, 125 °C, 120 °C, 85 °C, 110 °C, 90 °C	-40 – 125 °C	-
GET MALE TERM, A, SN	1438299-2	Product Drawing 3D PDF	Tab	1 mm	.64 mm	24 – 22 AWG	.22 – .35 mm²	No	-	.2 mm², .3 mm², .25 mm²	24 AWG, 23 AWG, 22 AWG	Tin (Sn)	90 °C, 80 °C, 105 °C, 85 °C, 125 °C, 120 °C, 110 °C, 100 °C	-40 – 125 °C	-
GET FEM TERM 1.2MM, TS, SNAG 1MMSQ	1924782-1	Product Drawing 3D PDF	Receptacle	1.2 mm	.64 mm	17 AWG	1 mm²	Yes	Family Seal	1 mm²	17 AWG	Tin (Sn)	90 °C, 80 °C, 105 °C, 85 °C, 125 °C, 120 °C, 110 °C, 100 °C	-40 – 125 °C	-
GET FEM TERM 1.2MM, TS, TIN 1MMSQ	1924782-2	Product Drawing 3D PDF	Receptacle	1.2 mm	.64 mm	17 AWG	1 mm²	Yes	Family Seal	1 mm²	17 AWG	Tin (Sn)	110 °C, 100 °C, 80 °C, 90 °C, 105 °C, 85 °C, 120 °C	-40 – 120 °C	-
GET, FEM TERM, AG, THIN, B-CRI	1924879-2	Product Drawing 3D PDF	Receptacle	1.2 mm	.64 mm	20 – 18 AWG	.5 – .75 mm²	Yes	Family Seal	.5 mm², .75 mm², .6 mm²	19 AWG, 20 AWG, 18 AWG	Silver (Ag)	125 °C, 120 °C, 110 °C, 100 °C, 105 °C, 85 °C, 80 °C, 90 °C	-40 – 125 °C	-
GET-SOCKET TERMINAL, SILVER VE	2-1393366-2	Product Drawing 3D PDF	Receptacle	1 mm	.64 mm	20 – 18 AWG	.5 – .75 mm²	No	-	.75 mm², .6 mm², .5 mm²	19 AWG, 18 AWG, 20 AWG	Silver (Ag)	105 °C, 80 °C, 90 °C, 100 °C, 110 °C, 120 °C, 125 °C, 85 °C	-40 – 125 °C	-
GET MALE TERM, B, SN, REREEL	2-1419158-5	Product Drawing 3D PDF	Tab	1 mm	.64 mm	20 – 18 AWG	.5 – .75 mm²	No	-	.6 mm², .75 mm², .5 mm²	19 AWG, 20 AWG, 18 AWG	Tin (Sn)	90 °C, 105 °C, 85 °C, 125 °C, 120 °C, 110 °C, 100 °C, 80 °C	-40 – 125 °C	-
GET MALE TERM, A, SN, REREEL	1-1419158-6	Product Drawing 3D PDF	Tab	1 mm	.64 mm	24 – 22 AWG	.22 – .35 mm²	No	-	.2 mm², .3 mm², .25 mm²	23 AWG, 24 AWG, 22 AWG	Tin (Sn)	85 °C, 105 °C, 125 °C, 80 °C, 90 °C, 120 °C, 110 °C, 100 °C	-40 – 125 °C	-
GET MALE TERM, B, AG REREEL	1-1438299-1	Product Drawing 3D PDF	Tab	1 mm	.64 mm	20 – 18 AWG	.5 – .75 mm²	No	-	.75 mm², .6 mm², .5 mm²	20 AWG, 18 AWG, 19 AWG	Silver (Ag)	140 °C, 145 °C, 105 °C, 85 °C, 125 °C, 120 °C, 110 °C, 100 °C, 80 °C, 90 °C, 130 °C	-40 – 145 °C	-
V23540X7000Y10=GET-FEM TERM AU	1393364-1	Product Drawing 3D PDF	Receptacle	1 mm	.64 mm	24 – 22 AWG	.22 – .35 mm²	No	-	.3 mm², .25 mm², .2 mm²	24 AWG, 23 AWG, 22 AWG	Gold (Au)	100 °C, 110 °C, 80 °C, 90 °C, 130 °C, 145 °C, 120 °C, 125 °C, 85 °C, 105 °C, 140 °C, 150 °C	-40 – 150 °C	-
V23540X7000Y 12=GET FEM TERM A	1393364-2	Product Drawing 3D PDF	Receptacle	1 mm	.64 mm	24 – 22 AWG	.22 – .35 mm²	No	-	.2 mm², .3 mm², .25 mm²	22 AWG, 23 AWG, 24 AWG	Tin (Sn)	100 °C, 150 °C, 145 °C, 130 °C, 90 °C, 80 °C, 140 °C, 105 °C, 85 °C, 125 °C, 120 °C, 110 °C	-40 – 150 °C	-
GET MALE TERM, B, SN	1438299-4	Product Drawing 3D PDF	Tab	1 mm	.64 mm	20 – 18 AWG	.5 – .75 mm²	No	-	.75 mm², .5 mm², .6 mm²	20 AWG, 19 AWG, 18 AWG	Tin (Sn)	125 °C, 120 °C, 105 °C, 90 °C, 80 °C, 110 °C, 100 °C, 85 °C	-40 – 125 °C	-
GET 0.64 TERMINAL WIRE SIZE 0.	1719957-1	Product Drawing 3D PDF	Receptacle	1 mm	.64 mm	24 – 22 AWG	.22 – .35 mm²	No	-	.25 mm², .3 mm², .2 mm²	22 AWG, 23 AWG, 24 AWG	Tin (Sn)	-	-	-
GET 0.64 TERMINAL WIRE SIZE 0.	1719958-1	Product Drawing 3D PDF	Receptacle	1 mm	.64 mm	20 – 18 AWG	.5 – .75 mm²	No	-	.6 mm², .75 mm², .5 mm²	18 AWG, 19 AWG, 20 AWG	Tin (Sn)	-	-	-
V23540X7000Y20GET-FEM TERM AU	1393365-1	Product Drawing 3D PDF	Receptacle	1 mm	.64 mm	20 – 18 AWG	.5 – .75 mm²	No	-	.5 mm², .6 mm², .75 mm²	19 AWG, 20 AWG, 18 AWG	Gold (Au)	145 °C, 150 °C, 130 °C, 80 °C, 90 °C, 125 °C, 120 °C, 110 °C, 100 °C, 140 °C, 85 °C, 105 °C	-40 – 150 °C	-
V23540X7000Y 22=GET-FEM TERM A	1393365-2	Product Drawing 3D PDF	Receptacle	1 mm	.64 mm	20 – 18 AWG	.5 – .75 mm²	No	-	.75 mm², .5 mm², .6 mm²	19 AWG, 18 AWG, 20 AWG	Tin (Sn)	120 °C, 85 °C, 105 °C, 140 °C, 110 °C, 80 °C, 125 °C, 130 °C, 145 °C, 150 °C, 100 °C, 90 °C	-40 – 150 °C	-

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Primary Locking Feature Clean Body
Sealable No, Yes
Receptacle Style 180°

Body Features

Terminal Seal Type Family Seal

Contact Features

Wire Contact Termination Area Plating Material Gold, Tin, Nickel, Silver
Typical Current Rating (A) 1, 6.5, 9, 9.8, 11, 12.5, 17, 18.5
Terminal Type Tab, Receptacle
Interface Plating Tin (Sn), Gold (Au), Silver (Ag)
Contact Fabrication Stamped & Formed
Mating Tab Width (mm) .64, 1, 1.2
Mating Tab Width (in) .025, .039, .047
Contact Size 1mm, 1.2mm, .64mm
Crimp Type F-Crimp
Mating Tab Thickness .64 mm [ .025 in ]

Termination Features

Termination Method to Wire & Cable Crimp
Product Terminates To Wire

Dimensions

Wire Size (mm²) .13, .22 – .35, .5 – .75, 1
Compatible Insulation Diameter Range (mm) 1.1 – 1.4, 1.1 – 1.65, 1.2 – 1.4, 1.4 – 1.9, 1.4 – 2.06, 1.6 – 1.9, 1.9 – 2.1
Compatible Insulation Diameter Range (in) .043 – .055, .043 – .065, .055 – .074, .055 – .081, .074 – .082, .075 – .082
Wire Size (AWG) 17, 20 – 18, 24 – 22, 26
Wire Size Search (mm²) .13, .2, .25, .3, .5, .6, .75, 1
Wire Size Search (AWG) 19, 23, 22, 26, 24, 17, 20, 18

Usage Conditions

Operating Temperature Range (°C) -40 – 125, -40 – 150, -40 – 145, -40 – 120
Operating Temperature Range (°F) -40 – 257, -40 – 302, -40 – 293, -40 – 248
Operating Temperature (Max) (°C) 80, 85, 90, 100, 105, 110, 120, 125, 130, 140, 145, 150
Operating Temperature (Max) (°F) 176, 185, 194, 212, 221, 230, 248, 257, 266, 284, 293, 302
Insulation Option Uninsulated

Operation/Application

Compatible With Wire Base Material Copper

Industry Standards

Compatible With Agency/Standards Products SAE/USCAR-2, USCAR-21, SAE/USCAR-2 / USCAR-21

Packaging Features

Packaging Method Reel, Package
Packaging Quantity 10000, 11000

Other

Customer Preferred Contact Yes
Terminal Transmits 0 – 24 A (Low Power)

Reference Number

TE Internal Number CAT-G3353-T273
