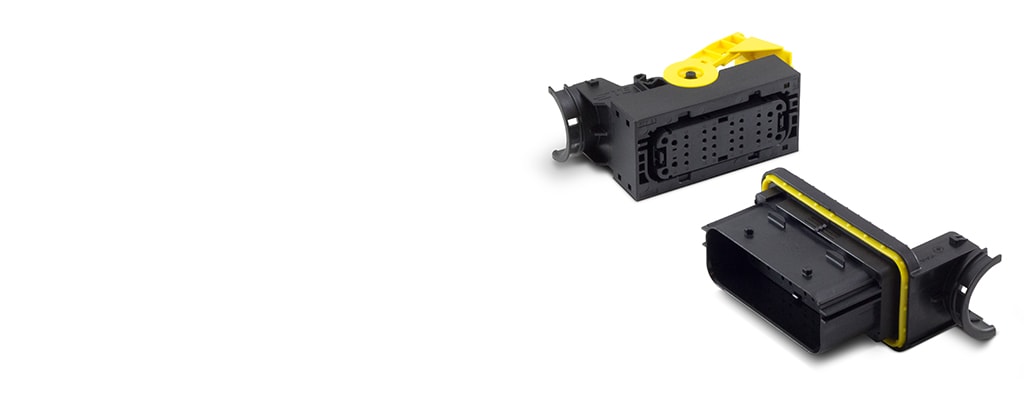

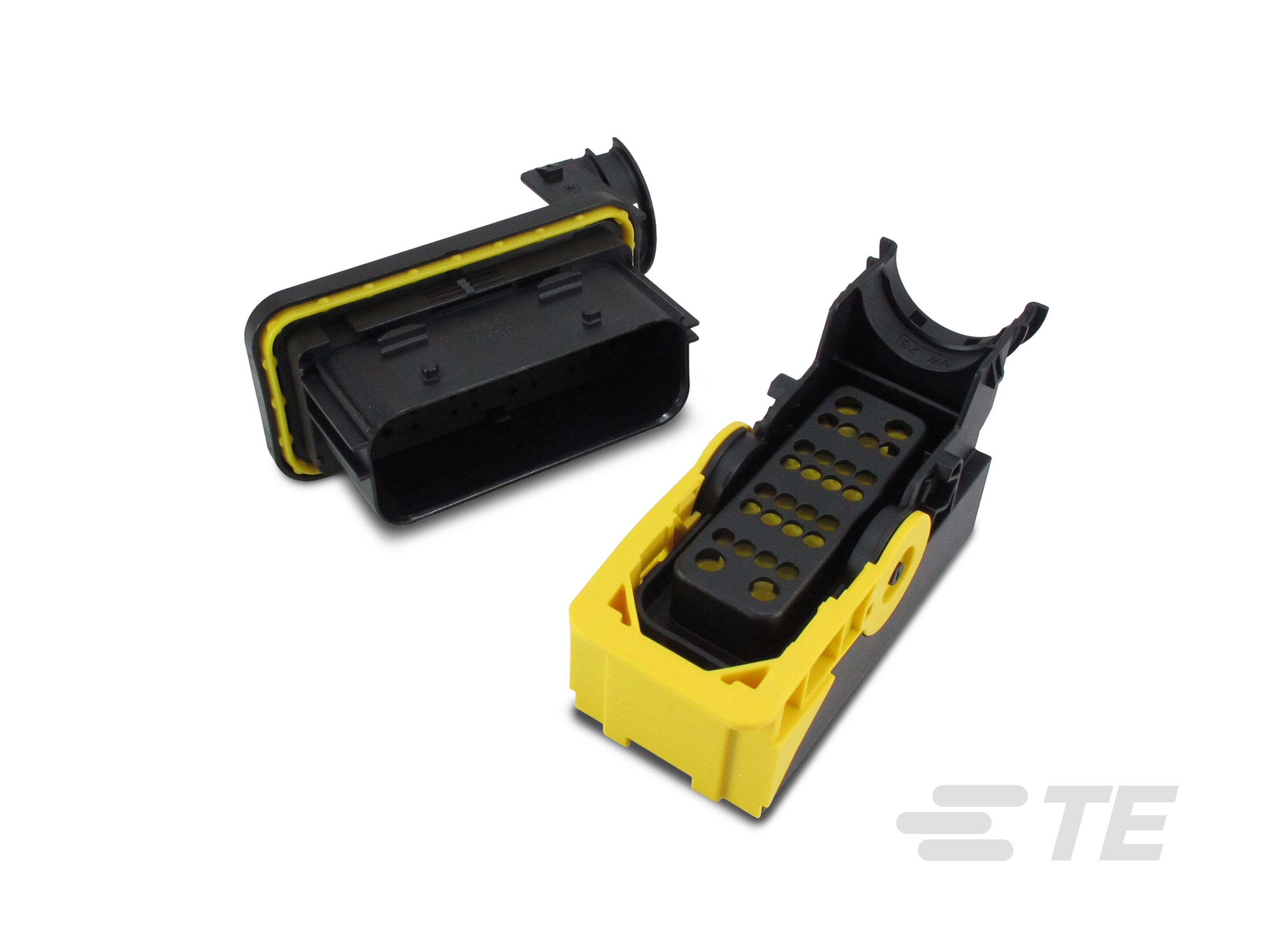

AMPSEAL 16 Hybrid Lever Housings
- AMP
- AMPSEAL 16
AMPSEAL 16 hybrid lever housings feature a lever slide mechanism for mating and a slide in mounting clip. The mix of 24 size 16 and 4 size 12 terminals, carrying up to 13 or 25 amps each, adds design flexibility.
Product Features
-
Number of Positions : 16, 24, 28
-
Connector & Housing Type : Housing for Male Terminals, Housing for Female Terminals, Plug, Cap
-
Mating Pin Diameter (mm): 1.5, 2.4
-
Mating Pin Diameter (in): .062, .095
-
Connector System : Wire-to-Wire
-
Centerline (Pitch) (mm): 4.2, 7.5, 5.3
-
Centerline (Pitch) (in): .209, .295, .165
Overview
AMPSEAL 16 hybrid lever housings feature a toolless mounting design and temporary panel retention latches.
Overview
- Hybrid pin out arrangement; size 16 and size 12 terminals
- Lever slide mating mechanism
- Keying options
- Same wire cover for plug and cap
- Mounting clips for different panel thickness
- Drop-and-slide mounting clip
Additional AMPSEAL 16 products
-
VIEW ALL AMPSEAL 16 Products
AMPSEAL 16 connectors are targeted for off-road, heavy-duty industrial, recreational and agricultural applications. The connectors offer rugged reliability, easy use, and help prevent moisture and dirt from contaminating connections.
Features
Please review product documents or contact us for the latest agency approval information.
Other
-
Serviceable No, Yes
-
Connector Position Assurance Capable No, Yes
-
EU RoHS Compliance Compliant
-
EU ELV Compliance Compliant
Packaging Features
-
Packaging Method Tray
-
Packaging Quantity 10, 20, 16
Dimensions
-
Wire Size (AWG) 22 – 10, 20 – 10
-
Connector Height (mm) 55.4, 72.7, 54.4, 43.5
-
Connector Height (in) 2.14, 1.71, 2.86, 2.18
-
Row-to-Row Spacing (mm) 4.7, 3.75, 11.7
-
Row-to-Row Spacing (in) .185, .147, .46
-
Product Length (mm) 72.7, 111.2, 116.5, 82.5
-
Product Length (in) 4.38, 3.24, 4.58, 2.86
-
Compatible Insulation Diameter Range (mm) 1.5 – 4.1, 1.4 – 4.1
-
Compatible Insulation Diameter Range (in) .059 – 4.1, .055 – .161
-
Product Width (mm) 49, 48.2, 48.4, 46.2
-
Product Width (in) 1.92, 1.9, 1.89, 1.82
-
Wire Size (mm²) .325 – 5, .5 – 5
Electrical Characteristics
-
Operating Voltage (VDC) 550
Body Features
-
Cable Exit Angle 180°, 90°
-
Primary Product Color Brown, Black
-
Connector & Keying Code D, A, B
Contact Features
-
Contact Type Socket, Pin
-
Contact Size Size 20, Size 16, Size 12
-
Mating Pin Diameter (mm) 1.5, 2.4
-
Mating Pin Diameter (in) .062, .095
-
Contact Current Rating (Max) (A) 13, 25
Housing Features
-
Housing Material PBT GF30, PBT GF20
-
Centerline (Pitch) (mm) 4.2, 7.5, 5.3
-
Centerline (Pitch) (in) .209, .295, .165
Product Type Features
-
Connector Shape Rectangular
-
Mixed & Hybrid Connector Yes
-
Connector & Housing Type Housing for Male Terminals, Housing for Female Terminals, Plug, Cap
-
Connector System Wire-to-Wire
-
Sealable Yes
-
Primary Locking Feature Integrated in Housing
-
Connector & Contact Terminates To Wire & Cable
Configuration Features
-
Blank Cavity Position 0
-
Number of Positions 16, 24, 28
-
Number of Rows 2, 5, 4
Industry Standards
-
UL Flammability Rating UL 94HB
-
IP Rating IP6K7, IP6K9K
Mechanical Attachment
-
Terminal Position Assurance Yes
-
Mating Alignment Type Keyed
-
Strain Relief Without, With
-
Mating Alignment With
-
Connector Mounting Type Cable Mount (Free-Hanging), Panel Mount
Usage Conditions
-
Operating Temperature (Max) 125 °C [ 257 °F ]
-
Operating Temperature Range (°C) -40 – 125, -55 – 125
-
Operating Temperature Range (°F) -40 – 257, -67 – 257
Operation/Application
-
Circuit Application Power
Reference Number
-
TE Internal Number CAT-H991-CH8172
