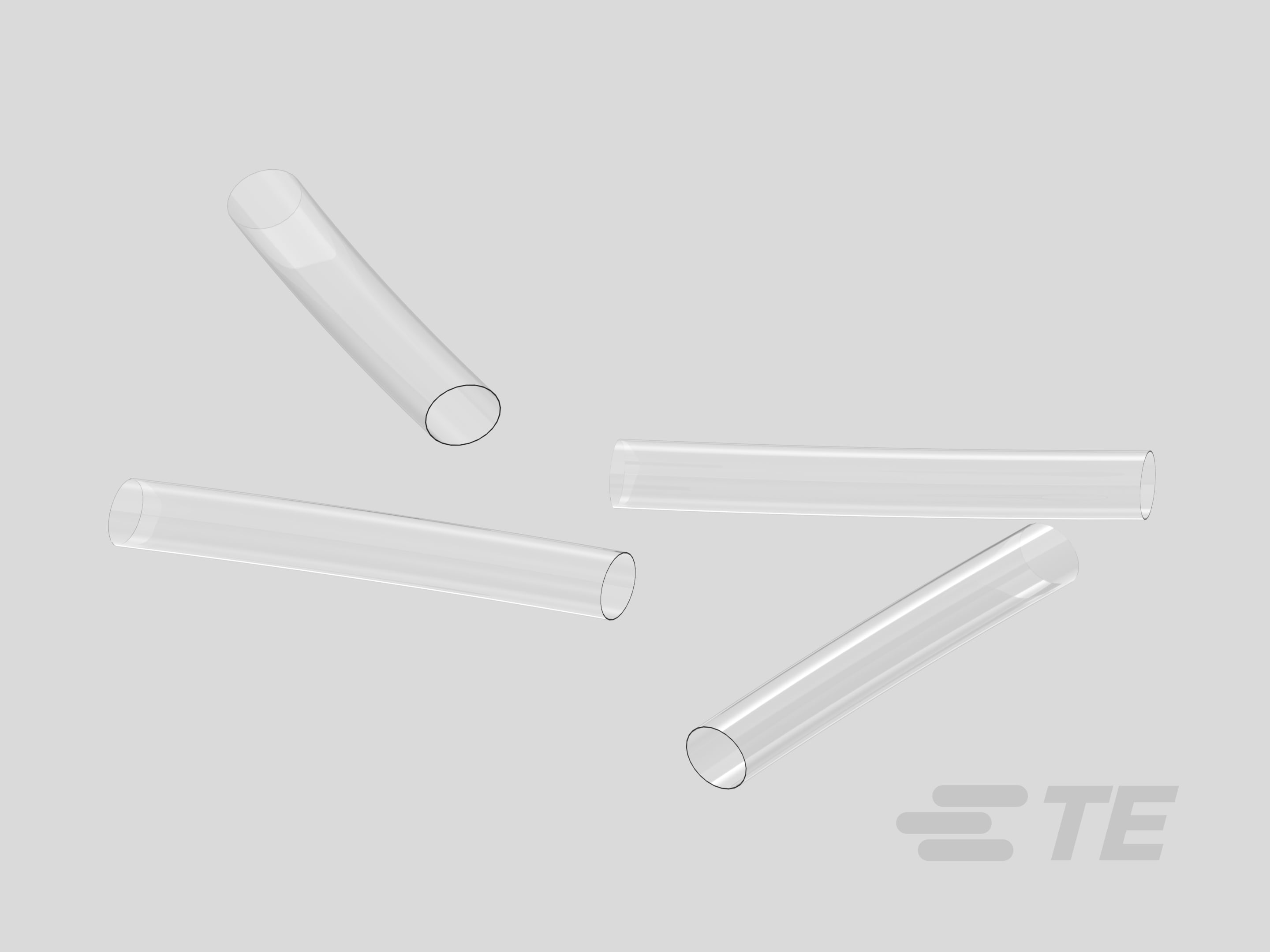

RPPM Heat Shrink Tubing

Please review product documents or contact us for the latest agency approval information.

• Tubing Product Type  Heat Shrink Tubing

• Wall Type  Dual Wall

• Resistance Properties  Moisture

• Shrink Temperature (Min) (°C) 60

• Tubing Flammability Type  Non-Flame-Retardant

• Operating Temperature Range (°C) -40 – 85

• Recovery Temperature (°C) 80

• Product Length (mm) 80, 33, 65, 50, 100, 35, 44, 34, 1220, 40, 45

• Product Length (in) 1.575, 1.968, 1.377, 1.73, 1.574, 1.378, 48.031, 2.56, 3.937, 1.299, 1.77, 1.338, 3.149

• Recovered Wall Thickness (Tolerance) (mm) .9, 1.5, 1.6, 1.8, 1.2, .25

• Recovered Wall Thickness (Tolerance) (in) .059, .063, .047, .071, .035, .01

• Recovered Wall Thickness (Nominal) (mm) 1.5, 1.6, 1.2

• Recovered Wall Thickness (Nominal) (in) .047, .059, .062

• Recovered Wall Thickness (Tolerance) (mm) .9, 1.5, 1.6, 1.8, 1.2, .25

• Recovered Inside Diameter (Max) (mm) 2, 3, 1, 1.8, 1.5, 4

• Recovered Inside Diameter (Max) (in) .059, .039, .079, .118, .157, .071

• Expanded Inside Diameter (Min) (mm) 10.5, 12, 8, 16, 9.5, 4

• Expanded Inside Diameter (Min) (in) .63, .374, .315, .411, .157, .472

• Tubing Size Range (mm) 1.8 – 10.5, 2 – 8, 3 – 12, 1 – 4, 4 – 16, 1.5 – 9.5

• Tubing Size Range (in) .157 – .63, .118 – .472, .079 – .315, .071 – .411, .059 – .374, .039 – .157

• Fluid Type  Typical Automotive Fluids, Water

• Primary Product Color  Clear

• Shrink Ratio  6:1, 4:1

• Primary Product Material  Irradiated Modified Polyolefin

• Flexibility  Flexible, Semi-Rigid

• Packaging Method  Box, Spool, Piece, Bag & Box, Stick

• Mechanical Resistance  Fluids, Abrasion

• Applicable Region  Asia, Global, EMEA

• Meets Low Outgassing Requirements  No

• Product Source  Czech Republic

• EU RoHS Compliance  Compliant

• EU ELV Compliance  Compliant
