Advanced Substation Feeder Control Units
Product Features
-
Supply Voltage (V): 24
-
Measurement Type : Voltage, Frequency, Current
-
Fault Detection : Directional Static Earth, Earth Fault Via Pulse Locating, Directional Transient Earth
-
Fault Reset Option : After 1 hour, After 7 hour, After 5 hour, After 8 hour, After 2 hour, After 6 hour, After 3 hour, After 4 hour, Manual, External Potential-Free Normally Open Contact, Auto
-
Operating Temperature Range : -40 – 70 °C [ -40 – 158 °F ]
Retrofit your installation into a smart grid and improve grid reliability with cost-effective solutions

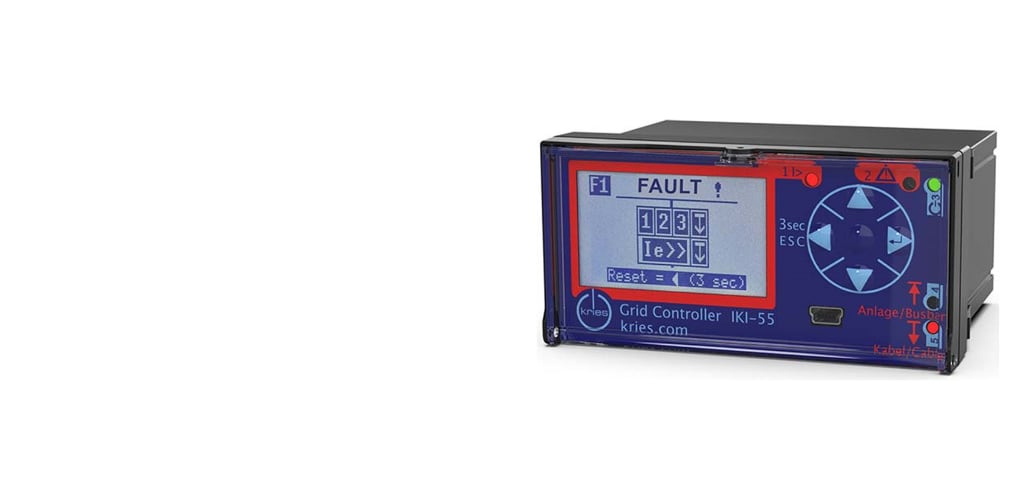

The TE Connectivity (TE) Kries IKI-55 substation control unit is the advanced upgrade of the IKI-50, designed specifically for secondary substation applications ranging from 3 to 52 kV. The IKI-55 is an intelligent solution that addresses the evolving challenges of decentralized energy supply, and the increasing demands for power availability and quality in distribution networks. It provides unparalleled transparency, onsite or remotely, through a SCADA integration system, and is compatible with a wide range of communication protocols - ensuring seamless integration with various systems.
It can operate as a Modbus master providing robust control and monitoring capabilities. In addition to monitoring grid parameters such as voltage, current and power, the IKI-55 also supports power quality (PQ) and disturbance monitoring, enhancing overall grid transparency and reliability.
The IKI-55 allows the network owner to interact with a switchgear from a control center. It also allows to set an automatic switch in the case of unplanned outages or for maintenance, from one power feeder to another during unplanned outages or maintenance activities, thereby reducing operational costs and improving grid reliability.
It also ensures a continuous and reliable power supply through detailed, real-time data and robust fault management-elevating the efficiency and reliability of energy distribution networks.
Key Features
Power load monitoring
- Enables fault detection, reducing downtime (SAIDI)
- Remote control and network automation
- Maintenance-free
- Partial discharge detection with CAPDIS-S2_55
- Wide range of communication protocols (Modbus, MQTT, REST and IEC 104)
Applications
Frequently Asked Questions
Question: What is a substation or feeder control unit?
Answer: This is a device which is used in electrical power distribution networks to monitor, control, and protect feeder lines. It ensures efficient and reliable power delivery by managing the flow of electricity and responding to fault conditions. However, it should be noted that IKI-50 and IKI-55 in particular are not protection relays, so if this is a requirement, then we also offer IKI-30 or IKI-35 as proper solutions to protect distribution transformer substations.
Question: Where should a feeder control unit be installed?
Answer: This type of units should be installed at key points in the distribution network, typically at substations or on feeder lines, to effectively monitor and control the flow of electricity.
Question: Can the IKI-50 detect the direction of a fault?
Answer: If the voltage signal is available, then IKI-50 can detect the direction of a fault. This is a helpful function when searching for faults in loop systems or in the case of missing information about the location of the transformer substations.
Question: What types of communication protocols are supported by IKI-50 and IKI-55?
Answer: IKI-50 supports Modbus-RTU protocols, whereas IKI-55 is able to support Modbus-RTU, MQTT, REST, and IEC 60870-5-104 - allowing seamless integration with various systems.
Question: Can IKI-50 and IKI-55 perform load management?
Answer: Yes, they can both manage and balance loads across the network which prevents overloading and ensures efficient power distribution.
Question: Can IKI-50 and IKI-55 integrate with SCADA systems?
Answer: These devices are designed to integrate with SCADA systems, providing real-time data and control capabilities to central operators.
Please review product documents or contact us for the latest agency approval information.
Configuration Features
-
Switching Function Type 1.5 Pole Switching
-
Number of Events Logged 20
-
Number of Feeders 1
-
Configuration Method Kries Configuration Software
-
Control Unit Function Active Power, Reactive Power, Apparent Power
-
Number of Digital Inputs 6
-
Number of Digital Outputs for 1.5 Pole Switching 2
-
Number of Digital Outputs 6
Electrical Characteristics
-
Voltage Input Measurement Accuracy (%) 3, 1
-
Current Input Measuring Range (A) .1 – 2000
-
Current Input Measuring Accuracy (%) 3
-
Current Input Type Current Sensor
-
Supply Voltage (V) 24
Other
-
Programming Interface Mini-USB
-
Earthing Type Inductive Terminated Neutral, Isolated Neutral
-
Fault Recorder Yes
-
Fault Detection Directional Static Earth, Earth Fault Via Pulse Locating, Directional Transient Earth
-
Fault Reset Option After 1 hour, After 7 hour, After 5 hour, After 8 hour, After 2 hour, After 6 hour, After 3 hour, After 4 hour, Manual, External Potential-Free Normally Open Contact, Auto
Operation/Application
-
Transmission Protocols Modbus RTU (Slave)
-
Measurement Type Voltage, Frequency, Current
Industry Standards
-
IP Rating IP54
Signal Characteristics
-
Frequency Selection (Hz) 50 – 60
Dimensions
-
Case Height 49 mm [ 1.93 in ]
-
Case Width 96 mm [ 3.78 in ]
-
Case Depth 103 mm [ 4.06 in ]
Usage Conditions
-
Operating Temperature Range -40 – 70 °C [ -40 – 158 °F ]
-
Storage Temperature Range -40 – 80 °C [ -40 – 176 °F ]
Reference Number
-
TE Internal Number CAT-IKI-55
