Overview

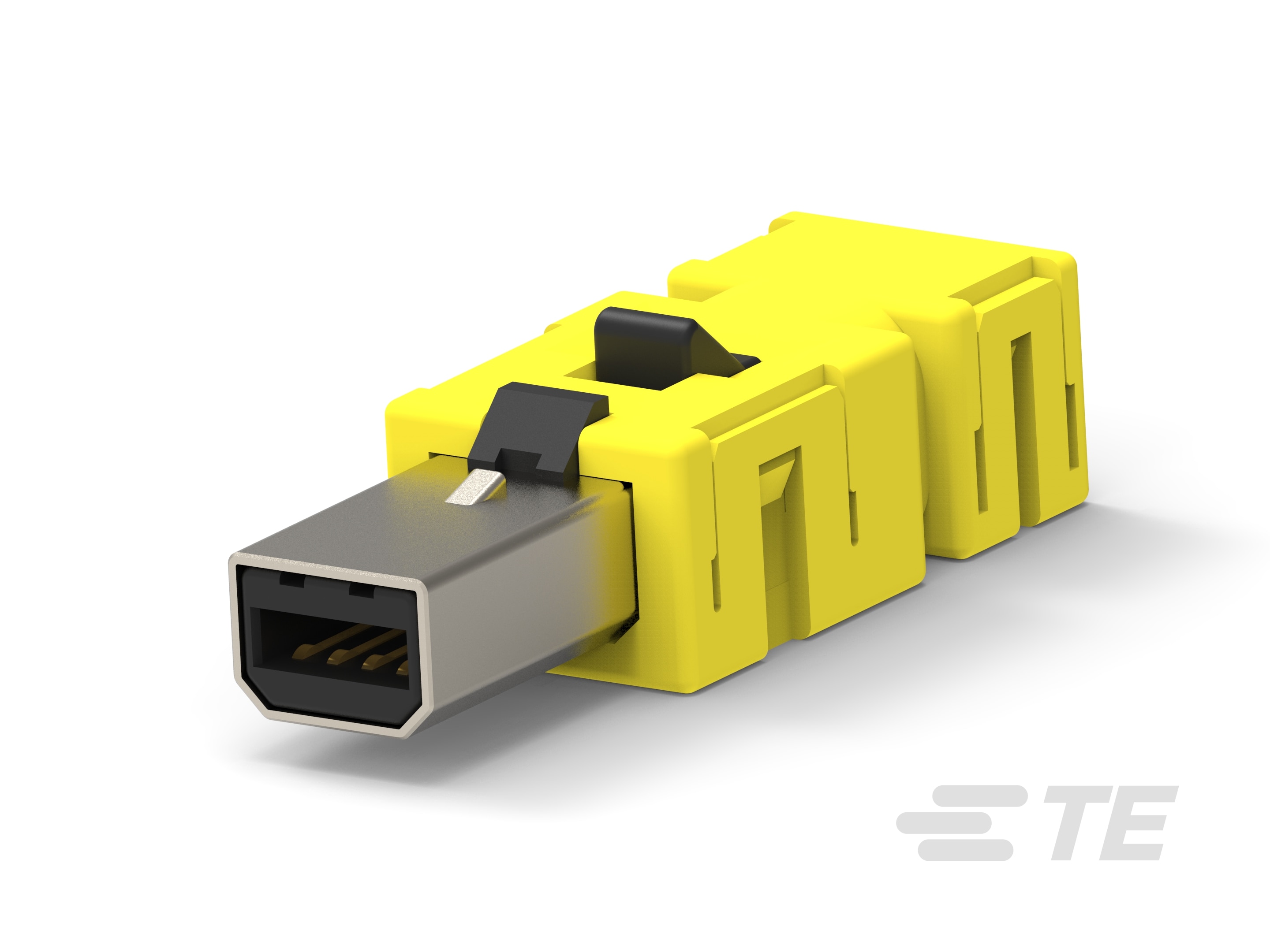

Industrial Mini I/O Cable Plug Type 2 wire solder termination

Key Features

  • Small form factor reduces PCB area and equipment height
  • High board retention and metal latch prevents unnecessary disconnections
  • Improved coplanarity and LCP materials allow for the latest assembly process technologies
  • Two unique interfaces (Type 1 and Type 2) prevent unwanted mismating
  • Stable connections are guaranteed by the optimized signal path design, 360 degrees shielding and a contact system with double contact point
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector System  Cable-to-Cable, Cable-to-Board

  • Connector & Contact Terminates To  Wire & Cable

  • Modular Connector Style  Plug

  • Modular Jacks & Plugs Products  Industrial Mini I/O

  • Connector Product Type  Connector Assembly

Configuration Features

  • Connector Contact Density  High

  • Number of Loaded Positions  8

  • Port Matrix Configuration  1 x 1

  • Number of Positions  8

Signal Characteristics

  • Data Rate (Mb/s) 10, 100, 1000

Body Features

  • Shield Material  Copper Alloy

  • Shield Plating Material  Nickel

Contact Features

  • Contact Current Rating (Max) (A) 1.5

  • Contact Base Material  Copper Alloy

  • Contact Mating Area Plating Material  Gold

  • Contact Underplating Material  Nickel

Mechanical Attachment

  • Mating Alignment  With

  • Panel Mount Feature  Without

  • Mating Alignment Type  Keyed

  • Connector Mounting Type  Cable Mount (Free-Hanging)

Housing Features

  • Housing Material  Thermoplastic

  • Housing Color  Yellow, Black

  • Centerline (Pitch)  1.27 mm [ .05 in ]

Usage Conditions

  • Operating Temperature Range  -40 – 85 °C [ -40 – 185 °F ]

Operation/Application

  • Shielded  Yes

  • Circuit Application  Power & Signal

Industry Standards

  • Performance Category  Cat 5e

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Method  Blister Pack

  • Packaging Quantity  1

Other

  • Field Serviceable  No

Reference Number

  • TE Internal Number CAT-IN291-M6641I
