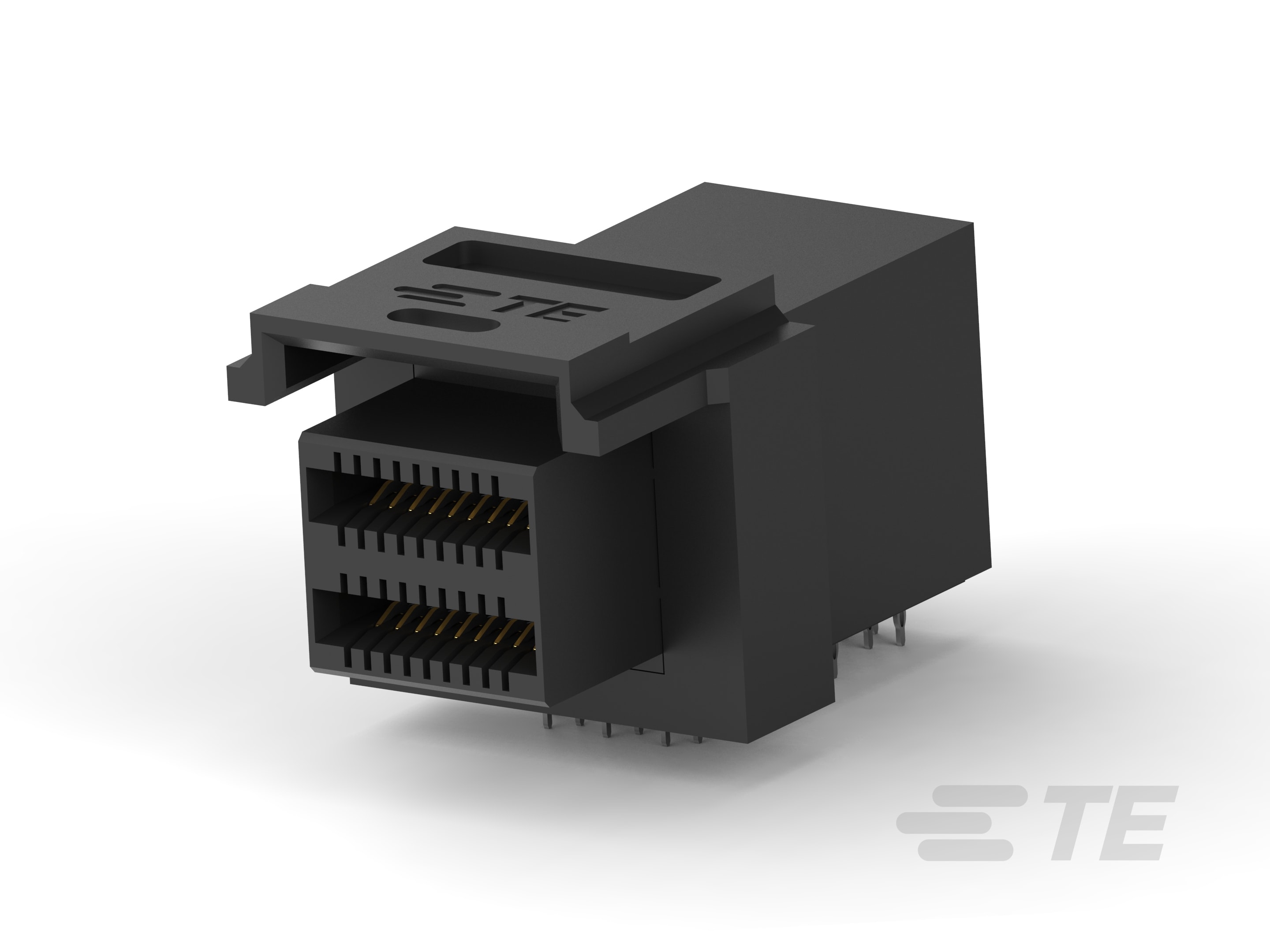

Internal Mini-SAS HD Receptacles

Please review product documents or contact us for the latest agency approval information.

• Packaging Method  Box & Tray

• Housing Material  LCP (Liquid Crystal Polymer)

• Centerline (Pitch)  .75 mm [ .029 in ]

• Shell  Without

• Connector & Contact Terminates To  Printed Circuit Board

• SAS Connector Type  Internal Mini-SAS HD

• Connector & Housing Type  Receptacle

• Connector System  Cable-to-Board

• UL Flammability Rating  UL 94V-0

• PCB Mount Retention Type  M2 Screw

• PCB Mount Retention  With

• High Temperature Housing  Yes

• Operating Temperature Range  -55 – 85 °C [ -67 – 185 °F ]

• Primary Product Color  Black

• Contact Base Material  Copper Alloy

• PCB Contact Termination Area Plating Material  Tin

• Contact Underplating Material  Nickel

• Contact Mating Area Plating Material  Gold

• Profile Height from PCB (mm) 13.9, 14.2

• Profile Height from PCB (in) .547, .559

• Number of Positions  144, 72, 36

• Number of Rows  4

• Number of Ports  2, 1, 4

• PCB Mount Orientation  Vertical, Right Angle

• Termination Method to PCB  Through Hole - Press-Fit

• Circuit Application  Signal

• EU RoHS Compliance  Compliant

• EU ELV Compliance  Compliant
