Single Pair Ethernet: IP67 M8 Cable, Hybrid Board Receptacle

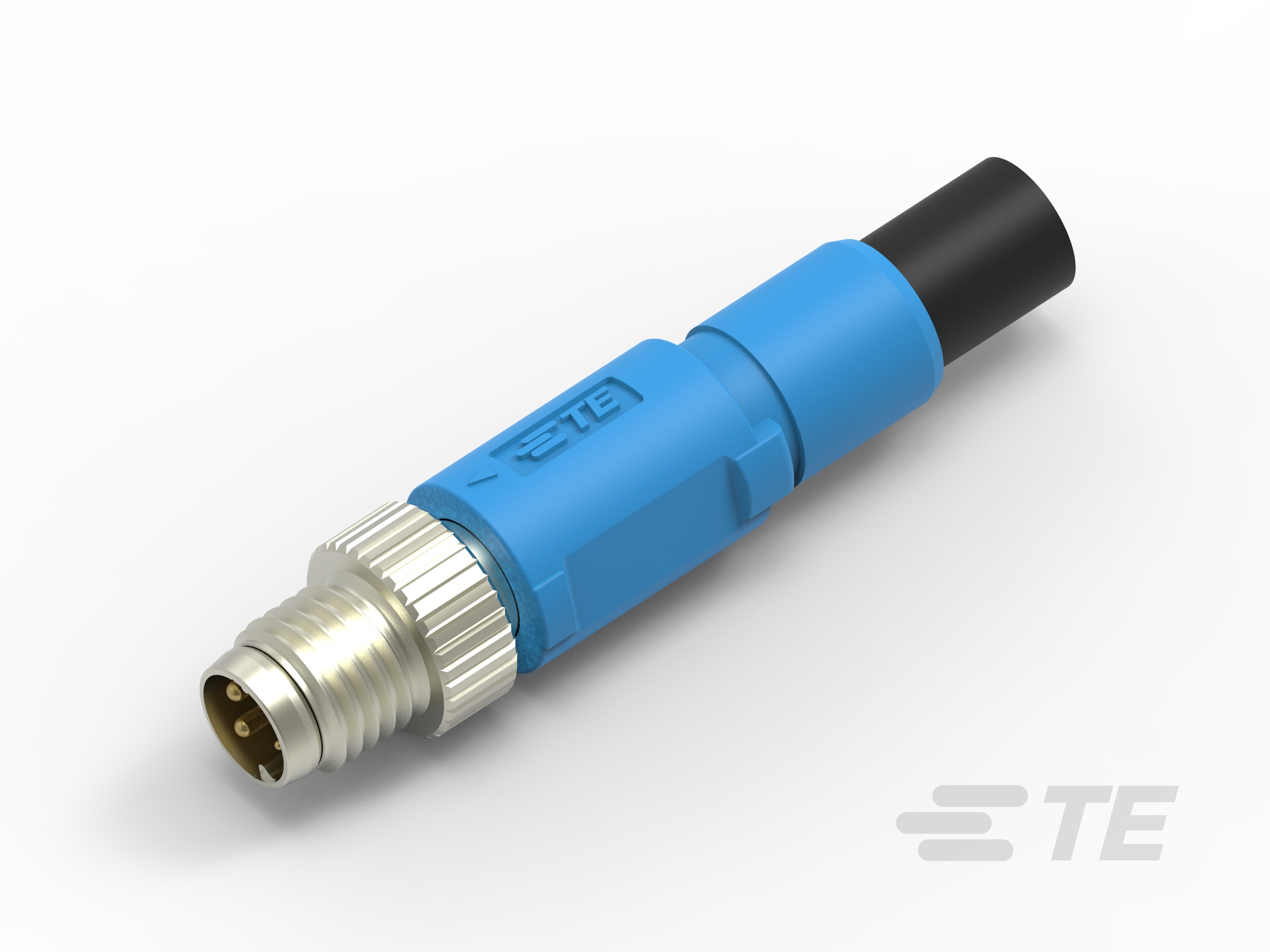

Single Pair Ethernet: IP67 M8 Cable, Hybrid Board Receptacle-CAT-J37-R8
IP67 M8 Cable Assembly, Single Pair Ethernet (SPE), data transmission up to 1 Gb/s, and power supply up to 400W. At 10 Mb/s speed transmission distances up to 1,000 meters. Current over signal pair up to 4A (22 AWG), Current over power pair up to 8A (18AWG)
More Less

Product Features

  • Cable Assembly Type : M8, M8 Pigtail

  • Number of Positions : 4

  • Cable Assembly Length (m): .5, 1, 15.088 – 15.392, 40, 3 – 3.05, 5 – 5.05, 3, 4.05, 10 – 10.15, 15, 5, 40 – 40.3, 1 – 1.05, 10, 15 – 15.15, 10.05

  • M8/M12 Application Type : Sensor/Actuator

  • Industrial Protocols : Single Pair Ethernet (SPE)

Available from

LADD Inc
Overview
  1. TE’s M8 Hybrid Board Receptacle & Cordset IP67 for Single Pair Ethernet

Discover the key benefits and features of TE’s M8 hybrid board receptacle IP67 and M8 hybrid cordset IP67 for Single Pair Ethernet (SPE) applications. With data and power in one cable, these solutions enable IoT in a small package with less downtime.

M8 hybrid board receptacle IP67

Factory Automation

Robotics for Factory Automation

Enabling more automation in factories begin with operating robots engineered for high precision and durability under extreme conditions and heavy use. Learn about our solutions for relaibly connecting and protecting the flow of power and data in high-output robots used in manufacturing environments.

Application

Industrial Sensor Applications

TE Connectivity (TE) manufactures innovative industrial sensors that help customers transform concepts into smart, connected creations.

Single-Pair Ethernet

Trend Insight

Single Pair Ethernet

Reduce complexity, costs and enables you to go beyond existing borders.

Related Products

TE's Industrial Mini I/O connectore

Industrial Mini I/O connector
M8/M12 connector system for reliable communicatione

M8/M12 Connector System
Catalog (English)
Single Pair Ethernet (SPE) M8 Hybrid Board Receptacle IP67 and Single Pair Ethernet (SPE) M8 Hybrid Cordset IP67
Features

Please review product documents or contact us for the latest agency approval information.

Body Features

  • Connector Color (End A)  Black

  • Jacket Material  PUR

  • Connector Color (End B)  Black

Mechanical Attachment

  • Thread Size  M8

  • Connector Orientation (End A)  Straight

  • Connector Orientation (End B)  Straight

Product Type Features

  • Cable Assembly Type  M8, M8 Pigtail

  • Cable Assembly (End A)  M8 Plug, M8 Socket

  • Cable Assembly (End B)  M8 Plug

Configuration Features

  • Number of Positions  4

Other

  • Cable Assembly Length (m) .5, 1, 15.088 – 15.392, 40, 3 – 3.05, 5 – 5.05, 3, 4.05, 10 – 10.15, 15, 5, 40 – 40.3, 1 – 1.05, 10, 15 – 15.15, 10.05

  • Cable Assembly Configuration  Single Ended, Double Ended

  • EU RoHS Compliance  Compliant with Exemptions

  • EU ELV Compliance  Compliant with Exemptions

Housing Features

  • Housing Material  Nylon

Operation/Application

  • M8/M12 Application Type  Sensor/Actuator

  • Shielded  Yes

Industry Standards

  • Industrial Protocols  Single Pair Ethernet (SPE)

Reference Number

  • TE Internal Number CAT-J37-R8
