LGA 3647 Sockets

LGA 3647 Sockets-CAT-L59017-A76

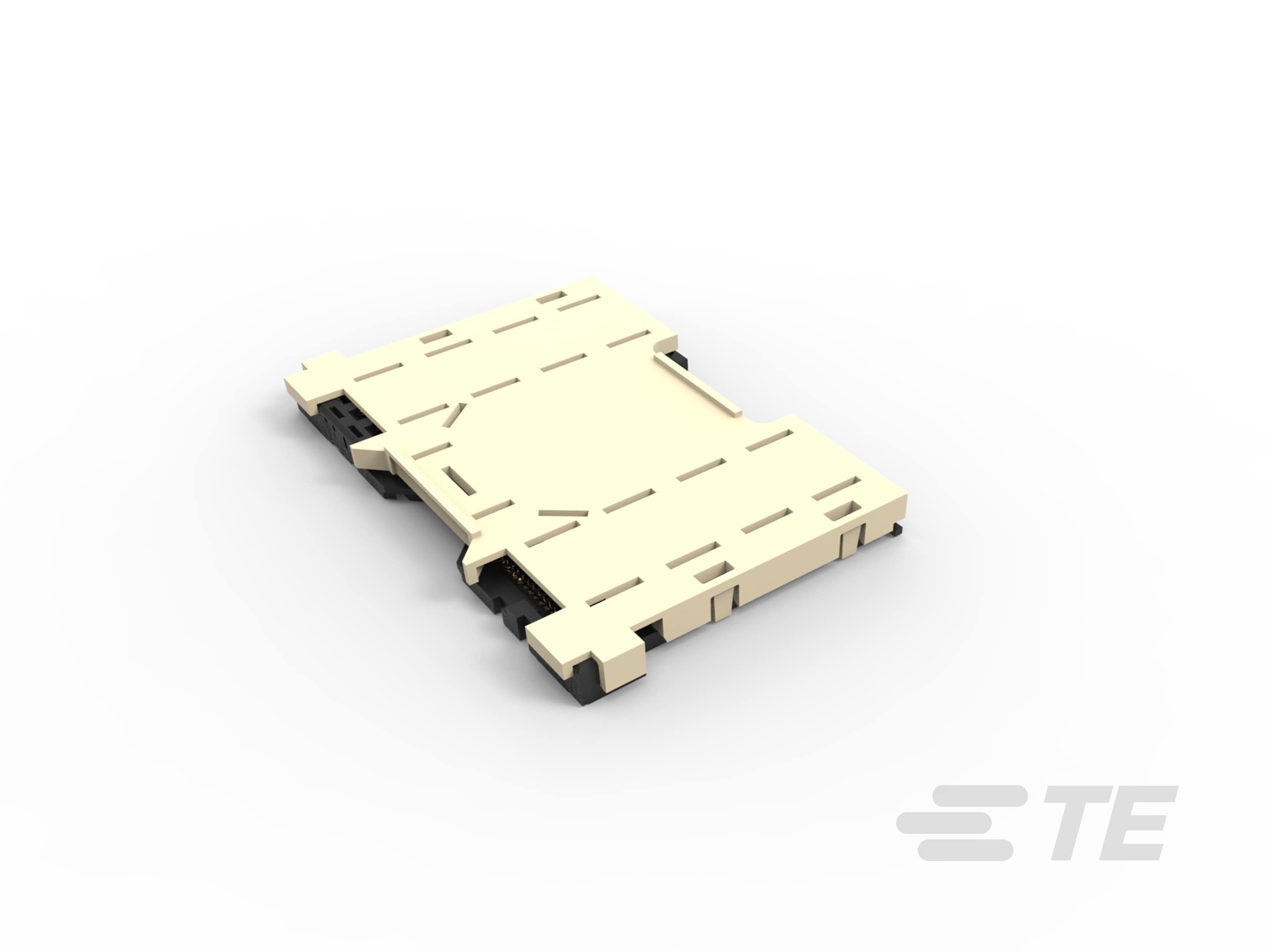

LGA 3647 Sockets meets the next-generation designs of Intel's new CPU processors for higher performance and better system scaling. They are available with yellow & black, natual & black, yellow, black, or natural key colors and Right & Left, Right Segment, or Left Segment final assemblies. LGA 2011 Socket applications include servers, data centers, and high performance computing (HPC).
More Less

Available from

LADD Inc

Build and price the product now

Overview

Product Features

LGA Sockets

  • Socket housing facilitates efficient soldering to the PCB.
  • Socket is supplied with a cap to facilitate vacuum pick and place.
  • Backplates are available in zinc or nickel plating.
Datasheet
LGA 3647 Socket Datasheet (English)
Datasheet
XLA Socket Data Sheet (English)

LGA 3647 Sockets

  • View LGA 3647 Sockets

    Our LGA 3647 socket is designed for Intel’s next-generation CPU processors. The new socket allows designers to take advantage of the higher performance, better system application scaling processors. The LGA 3647 socket is the first to feature a two-piece design that reduces warping and offers better coplanarity for improved reliability. As a validated suppliers of this technology, TE is your dependable, high-quality source for this new CPU processor socket.

Award-Winning Product:

  • Read the story on TE's recognition for LGA 3647 socket

    After an intense five-month contest against 74 major electronics suppliers, TE's LGA 3647 socket was recently awarded Best Passive Component at the EEPW (Electronic Engineering & Product World) 2016 Editors' Choice Awards – selected by more than 2,000 industry insiders.

LGA 3647 Socket and Hardware

LGA 3647 Socket and Hardware

Now Available:

  • View LGA 3647 Socket P0 Hardware

    We are a validated supplier of LGA 3647 Socket hardware including back plates, bolster plates, and clips/carriers for Socket P0. With a narrow fabric and a narrow non-fabric offering, this new hardware system provides better alignment and keeps fingers away from the socket contact field.

  1. LGA 3647 Socket and Hardware (English)

TE’s new LGA 3647 socket and hardware allows designers to take advantage of Intel’s new high performance processors that also offer better system scaling.

LGA 3647 Socket and Hardware

XLA Socket

LGA 3647

LGA 2011

LGA 115X

Product Details

LGA 3647 Socket

  • Pitch: 0.9906mm Hex
  • SP Height: 2.7mm
  • Cont. NF: 25gf @ nominal def.
  • Pin count: 3647
  • Pin array: 49x74
  • Multi-piece housing: 2 piece
LGA Sockets

LGA Sockets

LGA sockets are the latest socket technology for Intel- and AMD-based LGA microprocessor packages that range in size up to 3647 pins. This generation of LGA sockets provides a compressive electrical interface to the microprocessor package and are solder ball, surface mount attached to the PCB. The stainless steel load plate provides a reliable interconnection to the microprocessor package with a single lever handle for package actuation. The contact tip geometry is optimized to reduce risk of contact damage during handling and package installation.

Select Applications

LGA Sockets

  • Servers
  • High Performance Computing (HPC)
  • Workstations and desktop computers
Features

Please review product documents or contact us for the latest agency approval information.

Detailed product features are not currently available online.
