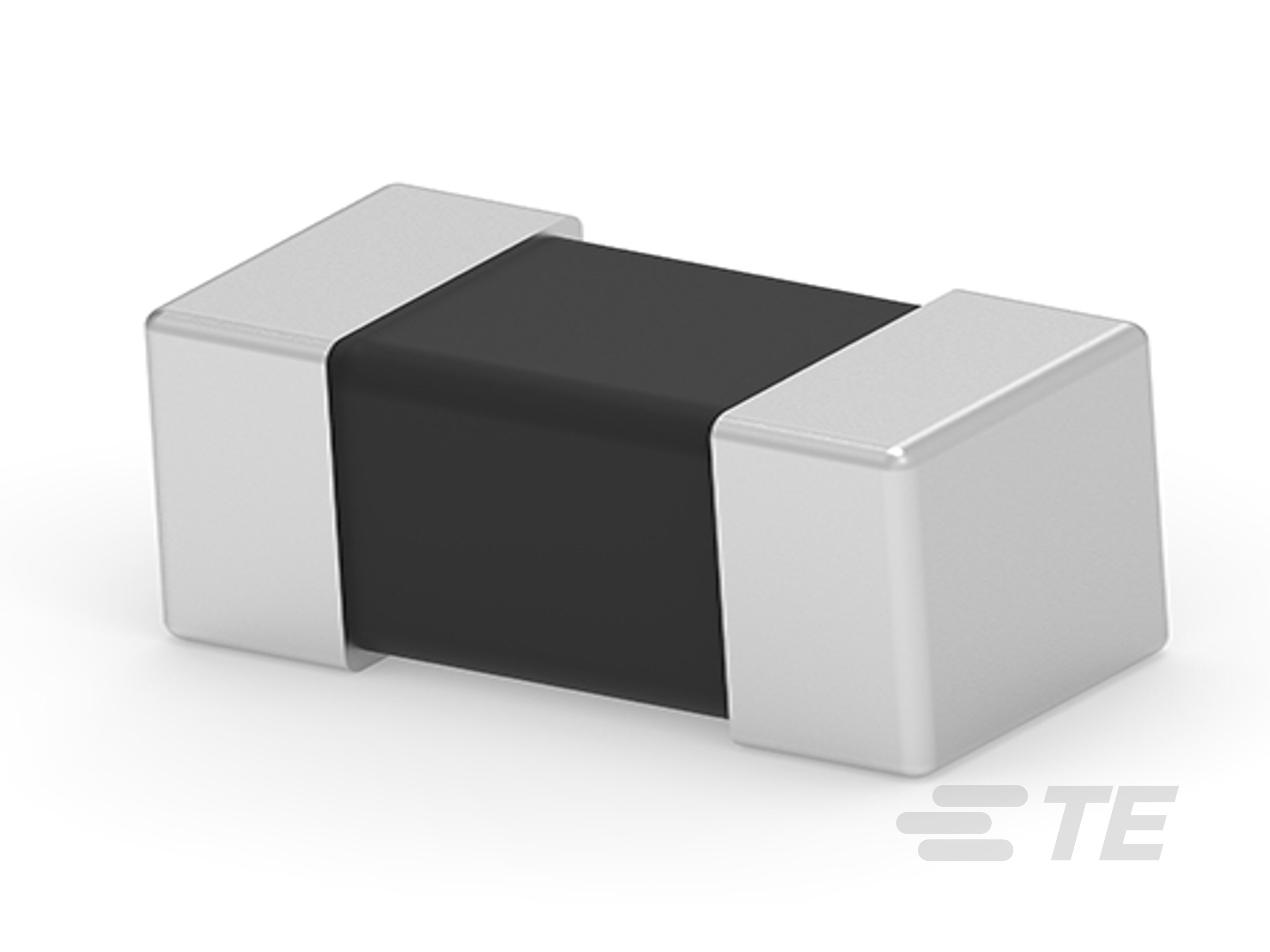

Automotive Grade Multilayer Chip Beads
AEC-Q200 compliant BMC-Q series designed with a monolithic inorganic material construction minimizes the effect of electromagnetic interference meant for high & ultra-high current capability.
Product Features
-
Impedance (Ω): 1500, 1200, 30, 5, 100, 28, 300, 50, 60, 800, 26, 19, 70, 200, 9, 150, 75, 600, 15, 7, 120, 80, 31, 500, 11, 220, 1000, 36, 180
-
Current Rating (Max) (mA): 300, 1500, 4000, 1000, 5000, 700, 1200, 600, 450, 2000, 3000, 1300, 1800, 2500, 6000, 500, 200, 3500, 800
-
DC Resistance (Ω): .65, .45, .05, .085, .01, .06, .1, .7, .35, .07, .09, .065, .04, .12, .15, .03, .5, .4, .55, 1, .25, .035, .045, .055, .2, .9, .025, .3, .08, .02, .18, .015, .11
-
Package Size Code : 0603, 0402, 0805, 1204
-
Product Length (mm): 1.6, 3.2, 2, 1
-
Product Length (in): .125, .078, .062, .039
Overview
Features
Please review product documents or contact us for the latest agency approval information.
Electrical Characteristics
-
Passive Component Tolerance (%) 25, 21, 11, 15, 13
-
Impedance (Ω) 1500, 1200, 30, 5, 100, 28, 300, 50, 60, 800, 26, 19, 70, 200, 9, 150, 75, 600, 15, 7, 120, 80, 31, 500, 11, 220, 1000, 36, 180
-
Current Rating (Max) (mA) 300, 1500, 4000, 1000, 5000, 700, 1200, 600, 450, 2000, 3000, 1300, 1800, 2500, 6000, 500, 200, 3500, 800
-
DC Resistance (Ω) .65, .45, .05, .085, .01, .06, .1, .7, .35, .07, .09, .065, .04, .12, .15, .03, .5, .4, .55, 1, .25, .035, .045, .055, .2, .9, .025, .3, .08, .02, .18, .015, .11
Product Type Features
-
Shelf Life 1 Year
-
Package Size Code 0603, 0402, 0805, 1204
Industry Standards
-
Industry Standard AEC-Q200 Compliant
-
Moisture Sensitivity Level 1
-
UL Flammability Rating UL 94V-0
Usage Conditions
-
Operating Temperature Range (°C) -40 – 125
Dimensions
-
Product Length (mm) 1.6, 3.2, 2, 1
-
Product Length (in) .125, .078, .062, .039
-
Product Width (mm) .8, .5, 1.6, 1.2
-
Product Width (in) .019, .062, .031, .047
-
Product Height (mm) .8, .5, .9
-
Product Height (in) .019, .031, .035
Other
-
EU RoHS Compliance Compliant
-
EU ELV Compliance Compliant
Reference Number
-
TE Internal Number CAT-LV2-B
