0-10V LVDT POSITION SENSOR

0-10V LVDT POSITION SENSOR-CAT-LVDT0003
  • AST
|
  • AST Macro Sensors DC/SE

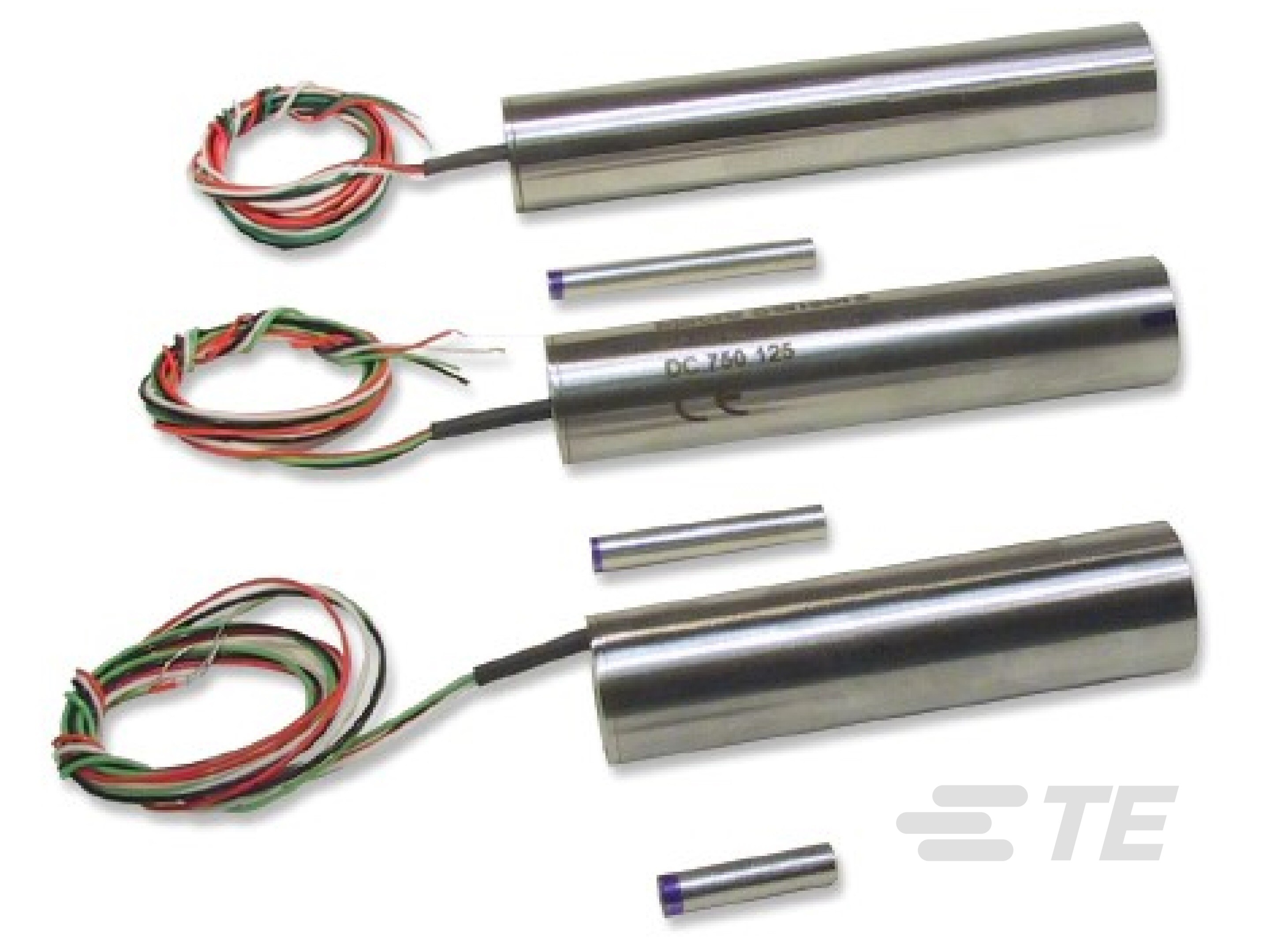

Macro Sensors’ DC 750 and SE 750 Series of 3/4 inch (19 mm) DCoperated LVDTs are designed for a wide range of position measurement applications.
More Less

Product Features

  • Linearity Error (Full Range) (%): ±.1, ±.25

  • Case Material : Stainless Steel

  • Supply Voltage Range (V): -15 – 15, 15 – 24

  • Operating Temperature Range : -20 – 70 °C [ -4 – 158 °F ]

  • IP Rating : IP61

Available from

LADD Inc

Build and price the product now

Overview

They use built-in electronics to provide the desirable features of an AC-LVDT, such as frictionless operation and dynamic response, with the added convenience and simplicity of DC input and pre-calibrated DC output.  They are designed to operate in conjunction with PLCs, digital indicators, A/D converters, computerbased data processors, and QC data collection systems. The DC 750 Series offers nine standard ranges from ±0.050 inch (±1.25 mm) to ±10 inches (±250 mm) while the SE 750 offers nine standard ranges from 0.100 inch (2.5 mm) to 20.00 inches (500 mm). The maximum linearity error for a DC 750 Series sensor is ±0.25% of full range output using a statistically best-fit straight line derived by the least squares method. The SE 750 also features a ±0.25% maximum linearity error, although a maximum linearity error of less than or equal to ±0.10% of full scale output is available as an option.

Benefits

  • Industry-standard 3/4 inch [19 mm] diameter
  • Ranges of ±0.05" to ±10" (DC 750) or 0.100" to 20.00" (SE 750)
  • ±15 V DC input, 0 to ±10 V DC output (DC 750)
  • 24 V DC input, true 0-10 V DC output (SE 750)
  • Non-linearity less than or equal to ±0.25% of FSO (less than or equal to ±0.10% optional on SE 750)

LVDT SENSOR TECHNOLOGY RESOURCES

Features

Please review product documents or contact us for the latest agency approval information.

Configuration Features

  • Electrical Connection  Leads

Electrical Characteristics

  • Supply Voltage Range (V) -15 – 15, 15 – 24

Body Features

  • Case Material  Stainless Steel

  • Core Configuration  Separate Core

Dimensions

  • Product Diameter  19.05 mm [ .75 in ]

Usage Conditions

  • Operating Temperature Range  -20 – 70 °C [ -4 – 158 °F ]

Operation/Application

  • Output Signal Type  ±10 V, 0 – 10 V

Industry Standards

  • IP Rating  IP61

Other

  • Linearity Error (Full Range) (%) ±.1, ±.25

Reference Number

  • TE Internal Number CAT-LVDT0003
