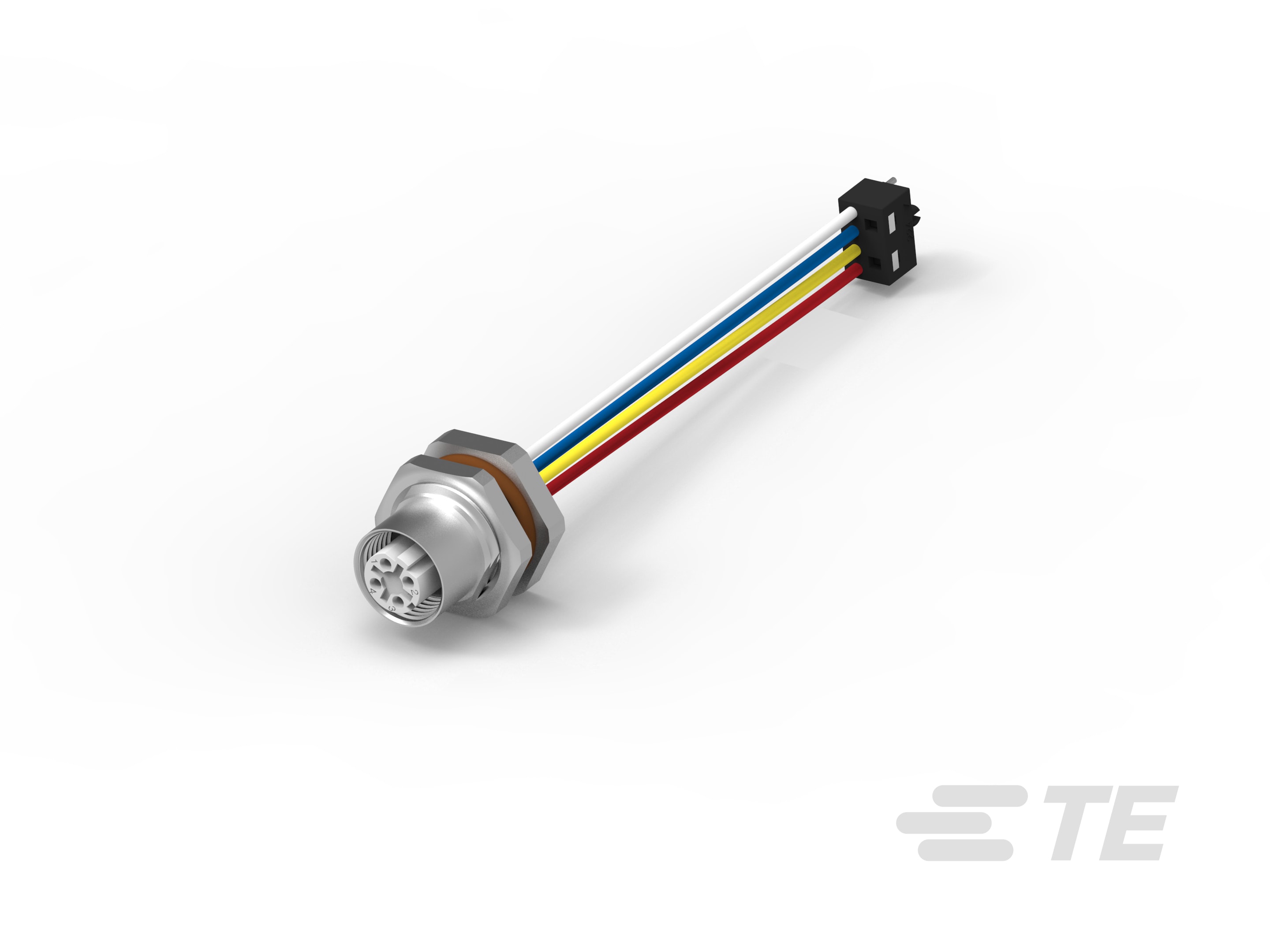

M12 Connectors, PCB Mount

Please review product documents or contact us for the latest agency approval information.

• Connector Product Type  Connector Assembly

• Assembly Type  Electrical Connector

• Prewired  No

• Circular Connector Shell Type  All Plastic, Metal-Shell

• Assembly Requirement  Factory Assembled

• Connector System  Cable-to-Cable

• Sealable  Yes

• Connector & Contact Terminates To  Wire & Cable

• Circular Connector Type  Plug, Receptacle

• Shell Type  Metal

• Factory Installed Backshell  With

• Keying & Polarized Position Locations  A, D

• Number of Positions  4, 5, 8

• Number of Power Positions  0

• Number of Signal Positions  4, 5, 8

• Contacts Preloaded  Yes

• Operating Voltage (VDC) 30, 50

• Data Rate (Gb/s) ≤1

• Environmental Protection  IP67

• Environmental Protection Type  Sealed

• Primary Product Color  Metalized Silver

• Product Weight  25 g [ .8832 oz ]

• Shell Plating Material  Nickel

• Shell Base Material  Zinc Alloy

• Circular Connector Insulation Material Type  Low Fire Hazard Thermoplastic

• Hermetically Sealed  Yes

• Contact Current Rating (Max) (A) 2, 4

• Reverse Gender  Yes

• Circular Connector Contact Type  Pin, Socket

• Termination Method to Wire & Cable  Solder

• Mating Alignment  With

• Mating Retention Type  Threaded

• Polarization Code  A, D

• Mating Alignment Type  Keyed

• Mating Retention  With

• Circular Connector Shell Size  18

• IP Dust Sealing Level  6

• IP Water Sealing Level  IP67

• Operating Temperature Range  -40 – 85 °C [ -40 – 185 °F ]

• Durability Rating (Cycles) 250

• Circuit Application  Signal

• Shielded  No

• Compatible With Approved Standards Products  IEC

• Packaging Quantity  1
