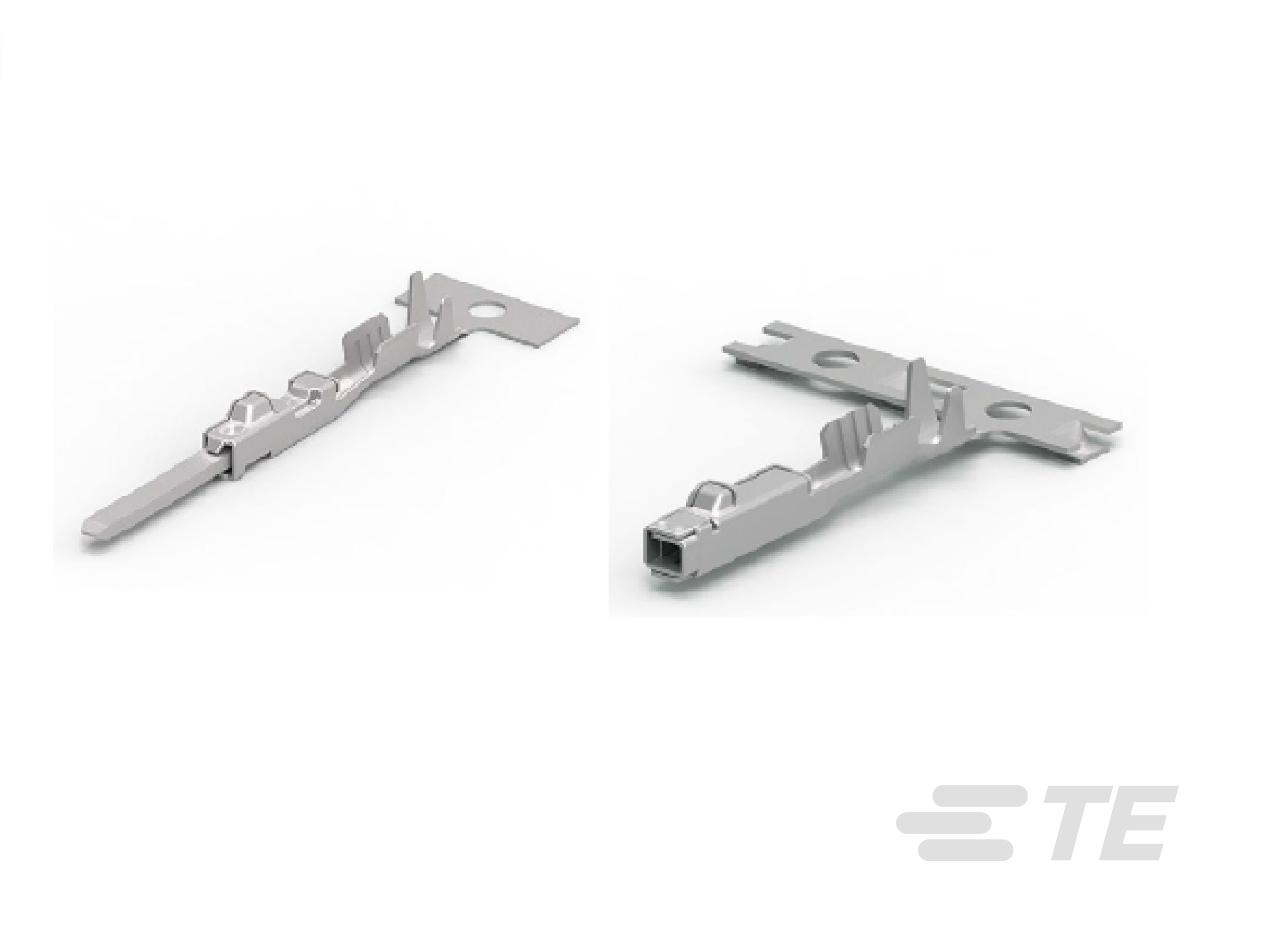

MCON Receptacle and Tab

MCON Interconnection System

MCON is a series of contact systems commonly used for electrical and electronic applications for passenger cars and commercial vehicles. The contact design meets standardized blade sizes and interface requirements of the automotive industry.

More Less

Digital Datasheet|

Product Features

Packaging Method : Reel, Box
Operating Temperature Range (°C): -40 – 105, -40 – 170, -40 – 130, -40 – 125, -40 – 150
Operating Temperature Range (°F): -40 – 302, -40 – 221, -40 – 257, -40 – 338, -40 – 266
Termination Method to Wire & Cable : Crimp
Customer Preferred Contact : No

Available from

Product	TE Part #	Documents	Terminal Type	Mating Tab Width	Mating Tab Thickness	Terminal Transmits	Wire Size	Wire Size	Sealable	Terminal Seal Type	Wire Size Search	Wire Size Search	Primary Locking Feature	Interface Plating	Operating Temperature (Max)	Tab Length	Operating Temperature Range
MCON 0.5 CB, CONTACT	1-2177909-2	Product Drawing 3D PDF	Receptacle	.5 mm	.4 mm	0 – 24 A (Low Power)	24 – 22 AWG	.22 – .35 mm²	No	-	.3 mm², .25 mm², .2 mm²	22 AWG, 24 AWG, 23 AWG	Clean Body	Gold (Au)	140 °C, 105 °C, 85 °C, 170 °C, 150 °C, 145 °C, 130 °C, 80 °C, 90 °C, 125 °C, 120 °C, 110 °C, 100 °C	-	-40 – 170 °C
MCON 1.2 LL REC SRC AG	2141861-3	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	0 – 24 A (Low Power)	26 – 24 AWG	.13 – .22 mm²	No	-	.2 mm², .13 mm², .15 mm²	26 AWG, 25 AWG, 24 AWG	Locking Lance	Silver (Ag)	145 °C, 130 °C, 150 °C, 85 °C, 80 °C, 140 °C, 120 °C, 110 °C, 100 °C, 90 °C, 105 °C, 125 °C	-	-40 – 150 °C
MCON 1.2 LL REC SRC SN	7-1452653-1	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	0 – 24 A (Low Power)	23 – 22 AWG	.25 – .35 mm²	No	-	.3 mm², .25 mm²	22 AWG, 23 AWG	Locking Lance	Tin (Sn)	100 °C, 110 °C, 125 °C, 85 °C, 80 °C, 90 °C, 105 °C, 130 °C, 120 °C	-	-40 – 130 °C
MCON 0.5 CB, CONTACT	2177908-3	Product Drawing 3D PDF	Receptacle	.5 mm	.4 mm	0 – 24 A (Low Power)	26 – 25 AWG	.13 – .17 mm²	No	-	.13 mm², .15 mm²	25 AWG, 26 AWG	Clean Body	Silver (Ag)	100 °C, 110 °C, 120 °C, 125 °C, 140 °C, 105 °C, 85 °C, 150 °C, 145 °C, 130 °C, 80 °C, 90 °C	-	-40 – 150 °C
TAB 1.2X0.6,SWS; 0,08-0,15SQMM	2141868-3	Product Drawing 3D PDF	Tab	1.2 mm	.6 mm	0 – 24 A (Low Power)	26 – 25 AWG	.13 – .17 mm²	Yes	Single Wire Seal (SWS)	.13 mm², .15 mm²	26 AWG, 25 AWG	Locking Lance	Silver (Ag)	150 °C	25.6 mm	-40 – 150 °C
MCON 1.2,TERMINAL,SWS,CB	2321537-3	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	0 – 24 A (Low Power)	22 AWG	.35 mm²	Yes	Single Wire Seal (SWS)	.35 mm²	22 AWG	Clean Body	Silver (Ag)	120 °C, 110 °C, 100 °C, 105 °C, 85 °C, 125 °C, 80 °C, 90 °C	-	-40 – 125 °C
MCON 1.2 LL TAB STC AG	1418762-3	Product Drawing 3D PDF	Tab	1.2 mm	.6 mm	0 – 24 A (Low Power)	17 – 15 AWG	1 – 1.5 mm²	No	-	1.5 mm², 1 mm², 1.25 mm²	17 AWG, 15 AWG, 16 AWG	Locking Lance	Silver (Ag)	140 °C, 105 °C, 80 °C, 130 °C, 90 °C, 125 °C, 110 °C, 120 °C, 100 °C, 85 °C, 150 °C, 145 °C	-	-40 – 150 °C
MCON 1.2,TERMINAL,SWS,CB	2321537-1	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	0 – 24 A (Low Power)	18 – 17 AWG	.75 – 1 mm²	Yes	Single Wire Seal (SWS)	1 mm², .75 mm²	17 AWG, 18 AWG	Clean Body	Silver (Ag)	125 °C, 120 °C, 80 °C, 100 °C, 90 °C, 110 °C, 85 °C, 105 °C	-	-40 – 125 °C
MCON 9.5, 16SQMM ASSY 0,8MM TAB	1-1823034-1	Product Drawing 3D PDF	Receptacle	9.5 mm	.8 mm	41 – 100 A (High Power)	5 AWG	16 mm²	No	-	16 mm²	5 AWG	Locking Lance	Tin (Sn)	120 °C, 110 °C, 125 °C, 100 °C, 105 °C, 130 °C, 80 °C, 85 °C, 90 °C	-	-40 – 130 °C
TAB 1.2X0.6,SWS; 0,08-0,15SQMM	2141868-2	Product Drawing 3D PDF	Tab	1.2 mm	.6 mm	0 – 24 A (Low Power)	26 AWG	.13 mm²	Yes	Single Wire Seal (SWS)	.13 mm²	26 AWG	Locking Lance	Gold (Au)	140 °C, 105 °C, 85 °C, 100 °C, 150 °C, 145 °C, 130 °C, 90 °C, 80 °C, 125 °C, 120 °C, 110 °C	25.6 mm	-40 – 150 °C
MCON 1.2 CB REC SWS AU	1418850-2	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	0 – 24 A (Low Power)	17 – 15 AWG	1 – 1.5 mm²	Yes	Single Wire Seal (SWS)	1.25 mm², 1.5 mm², 1 mm²	17 AWG, 15 AWG, 16 AWG	Clean Body	Gold (Au)	130 °C, 105 °C, 120 °C, 125 °C, 100 °C, 110 °C, 145 °C, 80 °C, 90 °C, 140 °C, 150 °C, 85 °C	-	-40 – 150 °C
MCON 1.2 LL TAB STC AU	2141864-2	Product Drawing 3D PDF	Tab	1.2 mm	.64 mm	0 – 24 A (Low Power)	26 – 25 AWG	.13 – .17 mm²	No	-	.15 mm², .13 mm²	25 AWG, 26 AWG	Locking Lance	Gold (Au)	80 °C, 85 °C, 110 °C, 130 °C, 145 °C, 140 °C, 90 °C, 100 °C, 120 °C, 125 °C, 105 °C, 150 °C	-	-40 – 150 °C
MCON 1.2 LL REC SWS AU	2141970-2	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	0 – 24 A (Low Power)	26 – 24 AWG	.13 – .22 mm²	Yes	Single Wire Seal (SWS)	.13 mm², .2 mm², .15 mm²	24 AWG, 26 AWG, 25 AWG	Locking Lance	Gold (Au)	145 °C, 130 °C, 110 °C, 80 °C, 140 °C, 105 °C, 85 °C, 150 °C, 120 °C, 125 °C, 90 °C, 100 °C	-	-40 – 150 °C
MCON 1.2 LL TAB STC AU	5-1418758-2	Product Drawing 3D PDF	Tab	1.2 mm	.6 mm	0 – 24 A (Low Power)	23 – 22 AWG	.25 – .35 mm²	No	-	.25 mm², .3 mm²	23 AWG, 22 AWG	Locking Lance	Gold (Au)	105 °C, 130 °C, 150 °C, 80 °C, 90 °C, 145 °C, 100 °C, 120 °C, 110 °C, 125 °C, 85 °C, 140 °C	-	-40 – 150 °C
MCON 1.2 LL REC SRC SN	7-1452656-1	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	0 – 24 A (Low Power)	20 – 18 AWG	.5 – .75 mm²	No	-	.5 mm², .6 mm², .75 mm²	19 AWG, 18 AWG, 20 AWG	Locking Lance	Tin (Sn)	100 °C, 130 °C, 80 °C, 90 °C, 110 °C, 105 °C, 85 °C, 120 °C, 125 °C	-	-40 – 130 °C
MCON 1.2 LL TAB STC SN	2141864-1	Product Drawing 3D PDF	Tab	1.2 mm	.6 mm	0 – 24 A (Low Power)	26 – 25 AWG	.13 – .17 mm²	No	-	.13 mm², .15 mm²	26 AWG, 25 AWG	Locking Lance	Tin (Sn)	130 °C, 90 °C, 125 °C, 120 °C, 105 °C, 80 °C, 110 °C, 100 °C, 85 °C	-	-40 – 130 °C
MCON 1.2 LL REC SRC AU	7-1452659-2	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	25 – 40 A (Power)	17 – 15 AWG	1 – 1.5 mm²	No	-	1.25 mm², 1 mm², 1.5 mm²	17 AWG, 15 AWG, 16 AWG	Locking Lance	Gold (Au)	90 °C, 80 °C, 105 °C, 140 °C, 100 °C, 110 °C, 120 °C, 125 °C, 85 °C, 130 °C, 150 °C, 145 °C	-	-40 – 150 °C
MCON 1.2 LL REC SWS AG	2141970-3	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	0 – 24 A (Low Power)	26 – 24 AWG	.13 – .22 mm²	Yes	Single Wire Seal (SWS)	.13 mm², .15 mm², .2 mm²	25 AWG, 24 AWG, 26 AWG	Locking Lance	Silver (Ag)	85 °C, 150 °C, 145 °C, 130 °C, 90 °C, 80 °C, 140 °C, 105 °C, 125 °C, 120 °C, 110 °C, 100 °C	-	-40 – 150 °C
MCON 1.2 LL REC SRC AU	2141861-2	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	0 – 24 A (Low Power)	26 – 24 AWG	.13 – .22 mm²	No	-	.2 mm², .13 mm², .15 mm²	26 AWG, 24 AWG, 25 AWG	Locking Lance	Gold (Au)	125 °C, 120 °C, 110 °C, 100 °C, 80 °C, 90 °C, 145 °C, 150 °C, 130 °C, 105 °C, 85 °C, 140 °C	-	-40 – 150 °C
MCON 1.2 CB TAB STC AU	1718348-2	Product Drawing 3D PDF	Tab	1.2 mm	.6 mm	0 – 24 A (Low Power)	23 – 22 AWG	.25 – .35 mm²	No	-	.3 mm², .25 mm²	23 AWG, 22 AWG	Clean Body	Gold (Au)	100 °C, 80 °C, 130 °C, 90 °C, 150 °C, 145 °C, 110 °C, 125 °C, 120 °C, 85 °C, 140 °C, 105 °C	-	-40 – 150 °C
MCON 1.2 CB REC SRC AU	1452503-2	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	0 – 24 A (Low Power)	17 – 15 AWG	1 – 1.5 mm²	No	-	1 mm², 1.25 mm², 1.5 mm²	15 AWG, 16 AWG, 17 AWG	Clean Body	Gold (Au)	110 °C, 100 °C, 125 °C, 90 °C, 145 °C, 80 °C, 130 °C, 120 °C, 150 °C, 105 °C, 85 °C, 140 °C	-	-40 – 150 °C
MCON 1.2 CB REC SWS AU	1418844-2	Product Drawing 3D PDF	Receptacle	1.2 mm	.63 mm	0 – 24 A (Low Power)	24 – 22 AWG	.2 – .3 mm²	Yes	Single Wire Seal (SWS)	.25 mm², .3 mm², .2 mm²	22 AWG, 23 AWG, 24 AWG	Clean Body	Gold (Au)	140 °C, 90 °C, 80 °C, 145 °C, 110 °C, 85 °C, 130 °C, 105 °C, 120 °C, 125 °C, 100 °C, 150 °C	-	-40 – 150 °C
MCON 1.2 CB TAB STC AG	1718350-3	Product Drawing 3D PDF	Tab	1.2 mm	.6 mm	0 – 24 A (Low Power)	20 – 18 AWG	.5 – .75 mm²	No	-	.6 mm², .5 mm², .75 mm²	18 AWG, 20 AWG, 19 AWG	Clean Body	Silver (Ag)	150 °C, 130 °C, 145 °C, 90 °C, 80 °C, 120 °C, 110 °C, 100 °C, 140 °C, 105 °C, 85 °C, 125 °C	-	-40 – 150 °C
MCON 1.2 CB TAB SWS AG	2177610-3	Product Drawing 3D PDF	Tab	1.2 mm	.62 mm	0 – 24 A (Low Power)	17 – 15 AWG	1 – 1.5 mm²	Yes	Single Wire Seal (SWS)	1 mm², 1.5 mm², 1.25 mm²	16 AWG, 15 AWG, 17 AWG	Clean Body	Silver (Ag)	150 °C	26 mm	-40 – 150 °C
MCON 1.2 CB REC SWS SN	1418850-1	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	0 – 24 A (Low Power)	17 – 15 AWG	1 – 1.5 mm²	Yes	Single Wire Seal (SWS)	1 mm², 1.5 mm², 1.25 mm²	15 AWG, 17 AWG, 16 AWG	Clean Body	Tin (Sn)	100 °C, 130 °C, 90 °C, 80 °C, 110 °C, 125 °C, 120 °C, 105 °C, 85 °C	-	-40 – 130 °C
MCON 1.2 CB REC SWS SN	1418844-1	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	0 – 24 A (Low Power)	23 – 22 AWG	.25 – .35 mm²	Yes	Single Wire Seal (SWS)	.25 mm², .3 mm²	23 AWG, 22 AWG	Clean Body	Tin (Sn)	105 °C, 85 °C, 130 °C, 125 °C, 90 °C, 80 °C, 110 °C, 100 °C, 120 °C	-	-40 – 130 °C
MCON 1.2 CB REC SRC AU	1534594-2	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	0 – 24 A (Low Power)	23 – 22 AWG	.25 – .35 mm²	No	-	.3 mm², .25 mm²	23 AWG, 22 AWG	Clean Body	Gold (Au)	150 °C, 130 °C, 145 °C, 80 °C, 90 °C, 110 °C, 100 °C, 125 °C, 85 °C, 140 °C, 120 °C, 105 °C	-	-40 – 150 °C
MCON 1.2 CB REC SRC AG	1534594-3	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	0 – 24 A (Low Power)	23 – 22 AWG	.25 – .35 mm²	No	-	.25 mm², .3 mm²	23 AWG, 22 AWG	Clean Body	Silver (Ag)	90 °C, 125 °C, 85 °C, 105 °C, 140 °C, 100 °C, 110 °C, 120 °C, 80 °C, 130 °C, 150 °C, 145 °C	-	-40 – 150 °C
MCON 1.2 CB REC SRC SN	1452503-1	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	0 – 24 A (Low Power)	17 – 15 AWG	1 – 1.5 mm²	No	-	1.5 mm², 1.25 mm², 1 mm²	17 AWG, 16 AWG, 15 AWG	Clean Body	Tin (Sn)	110 °C, 100 °C, 125 °C, 90 °C, 80 °C, 130 °C, 85 °C, 120 °C, 105 °C	-	-40 – 130 °C
MCON 1.2 LL TAB STC AG	5-1418758-3	Product Drawing 3D PDF	Tab	1.2 mm	.6 mm	0 – 24 A (Low Power)	23 – 22 AWG	.25 – .35 mm²	No	-	.3 mm², .25 mm²	22 AWG, 23 AWG	Locking Lance	Silver (Ag)	85 °C, 125 °C, 120 °C, 100 °C, 150 °C, 90 °C, 80 °C, 105 °C, 110 °C, 140 °C, 145 °C, 130 °C	-	-40 – 150 °C
MCON 1.2 CB TAB SWS AG	2141114-3	Product Drawing 3D PDF	Tab	1.2 mm	.6 mm	0 – 24 A (Low Power)	23 – 22 AWG	.25 – .35 mm²	Yes	Single Wire Seal (SWS)	.25 mm², .3 mm²	23 AWG, 22 AWG	Clean Body	Silver (Ag)	150 °C	25.5 mm	-40 – 150 °C
MCON 1.2 CB TAB SWS SN	2141116-1	Product Drawing 3D PDF	Tab	1.2 mm	.6 mm	0 – 24 A (Low Power)	20 – 18 AWG	.5 – .75 mm²	Yes	Single Wire Seal (SWS)	.5 mm², .6 mm², .75 mm²	20 AWG, 18 AWG, 19 AWG	Clean Body	Tin (Sn)	130 °C	25.5 mm	-40 – 130 °C
MCON 1.2 LL TAB STC AG	2141864-3	Product Drawing 3D PDF	Tab	1.2 mm	.6 mm	0 – 24 A (Low Power)	26 – 25 AWG	.13 – .17 mm²	No	-	.13 mm², .15 mm²	26 AWG, 25 AWG	Locking Lance	Silver (Ag)	130 °C, 145 °C, 150 °C, 125 °C, 120 °C, 100 °C, 110 °C, 90 °C, 80 °C, 140 °C, 105 °C, 85 °C	-	-40 – 150 °C
MCON 1.2 LL REC SRC AG	7-1452656-3	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	0 – 24 A (Low Power)	20 – 18 AWG	.5 – .75 mm²	No	-	.6 mm², .5 mm², .75 mm²	18 AWG, 20 AWG, 19 AWG	Locking Lance	Silver (Ag)	85 °C, 100 °C, 110 °C, 120 °C, 125 °C, 80 °C, 90 °C, 105 °C, 140 °C, 130 °C, 150 °C, 145 °C	-	-40 – 150 °C
MCON 1.2 CB REC SRC SN	1534594-1	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	0 – 24 A (Low Power)	23 – 22 AWG	.25 – .35 mm²	No	-	.3 mm², .25 mm²	22 AWG, 23 AWG	Clean Body	Tin (Sn)	120 °C, 100 °C, 125 °C, 90 °C, 110 °C, 130 °C, 85 °C, 105 °C, 80 °C	-	-40 – 130 °C
MCON 1.2 LL TAB STC SN	1418762-1	Product Drawing 3D PDF	Tab	1.15 mm	.6 mm	0 – 24 A (Low Power)	17 – 15 AWG	1 – 1.5 mm²	No	-	1 mm², 1.25 mm², 1.5 mm²	16 AWG, 17 AWG, 15 AWG	Locking Lance	Tin (Sn)	130 °C	25.5 mm	-40 – 130 °C
MCON 1.2 CB REC SWS AG	1418844-3	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	0 – 24 A (Low Power)	23 – 22 AWG	.25 – .35 mm²	Yes	Single Wire Seal (SWS)	.3 mm², .25 mm²	22 AWG, 23 AWG	Clean Body	Silver (Ag)	130 °C, 150 °C, 140 °C, 120 °C, 90 °C, 80 °C, 145 °C, 110 °C, 100 °C, 125 °C, 105 °C, 85 °C	-	-40 – 150 °C
MCON 1.2 CB REC SWS AG	1418850-3	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	0 – 24 A (Low Power)	17 – 15 AWG	1 – 1.5 mm²	Yes	Single Wire Seal (SWS)	1.25 mm², 1.5 mm², 1 mm²	16 AWG, 15 AWG, 17 AWG	Clean Body	Silver (Ag)	140 °C, 90 °C, 80 °C, 110 °C, 100 °C, 125 °C, 120 °C, 85 °C, 105 °C, 130 °C, 145 °C, 150 °C	-	-40 – 150 °C
MCON 1.2 CB REC SRC AG	1452503-3	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	0 – 24 A (Low Power)	17 – 15 AWG	1 – 1.5 mm²	No	-	1 mm², 1.25 mm², 1.5 mm²	17 AWG, 15 AWG, 16 AWG	Clean Body	Silver (Ag)	120 °C, 140 °C, 110 °C, 100 °C, 125 °C, 90 °C, 80 °C, 145 °C, 130 °C, 150 °C, 105 °C, 85 °C	-	-40 – 150 °C
MCON 1.2 CB TAB STC SN	1718348-1	Product Drawing 3D PDF	Tab	1.2 mm	.62 mm	0 – 24 A (Low Power)	23 – 22 AWG	.25 – .35 mm²	No	-	.25 mm², .3 mm²	22 AWG, 23 AWG	Clean Body	Tin (Sn)	130 °C	24.5 mm	-40 – 130 °C
MCON 1.2 CB TAB STC AG	1718348-3	Product Drawing 3D PDF	Tab	1.2 mm	.62 mm	0 – 24 A (Low Power)	23 – 22 AWG	.25 – .35 mm²	No	-	.25 mm², .3 mm²	22 AWG, 23 AWG	Clean Body	Silver (Ag)	110 °C, 80 °C, 130 °C, 90 °C, 100 °C, 125 °C, 120 °C, 85 °C, 105 °C	-	-40 – 130 °C
MCON 1.2 CB TAB STC SN	1718350-1	Product Drawing 3D PDF	Tab	1.2 mm	.62 mm	0 – 24 A (Low Power)	20 – 18 AWG	.5 – .75 mm²	No	-	.6 mm², .5 mm², .75 mm²	19 AWG, 20 AWG, 18 AWG	Clean Body	Tin (Sn)	130 °C	24.5 mm	-40 – 130 °C
MCON 1.2 CB TAB STC AU	1718350-2	Product Drawing 3D PDF	Tab	1.2 mm	.6 mm	0 – 24 A (Low Power)	20 – 18 AWG	.5 – .75 mm²	No	-	.75 mm², .6 mm², .5 mm²	19 AWG, 20 AWG, 18 AWG	Clean Body	Gold (Au)	125 °C, 120 °C, 110 °C, 100 °C, 140 °C, 105 °C, 150 °C, 85 °C, 145 °C, 130 °C, 90 °C, 80 °C	-	-40 – 150 °C
MCON 1.2 CB REC SRC SN	1670144-1	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	0 – 24 A (Low Power)	20 – 18 AWG	.5 – .75 mm²	No	-	.5 mm², .6 mm², .75 mm²	19 AWG, 20 AWG, 18 AWG	Clean Body	Tin (Sn)	125 °C, 120 °C, 100 °C, 105 °C, 85 °C, 80 °C, 110 °C, 130 °C, 90 °C	-	-40 – 130 °C
MCON 1.2 CB REC SRC AU	1670144-2	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	0 – 24 A (Low Power)	20 – 18 AWG	.5 – .75 mm²	No	-	.5 mm², .75 mm², .6 mm²	20 AWG, 19 AWG, 18 AWG	Clean Body	Gold (Au)	130 °C, 145 °C, 90 °C, 80 °C, 85 °C, 150 °C, 105 °C, 125 °C, 110 °C, 120 °C, 100 °C, 140 °C	-	-40 – 150 °C
MCON 1.2 CB REC SRC AG	1670144-3	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	0 – 24 A (Low Power)	20 – 18 AWG	.5 – .75 mm²	No	-	.75 mm², .6 mm², .5 mm²	18 AWG, 19 AWG, 20 AWG	Clean Body	Silver (Ag)	150 °C, 130 °C, 145 °C, 90 °C, 80 °C, 125 °C, 110 °C, 120 °C, 100 °C, 140 °C, 105 °C, 85 °C	-	-40 – 150 °C
MCON 1.2 CB REC SWS SN	1670146-1	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	0 – 24 A (Low Power)	20 – 18 AWG	.5 – .75 mm²	Yes	Single Wire Seal (SWS)	.6 mm², .5 mm², .75 mm²	20 AWG, 18 AWG, 19 AWG	Clean Body	Tin (Sn)	100 °C, 110 °C, 105 °C, 120 °C, 125 °C, 90 °C, 80 °C, 130 °C, 85 °C	-	-40 – 130 °C
MCON 1.2 CB REC SWS AU	1670146-2	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	0 – 24 A (Low Power)	20 – 18 AWG	.5 – .75 mm²	Yes	Single Wire Seal (SWS)	.75 mm², .5 mm², .6 mm²	20 AWG, 18 AWG, 19 AWG	Clean Body	Gold (Au)	120 °C, 105 °C, 150 °C, 130 °C, 145 °C, 80 °C, 90 °C, 125 °C, 100 °C, 110 °C, 85 °C, 140 °C	-	-40 – 150 °C
MCON 1.2 CB REC SWS AG	1670146-3	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	0 – 24 A (Low Power)	20 – 18 AWG	.5 – .75 mm²	Yes	Single Wire Seal (SWS)	.5 mm², .75 mm², .6 mm²	19 AWG, 20 AWG, 18 AWG	Clean Body	Silver (Ag)	120 °C, 125 °C, 100 °C, 110 °C, 105 °C, 85 °C, 140 °C, 150 °C, 145 °C, 130 °C, 80 °C, 90 °C	-	-40 – 150 °C
MCON 1.2 CB TAB SWS AG	2141116-3	Product Drawing 3D PDF	Tab	1.2 mm	.6 mm	0 – 24 A (Low Power)	20 – 18 AWG	.5 – .75 mm²	Yes	Single Wire Seal (SWS)	.6 mm², .5 mm², .75 mm²	19 AWG, 20 AWG, 18 AWG	Clean Body	Silver (Ag)	150 °C	25.5 mm	-40 – 150 °C
MCON 1.2 LL REC SRC SN	2141861-1	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	0 – 24 A (Low Power)	26 – 24 AWG	.13 – .22 mm²	No	-	.15 mm², .13 mm², .2 mm²	24 AWG, 26 AWG, 25 AWG	Locking Lance	Tin (Sn)	125 °C, 110 °C, 120 °C, 100 °C, 105 °C, 85 °C, 80 °C, 90 °C, 130 °C	-	-40 – 130 °C
MCON 1.2 LL TAB SWS SN	2141868-1	Product Drawing 3D PDF	Tab	1.2 mm	.6 mm	0 – 24 A (Low Power)	26 – 25 AWG	.13 – .17 mm²	Yes	Single Wire Seal (SWS)	.13 mm², .15 mm²	26 AWG, 25 AWG	Locking Lance	Tin (Sn)	130 °C	25.6 mm	-40 – 130 °C
MCON 1.2 LL REC SWS SN	2141970-1	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	0 – 24 A (Low Power)	26 – 24 AWG	.13 – .22 mm²	Yes	Single Wire Seal (SWS)	.2 mm², .13 mm², .15 mm²	24 AWG, 26 AWG, 25 AWG	Locking Lance	Tin (Sn)	125 °C, 130 °C, 80 °C, 90 °C, 85 °C, 105 °C, 100 °C, 110 °C, 120 °C	-	-40 – 130 °C
MCON 1.2 CB TAB SWS SN	2141114-1	Product Drawing 3D PDF	Tab	1.2 mm	.63 mm	0 – 24 A (Low Power)	23 – 22 AWG	.25 – .35 mm²	Yes	Single Wire Seal (SWS)	.25 mm², .3 mm²	22 AWG, 23 AWG	Clean Body	Tin (Sn)	130 °C	25.5 mm	-40 – 130 °C
MCON 1.2 LL REC SRC AU	7-1452653-2	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	0 – 24 A (Low Power)	23 – 22 AWG	.25 – .35 mm²	No	-	.3 mm², .25 mm²	22 AWG, 23 AWG	Locking Lance	Gold (Au)	80 °C, 90 °C, 105 °C, 140 °C, 85 °C, 130 °C, 150 °C, 145 °C, 100 °C, 110 °C, 120 °C, 125 °C	-	-40 – 150 °C
MCON 1.2 LL REC SRC AG	7-1452653-3	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	0 – 24 A (Low Power)	23 – 22 AWG	.25 – .35 mm²	No	-	.3 mm², .25 mm²	23 AWG, 22 AWG	Locking Lance	Silver (Ag)	100 °C, 110 °C, 125 °C, 120 °C, 80 °C, 90 °C, 85 °C, 130 °C, 140 °C, 105 °C, 150 °C, 145 °C	-	-40 – 150 °C
MCON 1.2 LL REC SRC AU	7-1452656-2	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	0 – 24 A (Low Power)	20 – 18 AWG	.5 – .75 mm²	No	-	.6 mm², .5 mm², .75 mm²	18 AWG, 20 AWG, 19 AWG	Locking Lance	Gold (Au)	145 °C, 150 °C, 130 °C, 105 °C, 140 °C, 90 °C, 80 °C, 85 °C, 125 °C, 120 °C, 110 °C, 100 °C	-	-40 – 150 °C
MCON 1.2 LL REC SRC AG	7-1452659-3	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	25 – 40 A (Power)	17 – 15 AWG	1 – 1.5 mm²	No	-	1.5 mm², 1.25 mm², 1 mm²	16 AWG, 15 AWG, 17 AWG	Locking Lance	Silver (Ag)	85 °C, 90 °C, 80 °C, 145 °C, 150 °C, 130 °C, 125 °C, 120 °C, 110 °C, 100 °C, 140 °C, 105 °C	-	-40 – 150 °C
MCON 0.50 TERMINAL	2177908-1	Product Drawing 3D PDF	Receptacle	.5 mm	.4 mm	0 – 24 A (Low Power)	26 – 25 AWG	.13 – .17 mm²	No	-	.15 mm², .13 mm²	26 AWG, 25 AWG	Clean Body	Tin (Sn)	85 °C, 105 °C, 100 °C, 90 °C, 80 °C	-	-40 – 105 °C
MCON 1.2 LL TAB STC SN	5-1418760-1	Product Drawing 3D PDF	Tab	1.15 mm	.6 mm	0 – 24 A (Low Power)	20 – 18 AWG	.5 – .75 mm²	No	-	.6 mm², .5 mm², .75 mm²	19 AWG, 18 AWG, 20 AWG	Locking Lance	Tin (Sn)	130 °C	25.5 mm	-40 – 130 °C
MCON 1.2 LL TAB STC AU	5-1418760-2	Product Drawing 3D PDF	Tab	1.15 mm	.6 mm	0 – 24 A (Low Power)	20 – 18 AWG	.5 – .75 mm²	No	-	.6 mm², .5 mm², .75 mm²	18 AWG, 20 AWG, 19 AWG	Locking Lance	Gold (Au)	80 °C, 105 °C, 145 °C, 120 °C, 110 °C, 125 °C, 85 °C, 150 °C, 140 °C, 100 °C, 130 °C, 90 °C	-	-40 – 150 °C
MCON 1.2 LL TAB STC SN	5-1418758-1	Product Drawing 3D PDF	Tab	1.15 mm	.6 mm	0 – 24 A (Low Power)	23 – 22 AWG	.25 – .35 mm²	No	-	.25 mm², .3 mm²	23 AWG, 22 AWG	Locking Lance	Tin (Sn)	130 °C	25.5 mm	-40 – 130 °C
MCON 1.2 LL TAB STC AG	5-1418760-3	Product Drawing 3D PDF	Tab	1.15 mm	.6 mm	0 – 24 A (Low Power)	20 – 18 AWG	.5 – .75 mm²	No	-	.75 mm², .5 mm², .6 mm²	18 AWG, 20 AWG, 19 AWG	Locking Lance	Silver (Ag)	130 °C, 145 °C, 140 °C, 85 °C, 105 °C, 125 °C, 120 °C, 100 °C, 150 °C, 90 °C, 80 °C, 110 °C	-	-40 – 150 °C
MCON 1.2 LL REC SRC SN	7-1452659-1	Product Drawing 3D PDF	Receptacle	1.2 mm	.6 mm	25 – 40 A (Power)	17 – 15 AWG	1 – 1.5 mm²	No	-	1 mm², 1.5 mm², 1.25 mm²	15 AWG, 17 AWG, 16 AWG	Locking Lance	Tin (Sn)	80 °C, 90 °C, 85 °C, 105 °C, 130 °C, 125 °C, 100 °C, 110 °C, 120 °C	-	-40 – 130 °C

Overview

Tab and Receptacle Contacts

MCON

Except the miniaturized MCON 0.50 contact system, MCON automotive crimp terminals and contacts follow the two-piece contact design strategy to separate the electrical from the mechanical performance. The MCON contact series is available for sealed and unsealed applications. For a fast and economic termination process, TE Application Tooling is offering a vast portfolio of application equipment.

Benefits

High performance copper alloy
Redundant contact point technology for higher reliability
High vibration level support to meet future requirements
Overstress protection of the contact springs
Contact box with polarization and secondary locking feature*
Protected locking lance**
Sealed and unsealed version
-40 °C up to 150 °C temperature range***
3 directional secondary locking access

* MCON 0.50, MCON 1.2, MCON 2.8 and MCON 6.3 – same level for locking lance and secondary feature

** Except clean body version

*** -40 °C to 180 °C with innovative surface technology available

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Primary Locking Feature Locking Lance, Clean Body
Sealable No, Yes
Receptacle Style 180°

Body Features

Terminal Seal Type Single Wire Seal (SWS)

Contact Features

Wire Contact Termination Area Plating Material Tin, Silver
Typical Current Rating (A) 1, 3, 4, 7, 8.75, 10, 11.75, 13.4, 15, 16, 25, 80
Terminal Type Receptacle, Tab
Interface Plating Tin (Sn), Silver (Ag), Gold (Au)
Contact Fabrication Stamped & Formed
Mating Tab Width (mm) .5, 1.15, 1.2, 9.5
Mating Tab Width (in) .019, .02, .045, .047, .374
Contact Size 1.2mm, 1.15mm, 9.5mm
Crimp Type F-Crimp
Mating Tab Thickness (mm) .4, .6, .62, .63, .64, .8
Mating Tab Thickness (in) .015, .016, .023, .024, .025, .031

Termination Features

Termination Method to Wire & Cable Crimp
Product Terminates To Wire

Dimensions

Wire Size (mm²) .13, .13 – .22, .13 – .17, .2 – .3, .22 – .35, .25 – .35, .35, .5 – .75, .75 – 1, 1 – 1.5, 16
Compatible Insulation Diameter Range (mm) .85 – 1.2, .85 – 1.05, .85 – 1.1, .95 – 1.2, 1.1 – 1.75, 1.1 – 1.4, 1.1 – 1.6, 1.3 – 1.9, 1.4 – 1.9, 1.45 – 1.9, 1.55 – 2.1, 1.6 – 2.4, 1.9 – 2.4, 2.6, 7.5 – 8.1
Compatible Insulation Diameter Range (in) .03 – .043, .033 – .041, .033 – .047, .037 – .047, .039 – .063, .043 – .069, .043 – .063, .043 – .055, .05 – .07, .051 – .074, .051 – .075, .055 – .075, .063 – .094, .075 – .094, .102
Wire Size (AWG) 5, 17 – 15, 18 – 17, 20 – 18, 22, 23 – 22, 24 – 22, 26 – 25, 26, 26 – 24
Wire Size Search (mm²) .13, .15, .2, .25, .3, .35, .5, .6, .75, 1, 1.25, 1.5, 16
Tab Length (mm) 24.5, 25.5, 25.6, 26
Tab Length (in) .964, 1, 1.003, 1.023
Wire Size Search (AWG) 19, 23, 15, 22, 26, 24, 16, 5, 17, 25, 20, 18

Usage Conditions

Operating Temperature Range (°C) -40 – 105, -40 – 170, -40 – 130, -40 – 125, -40 – 150
Operating Temperature Range (°F) -40 – 302, -40 – 221, -40 – 257, -40 – 338, -40 – 266
Operating Temperature (Max) (°C) 80, 85, 90, 100, 105, 110, 120, 125, 130, 140, 145, 150, 170
Operating Temperature (Max) (°F) 176, 185, 194, 212, 221, 230, 248, 257, 266, 284, 293, 302, 338
Insulation Option Uninsulated

Operation/Application

Compatible With Wire Base Material Copper

Industry Standards

Compatible With Agency/Standards Products LV214, IEC 664/664A (DIN VDE 0110), USCAR-21, USCAR

Packaging Features

Packaging Method Reel, Box
Packaging Quantity 1, 450, 6000, 6500, 7000, 7500, 8000, 9000, 10000, 17000

Other

Customer Preferred Contact No
Terminal Transmits 0 – 24 A (Low Power), 25 – 40 A (Power), 41 – 100 A (High Power)

Reference Number

TE Internal Number CAT-M4595-T273

Related Materials

No documentation available.

MCON Receptacle and Tab

Product Features

Packaging Method : Reel, Box

Operating Temperature Range (°C): -40 – 105, -40 – 170, -40 – 130, -40 – 125, -40 – 150

Operating Temperature Range (°F): -40 – 302, -40 – 221, -40 – 257, -40 – 338, -40 – 266

Termination Method to Wire & Cable : Crimp

Customer Preferred Contact : No

Tab and Receptacle Contacts

MCON

Benefits

Product Type Features

Primary Locking Feature Locking Lance, Clean Body

Sealable No, Yes

Receptacle Style 180°

Body Features

Terminal Seal Type Single Wire Seal (SWS)

Contact Features

Wire Contact Termination Area Plating Material Tin, Silver

Typical Current Rating (A) 1, 3, 4, 7, 8.75, 10, 11.75, 13.4, 15, 16, 25, 80

Terminal Type Receptacle, Tab

Interface Plating Tin (Sn), Silver (Ag), Gold (Au)

Contact Fabrication Stamped & Formed

Mating Tab Width (mm) .5, 1.15, 1.2, 9.5

Mating Tab Width (in) .019, .02, .045, .047, .374

Contact Size 1.2mm, 1.15mm, 9.5mm

Crimp Type F-Crimp

Mating Tab Thickness (mm) .4, .6, .62, .63, .64, .8

Mating Tab Thickness (in) .015, .016, .023, .024, .025, .031

Termination Features

Termination Method to Wire & Cable Crimp

Product Terminates To Wire

Dimensions

Wire Size (mm²) .13, .13 – .22, .13 – .17, .2 – .3, .22 – .35, .25 – .35, .35, .5 – .75, .75 – 1, 1 – 1.5, 16

Compatible Insulation Diameter Range (mm) .85 – 1.2, .85 – 1.05, .85 – 1.1, .95 – 1.2, 1.1 – 1.75, 1.1 – 1.4, 1.1 – 1.6, 1.3 – 1.9, 1.4 – 1.9, 1.45 – 1.9, 1.55 – 2.1, 1.6 – 2.4, 1.9 – 2.4, 2.6, 7.5 – 8.1

Compatible Insulation Diameter Range (in) .03 – .043, .033 – .041, .033 – .047, .037 – .047, .039 – .063, .043 – .069, .043 – .063, .043 – .055, .05 – .07, .051 – .074, .051 – .075, .055 – .075, .063 – .094, .075 – .094, .102

Wire Size (AWG) 5, 17 – 15, 18 – 17, 20 – 18, 22, 23 – 22, 24 – 22, 26 – 25, 26, 26 – 24

Wire Size Search (mm²) .13, .15, .2, .25, .3, .35, .5, .6, .75, 1, 1.25, 1.5, 16

Tab Length (mm) 24.5, 25.5, 25.6, 26

Tab Length (in) .964, 1, 1.003, 1.023

Wire Size Search (AWG) 19, 23, 15, 22, 26, 24, 16, 5, 17, 25, 20, 18

Usage Conditions

Operating Temperature Range (°C) -40 – 105, -40 – 170, -40 – 130, -40 – 125, -40 – 150

Operating Temperature Range (°F) -40 – 302, -40 – 221, -40 – 257, -40 – 338, -40 – 266

Operating Temperature (Max) (°C) 80, 85, 90, 100, 105, 110, 120, 125, 130, 140, 145, 150, 170

Operating Temperature (Max) (°F) 176, 185, 194, 212, 221, 230, 248, 257, 266, 284, 293, 302, 338

Insulation Option Uninsulated

Operation/Application

Compatible With Wire Base Material Copper

Industry Standards

Compatible With Agency/Standards Products LV214, IEC 664/664A (DIN VDE 0110), USCAR-21, USCAR

Packaging Features

Packaging Method Reel, Box

Packaging Quantity 1, 450, 6000, 6500, 7000, 7500, 8000, 9000, 10000, 17000

Other

Customer Preferred Contact No

Terminal Transmits 0 – 24 A (Low Power), 25 – 40 A (Power), 41 – 100 A (High Power)

Reference Number

TE Internal Number CAT-M4595-T273
