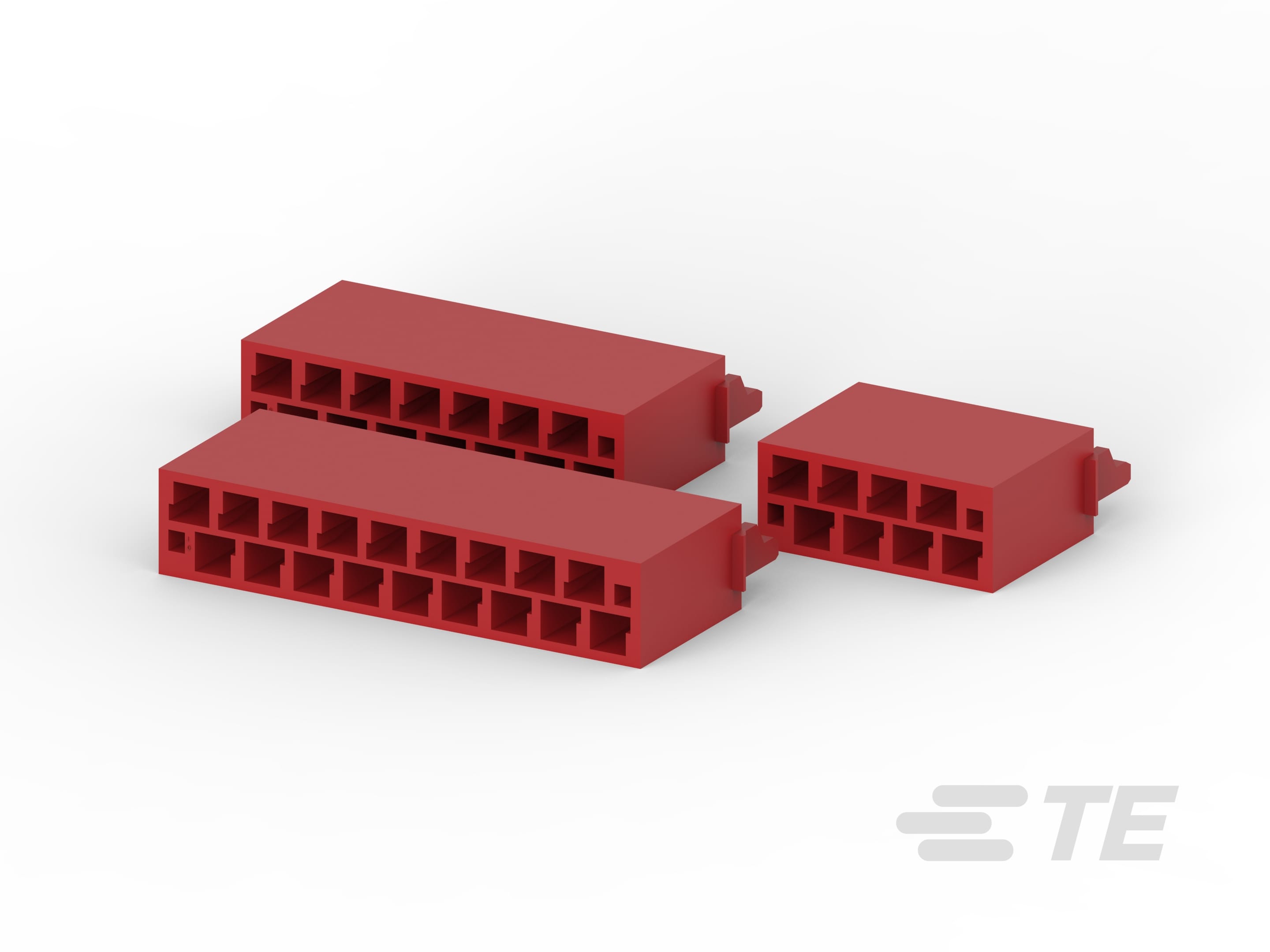

Crimp-on-Snap-in Housing

Please review product documents or contact us for the latest agency approval information.

• Packaging Method  Box & Carton

• Packaging Quantity  350, 400, 200, 250, 700, 450, 900, 500, 300

• Operating Voltage (VDC) 100

• Operating Voltage (VAC) 100

• Insulation Resistance (MΩ) 1000

• UL Rating  Recognized

• UL Flammability Rating  UL 94V-0

• Compatible With Agency/Standards Products  UL

• Compatible With Approved Standards Products  UL E28476

• PCB Mount Alignment  Without

• Contact Retention Type Within Housing  Snap-In

• Mating Alignment  With

• Mating Alignment Type  Polarization

• Mating Retention  With

• Mating Retention Type  Contact Friction

• Connector Height  12.4 mm [ .49 in ]

• Connector Length (mm) 21.1, 10.9, 18.5, 8.4, 23.6, 13.5, 26.2, 28.7, 16

• Connector Length (in) .728, .33, .429, .531, .629, .83, 1.03, 1.129, .929

• PCB Thickness (Recommended)  1.6 mm [ .06 in ]

• Row-to-Row Spacing  2 mm [ .059 in ]

• Contact Type  Socket

• Contact Base Material  Phosphor Bronze

• PCB Contact Termination Area Plating Material  Tin

• Contact Underplating Material  Nickel

• PCB Contact Termination Area Plating Material Finish  Matte

• Contact Mating Area Plating Material  Tin

• Contact Current Rating (Max) (A) 1.5

• Housing Material  PBT GF

• Centerline (Pitch)  1.27 mm [ .05 in ]

• Ribbon Cable Connector Header Type  Shrouded

• Connector Product Type  Housing

• Connector System  Wire-to-Board

• Connector & Housing Type  Plug

• Connector & Contact Terminates To  Wire & Cable

• Daisy Chain  Without

• Primary Product Color  Red

• Connector Profile  Standard

• Termination Method to Wire & Cable  Crimp & Snap

• Number of Positions  16, 12, 10, 14, 20, 18, 4, 6, 8

• Number of Rows  2

• Operating Temperature Range  -40 – 105 °C [ -40 – 221 °F ]

• Circuit Application  Signal

• EU RoHS Compliance  Compliant

• EU ELV Compliance  Compliant
