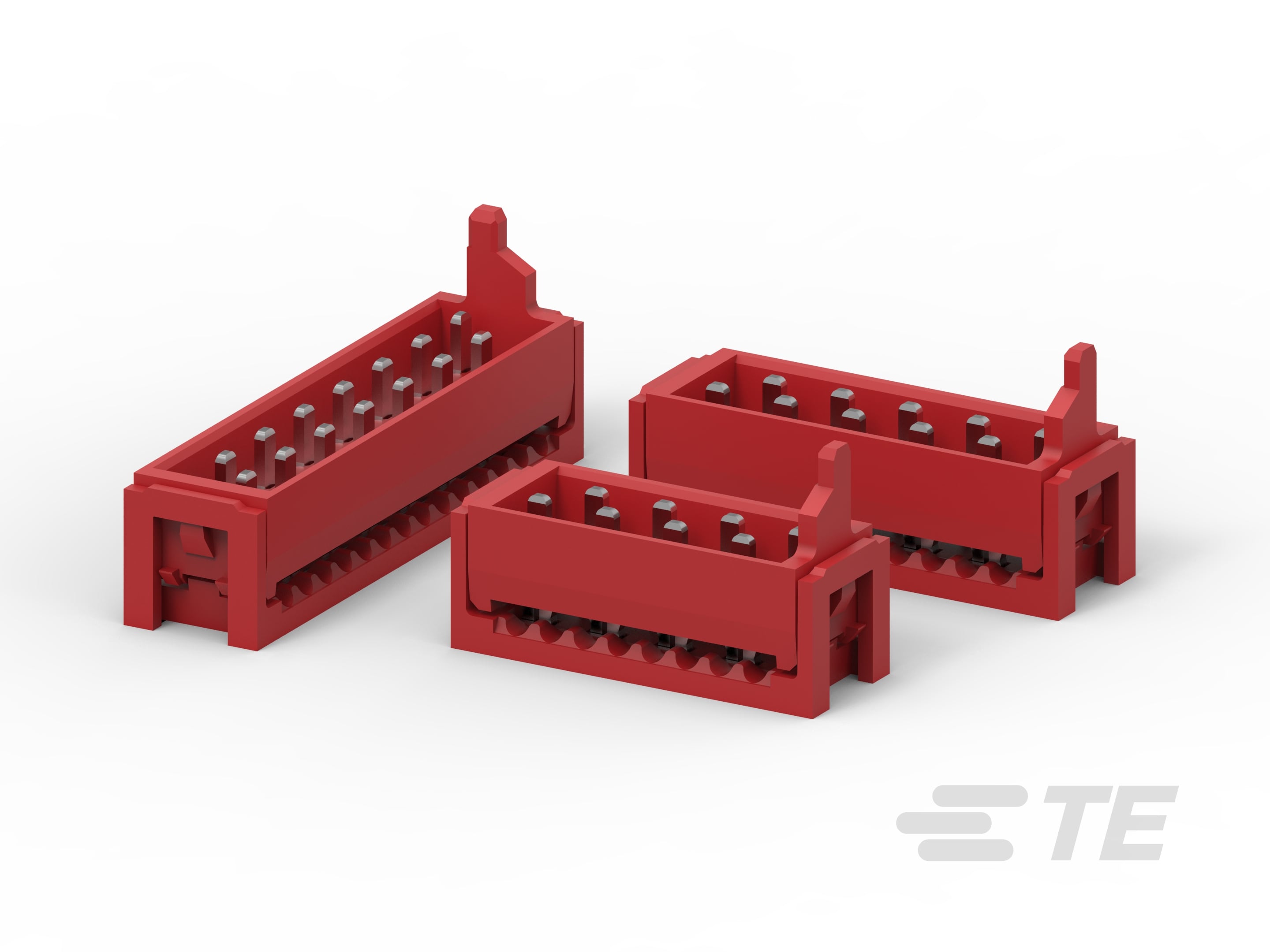

Male-on-Wire Connector, Micro-MaTch

Please review product documents or contact us for the latest agency approval information.

• Packaging Method  Box & Carton, Reel

• Packaging Quantity  250, 2500

• UL Rating  Recognized

• Compatible With Approved Standards Products  UL E28476

• UL Flammability Rating  UL 94V-0

• Compatible With Agency/Standards Products  UL

• Wire Contact Termination Area Plating Material  Tin

• Contact Type  Pin

• Contact Shape & Form  Dual Beam

• Contact Mating Area Plating Material Thickness  3 – 5 µm [ 118.11 – 196.85 µin ]

• Contact Base Material  Phosphor Bronze

• PCB Contact Termination Area Plating Material Finish  Matte

• Wire Contact Termination Area Plating Thickness  3 – 5 µm [ 118.11 – 196.85 µin ]

• Wire Contact Termination Area Plating Material Finish  Matte

• PCB Contact Termination Area Plating Material  Tin

• Mating Tab Width  .7 mm [ .028 in ]

• Contact Underplating Material  Nickel

• Mating Tab Thickness  .4 mm [ .016 in ]

• Contact Mating Area Plating Material  Tin

• Contact Current Rating (Max) (A) 1.5

• PCB Mount Alignment  Without

• Contact Retention Type Within Housing  Press-Fit

• Mating Alignment  With

• PCB Mount Retention  Without

• Mating Alignment Type  Polarization

• Mating Retention  With

• Mating Retention Type  Contact Friction

• Connector Mounting Type  Cable Mount (Free-Hanging)

• Connector Height  6.8 mm [ .27 in ]

• Wire Size (mm²) .08 – .09

• Wire Size (AWG) 28

• Connector Length (mm) 13.6, 34, 23.8, 16.2, 21.3, 18.7, 26.3, 11.1, 28.9, 8.6

• Connector Length (in) .437, .838, .736, 1.338, 1.138, 1.035, .937, .638, .338, .535

• Compatible Insulation Diameter Range  .8 – 1 mm [ .035 – .039 in ]

• Row-to-Row Spacing  2 mm [ .059 in ]

• Housing Material  PBT GF

• Centerline (Pitch)  1.27 mm [ .05 in ]

• Daisy Chain  With

• Primary Product Color  Red

• Connector Profile  Standard

• Operating Voltage (VAC) 100

• Operating Voltage (VDC) 100

• Insulation Resistance (MΩ) 1000

• Termination Method to Wire & Cable  Insulation Displacement (IDC)

• Termination Method to PCB  Through Hole - Solder

• Connector Product Type  Connector Assembly

• Ribbon Cable Connector Header Type  Shrouded

• Ribbon Cable Connector Type  Male-On-Wire

• Connector System  Cable-to-Board

• Connector & Housing Type  Plug

• Connector & Contact Terminates To  Wire & Cable

• Number of Positions  16, 12, 10, 14, 20, 18, 4, 24, 6, 8

• PCB Mount Orientation  Vertical

• Number of Rows  2

• Operating Temperature Range  -40 – 105 °C [ -40 – 221 °F ]

• Circuit Application  Signal

• EU RoHS Compliance  Compliant

• EU ELV Compliance  Compliant
