MULTILOCK, RECEPTACLE AND TAB

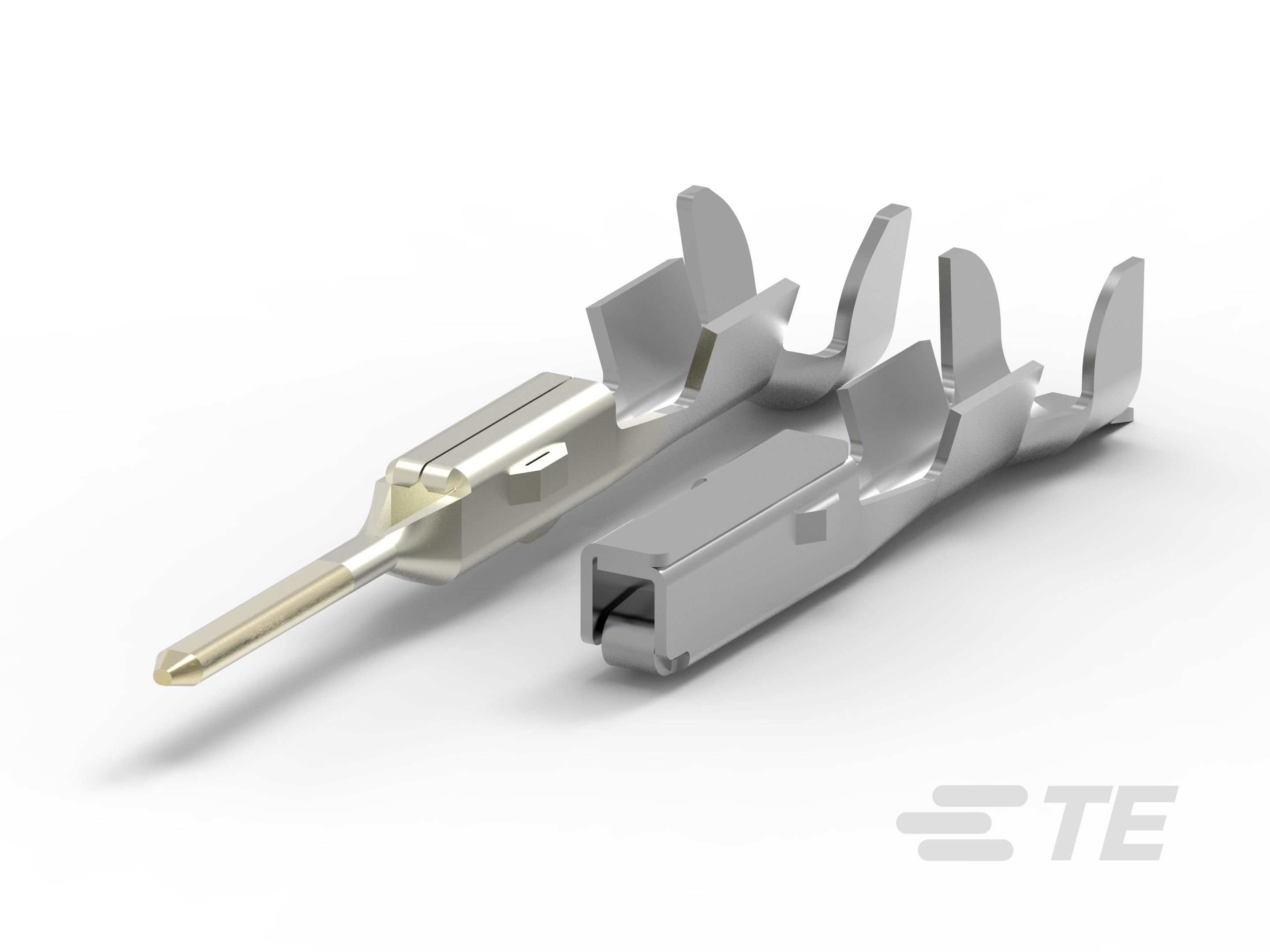

Multilock Connector System

Multilock contact system supports 3-15 amps with terminal options available in 0.64, 1.0, 1.8 and 2.3mm sizes in either clean body and locking lance terminal designs. Base material of the receptacle is constructed of copper alloy. Variety of contact options with pin counts ranging from 2-72 positions, with up to 200 pins available in ECU connectors.

More Less

Digital Datasheet|

Product Features

Terminal Type : Receptacle, Tab
Mating Tab Width (mm): 1.7, 1, 1.8, 1.5, .8, 2.3
Mating Tab Width (in): .059, .09, .071, .07, .039, .091, .031
Mating Tab Thickness (mm): .4, .64, .63
Mating Tab Thickness (in): .016, .025
Terminal Transmits : 0 – 24 A (Low Power)
Wire Size (AWG): 18 – 14, 20 – 14, 14 – 13, 22 – 18, 24 – 22, 18 – 16, 22 – 20, 18, 22, 20 – 16, 24 – 20, 20 – 18, 18 – 15, 14, 16 – 14

Available from

Product	TE Part #	Documents	Terminal Type	Mating Tab Width	Mating Tab Thickness	Terminal Transmits	Wire Size	Wire Size	Sealable	Terminal Seal Type	Wire Size Search	Wire Size Search	Primary Locking Feature	Interface Plating	Operating Temperature (Max)	Tab Length	Operating Temperature Range
040 NK TAB CONT PRE TIN	1376039-1	Product Drawing 3D PDF	Tab	1 mm	.64 mm	0 – 24 A (Low Power)	22 – 20 AWG	.3 – .5 mm²	No	-	.3 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C
070 SERIES REC CONTACT 20-16	175095-1	Product Drawing 3D PDF	Receptacle	1.8 mm	.64 mm	0 – 24 A (Low Power)	20 – 16 AWG	.5 – 1.25 mm²	No	-	1.25 mm², 1 mm², .5 mm², .75 mm², .6 mm²	20 AWG, 16 AWG, 17 AWG, 18 AWG, 19 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-30 – 105 °C
070 REC CONTACT FOR EJ MK-2 GB	175104-2	Product Drawing 3D PDF	Receptacle	1.8 mm	.64 mm	0 – 24 A (Low Power)	20 – 16 AWG	.5 – 1.25 mm²	No	-	1.25 mm², 1 mm², .5 mm², .75 mm², .6 mm²	20 AWG, 16 AWG, 17 AWG, 18 AWG, 19 AWG	Clean Body	Gold (Au)	-	-	-
070 MLC REC CONT PRE TIN	175221-1	Product Drawing 3D PDF	Receptacle	1 mm	.64 mm	0 – 24 A (Low Power)	20 – 16 AWG	.5 – 1.25 mm²	No	-	1.25 mm², 1 mm², .5 mm², .75 mm², .6 mm²	20 AWG, 16 AWG, 17 AWG, 18 AWG, 19 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C
2.3 UNSEALED TW REC.CONTACT	1981341-1	Product Drawing 3D PDF	Receptacle	2.3 mm	.64 mm	0 – 24 A (Low Power)	22 – 20 AWG	.37 – .56 mm²	No	-	.35 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-40 – 105 °C
040 SERIES TAB	345164-1	Product Drawing 3D PDF	Tab	1 mm	.64 mm	0 – 24 A (Low Power)	24 – 20 AWG	.2 – .5 mm²	No	-	.3 mm², .25 mm², .5 mm², .4 mm², .2 mm²	20 AWG, 21 AWG, 22 AWG, 23 AWG, 24 AWG	Clean Body	Tin (Sn)	-	-	-
070 SERIES TAB	345210-1	Product Drawing 3D PDF	Tab	1.8 mm	.64 mm	0 – 24 A (Low Power)	22 – 20 AWG	.3 – .5 mm²	No	-	.3 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C
040-3 UNSEALED CONT.TAB(S)	353537-1	Product Drawing 3D PDF	Tab	1 mm	.64 mm	0 – 24 A (Low Power)	22 – 20 AWG	.3 – .5 mm²	No	-	.3 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-40 – 105 °C
040 REC (M) FOR 100P PMC	175267-2	Product Drawing 3D PDF	Receptacle	1 mm	.64 mm	0 – 24 A (Low Power)	18 – 16 AWG	.85 – 1.25 mm²	No	-	1.25 mm², 1 mm², .75 mm²	16 AWG, 17 AWG, 18 AWG	Clean Body	Gold (Au)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-30 – 105 °C
090II NON SLD TAB(SQ0.85-1.25)	368087-1	Product Drawing 3D PDF	Tab	2.3 mm	.64 mm	0 – 24 A (Low Power)	18 – 16 AWG	.85 – 1.25 mm²	No	-	1.25 mm², 1 mm², .75 mm²	16 AWG, 17 AWG, 18 AWG	Clean Body	Tin (Sn)	80 °C, 75 °C, 70 °C	-	-30 – 105 °C
070 MLC REC CONT 20-16	173631-6	Product Drawing 3D PDF	Receptacle	1.8 mm	.64 mm	0 – 24 A (Low Power)	20 – 16 AWG	.5 – 1.25 mm²	No	-	1.25 mm², 1 mm², .5 mm², .75 mm², .6 mm²	20 AWG, 16 AWG, 17 AWG, 18 AWG, 19 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-30 – 105 °C
070 REC CONTACT GOLD PLATED	1-173630-2	Product Drawing 3D PDF	Receptacle	1.8 mm	.64 mm	0 – 24 A (Low Power)	24 – 22 AWG	.2 – .35 mm²	No	-	.3 mm², .25 mm², .2 mm²	22 AWG, 23 AWG, 24 AWG	Clean Body	Gold (Au)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C
090II N-SLD REC(SQ0.3-0.5)GOLD	1-368085-1	Product Drawing 3D PDF	Receptacle	2.3 mm	.64 mm	0 – 24 A (Low Power)	22 – 20 AWG	.3 – .5 mm²	No	-	.3 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Clean Body	Gold (Au)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-30 – 105 °C
090 SLD TAB CONT(0.3-0.5) GOLD	1-936260-1	Product Drawing 3D PDF	Tab	2.3 mm	.64 mm	0 – 24 A (Low Power)	22 – 20 AWG	.3 – .5 mm²	Yes	Single Wire Seal (SWS)	.3 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Clean Body	Gold (Au)	125 °C	-	-40 – 125 °C
TAB CONT.(POWER) AWG #2	173634-1	Product Drawing 3D PDF	Tab	1.8 mm	.64 mm	0 – 24 A (Low Power)	16 – 14 AWG	1.25 – 2 mm²	No	-	1.25 mm², 2 mm², 1.5 mm²	14 AWG, 15 AWG, 16 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-30 – 105 °C
MINI MLC CONN. TAB CONT.	917309-1	Product Drawing 3D PDF	Tab	.8 mm	.4 mm	0 – 24 A (Low Power)	22 – 20 AWG	.3 – .5 mm²	Yes	Family Seal	.3 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-40 – 105 °C
040 MULTILOCK REC CONT FORM	173681-2	Product Drawing 3D PDF	Receptacle	1 mm	.64 mm	0 – 24 A (Low Power)	22 – 20 AWG	.3 – .5 mm²	No	-	.3 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Clean Body	Gold (Au)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-30 – 105 °C
070 TAB CONTACT L.P 20-16	175030-1	Product Drawing 3D PDF	Tab	1.8 mm	.64 mm	0 – 24 A (Low Power)	20 – 16 AWG	.5 – 1.25 mm²	No	-	1.25 mm², 1 mm², .5 mm², .75 mm², .6 mm²	20 AWG, 16 AWG, 17 AWG, 18 AWG, 19 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C
060 TAB(SS) CONT	2109005-1	Product Drawing 3D PDF	Tab	1.5 mm	.63 mm	0 – 24 A (Low Power)	24 – 22 AWG	.22 – .35 mm²	No	-	.3 mm², .25 mm², .2 mm²	22 AWG, 23 AWG, 24 AWG	Locking Lance	Tin (Sn)	80 °C, 75 °C, 70 °C	-	-40 – 80 °C
.070 NEW GEN RCPT CONT 0.30 T	284087-2	Product Drawing 3D PDF	Receptacle	1.8 mm	.64 mm	0 – 24 A (Low Power)	22 – 20 AWG	.35 – .5 mm²	No	-	.35 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-30 – 105 °C
070 MULTILOCK REC CONT	173708-1	Product Drawing 3D PDF	Receptacle	1.8 mm	.64 mm	0 – 24 A (Low Power)	20 – 14 AWG	.5 – 2 mm²	No	-	1.25 mm², 2 mm², 1 mm², .5 mm², 1.5 mm², .6 mm², .8 mm²	20 AWG, 14 AWG, 15 AWG, 16 AWG, 17 AWG, 18 AWG, 19 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C
MINI MLC CONN REC CONT.	917308-1	Product Drawing 3D PDF	Receptacle	.8 mm	.4 mm	0 – 24 A (Low Power)	22 – 20 AWG	.3 – .5 mm²	Yes	Family Seal	.3 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-40 – 105 °C
040 MULTILOCK REC CONT L/P	175062-1	Product Drawing 3D PDF	Receptacle	1 mm	.64 mm	0 – 24 A (Low Power)	22 – 20 AWG	.3 – .5 mm²	No	-	.3 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-30 – 105 °C
REC CONT. (SIGNAL) AWG#22-24	173630-1	Product Drawing 3D PDF	Receptacle	1.8 mm	.64 mm	0 – 24 A (Low Power)	22 AWG	.3 mm²	No	-	.3 mm²	22 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-30 – 105 °C
070 REC CONTRACT 20-16	173631-2	Product Drawing 3D PDF	Receptacle	1.8 mm	.64 mm	0 – 24 A (Low Power)	20 – 16 AWG	.5 – 1.25 mm²	No	-	1.25 mm², 1 mm², .5 mm², .75 mm², .6 mm²	20 AWG, 16 AWG, 17 AWG, 18 AWG, 19 AWG	Clean Body	Gold (Au)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-30 – 105 °C
TAB CONT. (SINGNAL) AWG#22-24	173633-1	Product Drawing 3D PDF	Tab	1.8 mm	.64 mm	0 – 24 A (Low Power)	22 AWG	.3 mm²	No	-	.3 mm²	22 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C
060 REC(M) CONT	2109006-3	Product Drawing 3D PDF	Receptacle	1.5 mm	.64 mm	0 – 24 A (Low Power)	18 – 16 AWG	.85 – 1.25 mm²	No	-	1.25 mm², 1 mm², .75 mm²	16 AWG, 17 AWG, 18 AWG	Locking Lance	Tin (Sn)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-40 – 105 °C
2.3 UNSEALED TW REC.CONTACT	1981341-2	Product Drawing 3D PDF	Receptacle	2.3 mm	.64 mm	0 – 24 A (Low Power)	18 – 14 AWG	.85 – 1.96 mm²	No	-	1.25 mm², 1 mm², 2 mm², 1.5 mm², .75 mm²	14 AWG, 15 AWG, 16 AWG, 17 AWG, 18 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-40 – 105 °C
060 REC(SS) CONT	2109006-1	Product Drawing 3D PDF	Receptacle	1.5 mm	.64 mm	0 – 24 A (Low Power)	24 – 22 AWG	.22 – .35 mm²	No	-	.3 mm², .25 mm², .2 mm²	22 AWG, 23 AWG, 24 AWG	Locking Lance	Tin (Sn)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-40 – 105 °C
090II NON SLD TAB(SQ 0.3-0.5)	368088-1	Product Drawing 3D PDF	Tab	2.3 mm	.64 mm	0 – 24 A (Low Power)	22 – 20 AWG	.3 – .5 mm²	No	-	.3 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	7.3 mm	-30 – 105 °C
090 SLD TAB CONT(0.3-0.5)	936260-1	Product Drawing 3D PDF	Tab	2.3 mm	.64 mm	0 – 24 A (Low Power)	22 – 20 AWG	.3 – .5 mm²	Yes	Single Wire Seal (SWS)	.3 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Clean Body	Tin (Sn)	125 °C	-	-40 – 125 °C
070 REC CONTACT 24-22	173630-2	Product Drawing 3D PDF	Receptacle	1.8 mm	.64 mm	0 – 24 A (Low Power)	22 AWG	.3 mm²	No	-	.3 mm²	22 AWG	Clean Body	Gold (Au)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C
070 MLC REC CONT 24-22	173630-6	Product Drawing 3D PDF	Receptacle	1.8 mm	.64 mm	0 – 24 A (Low Power)	22 AWG	.3 mm²	No	-	.3 mm²	22 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-30 – 105 °C
070 MLC REC CONT	175124-1	Product Drawing 3D PDF	Receptacle	1.8 mm	.64 mm	0 – 24 A (Low Power)	22 – 20 AWG	.3 – .5 mm²	No	-	.3 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C
040 REC FOR 120P ECU CONN	175197-2	Product Drawing 3D PDF	Receptacle	1 mm	.64 mm	0 – 24 A (Low Power)	20 – 16 AWG	.5 – 1.25 mm²	No	-	1.25 mm², 1 mm², .5 mm², .75 mm², .6 mm²	20 AWG, 16 AWG, 17 AWG, 18 AWG, 19 AWG	Clean Body	Gold (Au)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C, 110 °C, 120 °C	-	-40 – 120 °C
070 REC (M) FOR NSCC	175269-1	Product Drawing 3D PDF	Receptacle	1.8 mm	.64 mm	0 – 24 A (Low Power)	20 – 16 AWG	.5 – 1.25 mm²	No	-	1.25 mm², 1 mm², .5 mm², .75 mm², .6 mm²	20 AWG, 16 AWG, 17 AWG, 18 AWG, 19 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C
040 MLC TAB CONTACT	173682-1	Product Drawing 3D PDF	Tab	1 mm	.64 mm	-	22 – 20 AWG	.3 – .56 mm²	No	-	.3 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Clean Body	Tin (Sn)	105 °C	19 mm	-30 – 105 °C
040 SEALED REC CONT S FORMING	316833-2	Product Drawing 3D PDF	Receptacle	1 mm	.64 mm	0 – 24 A (Low Power)	22 – 20 AWG	.3 – .5 mm²	Yes	Single Wire Seal (SWS)	.3 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Clean Body	Gold (Au)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-30 – 105 °C
040-3 REC CONTACT M PRE-TIN	316838-1	Product Drawing 3D PDF	Receptacle	1 mm	.64 mm	0 – 24 A (Low Power)	18 – 16 AWG	.85 – 1.25 mm²	No	-	1.25 mm², 1 mm², .75 mm²	16 AWG, 17 AWG, 18 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-30 – 105 °C
0.040 MULTILOCK RCPT	776181-1	Product Drawing 3D PDF	Receptacle	1 mm	.64 mm	0 – 24 A (Low Power)	18 AWG	.85 mm²	No	-	.75 mm²	18 AWG	Clean Body	Tin (Sn)	-	-	-
070 MULTILOCK REC TML(2mm)	85098-1	Product Drawing 3D PDF	Receptacle	1.8 mm	.64 mm	0 – 24 A (Low Power)	14 AWG	2 mm²	No	-	2 mm²	14 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C
070 TAB CONT GOLD	171631-2	Product Drawing 3D PDF	Tab	1.8 mm	.64 mm	0 – 24 A (Low Power)	24 – 20 AWG	.2 – .5 mm²	Yes	Single Wire Seal (SWS)	.3 mm², .25 mm², .5 mm², .4 mm², .2 mm²	20 AWG, 21 AWG, 22 AWG, 23 AWG, 24 AWG	Clean Body	Gold (Au)	105 °C	20.4 mm	-30 – 105 °C
MCI/O REC CONTACT REEL	173631-1	Product Drawing 3D PDF	Receptacle	1.8 mm	.64 mm	0 – 24 A (Low Power)	18 – 16 AWG	.85 – 1.25 mm²	No	-	1.25 mm², 1 mm², .75 mm²	16 AWG, 17 AWG, 18 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C
060 REC(S) CONT	2109006-2	Product Drawing 3D PDF	Receptacle	1.5 mm	.64 mm	0 – 24 A (Low Power)	20 – 18 AWG	.5 – .75 mm²	No	-	.5 mm², .75 mm², .6 mm²	20 AWG, 18 AWG, 19 AWG	Locking Lance	Tin (Sn)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-40 – 105 °C
070 MLC TAB CONT 24-22 GOLD	173633-3	Product Drawing 3D PDF	Tab	1.8 mm	.64 mm	0 – 24 A (Low Power)	22 AWG	.3 mm²	No	-	.3 mm²	22 AWG	Clean Body	Gold (Au)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-30 – 105 °C
040 MLC REC CONTACT	173681-1	Product Drawing 3D PDF	Receptacle	1 mm	.64 mm	0 – 24 A (Low Power)	22 – 20 AWG	.3 – .5 mm²	No	-	.3 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-30 – 105 °C
070 REC CONTACT "S"	179965-1	Product Drawing 3D PDF	Receptacle	1.8 mm	.64 mm	0 – 24 A (Low Power)	22 – 18 AWG	.3 – .85 mm²	No	-	.3 mm², .5 mm², .4 mm², .6 mm², .8 mm²	20 AWG, 21 AWG, 22 AWG, 18 AWG, 19 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-30 – 105 °C
070 MLC TAB CONT 24-22	173633-2	Product Drawing 3D PDF	Tab	1.8 mm	.64 mm	0 – 24 A (Low Power)	22 AWG	.3 mm²	No	-	.3 mm²	22 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C
060 TAB(S) CONT	2109005-2	Product Drawing 3D PDF	Tab	1.5 mm	.64 mm	0 – 24 A (Low Power)	20 – 18 AWG	.5 – .75 mm²	No	-	.5 mm², .75 mm², .6 mm²	20 AWG, 18 AWG, 19 AWG	Locking Lance	Tin (Sn)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-40 – 105 °C
040-2 REC CONTACT S L/P 22-18	179417-1	Product Drawing 3D PDF	Receptacle	1 mm	.64 mm	0 – 24 A (Low Power)	22 – 18 AWG	.3 – .85 mm²	No	-	.3 mm², .5 mm², .4 mm², .6 mm², .8 mm²	20 AWG, 21 AWG, 22 AWG, 18 AWG, 19 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C, 110 °C, 120 °C	-	-40 – 120 °C
070 SERIES TAB	345212-1	Product Drawing 3D PDF	Tab	1.8 mm	.64 mm	0 – 24 A (Low Power)	18 – 15 AWG	.75 – 1.5 mm²	No	-	1.25 mm², 1 mm², 1.5 mm², .75 mm²	15 AWG, 16 AWG, 17 AWG, 18 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C
040III TAB NON SEALED TIN	1565963-1	Product Drawing 3D PDF	Tab	1 mm	.64 mm	0 – 24 A (Low Power)	22 – 20 AWG	.3 – .5 mm²	No	-	.3 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-30 – 105 °C
070 TAB CONT 16-20	173645-1	Product Drawing 3D PDF	Tab	1.8 mm	.64 mm	0 – 24 A (Low Power)	20 – 16 AWG	.5 – 1.25 mm²	No	-	1.25 mm², 1 mm², .5 mm², .75 mm², .6 mm²	20 AWG, 16 AWG, 17 AWG, 18 AWG, 19 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C
070 TAB CONTACT 16-20	175208-1	Product Drawing 3D PDF	Tab	1.8 mm	.64 mm	0 – 24 A (Low Power)	20 – 16 AWG	.5 – 1.25 mm²	No	-	1.25 mm², 1 mm², .5 mm², .75 mm², .6 mm²	20 AWG, 16 AWG, 17 AWG, 18 AWG, 19 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C
090II NON SLD TAB(SQ 2.0)	368086-1	Product Drawing 3D PDF	Tab	2.3 mm	.64 mm	0 – 24 A (Low Power)	14 – 13 AWG	2.08 – 2.62 mm²	No	-	2.5 mm², 2 mm²	13 AWG, 14 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-30 – 105 °C
060 TAB(M) CONT	2109005-3	Product Drawing 3D PDF	Tab	1.5 mm	.64 mm	0 – 24 A (Low Power)	18 – 16 AWG	.85 – 1.25 mm²	No	-	1.25 mm², 1 mm², .75 mm²	16 AWG, 17 AWG, 18 AWG	Locking Lance	Tin (Sn)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-40 – 105 °C
.070 NEW GEN RCPT CONT 0.75 T	284088-1	Product Drawing 3D PDF	Receptacle	1.8 mm	.64 mm	0 – 24 A (Low Power)	18 – 15 AWG	.75 – 1.5 mm²	No	-	1.25 mm², 1 mm², 1.5 mm², .75 mm²	15 AWG, 16 AWG, 17 AWG, 18 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C
070 REC (S) FOR NSCC	175268-1	Product Drawing 3D PDF	Receptacle	1.8 mm	.64 mm	0 – 24 A (Low Power)	22 – 18 AWG	.3 – .85 mm²	No	-	.3 mm², .5 mm², .4 mm², .6 mm², .8 mm²	20 AWG, 21 AWG, 22 AWG, 18 AWG, 19 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C
040-3 UNSEALED REC CONT. S AU	316837-2	Product Drawing 3D PDF	Receptacle	1 mm	.64 mm	0 – 24 A (Low Power)	22 – 18 AWG	.3 – .85 mm²	No	-	.3 mm², .5 mm², .4 mm², .6 mm², .8 mm²	20 AWG, 21 AWG, 22 AWG, 18 AWG, 19 AWG	Clean Body	Gold (Au)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C
070 MLC TAB CONT 20-16 GOLD	173645-3	Product Drawing 3D PDF	Tab	1.8 mm	.64 mm	0 – 24 A (Low Power)	20 – 16 AWG	.5 – 1.25 mm²	No	-	1.25 mm², 1 mm², .5 mm², .75 mm², .6 mm²	20 AWG, 16 AWG, 17 AWG, 18 AWG, 19 AWG	Clean Body	Gold (Au)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C
070 TAB (S) FOR NSCC	175272-1	Product Drawing 3D PDF	Tab	1.8 mm	.64 mm	0 – 24 A (Low Power)	22 – 18 AWG	.3 – .85 mm²	No	-	.3 mm², .5 mm², .4 mm², .6 mm², .8 mm²	20 AWG, 21 AWG, 22 AWG, 18 AWG, 19 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C
040-3 SEALED CONT. REC. S	316832-1	Product Drawing 3D PDF	Receptacle	1 mm	.64 mm	0 – 24 A (Low Power)	22 – 20 AWG	.3 – .5 mm²	Yes	Single Wire Seal (SWS)	.3 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C
040 HDIO REC CONT	173716-2	Product Drawing 3D PDF	Receptacle	1 mm	.64 mm	0 – 24 A (Low Power)	22 – 20 AWG	.3 – .5 mm²	No	-	.3 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Clean Body	Gold (Au)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-30 – 105 °C
040 TAB CONTACT	1897724-1	Product Drawing 3D PDF	Tab	1 mm	.64 mm	0 – 24 A (Low Power)	22 – 20 AWG	.3 – .5 mm²	No	-	.3 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Clean Body	Tin (Sn)	80 °C, 75 °C, 70 °C	-	-40 – 80 °C
O4O HYBRID I/O REC CONT 24-20	175094-1	Product Drawing 3D PDF	Receptacle	1 mm	.64 mm	0 – 24 A (Low Power)	22 – 20 AWG	.3 – .5 mm²	No	-	.3 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C
040 MULTILOCK REC CONT PRE-TIN	175180-1	Product Drawing 3D PDF	Receptacle	1 mm	.64 mm	0 – 24 A (Low Power)	22 – 20 AWG	.3 – .5 mm²	No	-	.3 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-30 – 105 °C
070 MULTILOCK RCPT CONT	282375-1	Product Drawing 3D PDF	Receptacle	1.8 mm	.64 mm	0 – 24 A (Low Power)	18 – 15 AWG	.75 – 1.5 mm²	No	-	1.25 mm², 1 mm², 1.5 mm², .75 mm²	15 AWG, 16 AWG, 17 AWG, 18 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C
040 HDIO REC CONT	173716-1	Product Drawing 3D PDF	Receptacle	1 mm	.64 mm	0 – 24 A (Low Power)	22 – 20 AWG	.3 – .5 mm²	No	-	.3 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-30 – 105 °C
070 SERIES RECEPT.	345206-1	Product Drawing 3D PDF	Receptacle	1.7 mm	.64 mm	0 – 24 A (Low Power)	22 – 20 AWG	.3 – .5 mm²	No	-	.3 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Clean Body	Tin (Sn)	-	-	-
040 SEALED TAB CONT. S / GOLD	316834-2	3D PDF	Tab	1 mm	.64 mm	0 – 24 A (Low Power)	22 – 20 AWG	.3 – .5 mm²	Yes	Single Wire Seal (SWS)	.3 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Clean Body	Gold (Au)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C
040-3 UNSEALED CONT.TAB(S)GOLD	353537-2	Product Drawing 3D PDF	Tab	1 mm	.64 mm	0 – 24 A (Low Power)	22 – 20 AWG	.3 – .5 mm²	No	-	.3 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Clean Body	Gold (Au)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-40 – 105 °C
090II MLC TAB(SS) CONTACT	1897752-1	Product Drawing 3D PDF	Tab	2.3 mm	.64 mm	0 – 24 A (Low Power)	24 – 20 AWG	.2 – .5 mm²	No	-	.3 mm², .25 mm², .5 mm², .4 mm², .2 mm²	20 AWG, 21 AWG, 22 AWG, 23 AWG, 24 AWG	Clean Body	Tin (Sn)	125 °C	-	-40 – 125 °C
040-3 REC CONT. S	316836-1	Product Drawing 3D PDF	Receptacle	1 mm	.64 mm	0 – 24 A (Low Power)	22 – 18 AWG	.3 – .85 mm²	No	-	.3 mm², .5 mm², .4 mm², .6 mm², .8 mm²	20 AWG, 21 AWG, 22 AWG, 18 AWG, 19 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-30 – 105 °C
040 REC (S) FOR NSCC	175265-1	Product Drawing 3D PDF	Receptacle	1 mm	.64 mm	0 – 24 A (Low Power)	22 – 18 AWG	.3 – .85 mm²	No	-	.3 mm², .5 mm², .4 mm², .6 mm², .8 mm²	20 AWG, 21 AWG, 22 AWG, 18 AWG, 19 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-30 – 105 °C
070 MLC REC CONT 20-16 GOLD	173631-7	Product Drawing 3D PDF	Receptacle	1.8 mm	.64 mm	0 – 24 A (Low Power)	20 – 16 AWG	.5 – 1.25 mm²	No	-	1.25 mm², 1 mm², .5 mm², .75 mm², .6 mm²	20 AWG, 16 AWG, 17 AWG, 18 AWG, 19 AWG	Clean Body	Gold (Au)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-30 – 105 °C
070 MULTILOK RCPT CONT.	282374-1	Product Drawing 3D PDF	Receptacle	1.8 mm	.64 mm	0 – 24 A (Low Power)	22 – 20 AWG	.35 – .5 mm²	No	-	.35 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-30 – 105 °C
070 MULTILOCK TAB CONTACT	282377-1	Product Drawing 3D PDF	Tab	1.8 mm	.64 mm	0 – 24 A (Low Power)	22 – 20 AWG	.3 – .5 mm²	No	-	.3 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-30 – 105 °C
040III TAB NON SEALED AU	1565963-2	Product Drawing 3D PDF	Tab	1 mm	.64 mm	0 – 24 A (Low Power)	22 – 20 AWG	.34 – .56 mm²	No	-	.3 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Clean Body	Gold (Au)	-	-	-
070 MLC TAB CON 20-16	173645-2	Product Drawing 3D PDF	Tab	1.8 mm	.64 mm	0 – 24 A (Low Power)	20 – 16 AWG	.5 – 1.25 mm²	No	-	1.25 mm², 1 mm², .5 mm², .75 mm², .6 mm²	20 AWG, 16 AWG, 17 AWG, 18 AWG, 19 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C
070 REC CONTACT "S" FORM	179967-2	Product Drawing 3D PDF	Receptacle	1.8 mm	.64 mm	0 – 24 A (Low Power)	22 – 18 AWG	.3 – .85 mm²	No	-	.3 mm², .5 mm², .4 mm², .6 mm², .8 mm²	20 AWG, 21 AWG, 22 AWG, 18 AWG, 19 AWG	-	Tin (Sn)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C
070 MLC TAB CONT #24-22	175188-1	Product Drawing 3D PDF	Tab	1.8 mm	.64 mm	0 – 24 A (Low Power)	22 AWG	.3 mm²	No	-	.3 mm²	22 AWG	Clean Body	Tin (Sn)	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C

Features

Please review product documents or contact us for the latest agency approval information.

Packaging Features

Packaging Method Package, Bag, Reel
Packaging Quantity 7000, 4250, 5000, 12000, 3000, 4000, 1500, 4500, 1000, 6000, 2000

Contact Features

Wire Contact Termination Area Plating Material Tin, Gold
Typical Current Rating (A) 4, 5, 20, 6, 14, 7, 10
Crimp Type F-Crimp
Contact Size 1.8mm, 1.4mm, 1mm, 1.5mm, 2.3mm, .8mm, 1.7mm
Contact Fabrication Stamped & Formed
Terminal Type Receptacle, Tab
Mating Tab Width (mm) 1.7, 1, 1.8, 1.5, .8, 2.3
Mating Tab Width (in) .059, .09, .071, .07, .039, .091, .031
Mating Tab Thickness (mm) .4, .64, .63
Mating Tab Thickness (in) .016, .025
Interface Plating Tin (Sn), Gold (Au)

Dimensions

Compatible Insulation Diameter Range (mm) 1.8, 1.1 – 2, 1 – 1.05, 1.1 – 1.4, 1.2 – 1.6, 1.4 – 2.4, 2, 1.2 – 2.2, 1 – 1.5, 1.8 – 2, 1.8 – 2.1, 1.4 – 2.14, 1.5 – 1.8, 2.01 – 2.9, 2.7, 1.8 – 2.6, 1.7 – 2.4, 1 – 1.7, 1.8 – 2.2, 1 – 1.4, 1.4 – 1.9, 1.1 – 2.1, 1.5 – 2.7, 2 – 2.6, 1.1 – 2.3, 1.1 – 1.3, 1.4 – 2, 1.4 – 1.6, 1.4 – 1.7, 2.6 – 3.1, 1.2 – 2, 1.2 – 1.9, 1.6
Compatible Insulation Diameter Range (mm) 1.8, 1.1 – 2, 1 – 1.05, 1.1 – 1.4, 1.2 – 1.6, 1.4 – 2.4, 2, 1.2 – 2.2, 1 – 1.5, 1.8 – 2, 1.8 – 2.1, 1.4 – 2.14, 1.5 – 1.8, 2.01 – 2.9, 2.7, 1.8 – 2.6, 1.7 – 2.4, 1 – 1.7, 1.8 – 2.2, 1 – 1.4, 1.4 – 1.9, 1.1 – 2.1, 1.5 – 2.7, 2 – 2.6, 1.1 – 2.3, 1.1 – 1.3, 1.4 – 2, 1.4 – 1.6, 1.4 – 1.7, 2.6 – 3.1, 1.2 – 2, 1.2 – 1.9, 1.6
Compatible Insulation Diameter Range (in) .071 – .082, .047 – .074, .055 – .075, .039 – .067, .039 – .055, .039 – .059, .043 – .083, .047 – .079, .04 – .041, .067 – .094, .071 – .079, .043 – .09, .079, .078 – .102, .07 – .079, .055 – .066, .071, .055 – .067, .102 – .122, .055 – .094, .11, .079 – .114, .057 – .083, .047 – .067, .071 – .102, .043 – .079, .043 – .082, .047 – .086, .043 – .055, .075 – .094, .055 – .079, .037 – .067, .079 – .102
Wire Size (AWG) 18 – 14, 20 – 14, 14 – 13, 22 – 18, 24 – 22, 18 – 16, 22 – 20, 18, 22, 20 – 16, 24 – 20, 20 – 18, 18 – 15, 14, 16 – 14
Wire Size (mm²) .5 – 1.25, .5 – .75, 2.08 – 2.62, 2, .85 – 1.96, .2 – .5, .3 – .5, .3, .3 – .85, .3 – .56, .5 – 2, .22 – .35, 1.25 – 2, .85, .75 – 1.5, .85 – 1.25, .37 – .56, .2 – .35, .34 – .56, .35 – .5
Wire Size Search (mm²) 2.5, 1.25, .3, .25, 1.5, 1, .75, .2, .8, .4, .6, .5, .35, 2
Wire Size Search (AWG) 13, 20, 24, 15, 23, 22, 16, 18, 17, 21, 14, 19
Tab Length (mm) 7.3, 20.4, 19
Tab Length (in) .748, .287, .8

Other

Customer Preferred Contact No
Terminal Transmits 0 – 24 A (Low Power)
EU RoHS Compliance Compliant
EU ELV Compliance Compliant

Product Type Features

Receptacle Style 180°
Sealable Yes, No
Primary Locking Feature Clean Body, Locking Lance

Usage Conditions

Insulation Option Uninsulated
Operating Temperature (Max) (°C) 120, 105, 85, 90, 75, 125, 80, 110, 70, 100
Operating Temperature (Max) (°F) 158, 221, 176, 212, 167
Operating Temperature Range (°C) -40 – 125, -30 – 105, -40 – 80, -40 – 105, -40 – 120
Operating Temperature Range (°F) -40 – 176, -40 – 257, -22 – 221, -40 – 221, -40 – 248

Industry Standards

Compatible With Agency/Standards Products OEM

Termination Features

Termination Method to Wire & Cable Crimp
Product Terminates To Wire

Operation/Application

Compatible With Wire Base Material Copper

Body Features

Terminal Seal Type Family Seal, Single Wire Seal (SWS)

Reference Number

TE Internal Number CAT-M9194-T273

Related Materials

Datasheets & Catalog Pages

MULTILOCK Connector System pdf English

MULTILOCK, RECEPTACLE AND TAB

Product Features

Terminal Type : Receptacle, Tab

Mating Tab Width (mm): 1.7, 1, 1.8, 1.5, .8, 2.3

Mating Tab Width (in): .059, .09, .071, .07, .039, .091, .031

Mating Tab Thickness (mm): .4, .64, .63

Mating Tab Thickness (in): .016, .025

Terminal Transmits : 0 – 24 A (Low Power)

Wire Size (AWG): 18 – 14, 20 – 14, 14 – 13, 22 – 18, 24 – 22, 18 – 16, 22 – 20, 18, 22, 20 – 16, 24 – 20, 20 – 18, 18 – 15, 14, 16 – 14

Packaging Features

Packaging Method Package, Bag, Reel

Packaging Quantity 7000, 4250, 5000, 12000, 3000, 4000, 1500, 4500, 1000, 6000, 2000

Contact Features

Wire Contact Termination Area Plating Material Tin, Gold

Typical Current Rating (A) 4, 5, 20, 6, 14, 7, 10

Crimp Type F-Crimp

Contact Size 1.8mm, 1.4mm, 1mm, 1.5mm, 2.3mm, .8mm, 1.7mm

Contact Fabrication Stamped & Formed

Terminal Type Receptacle, Tab

Mating Tab Width (mm) 1.7, 1, 1.8, 1.5, .8, 2.3

Mating Tab Width (in) .059, .09, .071, .07, .039, .091, .031

Mating Tab Thickness (mm) .4, .64, .63

Mating Tab Thickness (in) .016, .025

Interface Plating Tin (Sn), Gold (Au)

Dimensions

Wire Size (AWG) 18 – 14, 20 – 14, 14 – 13, 22 – 18, 24 – 22, 18 – 16, 22 – 20, 18, 22, 20 – 16, 24 – 20, 20 – 18, 18 – 15, 14, 16 – 14

Wire Size (mm²) .5 – 1.25, .5 – .75, 2.08 – 2.62, 2, .85 – 1.96, .2 – .5, .3 – .5, .3, .3 – .85, .3 – .56, .5 – 2, .22 – .35, 1.25 – 2, .85, .75 – 1.5, .85 – 1.25, .37 – .56, .2 – .35, .34 – .56, .35 – .5

Wire Size Search (mm²) 2.5, 1.25, .3, .25, 1.5, 1, .75, .2, .8, .4, .6, .5, .35, 2

Wire Size Search (AWG) 13, 20, 24, 15, 23, 22, 16, 18, 17, 21, 14, 19

Tab Length (mm) 7.3, 20.4, 19

Tab Length (in) .748, .287, .8

Other

Customer Preferred Contact No

Terminal Transmits 0 – 24 A (Low Power)

EU RoHS Compliance Compliant

EU ELV Compliance Compliant

Product Type Features

Receptacle Style 180°

Sealable Yes, No

Primary Locking Feature Clean Body, Locking Lance

Usage Conditions

Insulation Option Uninsulated

Operating Temperature (Max) (°C) 120, 105, 85, 90, 75, 125, 80, 110, 70, 100

Operating Temperature (Max) (°F) 158, 221, 176, 212, 167

Operating Temperature Range (°C) -40 – 125, -30 – 105, -40 – 80, -40 – 105, -40 – 120

Operating Temperature Range (°F) -40 – 176, -40 – 257, -22 – 221, -40 – 221, -40 – 248

Industry Standards

Compatible With Agency/Standards Products OEM

Termination Features

Termination Method to Wire & Cable Crimp

Product Terminates To Wire

Operation/Application

Compatible With Wire Base Material Copper

Body Features

Terminal Seal Type Family Seal, Single Wire Seal (SWS)

Reference Number

TE Internal Number CAT-M9194-T273
