High-speed Mezzanine Connector: Pin & Socket Connector

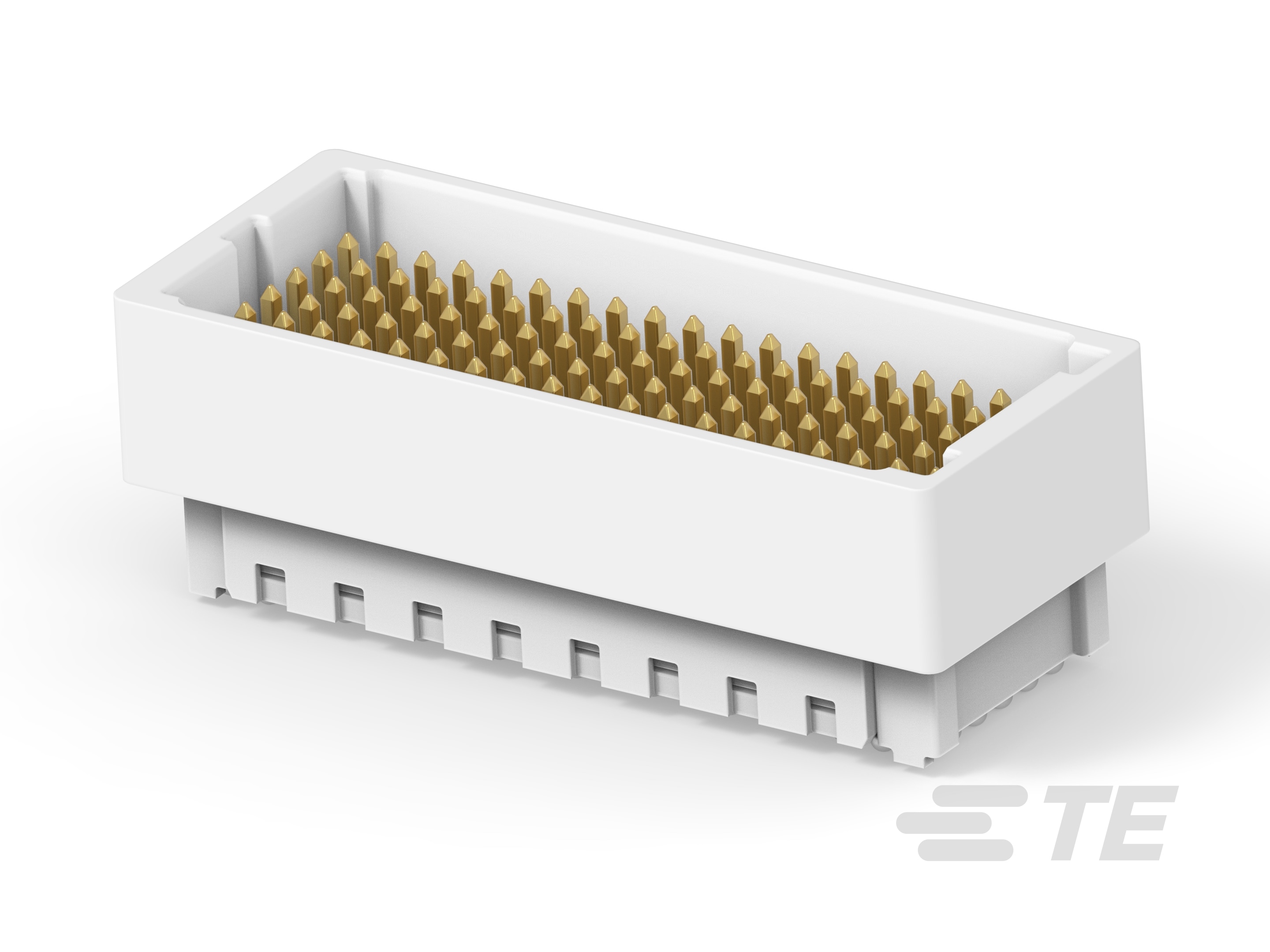

High-speed Mezzanine Connector: Pin & Socket Connector-CAT-MEZALOK-HS-114
TE’s Mezalok high-speed pin & socket mezzanine connectors incorporate quad-redundant mini-box contact system for separable interface with 60/114/320 position module
More Less

Product Features

  • PCB Connector Type : PCB Mount Header, PCB Mount Receptacle

  • PCB Mount Orientation : Vertical

  • Connector System : Board-to-Board

  • Number of Positions : 60, 114, 320

  • Number of Rows : 6, 8

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Applied Pressure  Low

  • Ground Feature Type  Signal Ground Contacts

  • PCB Connector Type  PCB Mount Header, PCB Mount Receptacle

  • Connector System  Board-to-Board

  • Header Type  Fully Shrouded

  • Sealable  No

  • Connector & Contact Terminates To  Printed Circuit Board

  • Connector Product Type  Connector Assembly

Configuration Features

  • Number of Power Positions  0

  • Number of Columns  19

  • Number of Signal Positions  114

  • Board-to-Board Configuration  Parallel

  • Keying & Polarized Position Locations  None

  • Number of Loaded Positions  114

  • Stackable  Yes

  • Connector Contact Load Condition  Fully Loaded

  • PCB Mount Orientation  Vertical

  • Number of Positions  60, 114, 320

  • Number of Rows  6, 8

Electrical Characteristics

  • Dielectric Withstanding Voltage (Max) (VAC) 750

  • Operating Voltage (VAC) 250

Signal Characteristics

  • Data Rate (Gb/s) 10

Body Features

  • Primary Product Color  Beige, Natural

Contact Features

  • Mating Tab Thickness (mm) .46

  • Mating Tab Thickness (in) .017, .018

  • Contact Base Material  Beryllium Copper, Phosphor Bronze

  • Contact Mating Area Plating Material Thickness (µm) .076, .76, 1.27

  • Contact Mating Area Plating Material Thickness (µin) 29.92, 30, 50

  • PCB Contact Termination Area Plating Material  Tin-Lead, Tin-Silver-Copper

  • Contact Underplating Material  Nickel

  • Contact Layout  Matrix

  • Mating Tab Width  .43 mm [ .017 in ]

  • Contact Mating Area Plating Material Finish  Bright

  • Contact Shape & Form  Square

  • Contact Mating Area Plating Material  Gold (Au)

  • Contact Type  Pin, Socket

  • Contact Current Rating (Max) (A) 1.5

Termination Features

  • Termination Method to PCB  Surface Mount - Solder Ball

Mechanical Attachment

  • PCB Mount Retention Type  Solder Ball

  • PCB Mount Alignment Type  None

  • Mating Alignment Type  Keyed, Polarizing Rib, Polarizing Slot, Polarizing Tab, Self-Aligning (Alignment Free)

  • PCB Mount Retention  Without

  • PCB Mount Alignment  Without

  • Connector Mounting Type  Board Mount

  • Mating Alignment  With

Housing Features

  • Housing Material  LCP

  • Mating Entry Location  Top

  • Centerline (Pitch)  1.27 mm [ .05 in ]

Dimensions

  • PCB Thickness (Recommended)  2.36 mm [ .093 in ]

  • Stack Height (mm) 10, 12, 15, 17, 18

  • Stack Height (in) .393, .394, .472, .591, .669, .709

  • Connector Height (mm) 5.75, 6, 7.75, 8, 9.15, 11, 14

  • Connector Height (in) .226, .236, .305, .314, .36, .432, .55

  • Row-to-Row Spacing  1.27 mm [ .05 in ]

Usage Conditions

  • Operating Temperature Range  -55 – 125 °C [ -67 – 257 °F ]

Operation/Application

  • Assembly Process Feature  Pick and Place Cover

  • Circuit Application  Signal

Industry Standards

  • Industry Standard  VITA 61

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Quantity  100, 230, 350, 450

  • Packaging Method  Pocket Tape, Reel, Tape & Reel

Reference Number

  • TE Internal Number CAT-MEZALOK-HS-114
