Constant Voltage MV Pressure Sensor 87CV
- MEAS
- MEAS 87
Product Features
-
Pressure (bar): 206, 69, 344
-
Pressure (psi): 3000, 5000, 1000
-
Pressure Sensor Type : mV Output Pressure Sensors
-
Pressure Type : Sealed Gauge, Absolute
-
Output Signal Type : 100mV
-
Supply Voltage Range (V): 10

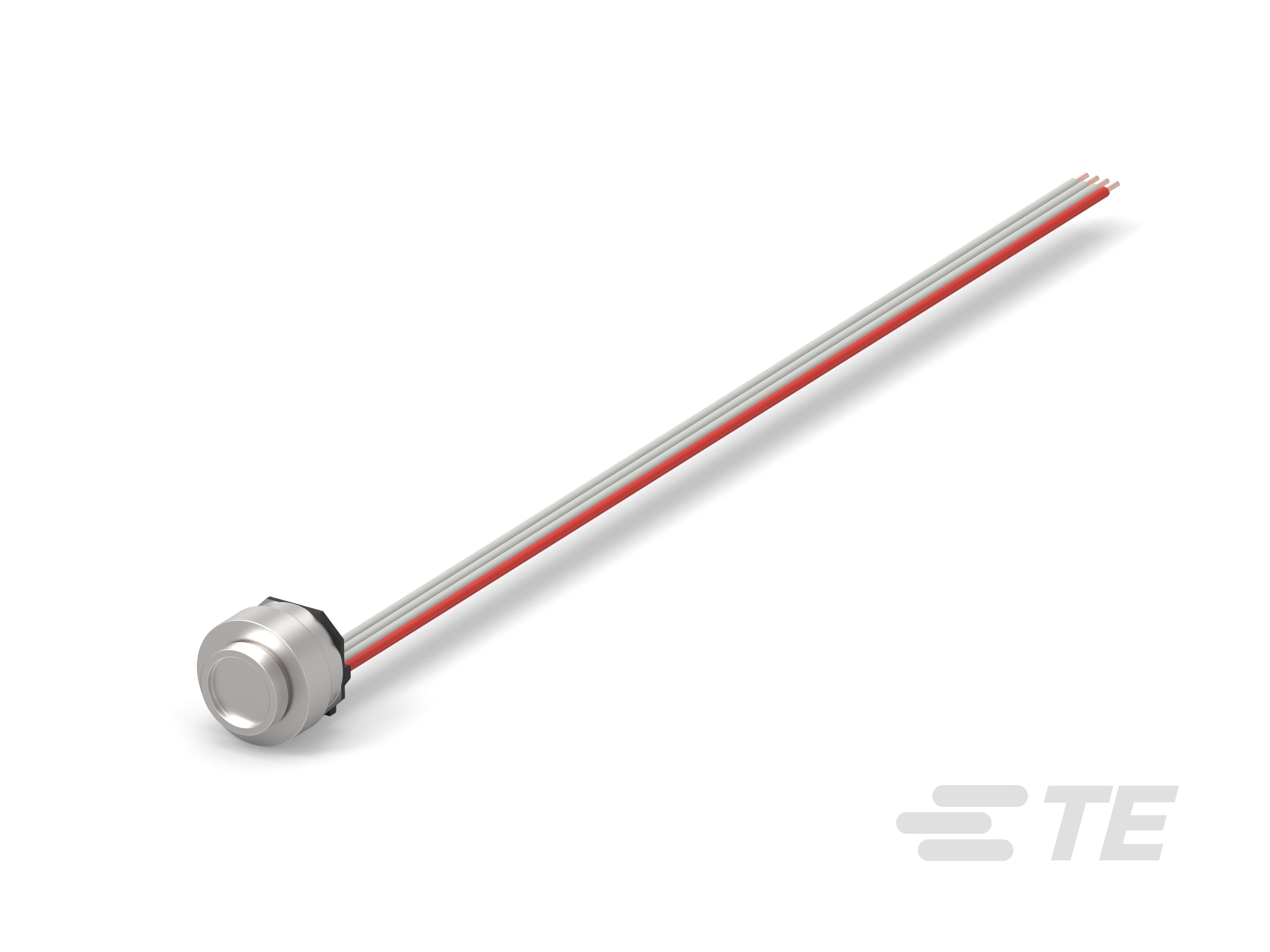

The constant voltage model 87 pressure sensor features a small profile and corrosive media compatibility.
The constant voltage model 87 is a a micro machined piezoresistive silicon pressure sensor. It is designed for OEM applications where compatibility with corrosive media must be maintained.The sensor chip is mounted in a 316L stainless steel package, sealing a small volume of silicon oil between the diaphragm and the sensor chip. The ISO pressure housing utilizes the oil column to couple the piezoresistive sensor to the isolation diaphragm. A ceramic substrate is attached to the package that contains lasertrimmed resistors for temperature compensation and offset correction. A variety of threaded process fittings are available. Fittings include standards like 1/4 and 1/8 NPT as well as custom process fittings. The sensor is available in absolute and sealed gage configurations. Electrical options include cable and connector.
Benefits
- Weldable, Optional Process Fittings
- ±0.25% Pressure Non-linearity
- ±1.0% Temperature Performance
- Solid State Reliability
- Low Power
- Absolute or Sealed Gage
Applications
- Hydraulic Controls
- Process Control
- Robotics
- Oceanography
- Refrigeration/Compressors
- Pressure Transmitters
More from the model 87 product family
Please review product documents or contact us for the latest agency approval information.
Operation/Application
-
Proof Pressure Range 3X
-
Output Signal Type 100mV
Other
-
Non-Linearity ± (%) .25
-
Port Fitting 1/8-27 NPT (7/8 Hex), None, 1/4-18 NPT (7/8 Hex), 1/4-18 NPT (5/8 Hex), 1/4-19 BSP (3/4 Hex), 1/8-27 NPT (5/8 Hex), 1/4-19 BSP (7/8 Hex), 7/16-20 UNF (7/8) Hex
-
EU RoHS Compliance Compliant, Compliant with Exemptions
-
EU ELV Compliance Compliant, Compliant with Exemptions
Dimensions
-
Product Height 13.84 mm [ .54 in ]
Configuration Features
-
Electrical Connection Cable, Solder Pads, Cable w/ Connector
Product Type Features
-
Pressure Sensor Type mV Output Pressure Sensors
-
Pressure Type Sealed Gauge, Absolute
-
Sensor Package Weldable
Electrical Characteristics
-
Supply Voltage Range (V) 10
Usage Conditions
-
Pressure (bar) 206, 69, 344
-
Pressure (psi) 3000, 5000, 1000
-
Operating Temperature Range -40 – 125 °C [ -40 – 257 °F ]
Reference Number
-
TE Internal Number CAT-MIPS0042
Datasheets & Catalog Pages
- 87CV English
