MV Pressure Sensor, Compensated, 87NC
- MEAS
- MEAS 87
Product Features
-
Pressure (bar): 206, 689.4, 689, 0, 69, 344
-
Pressure (psi): 3000, 10000, 0, 5000, 1000
-
Pressure Sensor Type : mV Output Pressure Sensors
-
Pressure Type : Sealed Gauge, Absolute
-
Output Signal Type : 150mV, 100mV
-
Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]
The temperature compensated pressure sensor model 87 features low power consumption and corrosive media compatibility.

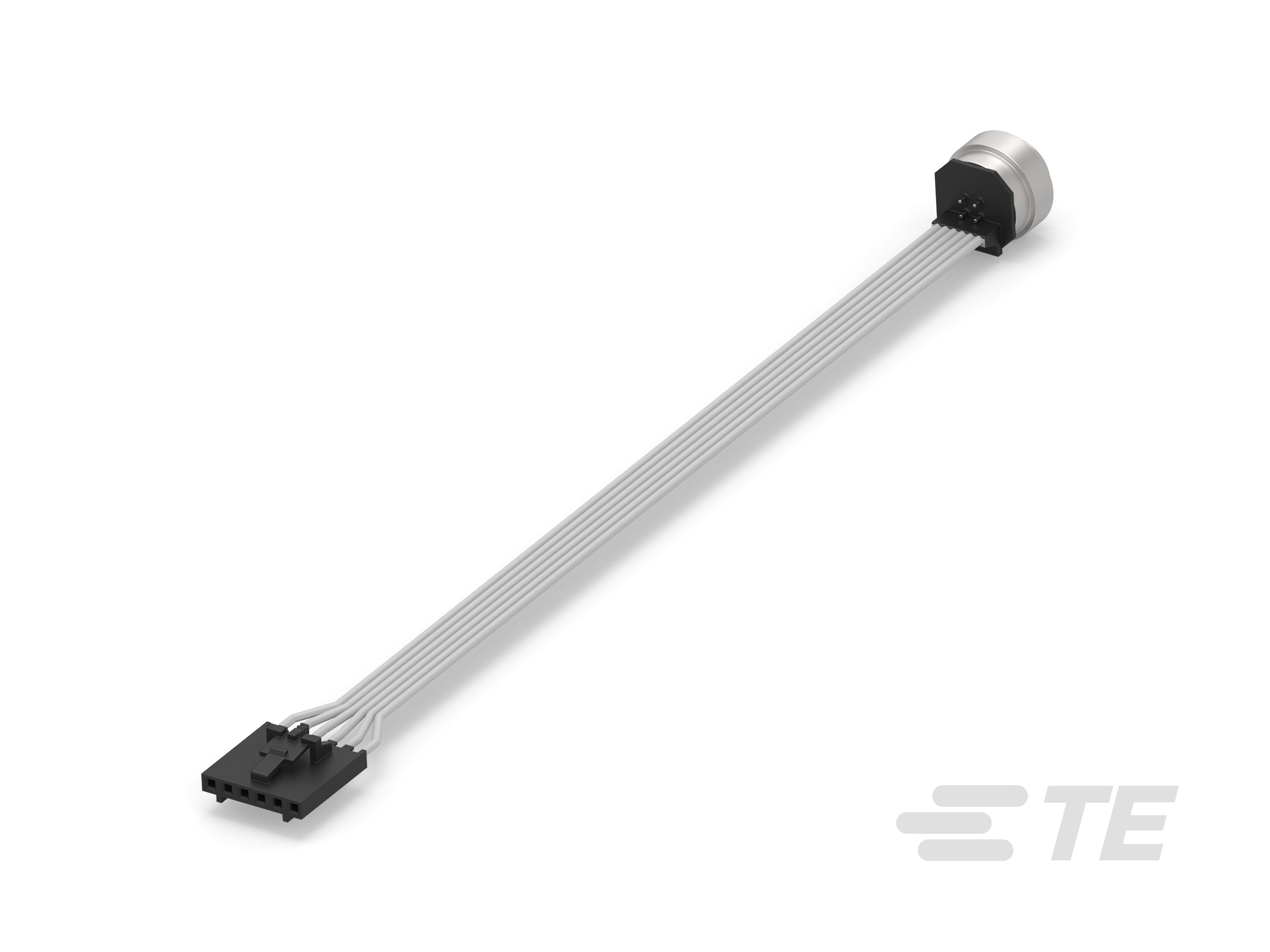

The compensated model 87 is a micro machined piezoresistive silicon pressure sensor. It is designed for OEM applications where compatibility with corrosive media must be maintained. The sensor chip is mounted in a 316L stainless steel package, sealing a small volume of silicon oil between the diaphragm and the sensor chip. The ISO pressure housing utilizes the oil column to couple the piezoresistive sensor to the isolation diaphragm. A thick-film ceramic compensation board with laser trimmed resistors, and additional gain set resistor to normalize pressure sensitivity are an integral part of the sensor package. A variety of threaded process fittings are available. Fittings include standards like 1/4 and 1/8 NPT as well as custom process fittings. Electrical options include cable and connector.
Benefits
- Weldable, Optional Process Fittings
- ±0.25% Pressure Non-linearity
- ±0.75% Temperature Performance
- Solid State Reliability
- Low Power
- Absolute or Sealed Gage
Applications
- Hydraulic Controls
- Process Control
- Robotics
- Oceanography
- Refrigeration/Compressors
- Pressure Transmitters
MORE FROM THE MODEL 87 PRODUCT FAMILY
Please review product documents or contact us for the latest agency approval information.
Operation/Application
-
Proof Pressure Range 3X
-
Output Signal Type 150mV, 100mV
Other
-
Non-Linearity ± (%) .25
-
Port Fitting 1/8-27 NPT (7/8 Hex), None, 1/4-18 NPT, Custom Cable Length, 1/4-18 NPT (7/8 Hex), 1/4-18 NPT (5/8 Hex), 1/4-19 BSP (3/4 Hex), 1/8-27 NPT (5/8 Hex), 1/4-19 BSP (7/8 Hex), Weld ring, 7/16-20 UNF (7/8) Hex
-
EU RoHS Compliance Compliant, Compliant with Exemptions
-
EU ELV Compliance Compliant
Dimensions
-
Product Diameter (mm) 16.8, 23.62
-
Product Diameter (in) .66, .93
-
Product Height (mm) 34.3, 8.94, 13.84
-
Product Height (in) .352, .54, 1.35
Electrical Characteristics
-
Supply Current (mA) 1.5
Configuration Features
-
Electrical Connection Cable, Ribbon Cable, Solder Pads, Cable w/ Connector
Product Type Features
-
Pressure Sensor Type mV Output Pressure Sensors
-
Pressure Type Sealed Gauge, Absolute
-
Sensor Package Weldable, Threaded Process Fittings
Usage Conditions
-
Pressure (bar) 206, 689.4, 689, 0, 69, 344
-
Pressure (psi) 3000, 10000, 0, 5000, 1000
-
Operating Temperature Range -40 – 125 °C [ -40 – 257 °F ]
Reference Number
-
TE Internal Number CAT-MIPS0043
Datasheets & Catalog Pages
- 87NC English
