MXSU-T MV Size Transition Joints

TE Connectivity (TE) Raychem MXSU jointing system offers a comprehensive range of joints for all cable types.

Product Features

Installation Technology : Heat Shrink
Product Availability : Americas, Asia, Australia, New Zealand & Pacific Islands, China, Europe, Middle East & Africa
Installation Instruction : English, German
Joints & Splice Product Type : Transition Joint
Voltage Class (kV): ≤ 12, ≤ 24, ≤ 36, ≤ 17.5

Available from

Product	TE Part #	Documents	Product Availability	Installation Instruction	Voltage Class	Compatible Conductor Cross-Section Range	Compatible Insulation Diameter Range	Compatible Cable Cross-Section - Main (Max)	Compatible Cable Cross-Section - Main (Min)	Compatible Conductor Diameter Range	Sheath Outside Diameter	EU RoHS Compliance	EU ELV Compliance
MXSU-3131-T2	CN7183-011	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, China, Europe, Middle East & Africa	English	≤ 12 kV	25 – 95 mm², 95 – 240 mm²	13.2 – 21.8 mm, 17.6 – 29.4 mm	240 mm²	25 mm²	10.3 – 19.2 mm, 5.2 – 12 mm	23 mm	-	-
MXSU-5171-T8	CU8691-011	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, China, Europe, Middle East & Africa	English	≤ 24 kV	630 – 800 mm²	39.2 – 44.7 mm, 44.8 – 46.9 mm	800 mm²	630 mm²	32 – 33.8 mm, 29 – 32.5 mm	50 mm	-	-
MXSU-3161-T7	CP5159-005	Product Drawing	Europe, Middle East & Africa	German	≤ 12 kV	500 – 630 mm²	33.8 – 37.2 mm, 37.5 – 40 mm	630 mm²	500 mm²	25.5 – 27.6 mm, 29 – 32.5 mm	44 mm	-	-
MXSU-6181-T8	CS4570-011	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, China, Europe, Middle East & Africa	English	≤ 36 kV	630 – 1000 mm²	55.7 – 58.8 mm, 45.8 – 50.5 mm	1000 mm²	630 mm²	38.5 – 39.2 mm, 29 – 32.5 mm	55 mm	-	-
MXSU-5171-T8	CU8691-005	Product Drawing	Europe, Middle East & Africa	German	≤ 24 kV	630 – 800 mm²	39.2 – 44.7 mm, 44.8 – 46.9 mm	800 mm²	630 mm²	32 – 33.8 mm, 29 – 32.5 mm	50 mm	-	-
MXSU-5161-T6	CP4815-011	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, China, Europe, Middle East & Africa	English	≤ 24 kV	400 – 630 mm², 185 – 630 mm²	39.2 – 44.7 mm, 27.4 – 38.8 mm	630 mm²	185 mm²	15.5 – 24.6 mm, 29 – 32.5 mm	35 mm	-	-
MXSU-3151-T6	CN1151-005	Product Drawing	Europe, Middle East & Africa	German	≤ 12 kV	400 – 500 mm², 185 – 500 mm²	33.8 – 37.2 mm, 23.2 – 32.6 mm	500 mm²	185 mm²	25.5 – 27.6 mm, 15.5 – 24.6 mm	33 mm	-	-
MXSU-3161-T6	CP3811-005	Product Drawing	Europe, Middle East & Africa	German	≤ 12 kV	400 – 630 mm², 185 – 630 mm²	23.2 – 32.6 mm, 37.5 – 40 mm	630 mm²	185 mm²	15.5 – 24.6 mm, 29 – 32.5 mm	33 mm	-	-
MXSU-5151-T6	CP4226-005	Product Drawing	Europe, Middle East & Africa	German	≤ 24 kV	400 – 500 mm², 185 – 500 mm²	27.4 – 38.8 mm, 37.2 – 41.6 mm	500 mm²	185 mm²	25.5 – 27.6 mm, 15.5 – 24.6 mm	35 mm	-	-
MXSU-5181-T8	CX9566-005	Product Drawing	Europe, Middle East & Africa	German	≤ 24 kV	630 – 1000 mm²	39.2 – 44.7 mm, 49.4 – 53.2 mm	1000 mm²	630 mm²	38.5 – 39.2 mm, 29 – 32.5 mm	50 mm	-	-
MXSU-5141-T4	CP5162-011	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, China, Europe, Middle East & Africa	English	≤ 24 kV	240 – 400 mm², 95 – 240 mm²	23 – 33.6 mm, 29.9 – 38.8 mm	400 mm²	95 mm²	17.8 – 24.6 mm, 10.3 – 19.2 mm	30 mm	-	-
MXSU-6171-T8	CS4608-011	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, China, Europe, Middle East & Africa	English	≤ 36 kV	630 – 800 mm²	50.1 – 53.4 mm, 45.8 – 50.5 mm	800 mm²	630 mm²	32 – 33.8 mm, 29 – 32.5 mm	55 mm	-	-
MXSU-3151-T6	CN1151-011	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, China, Europe, Middle East & Africa	English	≤ 12 kV	400 – 500 mm², 185 – 500 mm²	33.8 – 37.2 mm, 23.2 – 32.6 mm	500 mm²	185 mm²	25.5 – 27.6 mm, 15.5 – 24.6 mm	33 mm	-	-
MXSU-3161-T6	CP3811-011	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, China, Europe, Middle East & Africa	English	≤ 12 kV	400 – 630 mm², 185 – 630 mm²	23.2 – 32.6 mm, 37.5 – 40 mm	630 mm²	185 mm²	15.5 – 24.6 mm, 29 – 32.5 mm	33 mm	-	-
MXSU-6161-T7	CP4224-011	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, China, Europe, Middle East & Africa	English	≤ 36 kV	500 – 630 mm²	45.8 – 50.5 mm, 40.1 – 46.6 mm	630 mm²	500 mm²	25.5 – 27.6 mm, 29 – 32.5 mm	52 mm	-	-
MXSU-5151-T6	CP4226-011	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, China, Europe, Middle East & Africa	English	≤ 24 kV	400 – 500 mm², 185 – 500 mm²	27.4 – 38.8 mm, 37.2 – 41.6 mm	500 mm²	185 mm²	25.5 – 27.6 mm, 15.5 – 24.6 mm	35 mm	-	-
MXSU-5141-T4	CP5162-005	Product Drawing	Europe, Middle East & Africa	German	≤ 24 kV	240 – 400 mm², 95 – 240 mm²	23 – 33.6 mm, 29.9 – 38.8 mm	400 mm²	95 mm²	17.8 – 24.6 mm, 10.3 – 19.2 mm	30 mm	-	-
MXSU-6161-T6	CP5841-005	Product Drawing	Europe, Middle East & Africa	German	≤ 36 kV	400 – 630 mm², 185 – 630 mm²	32.4 – 42.8 mm, 45.8 – 50.5 mm	630 mm²	185 mm²	15.5 – 24.6 mm, 29 – 32.5 mm	40 mm	-	-
MXSU-6141-T4	CP5163-005	Product Drawing	Europe, Middle East & Africa	German	≤ 36 kV	240 – 400 mm², 95 – 240 mm²	36.2 – 42.8 mm, 27.8 – 37.6 mm	400 mm²	95 mm²	17.8 – 24.6 mm, 10.3 – 19.2 mm	35 mm	-	-
MXSU-4131-T2	CP5152-011	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, China, Europe, Middle East & Africa	English	≤ 17.5 kV	50 – 95 mm², 95 – 240 mm²	20.7 – 31.6 mm, 17.6 – 24 mm	240 mm²	50 mm²	7.7 – 12 mm, 10.3 – 19.2 mm	27 mm	-	-
MXSU-5161-T7	CP5164-011	Product Drawing	-	-	≤ 24 kV	500 – 630 mm²	39.2 – 44.7 mm, 37.2 – 41.6 mm	630 mm²	500 mm²	25.5 – 27.6 mm, 29 – 32.5 mm	48 mm	-	-
MXSU-5131-T2	CP3812-005	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, China, Europe, Middle East & Africa	German	≤ 24 kV	25 – 95 mm², 95 – 240 mm²	23 – 33.6 mm, 17.9 – 26 mm	240 mm²	25 mm²	10.3 – 19.2 mm, 5.2 – 12 mm	25 mm	-	-
MXSU-5161-T7	CP5164-005	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, China, Europe, Middle East & Africa	German	≤ 24 kV	500 – 630 mm²	39.2 – 44.7 mm, 37.2 – 41.6 mm	630 mm²	500 mm²	25.5 – 27.6 mm, 29 – 32.5 mm	48 mm	-	-
MXSU-3161-T7	CP5159-011	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, China, Europe, Middle East & Africa	English	≤ 12 kV	500 – 630 mm²	33.8 – 37.2 mm, 37.5 – 40 mm	630 mm²	500 mm²	25.5 – 27.6 mm, 29 – 32.5 mm	44 mm	-	-
MXSU-3141-T4	CP5161-011	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, China, Europe, Middle East & Africa	English	≤ 12 kV	95 – 185 mm², 240 – 400 mm²	23.2 – 32.6 mm, 17.6 – 29.4 mm	400 mm²	95 mm²	15.5 – 24.6 mm, 10.3 – 19.2 mm	26 mm	-	-
MXSU-6151-T6	CP5840-005	Product Drawing	Europe, Middle East & Africa	German	≤ 36 kV	400 – 500 mm², 185 – 500 mm²	32.4 – 42.8 mm, 40.1 – 46.6 mm	500 mm²	185 mm²	25.5 – 27.6 mm, 15.5 – 24.6 mm	40 mm	-	-
MXSU-3131-T2	CN7183-005	Product Drawing	Europe, Middle East & Africa	German	≤ 12 kV	25 – 95 mm², 95 – 240 mm²	13.2 – 21.8 mm, 17.6 – 29.4 mm	240 mm²	25 mm²	10.3 – 19.2 mm, 5.2 – 12 mm	23 mm	-	-
MXSU-6161-T6	CP5841-011	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, China, Europe, Middle East & Africa	English	≤ 36 kV	400 – 630 mm², 185 – 630 mm²	32.4 – 42.8 mm, 45.8 – 50.5 mm	630 mm²	185 mm²	15.5 – 24.6 mm, 29 – 32.5 mm	40 mm	-	-
MXSU-6171-T8	CS4608-005	Product Drawing	Europe, Middle East & Africa	German	≤ 36 kV	630 – 800 mm²	50.1 – 53.4 mm, 45.8 – 50.5 mm	800 mm²	630 mm²	32 – 33.8 mm, 29 – 32.5 mm	55 mm	-	-
MXSU-3181-T8	CH5694-011	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, China, Europe, Middle East & Africa	English	≤ 12 kV	630 – 1000 mm²	45 – 47.5 mm, 37.5 – 40 mm	1000 mm²	630 mm²	38.5 – 39.2 mm, 29.3 – 32.5 mm	47 mm	-	-
MXSU-6141-T4	CP5163-011	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, China, Europe, Middle East & Africa	English	≤ 36 kV	240 – 400 mm², 95 – 240 mm²	36.2 – 42.8 mm, 27.8 – 37.6 mm	400 mm²	95 mm²	17.8 – 24.6 mm, 10.3 – 19.2 mm	35 mm	-	-
MXSU-6161-T7	CP4224-005	Product Drawing	Europe, Middle East & Africa	German	≤ 36 kV	500 – 630 mm²	45.8 – 50.5 mm, 40.1 – 46.6 mm	630 mm²	500 mm²	25.5 – 27.6 mm, 29 – 32.5 mm	52 mm	-	-
MXSU-6151-T6	CP5840-011	Product Drawing	Americas, Asia, Australia, New Zealand & Pacific Islands, China, Europe, Middle East & Africa	English	≤ 36 kV	400 – 500 mm², 185 – 500 mm²	32.4 – 42.8 mm, 40.1 – 46.6 mm	500 mm²	185 mm²	25.5 – 27.6 mm, 15.5 – 24.6 mm	40 mm	-	-
MXSU-5161-T6	CP4815-005	Product Drawing	Europe, Middle East & Africa	German	≤ 24 kV	400 – 630 mm², 185 – 630 mm²	39.2 – 44.7 mm, 27.4 – 38.8 mm	630 mm²	185 mm²	15.5 – 24.6 mm, 29 – 32.5 mm	35 mm	-	-

Overview

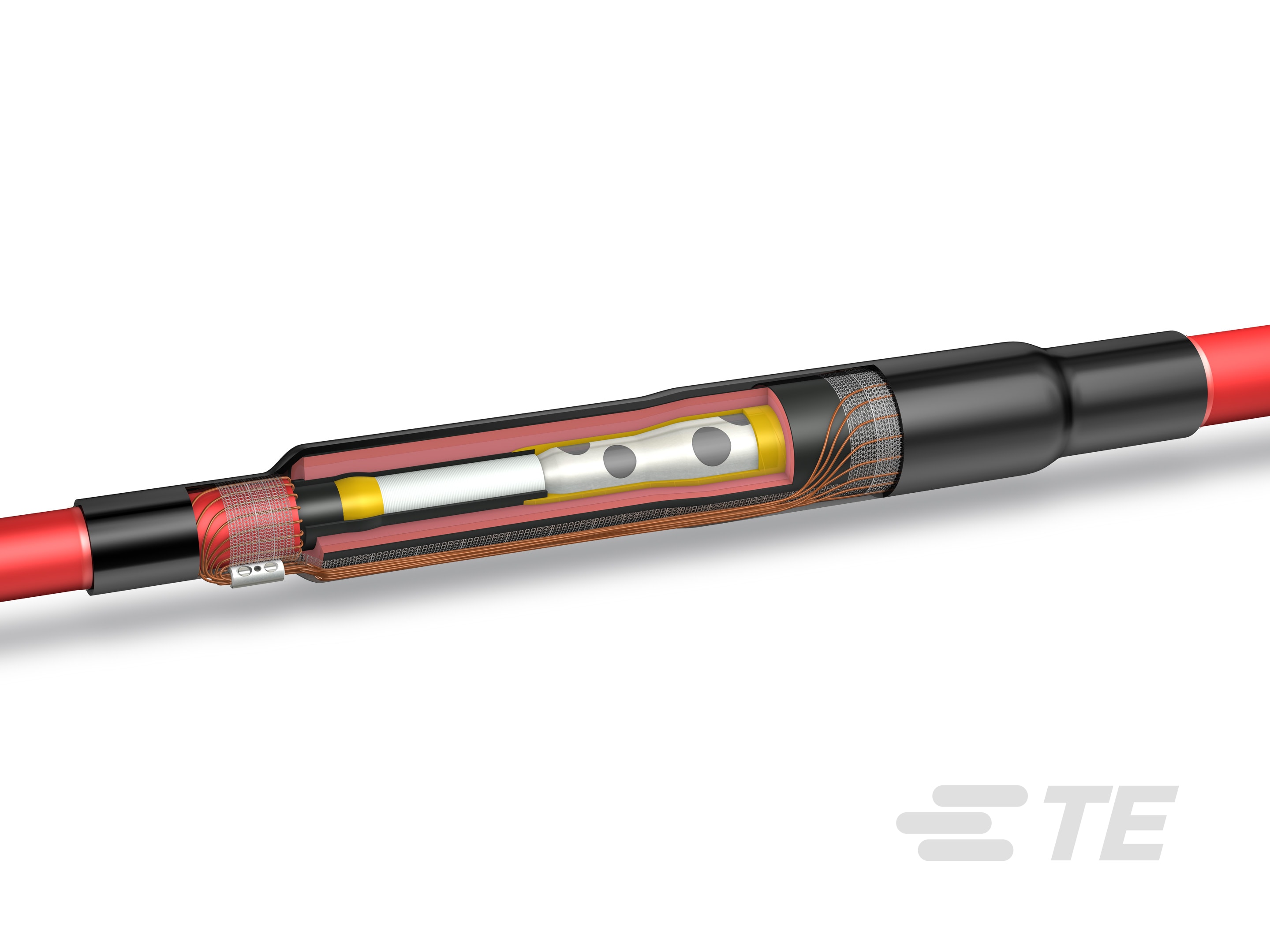

TE’s Raychem MXSU-Tx jointing system is based on a joint design using mechanical connectors for conductor and wire shield. The MXSU-Tx jointing system is tailored for connections of large differences of cross-sections and conductor constructions, e.g. 25 to 240 mm², Cu/rm to Al/re. Further, the kits are widely range taking and cover most conductor constructions including their tolerances. The kits are delivered with mechanical connectors. It is due to these mechanical connectors that the joints are easy to install, no crimping tool is needed when connecting the cables, no tool maintenance required. TE’s MXSU-Tx are short joints of a space saving design, an essential characteristic when space is limited. Reliability and performance are essential when it comes to customer demands and the MXSU-Tx exceed international performance standards including CENELEC HD 629 or IEC 60502-4 for joints.

KEY FEATURES

All-inclusive kit for extreme size transitions
Based on elastomeric triple layers joint sleeves
Short and slim design
Requires no crimping tool
Includes mechanical connectors
Standard MXSU design
Meets CENELEC HD 629

KNOW MORE

Joints And Splices
Product Family Group

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Shelf Life Unlimited
Power Component Options Compression Lug Included (Shield), Mechanical Connectors Included, Mechanical Lug Included (Conductor), Mechanical Lug Included (Shield)
Joints & Splices Connector Type Mechanical
Installation Technology Heat Shrink
Joints & Splice Product Type Transition Joint
Cable Shield Style Wire

Configuration Features

Number of Cores 1

Electrical Characteristics

Voltage Class (kV) ≤ 12, ≤ 24, ≤ 36, ≤ 17.5

Body Features

Insulation Material Polymeric

Dimensions

Compatible Conductor Cross-Section Range (mm²) 500 – 630, 400 – 630, 400 – 500, 25 – 95, 630 – 1000, 185 – 500, 95 – 185, 185 – 630, 95 – 240, 50 – 95, 240 – 400, 630 – 800
Compatible Insulation Diameter Range (mm) 23 – 33.6, 44.8 – 46.9, 17.9 – 26, 17.6 – 24, 32.4 – 42.8, 20.7 – 31.6, 33.8 – 37.2, 55.7 – 58.8, 40.1 – 46.6, 45.8 – 50.5, 45 – 47.5, 39.2 – 44.7, 13.2 – 21.8, 50.1 – 53.4, 37.2 – 41.6, 49.4 – 53.2, 37.5 – 40, 27.4 – 38.8, 23.2 – 32.6, 36.2 – 42.8, 17.6 – 29.4, 29.9 – 38.8, 27.8 – 37.6
Compatible Insulation Diameter Range (in) 45 – 47.6, .519 – .858, 1.76 – 1.85, 1.46 – 1.63, 1.57 – 1.83, 1.8 – 1.988, 1.8 – 1.99, 1.09 – 1.48, .692 – 1.157, 2.2 – 2.31, 1.33 – 1.46, 1.07 – 1.52, .905 – 1.322, .814 – 1.244, 1.54 – 1.76, 1.42 – 1.685, .704 – 1.023, 1.94 – 2.09, .692 – .944, 1.18 – 1.52, 1.97 – 2.1, 1.54 – 1.75, .905 – 1.32, 1.8 – 1.98, .913 – 1.28, 1.275 – 1.685, .913 – 1.283, 1.47 – 1.57
Compatible Cable Cross-Section - Main (Max) (mm²) 240, 400, 500, 630, 800, 1000
Compatible Cable Cross-Section - Main (Min) (mm²) 25, 50, 95, 185, 500, 630
Compatible Conductor Diameter Range (mm) 29 – 32.5, 10.3 – 19.2, 5.2 – 12, 29.3 – 32.5, 7.7 – 12, 15.5 – 24.6, 38.5 – 39.2, 25.5 – 27.6, 32 – 33.8, 17.8 – 24.6
Compatible Conductor Diameter Range (in) 38.5 – 39.2, 1.25 – 1.33, .303 – .472, .61 – .968, 1 – 1.08, 1.51 – 1.54, 1.14 – 1.28, .204 – .472, .7 – .968, .405 – .755, 1.26 – 1.33, 1.14 – 1.27, 1.14 – 2.28
Sheath Outside Diameter (mm) 23, 25, 26, 27, 30, 33, 35, 40, 44, 47, 48, 50, 52, 55
Sheath Outside Diameter (in) .905, .984, 1.02, 1.06, 1.18, 1.29, 1.3, 1.37, 1.57, 1.73, 1.85, 1.88, 1.96, 2.04, 2.16

Industry Standards

Compatible With Approved Standards Products HD CENELEC 629.1, IEC 60502-4

Product Availability

Product Availability Americas, Asia, Australia, New Zealand & Pacific Islands, China, Europe, Middle East & Africa

Packaging Features

Packaging Quantity 1

Other

Installation Instruction English, German

Reference Number

TE Internal Number CAT-MXSU-SZ-TRANS
