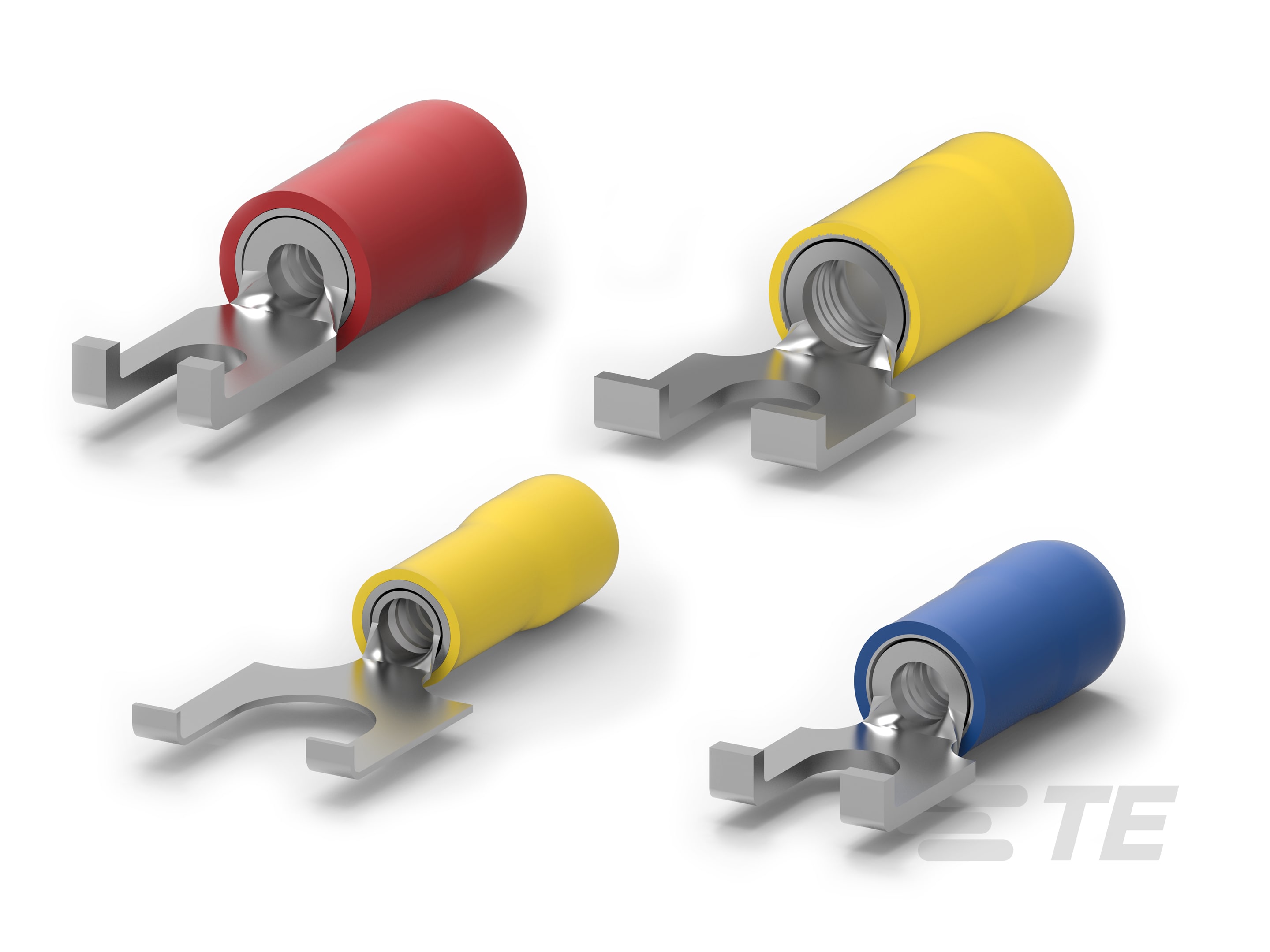

PIDG Flanged Spade Tongue Terminals

PIDG

Pre-Insulated Diamond Grip (PIDG) Flanged Spade Tongue Terminals

More Less

Datasheet |
Digital Datasheet|

Product Features

Spade Terminal Type : Spade Flange Tongue Terminal, Spade Tongue Terminal
Wire Size (AWG): 22, 12 – 10, 22 – 16, 16 – 14, 26 – 22
Wire Size (mm²): 3 – 6, .3 – 1.42, 2.62 – 6.64, .3 – 1.3, 3.31 – 5.26, .326 – 1.31, 1.25 – 2, .12 – .4
Wire Size (CMA): 5180 – 13100, 509 – 3260, 2050 – 5180, 202 – 810
Stud Size : M3.5,

Available from

Product	TE Part #	Documents	Spade Terminal Type	Wire Size	Wire Size	Wire Size	Stud Size	Stud Diameter	Tongue Thickness	Product Length	Operating Temperature Range	Wire Insulation Support Retention Type	Compatible Insulation Diameter (Max)	Compatible Insulation Diameter Range	Packaging Method
TERMINAL,PIDG SPD FLG 16-14 6 Buy on te.com	320861	Product Drawing 3D PDF	Spade Flange Tongue Terminal	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#6, M3.5	3.51 mm	.84 mm	18.7 mm	-	Non-Insulation Support	4.32 mm	2.92 – 4.31 mm	Box
PIDG SPDFLG 22-16COMM22-18MIL2	324608	Product Drawing 3D PDF	Spade Flange Tongue Terminal	22 – 16 AWG	.326 – 1.31 mm²	509 – 3260 CMA	M2, #2	2.18 mm	.79 mm	19.25 mm	-	Insulation Support	3.56 mm	2.67 – 3.56 mm	Loose Piece
TERMINAL,PIDG SPD FLG 16-14 8 Buy on te.com	8-320862-1	Product Drawing 3D PDF	Spade Flange Tongue Terminal	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#8, M4	4.17 mm	.79 mm	18.72 mm	-	Insulation Support	4.32 mm	2.92 – 4.31 mm	Loose Piece
TERMINAL,PIDG SPD FLG 16-14 8 Buy on te.com	2-320862-1	Product Drawing 3D PDF	Spade Flange Tongue Terminal	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#8, M4	4.17 mm	.79 mm	18.72 mm	-	Insulation Support	4.32 mm	2.92 – 4.31 mm	Tape Mounted
PIDG SPDFLG 22-16COM22-18MIL 8 Buy on te.com	2-32562-2	Product Drawing 3D PDF	Spade Flange Tongue Terminal	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#8, M4	4.34 mm	.79 mm	18.72 mm	-	Insulation Support	3.56 mm	2.67 – 3.56 mm	Loose Piece
PIDG SPDFLG 22-16COM22-18MIL 8 Buy on te.com	32498	Product Drawing 3D PDF	Spade Flange Tongue Terminal	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#8, M4	4.17 mm	.84 mm	21.08 mm	-	Non-Insulation Support	3.56 mm	2.67 – 3.56 mm	Loose Piece
PIDG SPDFLG 22-16COM22-18MIL 8	32497	Product Drawing 3D PDF	Spade Flange Tongue Terminal	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#8, M4	4.17 mm	.84 mm	21.08 mm	-	Non-Insulation Support	3.18 mm	2.03 – 3.18 mm	Loose Piece
TERMINAL,PIDG SPD FLG 12-10 10 Buy on te.com	326865	Product Drawing 3D PDF	Spade Flange Tongue Terminal	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	#10	5 mm	.79 mm	25.83 mm	-	Insulation Support	5.84 mm	3.81 – 5.84 mm	Loose Piece
PIDG SPD FLG22-16COM22-18MIL2 Buy on te.com	8-324608-1	Product Drawing 3D PDF	Spade Flange Tongue Terminal	22 – 16 AWG	.326 – 1.31 mm²	509 – 3260 CMA	M2, #2	2.18 mm	.79 mm	19.25 mm	-	Insulation Support	3.56 mm	2.67 – 3.56 mm	Loose Piece
TERMINAL,PIDG SPD FLG 12-10 6	324577	Product Drawing 3D PDF	Spade Flange Tongue Terminal	12 – 10 AWG	3.31 – 5.26 mm²	5180 – 13100 CMA	#6, M3.5	3.51 mm	.79 mm	25.83 mm	-	Insulation Support	5.84 mm	3.81 – 5.84 mm	Loose Piece
PIDG SPDFLG 22-16COMM22-18MIL6	322426	Product Drawing 3D PDF	Spade Flange Tongue Terminal	22 – 16 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#6, M3.5	3.68 mm	.79 mm	18.72 mm	-40 – 105 °C	Non-Insulation Support	3.56 mm	2.67 – 3.56 mm	Loose Piece
TERMINAL,PIDG SPD FLG 26-22 6 Buy on te.com	8-51874-1	Product Drawing 3D PDF	Spade Flange Tongue Terminal	26 – 22 AWG	.12 – .4 mm²	202 – 810 CMA	#6, M3.5	3.51 mm	.46 mm	16.48 mm	-	Insulation Support	2.08 mm	1.27 – 2.08 mm	Loose Piece
PIDG SPDFLG 22-16COMM22-18MIL2 Buy on te.com	2-324608-1	Product Drawing 3D PDF	Spade Flange Tongue Terminal	22 – 16 AWG	.326 – 1.31 mm²	509 – 3260 CMA	M2, #2	2.18 mm	.79 mm	19.25 mm	-	Insulation Support	3.56 mm	2.67 – 3.56 mm	Tape Mounted
PIDG SPD FLG22-16COM22-18MIL 2 Buy on te.com	2-324608-2	Product Drawing 3D PDF	Spade Flange Tongue Terminal	22 – 16 AWG	.326 – 1.31 mm²	509 – 3260 CMA	M2, #2	2.18 mm	.79 mm	19.25 mm	-	Insulation Support	3.18 mm	2.03 – 3.18 mm	Loose Piece
PIDG SPDFLG 22-16COMM22-18MIL6 Buy on te.com	2-322777-1	Product Drawing 3D PDF	Spade Flange Tongue Terminal	22 – 16 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#6, M3.5	3.51 mm	.79 mm	18.72 mm	-	Insulation Support	3.18 mm	2.03 – 3.18 mm	Tape Mounted
PIDG SPDFLG 22-16COMM22-18MIL6 Buy on te.com	2-32561-1	Product Drawing 3D PDF	Spade Flange Tongue Terminal	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#6, M3.5	3.68 mm	.79 mm	18.71 mm	-	Insulation Support	3.18 mm	2.03 – 3.18 mm	Tape Mounted
PIDG SPDFLG 22-16COMM22-18MIL8 Buy on te.com	2-32562-3	Product Drawing 3D PDF	Spade Flange Tongue Terminal	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#8, M4	4.34 mm	.79 mm	18.72 mm	-	Insulation Support	3.56 mm	2.67 – 3.56 mm	Tape Mounted
TERMINAL,PIDG SPD FLG 16-14 6 Buy on te.com	2-320861-1	Product Drawing 3D PDF	Spade Flange Tongue Terminal	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#6, M3.5	3.51 mm	.79 mm	18.72 mm	-	Insulation Support	4.32 mm	2.92 – 4.31 mm	Tape Mounted
TERMINAL,PIDG SPD FLG 12-10 10 Buy on te.com	2-324015-1	Product Drawing 3D PDF	Spade Flange Tongue Terminal	12 – 10 AWG	3 – 6 mm²	5180 – 13100 CMA	#10	4.82 mm	.79 mm	25.83 mm	-	Insulation Support	6.35 mm	3.81 – 6.35 mm	Tape Mounted
TERMINAL,PIDG SPD FLG 26-22 4 Buy on te.com	52369-1	Product Drawing 3D PDF	Spade Flange Tongue Terminal	26 – 22 AWG	.12 – .4 mm²	202 – 810 CMA	M2.5, #4	2.84 mm	.79 mm	16.49 mm	-	Insulation Support	2.08 mm	1.27 – 2.08 mm	Tape Mounted
PIDG SPDFLG 22-16COMM22-18MIL6 Buy on te.com	32561	Product Drawing 3D PDF	Spade Flange Tongue Terminal	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#6, M3.5	3.68 mm	.84 mm	18.71 mm	-	Non-Insulation Support	3.18 mm	2.03 – 3.18 mm	Loose Piece
PIDG SPDFLG 22-16COMM22-18MIL6 Buy on te.com	8-32562-1	Product Drawing 3D PDF	Spade Flange Tongue Terminal	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#6, M3.5	3.68 mm	.79 mm	18.72 mm	-	Insulation Support	3.56 mm	2.67 – 3.56 mm	Loose Piece
TERMINAL,PIDG SPD FLG 16-14 6 Buy on te.com	2-320861-2	Product Drawing 3D PDF	Spade Flange Tongue Terminal	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#6, M3.5	3.51 mm	.84 mm	18.7 mm	-	Non-Insulation Support	3.81 mm	2.67 – 3.81 mm	Box
TERMINAL,PIDG SPD FLG 26-22 4 Buy on te.com	52369	Product Drawing 3D PDF	Spade Flange Tongue Terminal	26 – 22 AWG	.12 – .4 mm²	202 – 810 CMA	M2.5, #4	2.84 mm	.5 mm	16.5 mm	-	Insulation Support	2.08 mm	1.27 – 2.08 mm	Loose Piece
PIDG SPDFLG 22-16COMM22-18MIL6 Buy on te.com	2-32562-1	Product Drawing 3D PDF	Spade Flange Tongue Terminal	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#6, M3.5	3.68 mm	.79 mm	18.72 mm	-	Insulation Support	3.56 mm	2.67 – 3.56 mm	Tape Mounted
TERMINAL,PIDG SPD FLG 12-10 10 Buy on te.com	8-324015-2	Product Drawing 3D PDF	Spade Flange Tongue Terminal	12 – 10 AWG	3 – 6 mm²	5180 – 13100 CMA	#10	4.82 mm	1.07 mm	25.83 mm	-	Insulation Support	3.18 mm	2.03 – 3.18 mm	Loose Piece
TERMINAL,PIDG SPD FLG 26-22 6	51874	Product Drawing 3D PDF	Spade Flange Tongue Terminal	26 – 22 AWG	.12 – .4 mm²	202 – 810 CMA	M3.5	3.51 mm	.5 mm	16.48 mm	-	Insulation Support	2.08 mm	1.27 – 2.08 mm	Loose Piece
TERMINAL,PIDG SPD FLG 16-14 8 Buy on te.com	320862	Product Drawing 3D PDF	Spade Flange Tongue Terminal	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#8, M4	4.17 mm	.84 mm	18.72 mm	-	Non-Insulation Support	4.32 mm	2.92 – 4.31 mm	Box
TERMINAL,PIDG SPD FLG 12-10 8	2-32510-1	Product Drawing 3D PDF	Spade Flange Tongue Terminal	12 – 10 AWG	3 – 6 mm²	5180 – 13100 CMA	#8, M4	4.17 mm	1.07 mm	25.83 mm	-	Non-Insulation Support	5.84 mm	3.81 – 5.84 mm	Tape Mounted
TERMINAL,PIDG SPD FLG 16-14 6 Buy on te.com	8-320861-1	Product Drawing 3D PDF	Spade Flange Tongue Terminal	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#6, M3.5	3.51 mm	.84 mm	18.7 mm	-	Non-Insulation Support	4.32 mm	2.92 – 4.31 mm	Loose Piece
PIDG SPDFLG 22-16COM22-18MIL 8 Buy on te.com	2-32498-1	Product Drawing 3D PDF	Spade Flange Tongue Terminal	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#8, M4	4.17 mm	.79 mm	21.08 mm	-	Insulation Support	3.56 mm	2.67 – 3.56 mm	Tape Mounted
TERMINAL,PIDG SPD FLG 12-10 6	325150	Product Drawing 3D PDF	Spade Flange Tongue Terminal	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	#6, M3.5	3.68 mm	.79 mm	26.82 mm	-	Insulation Support	6.35 mm	3.81 – 6.35 mm	Loose Piece
TERMINAL,PIDG SPD FLG 12-10 6	1-325150-0	Product Drawing 3D PDF	Spade Flange Tongue Terminal	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	#6, M3.5	3.68 mm	.79 mm	26.82 mm	-	Insulation Support	6.35 mm	3.81 – 6.35 mm	Tape & Reel
PIDG SPDFLG 22-16COM22-18MIL10 Buy on te.com	1-331366-1	Product Drawing 3D PDF	Spade Tongue Terminal	22 – 16 AWG	.3 – 1.3 mm²	509 – 3260 CMA	#10	5 mm	.79 mm	18.72 mm	-	Insulation Support	3.56 mm	2.67 – 3.56 mm	Tape Mounted
TERMINAL,PIDG SPD FLG 12-10 10	324015	Product Drawing 3D PDF	Spade Flange Tongue Terminal	12 – 10 AWG	3 – 6 mm²	5180 – 13100 CMA	#10	4.82 mm	.79 mm	25.83 mm	-	Insulation Support	3.18 mm	2.03 – 3.18 mm	Loose Piece
PIDG SPDFLG 22-16COMM22-18MIL6 Buy on te.com	32562	Product Drawing 3D PDF	Spade Flange Tongue Terminal	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#6, M3.5	3.68 mm	.79 mm	18.72 mm	-	Non-Insulation Support	3.56 mm	2.67 – 3.56 mm	Loose Piece
PIDG SPDFLG 22-16COM22-18MIL10 Buy on te.com	1-331366-0	Product Drawing 3D PDF	Spade Tongue Terminal	22 – 16 AWG	.3 – 1.3 mm²	509 – 3260 CMA	#10	5 mm	.79 mm	18.72 mm	-	Insulation Support	3.56 mm	2.67 – 3.56 mm	Loose Piece
TERMINAL,PIDG SPD FLG 16-14 10 Buy on te.com	320863	Product Drawing 3D PDF	Spade Flange Tongue Terminal	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#10	4.82 mm	.84 mm	18.7 mm	-	Non-Insulation Support	4.32 mm	2.92 – 4.31 mm	Box
TERMINAL,PIDG SPD FLG 26-22 2 Buy on te.com	324597	Product Drawing 3D PDF	Spade Flange Tongue Terminal	26 – 22 AWG	.12 – .4 mm²	202 – 810 CMA	M2, #2	2.36 mm	.79 mm	16.94 mm	-	Insulation Support	2.08 mm	1.27 – 2.08 mm	Loose Piece
TERMINAL,PIDG SPD FLG 12-10 8 Buy on te.com	8-32510-2	Product Drawing 3D PDF	Spade Flange Tongue Terminal	12 – 10 AWG	3 – 6 mm²	5180 – 13100 CMA	#8, M4	4.17 mm	1.07 mm	25.83 mm	-	Non-Insulation Support	5.84 mm	3.81 – 5.84 mm	Loose Piece
TERMINAL,PIDG SPD FLG 16-14 10 Buy on te.com	2-320863-2	Product Drawing 3D PDF	Spade Flange Tongue Terminal	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#10	4.82 mm	.79 mm	18.72 mm	-	Insulation Support	4.32 mm	2.92 – 4.31 mm	Tape Mounted
PIDG SPDFLG 22-16COMM22-18MIL6 Buy on te.com	8-322777-1	Product Drawing 3D PDF	Spade Flange Tongue Terminal	22 – 16 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#6, M3.5	3.68 mm	.79 mm	18.72 mm	-	Insulation Support	3.18 mm	2.03 – 3.18 mm	Loose Piece
TERMINAL,PIDG SPD FLG 12-10 6 Buy on te.com	1-324577-0	Product Drawing 3D PDF	Spade Flange Tongue Terminal	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	#6, M3.5	3.51 mm	.79 mm	25.83 mm	-	Insulation Support	5.84 mm	3.81 – 5.84 mm	Tape Mounted
TERMINAL,PIDG SPD FLG 12-10 6 Buy on te.com	324587	Product Drawing 3D PDF	Spade Flange Tongue Terminal	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	#6, M3.5	3.68 mm	.79 mm	26.82 mm	-	Insulation Support	5.84 mm	3.81 – 5.84 mm	Loose Piece
TERMINAL,PIDG SPD FLG 12-10 8	32510	Product Drawing 3D PDF	Spade Flange Tongue Terminal	12 – 10 AWG	3 – 6 mm²	5180 – 13100 CMA	#8, M4	4.17 mm	1.07 mm	25.83 mm	-	Non-Insulation Support	5.84 mm	3.81 – 5.84 mm	Loose Piece
TERMINAL,PIDG SPD FLG 12-10 6 Buy on te.com	8-325150-2	Product Drawing 3D PDF	Spade Flange Tongue Terminal	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	#6, M3.5	3.68 mm	1.07 mm	26.82 mm	-	Insulation Support	6.35 mm	3.81 – 6.35 mm	Loose Piece
PIDG SPDFLG 22-16COM22-18MIL 8	2-32497-1	Product Drawing 3D PDF	Spade Flange Tongue Terminal	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#8, M4	4.17 mm	.84 mm	21.08 mm	-	Non-Insulation Support	3.18 mm	2.03 – 3.18 mm	Tape Mounted
PIDG SPDFLG 22-16COMM22-18MIL6 Buy on te.com	322777	Product Drawing 3D PDF	Spade Flange Tongue Terminal	22 – 16 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#6, M3.5	3.68 mm	.84 mm	18.7 mm	-40 – 105 °C	Non-Insulation Support	3.18 mm	2.03 – 3.18 mm	Loose Piece
TERMINAL,PIDG SPD FLG 16-14 10	8-320863-1	Product Drawing 3D PDF	Spade Flange Tongue Terminal	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#10	4.82 mm	.84 mm	18.7 mm	-	Non-Insulation Support	4.32 mm	2.92 – 4.31 mm	Tape Mounted
PIDG SPDFLG 22-16COMM22-18MIL6	8-32561-1	Product Drawing 3D PDF	Spade Flange Tongue Terminal	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#6, M3.5	3.68 mm	.84 mm	18.71 mm	-	Non-Insulation Support	3.18 mm	2.03 – 3.18 mm	Loose Piece
TERMINAL,PIDG SPD FLG 26-22 6	51874-1	Product Drawing 3D PDF	Spade Flange Tongue Terminal	26 – 22 AWG	.12 – .4 mm²	202 – 810 CMA	#6, M3.5	3.51 mm	.79 mm	16.48 mm	-	Insulation Support	2.08 mm	1.27 – 2.08 mm	Tape Mounted

Features

Please review product documents or contact us for the latest agency approval information.

Electrical Characteristics

Voltage Rating (V) 300

Mechanical Attachment

Wire Insulation Support With

Product Type Features

Terminal Features Sheared
Stud Size M3.5,
Sealable No
Wire Insulation Support Retention Type Non-Insulation Support, Insulation Support

Body Features

Product Weight (g) .963, 1.003, .942, .31, .912, .681, 2.293, 1.576, .764, .745, 2.516, .314, .16, .839, .945, .996, .976, .624, .97, .691, 2.575, .96, .713, .788, 2.447, 2.04
Insulation Sleeve Color Red, Yellow
Stripe Color Yellow, Red

Industry Standards

Government Qualified Terminal No

Packaging Features

Packaging Quantity 100, 1000, 5000, 2500, 500, 50
Packaging Method Tape & Reel, Box, Tape Mounted, Loose Piece

Configuration Features

Number of Holes 1

Contact Features

Spade Terminal Type Spade Flange Tongue Terminal, Spade Tongue Terminal
Barrel Type Closed
Terminal Orientation Flanged
Terminal Plating Material Tin

Dimensions

Wire Size (AWG) 22, 12 – 10, 22 – 16, 16 – 14, 26 – 22
Wire Size (mm²) 3 – 6, .3 – 1.42, 2.62 – 6.64, .3 – 1.3, 3.31 – 5.26, .326 – 1.31, 1.25 – 2, .12 – .4
Wire Size (CMA) 5180 – 13100, 509 – 3260, 2050 – 5180, 202 – 810
Stud Diameter (mm) 2.36, 4.82, 4.34, 2.18, 2.84, 3.68, 3.51, 5, 4.17
Stud Diameter (in) .171, .138, .112, .164, .197, .19, .145, .086, .093
Tongue Thickness (mm) .84, .79, 1.07, .5, .46
Tongue Thickness (in) .02, .033, .042, .031, .018
Product Length (mm) 18.71, 21.08, 25.83, 18.7, 26.82, 16.49, 16.48, 16.5, 16.94, 18.72, 19.25
Product Length (in) .758, 1.017, 1.056, .667, .737, .649, .83
Compatible Insulation Diameter (Max) (mm) 2.08, 6.35, 3.18, 3.81, 5.84, 3.56, 4.32
Compatible Insulation Diameter (Max) (in) .17, .14, .125, .082, .25, .23, .15
Compatible Insulation Diameter Range (mm) 2.67 – 3.56, 1.27 – 2.08, 2.67 – 3.81, 3.81 – 6.35, 2.92 – 4.31, 3.81 – 5.84, 2.03 – 3.18
Compatible Insulation Diameter Range (in) .105 – .15, .08 – .125, .15 – .23, .05 – .082, .15 – .25, .115 – .17, .105 – .14

Usage Conditions

Insulation Option Partially Insulated
Operating Temperature Range -40 – 105 °C [ -40 – 221 °F ]

Operation/Application

Compatible With Wire Base Material Copper
Compatible With Wire Plating Material Tin

Other

EU RoHS Compliance Compliant
EU ELV Compliance Compliant

Reference Number

TE Internal Number CAT-P592-F614

Related Materials

Datasheets & Catalog Pages

PIDG TERMINALS & SPLICES Quick Reference Guide pdf English
